INTRODUCTION

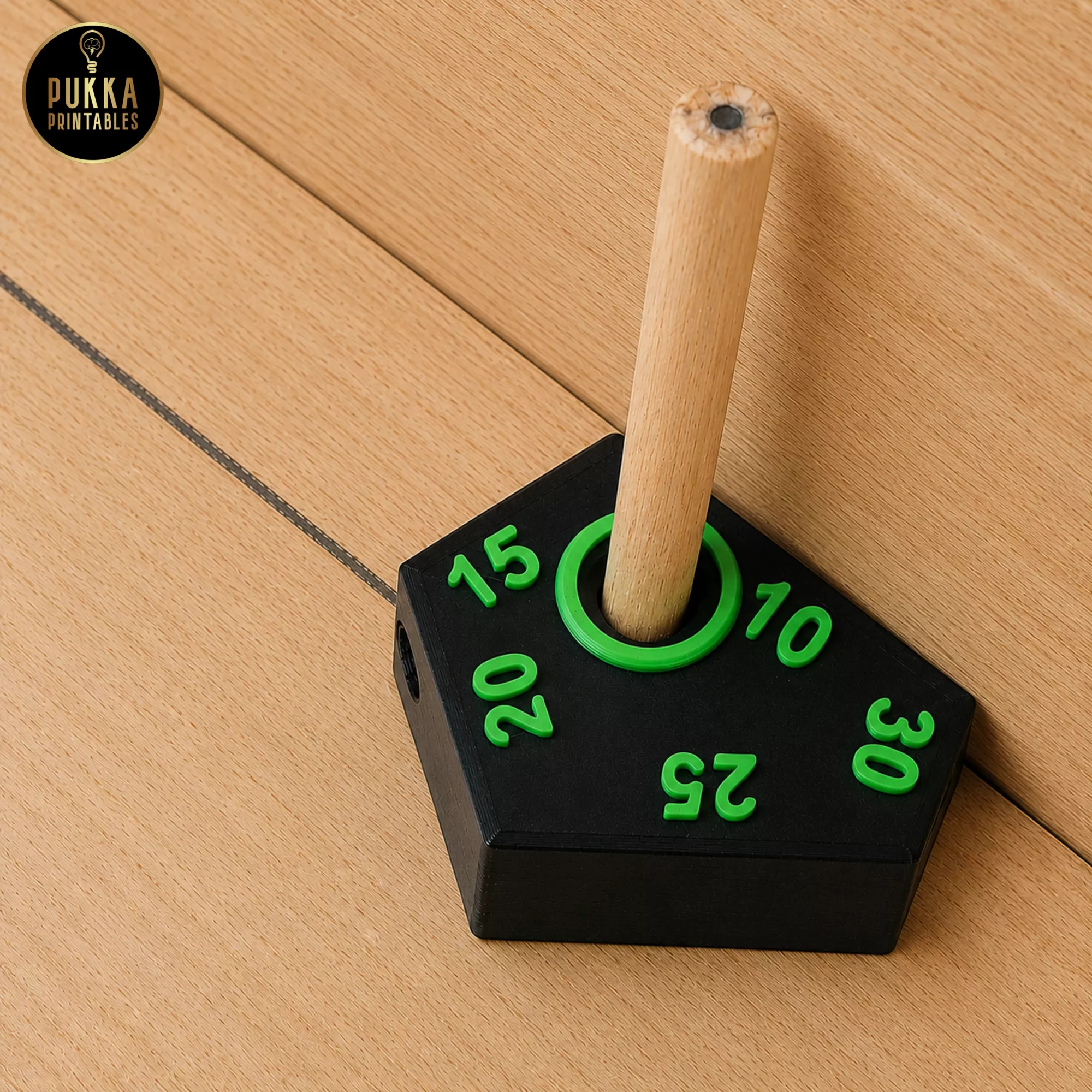

The Scribe Offset Marking Tool is a compact printable guide for marking consistent lines parallel to an edge or surface. Five fixed offset positions—10, 15, 20, 25 and 30 mm—let you choose the marking distance without repeatedly measuring from the edge.

Insert a compatible pencil into the approximately 8 mm splined gripping hole, place the selected side against the reference edge and mark the workpiece as you move along it. This design is intended for carpenters, joiners, builders, cabinet makers, fitters, tradespeople and DIY users.

WHY YOU'LL LOVE IT

• Combines five useful offset positions in one model

• Provides clearly identifiable marking distances

• Supports simple one-handed use

• Compact shape is convenient for a workshop or site toolkit

• Contains no moving components

WHAT YOU'LL RECEIVE

1 x Scribe Offset Marking Tool STL file

RECOMMENDED PRINT SETTINGS

Material: PLA

Layer Height: 0.2 mm or 0.3 mm

Nozzle Size: 0.4 mm or 0.6 mm

Supports: None

Print Orientation: Base on bed

Assembly: No assembly required after printing. Insert a compatible pencil into the centre gripping hole before use.

PERFECT FOR

• Marking timber, panels and cabinetry

• Worktops, trim and flooring projects

• Carpenters, joiners and cabinet makers

• Builders, kitchen fitters and shop fitters

• DIY enthusiasts and general tradespeople

LICENCE INFORMATION

• This purchase is for digital STL files only.

• This STL file is supplied for personal use only.

• Commercial printing rights are not included with this purchase.

• STL files may not be shared, copied, redistributed or resold.

COMMERCIAL LICENSING

Want to sell physical 3D prints made from this design?

Commercial licences are available through Pukka Printables on Patreon:

• One-Off Licences - commercial rights for 1, 3, 5 or 10 selected Pukka Printables designs, with no ongoing membership required.
• Full Catalogue Membership - commercial selling rights across eligible Pukka Printables designs while your membership remains active.

STL files are purchased separately. Commercial licences cover the sale of physical 3D printed products only.

View all commercial licensing options:

https://www.patreon.com/cw/PukkaPrintables

NEED HELP?

For questions about printing, settings or assembly, please contact Pukka Printables. We are happy to help.

This is a fixed-offset marking guide. It does not cut material and is not an adjustable measuring gauge. A physical tool or pencil is not supplied.
