ARCGuide 300 3D print model

ARCGuide 300 is a precision-engineered curved support block designed for guiding, shaping, or bending structural profiles, beams, or tubing along a controlled arc. With a smooth internal channel and durable body construction, it is ideal for use in forming systems, fabrication setups, or custom machinery requiring curved motion paths or structural guidance.

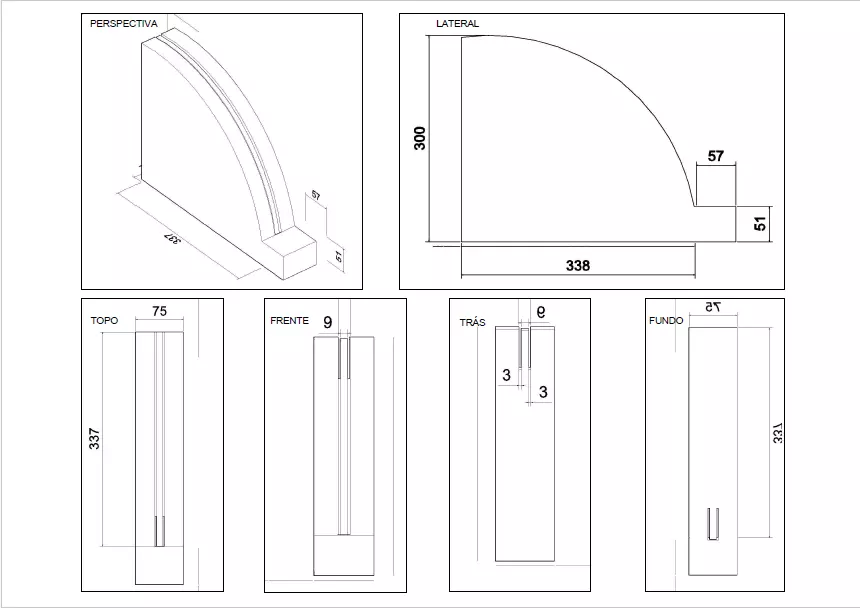

Key Features:-300 mm arc height with a 338 mm base length-Integrated 9 mm guide channel for profile alignment-Back-side notches (3 mm) for secure mounting or locking-Suitable for structural bending, alignment, and formwork -Compact footprint (75 mm width) for versatile integration

Applications:-Profile bending and forming systems-Custom jigs and fixtures-Structural alignment and prototyping-Educational and testing setups involving curvature control
