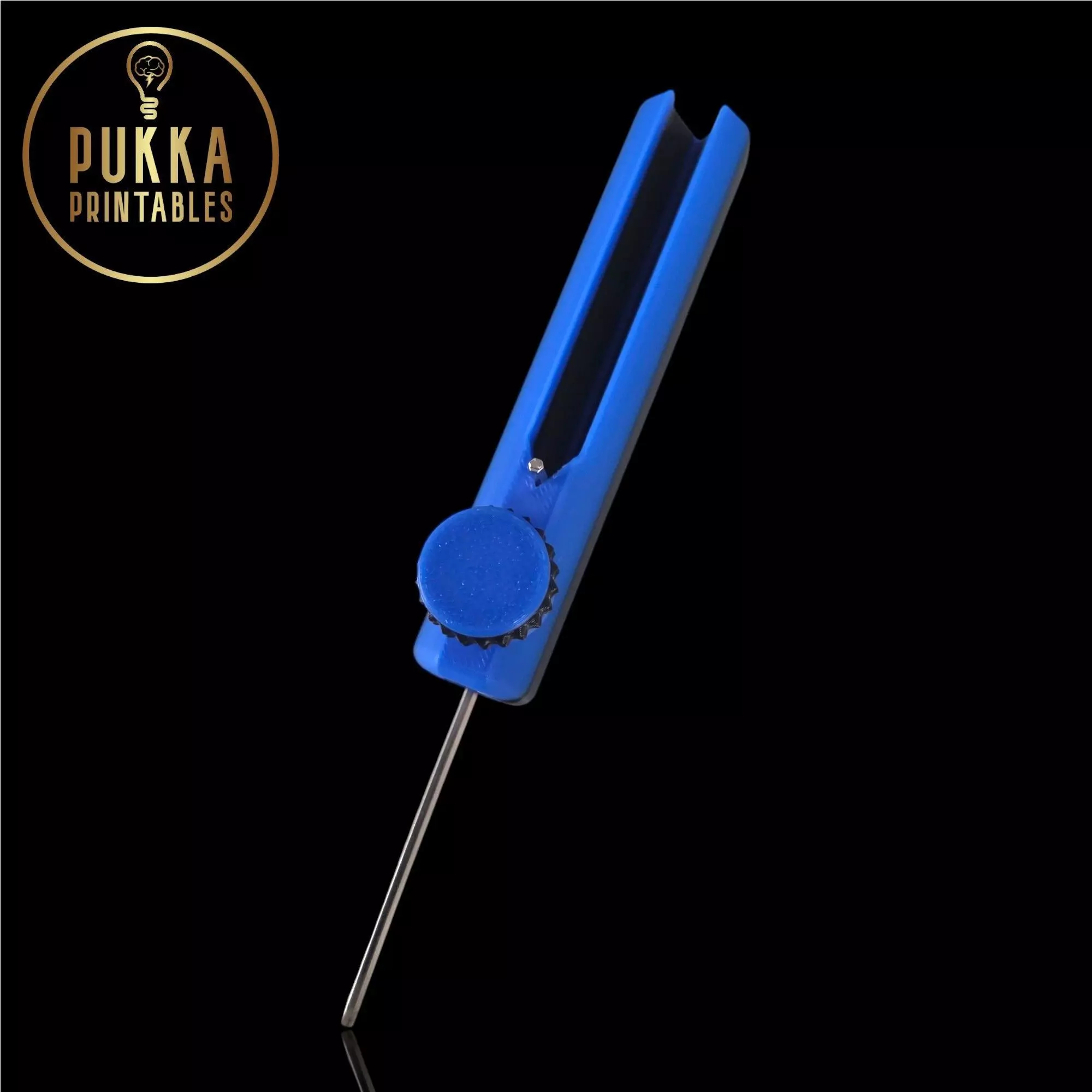

This 3D printable Allen key handle is designed to convert standard metric hex keys into a comfortable and versatile hand tool. The handle accepts hex keys from 1.5 mm to 8 mm and secures them using a thumb screw locking system.

The design allows the tool to be used in two orientations: as a straight screwdriver-style handle for precision work or rotated into a T-bar configuration to provide increased torque and leverage. This approach provides a flexible alternative to purchasing multiple fixed-handle hex keys.

Features

• Compatible with standard metric hex keys from 1.5 mm to 8 mm• Dual orientation use: screwdriver style or T-bar configuration• Thumb screw locking system for quick hex key changes• Ergonomic grip designed for comfort during repeated use• Cost-effective alternative to dedicated handle sets• Designed for FDM 3D printing

Technical Details

Handle accepts hex keys: 1.5 mm – 8 mmBolt requirement: M6 × 20 mm nylon bolt (steel bolt can also be used)Thread preparation: Drill hole to 5.5 mm diameter and tap to M6 threadPrinting method: Standard FDM printing recommendedMaterial: PLA, PETG, or similar rigid filament

Files Included

1 × Allen key handle STL file1 × Thumb screw cap STL file

Usage Notes

To complete the assembly, install one M6 × 20 mm bolt. The bolt hole should be drilled to 5.5 mm diameter and tapped with an M6 thread to produce a precise and durable thread fit.

Once assembled, the handle allows standard hex keys to be inserted and secured using the thumb screw mechanism, enabling quick swapping between different key sizes.
