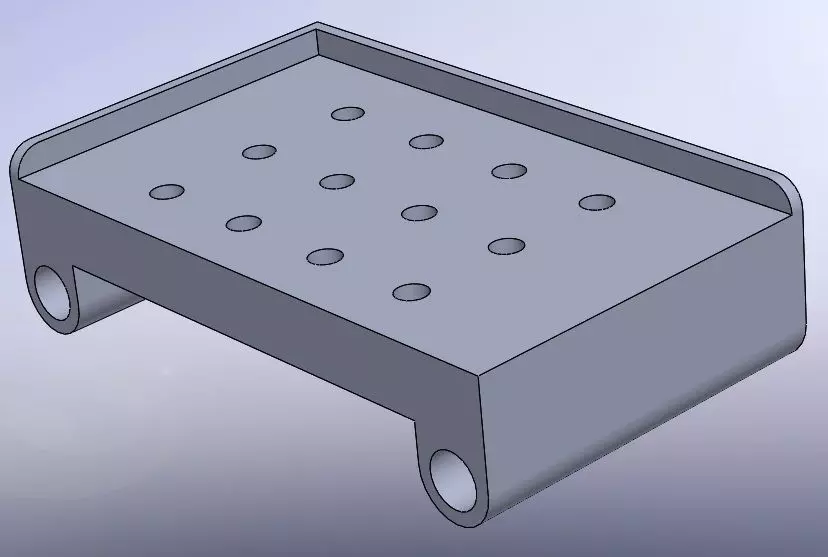

File: Sine Plate.stlName: Sine PlatePLA Material: 89.5 grams ( 0.197 lbs) Infill = 10%Size: 146.05 mm (5.75) x 41.28 mm (1.625) x 88.65 mm (3.49)Resolution: 0.20mmLayers: 449 layers Rafts: Yes Supports: NoPrint Time: 8 hr 36 minFunction: If you print this 1:1 then you will have a standard 5 center to center sine plate that all you need to do is add some guage blocks and you will be ready to set the angle for machining or inspection. Other possible scales are shown below: If you download the sine plate setup then it should be printed at the same scale.
Scale C to C hole hex Screws Pivot Length Width Height in in in in in in in1 5 0.285 0.45 1/4-20 0.5 6.7 6 40.787 3.937 0.2244 0.3543 M5 0.3937 5.2755 4.7244 3.14960.75 3.75 0.21375 0.3375 #10-32 0.375 5.025 4.5 30.5 2.5 0.1425 0.16875 #4-40 0.25 3.35 3 20.4 2 0.114 0.0675 #0000-80 0.2 2.68 2.4 1.6
