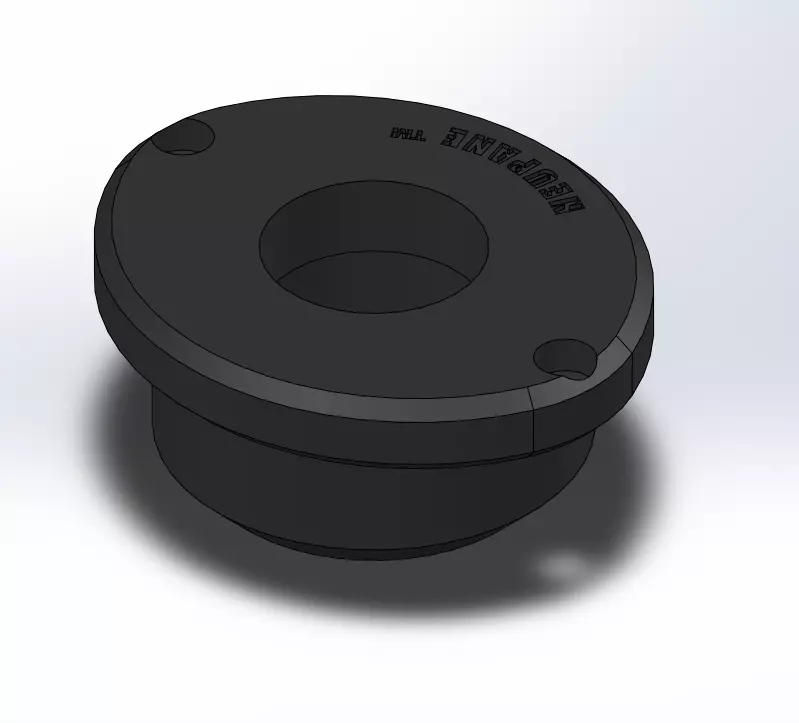

1 inch Round stoke work holding Fixture for Pocket NC V2-10 3D print model
thumbnail
play iconthumbnail
play iconthumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

This is a compliant fixture to hold 1-inch round or rod stock in a pocket NC. I have printed and tested (machined different parts for more than 15 hours) this part.

printed from PLA.used a 1-inch nylon rod

Material held using this Fixture is centered about axis B, making for a simpler work holding.
