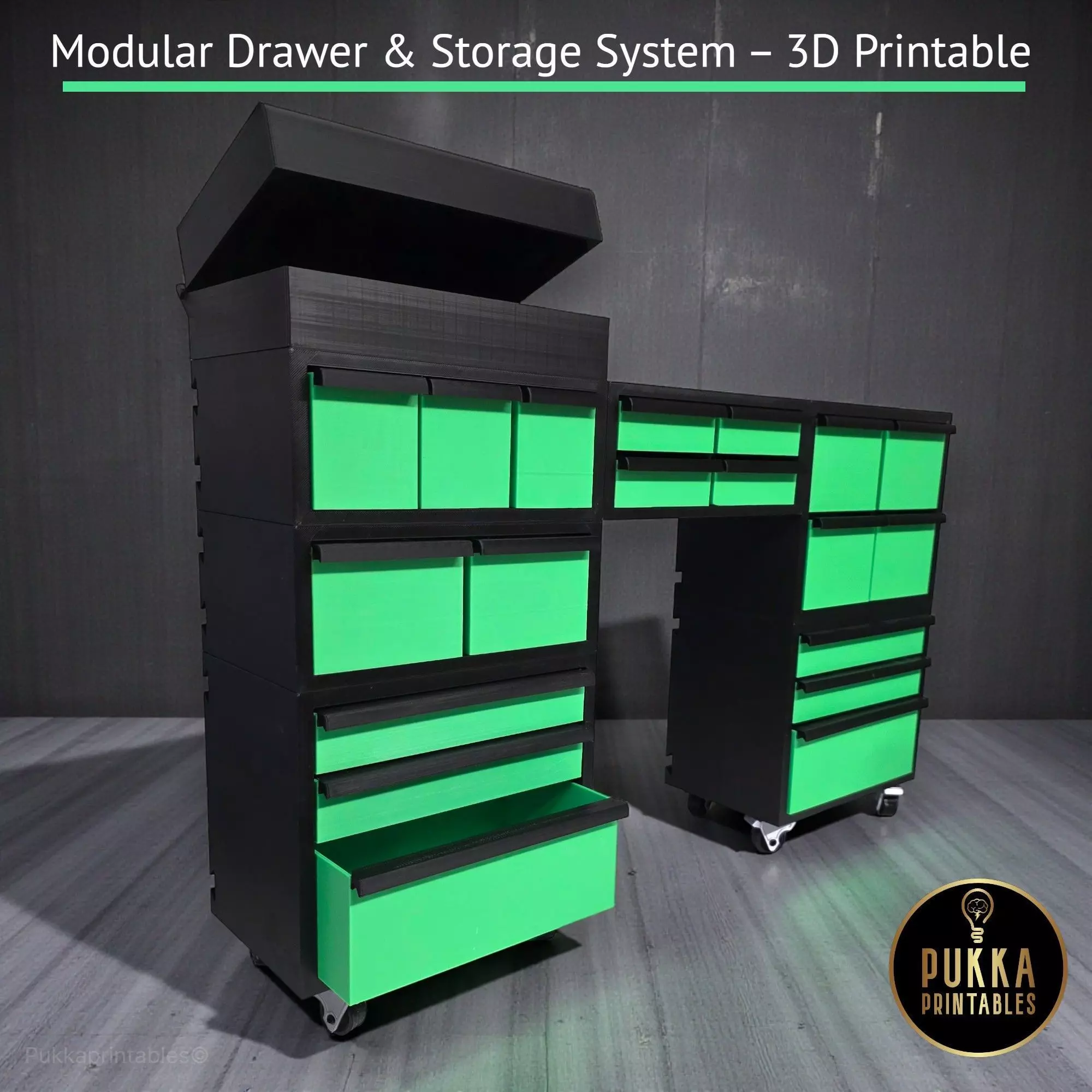

This is a technical 3D model package of a modular drawer system designed for additive manufacturing. The system facilitates configurable storage arrangements with stackable units, integrated wheel attachment options, and a hinged lid module. Components are engineered for mechanical fit and expandability in workshop, office, craft, or general storage environments.

Features

Modular design supporting horizontal and vertical expansion.Stackable units with mating geometry for secure connections.Multiple drawer sizes tailored to corresponding housing units.Snap-fit wheels with optional adhesion.Hinged lid assembly requiring no bonded fasteners.Integrated holes for mechanical fastening to walls or structures.

Technical Details

Format: STL (triangulated mesh) suitable for common slicers.Geometry verified for planar printability with minimal supports.Designed for FDM/FFF printers with calibrated axes.Material: suitable for PLA, PETG, ABS and similar thermoplastics.Units include planner surfaces, dovetail runner features, and clip interfaces.

Files Included

STL files for all base units, drawers, wheel components, clips, lid, and related connectors.Single PDF with assembly and configuration guidance, including dimensional references and compatibility notes.

Usage Notes

Ensure printer calibration for dimensional accuracy of mating features.Test print critical connectors before full assembly.Orientation and layer height may affect clip engagement and wheel fit tolerances.Material choice influences wear characteristics and mechanical friction.
