Turbine Rotor CAD Model Generic 3D print model

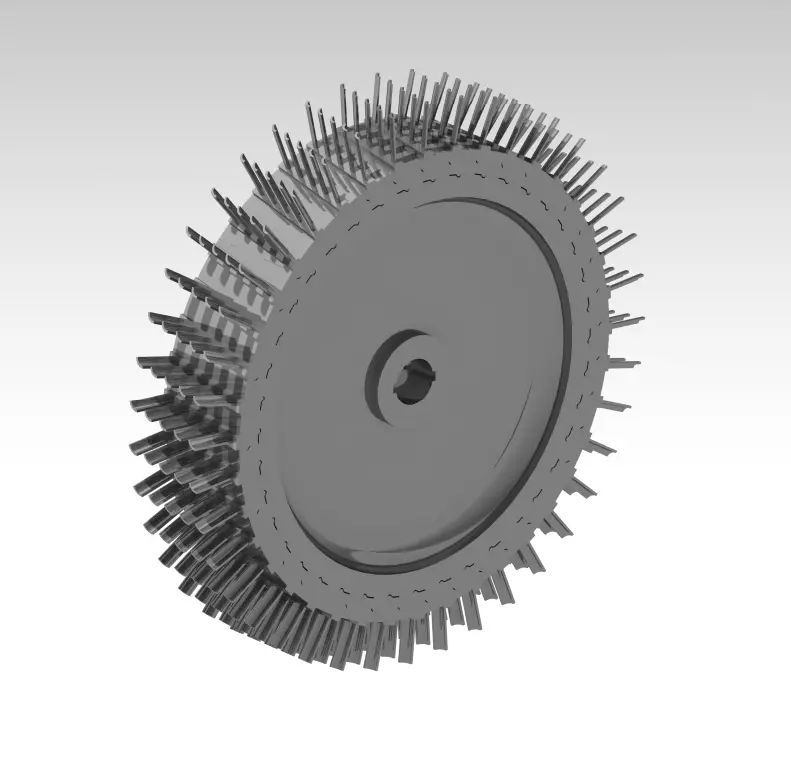

This is a 3D CAD model of a generic turbine rotor, suitable for use in mechanical simulations, turbomachinery design, and engineering education. The rotor features a set of evenly distributed blades mounted on a central hub, replicating the basic geometry of axial flow turbines used in power generation, aerospace, and industrial applications.

Designed in CATIA V5, the model is clean and simplified — ideal for CFD or FEA analysis, conceptual layout, or integration in rotating machinery assemblies. It does not include internal shaft features or blade fillets, making it adaptable for various simulation scenarios.

Features:

• Generic turbine rotor with axial blade layout
• Designed in CATIA V5
• Suitable for CFD (fluid flow) and FEA (structural) simulations
• Ideal for educational use, turbine design studies, or mechanical assemblies
• Clean and editable geometry in multiple engineering formats

Applications:

• Aerospace propulsion systems
• Power generation turbines (gas, steam)
• Rotating machinery simulations
• Mechanical engineering education and training
• CAD-based product development

File formats:

• CATIA .CATPart
• STEP (.stp)
• IGES (.igs)
• STL (optional for meshing or rendering)
