Speed Increase Gear Box

Speed Increase Gear Box 3D print model

Description

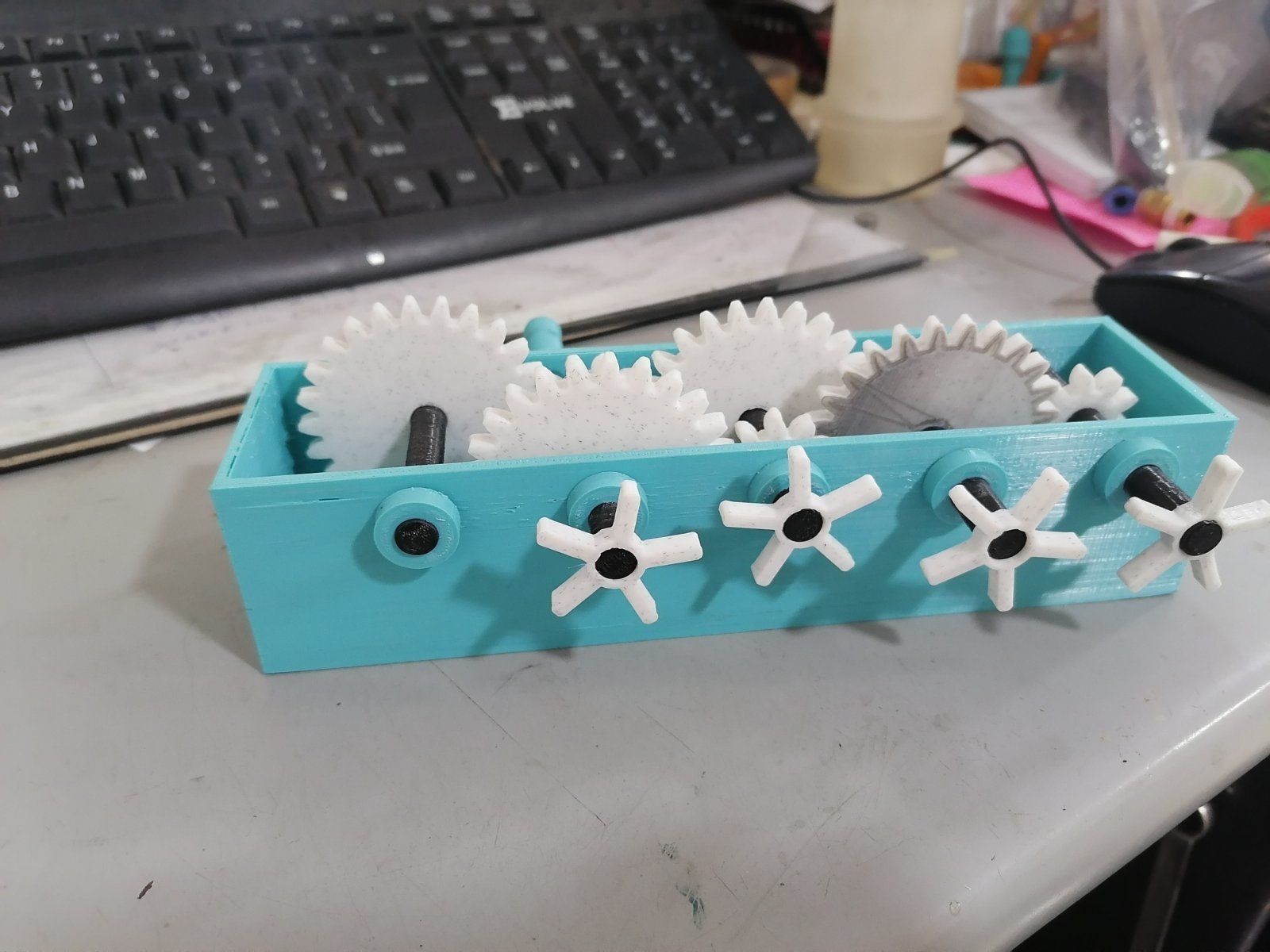

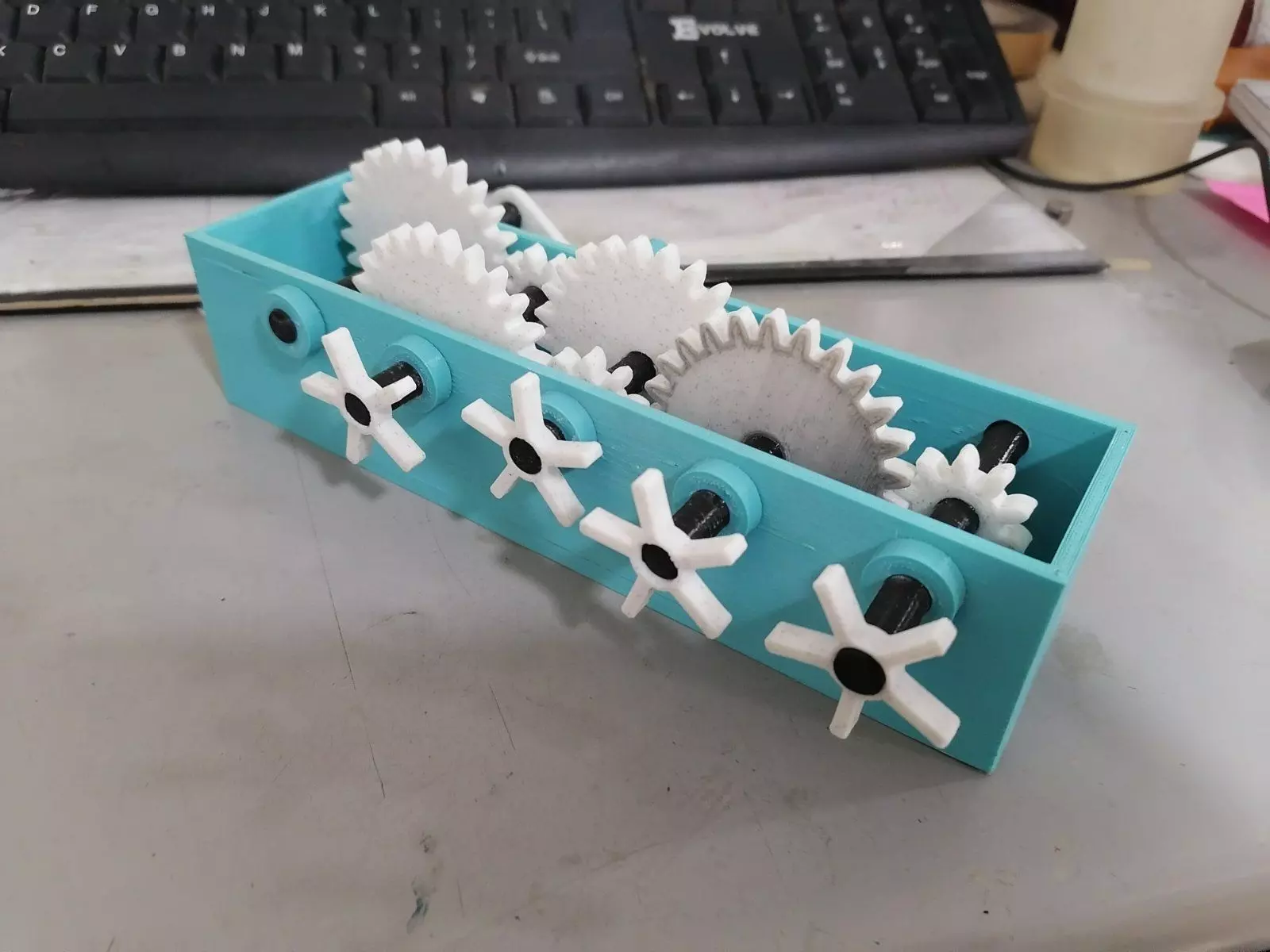

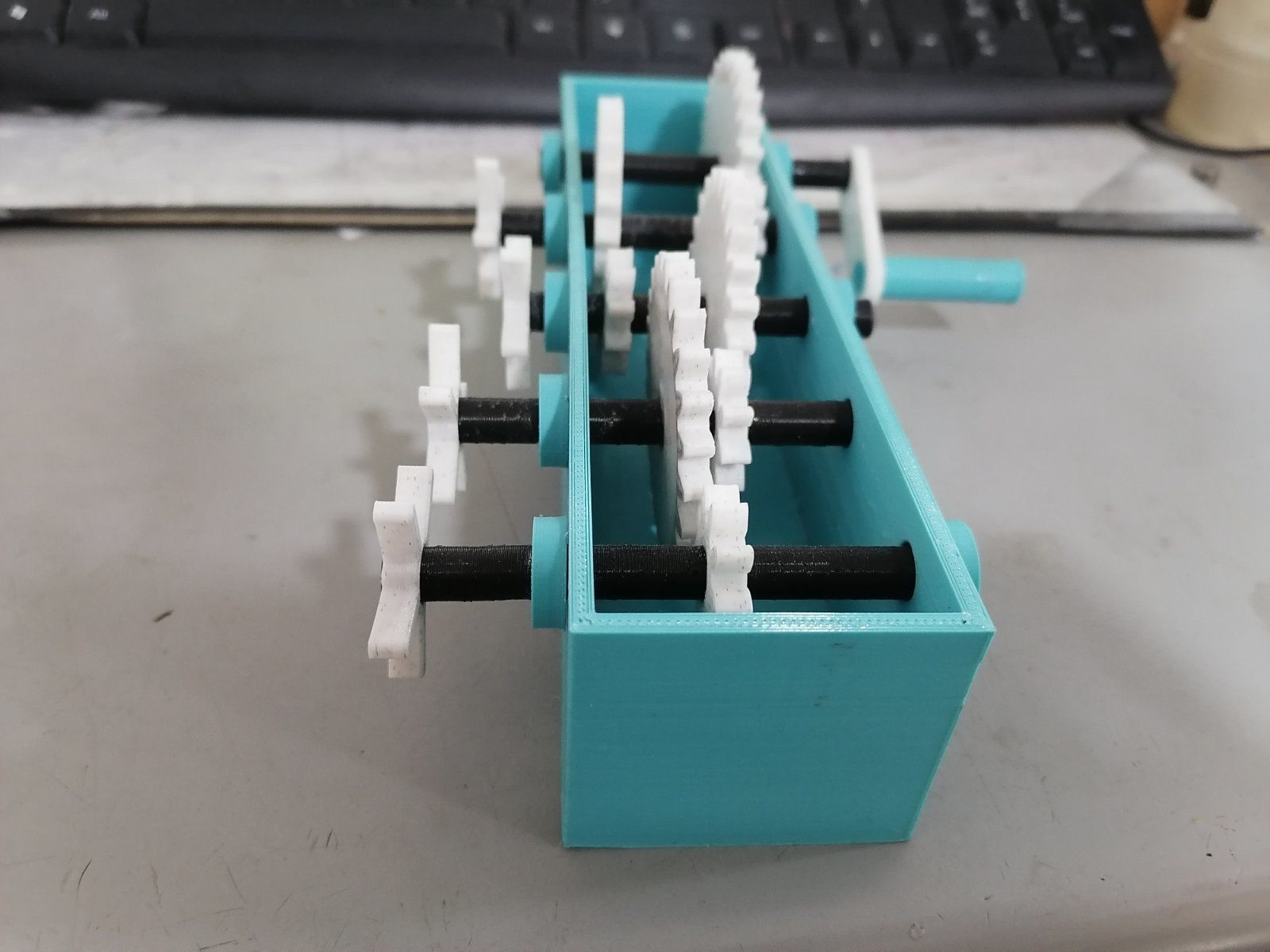

I want to see how gear ratios affect the speed of an object, so I created a gearbox with a 2.5:1 gear ratio per stage in this model. In my model, I have 4 stages pairing a 25-tooth spur gear with a 10-tooth spur gear per stage, making the speed go faster each stage. This file will also include a BOM to know the quantity of the parts, and also an assembly file in pdf format with exploded view as well.

Item rating
0 0
Speed Increase Gear Box
$3.00

Royalty Free License
Speed Increase Gear Box
$3.00

Royalty Free License
Response - % in - h

3D Model formats

Format limitations
  • Stereolithography (.stl) (10 files)829 KBVersion: V1
  • PDF (.pdf) (3 files)1.09 MB

3D Model details

  • Ready for 3D Printing
  • Publish date2023-02-09
  • Model ID#4284019
