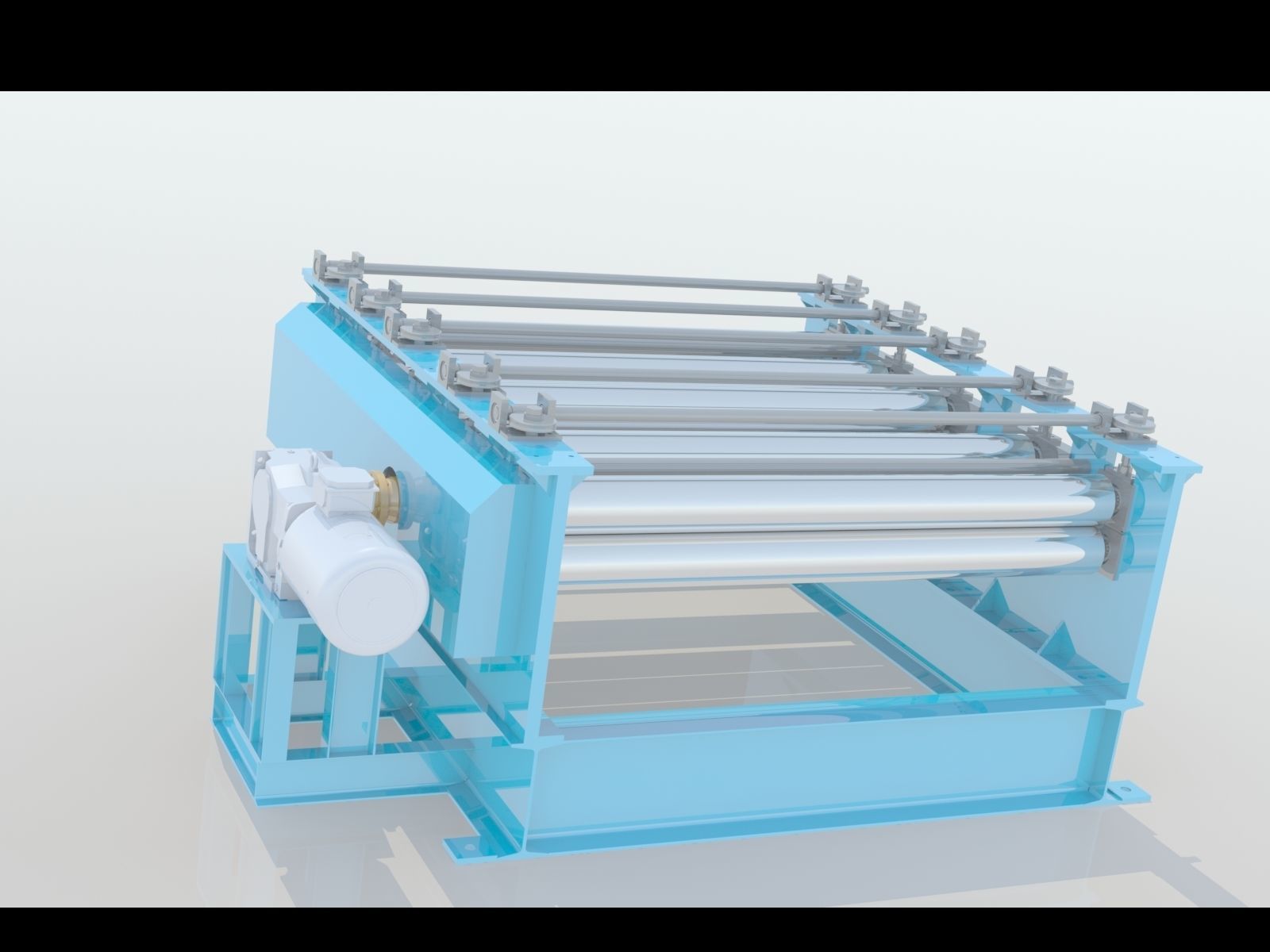

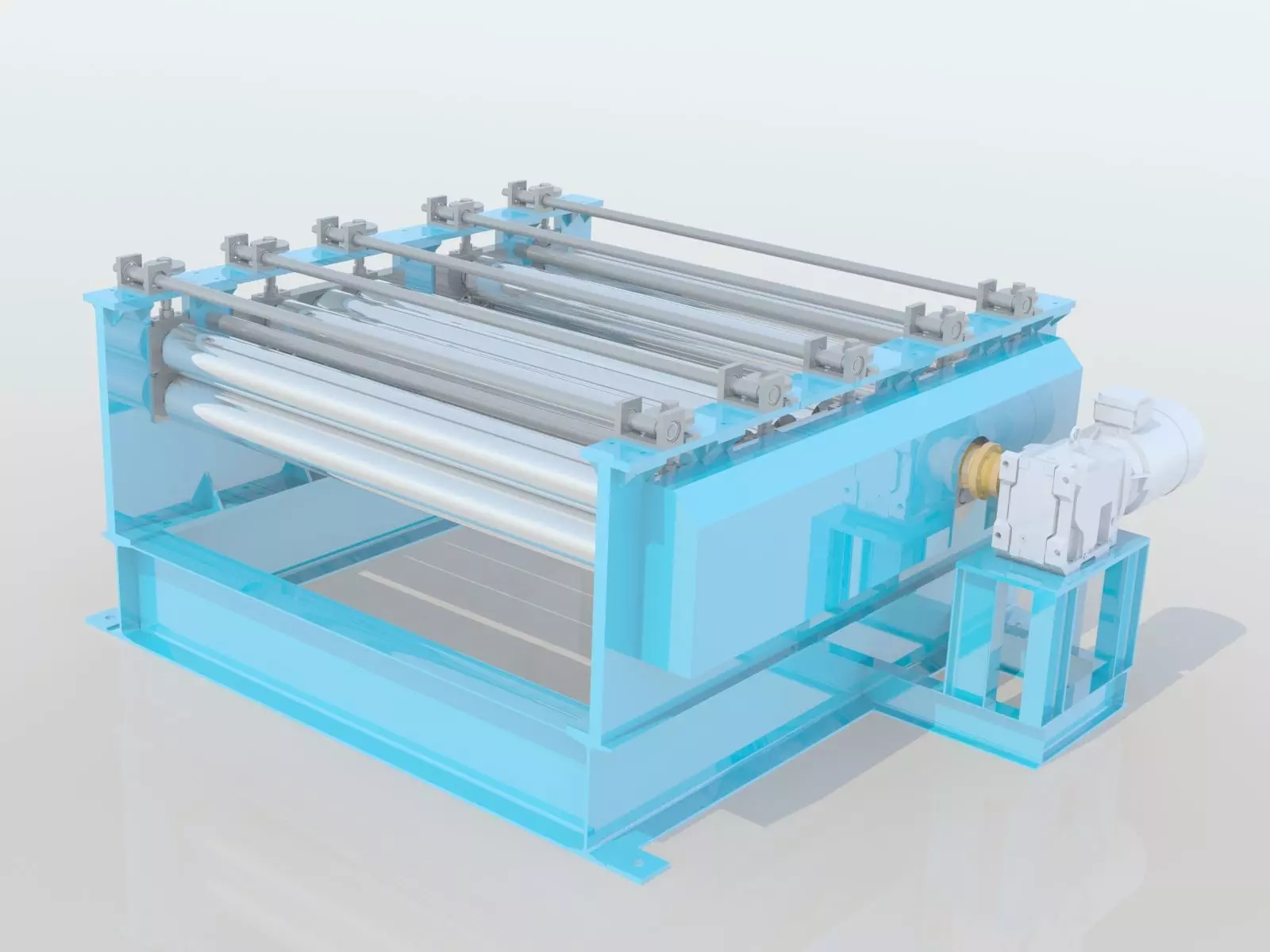

Straight machine

• Working Width 1500mm
• Material Thickness 0,3-1,5 mm
• Number of rollers: 14 pcs
• Roller diameter: 114mm
• Engine 7.5KW 220 / 380v 50Hz

Straightening machine / Leveling machine working principle:

• Straightening machine / Leveling machine motor drive speed reducer, speed reducer drive box, gear shaft drive shaft and rotary roller, achieve expanded metal mesh surface straight and level.
• Place the expanded metal mesh produced by the expanded metal machine into the straightening/leveling machine feeder, by adjusting the machine handle to adjust the distance between the rollers, then leveling expanded metal mesh.
