P-51D Mustang: Sub Assembly: Rudder & Steerable TW Control Fus Sta 300. Full Size 1:1

All parts; including nuts, bolts, washers etc; accurately modeled to original North American Aviation drawings and AN, MS, NASM specifications. The package includes the CAD model in DWG (2018), STL, STP, and Parasolid X-B formats; a 3D PDF of the model, and a 2D PDF of the parts list as generated. This a part assembly from NAA reference drawings 106-52016, 97-34001 and 102-52001. Assembly for models P-51B & C is similar. Fully detailed internal components.

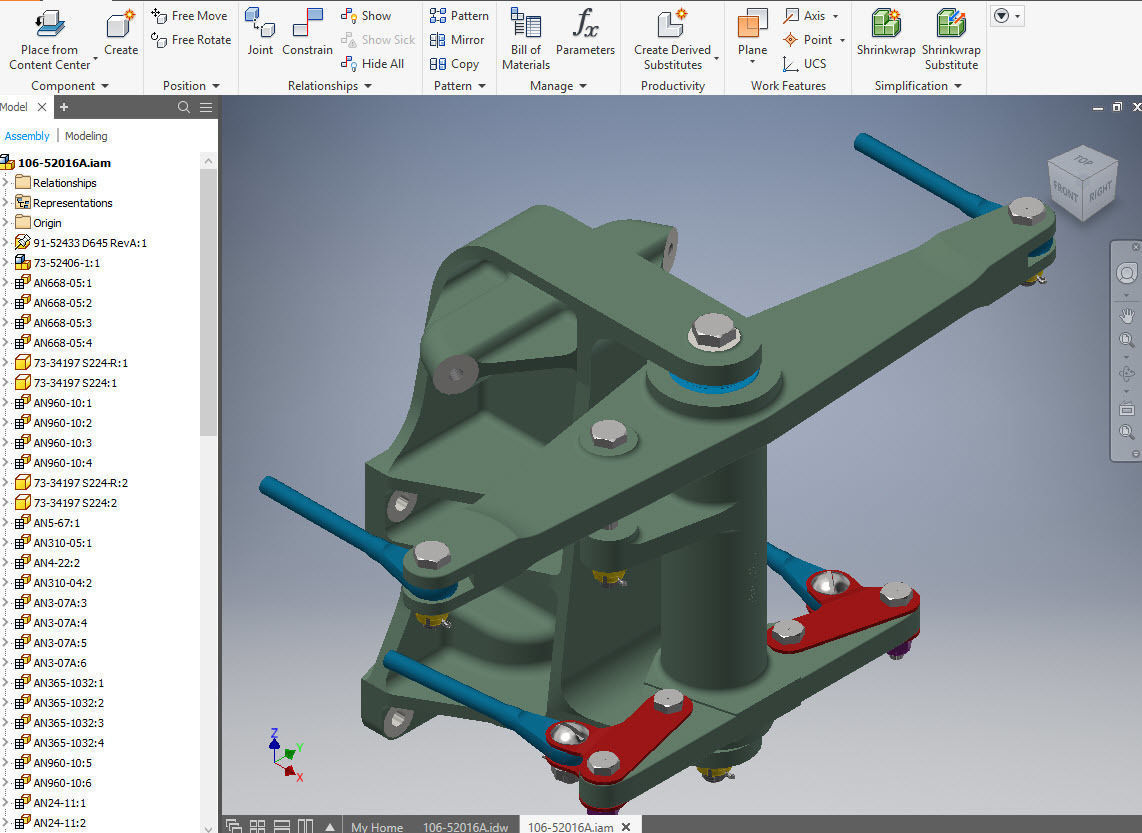

The model can be used as a reference for maintenance, restoration purposes, research, and teaching. The original ipt and iam Autodesk Inventor cad files can be made available on special request.

The P-51 Mustang Project:Our primary purpose is the review of methods applicable to the design and construction of historical aircraft. The P-51 Mustang has been one of our primary subjects for research in criteria of conic design. Inherent to this research we have developed a number of mechanical assemblies in CAD to ascertain positional relationships and study the construction methods.

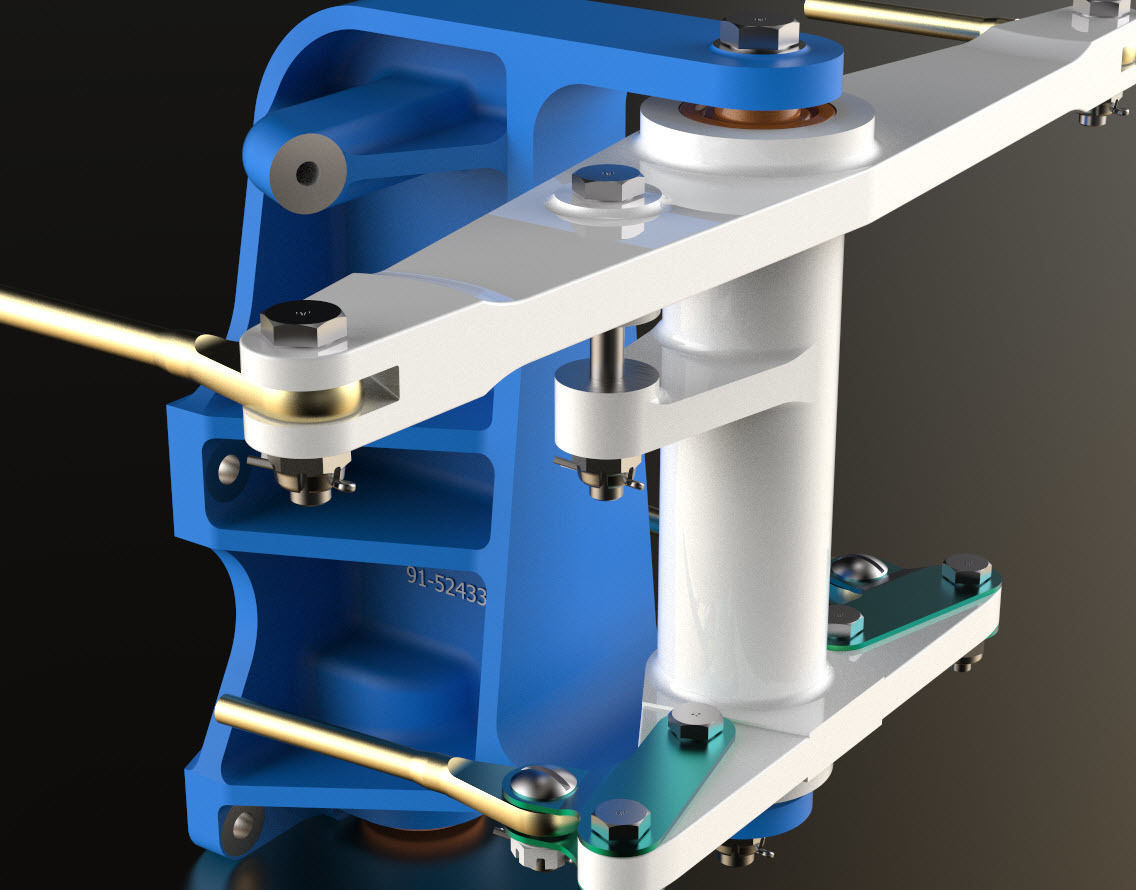

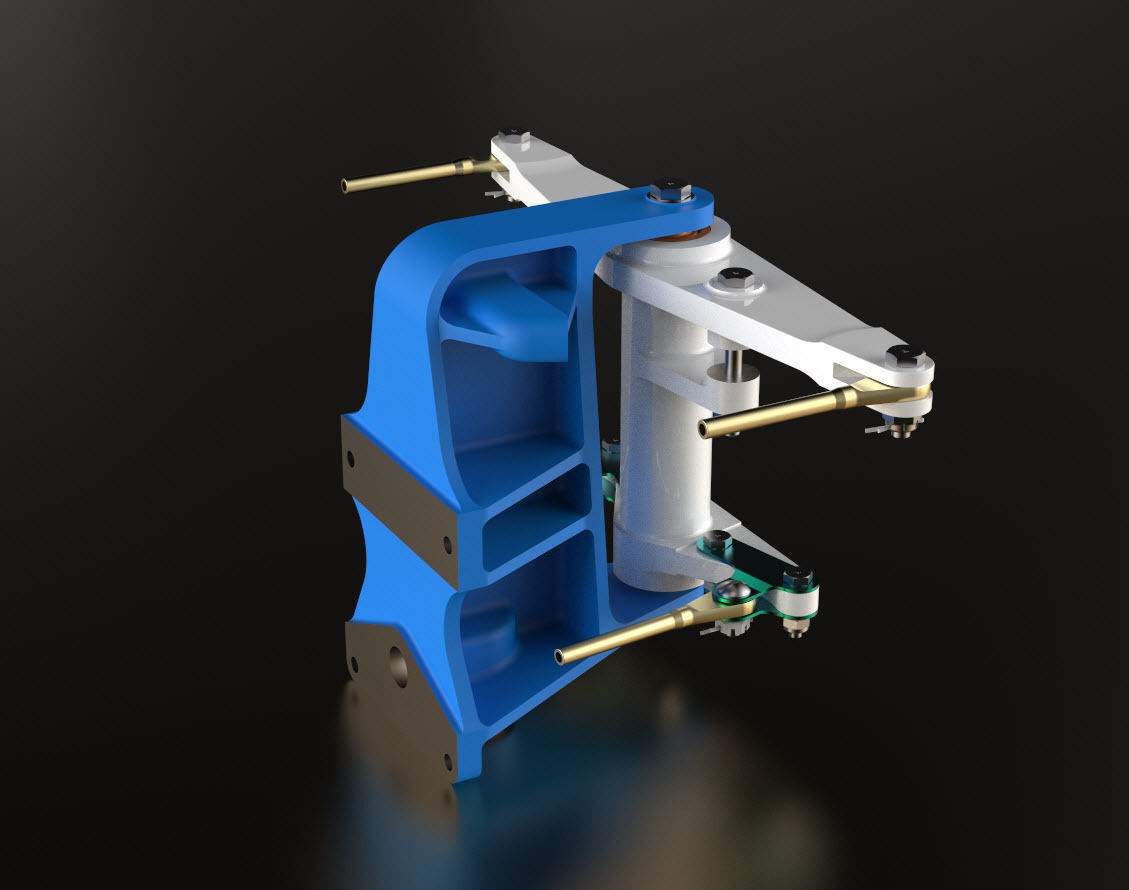

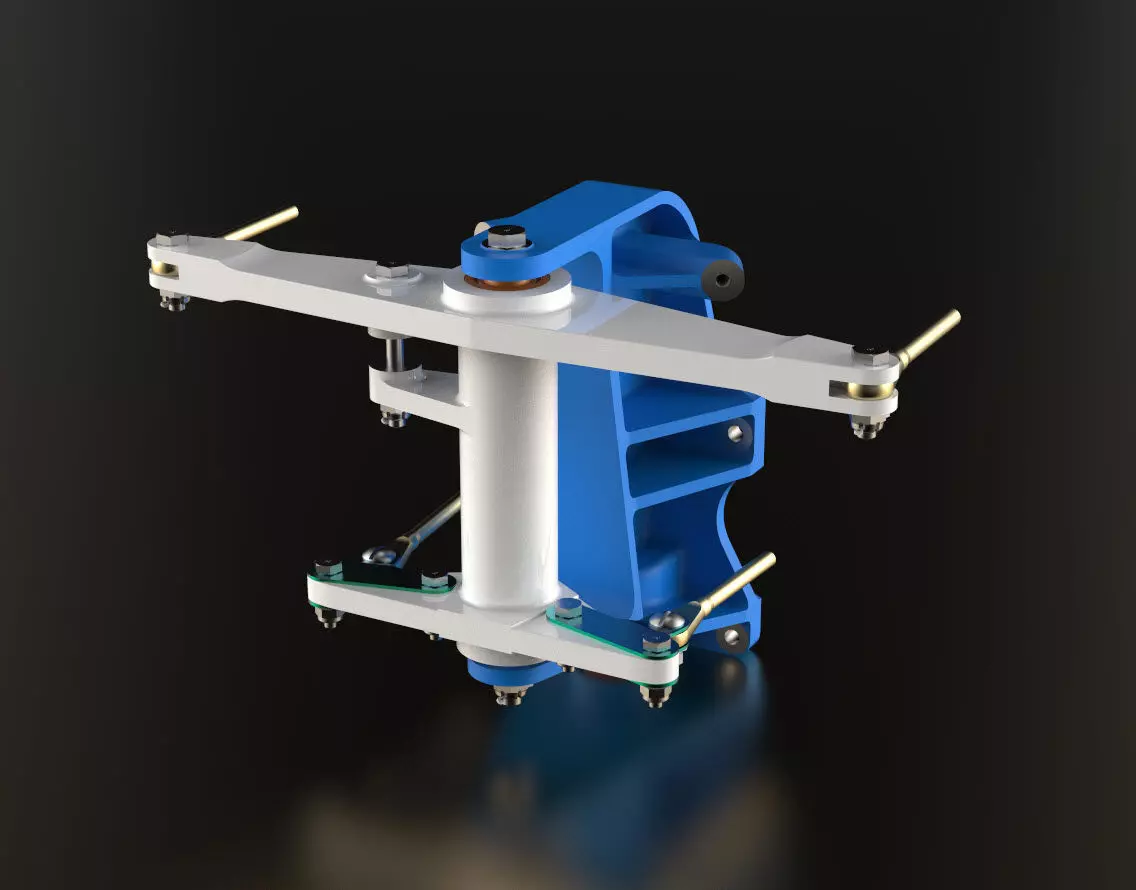

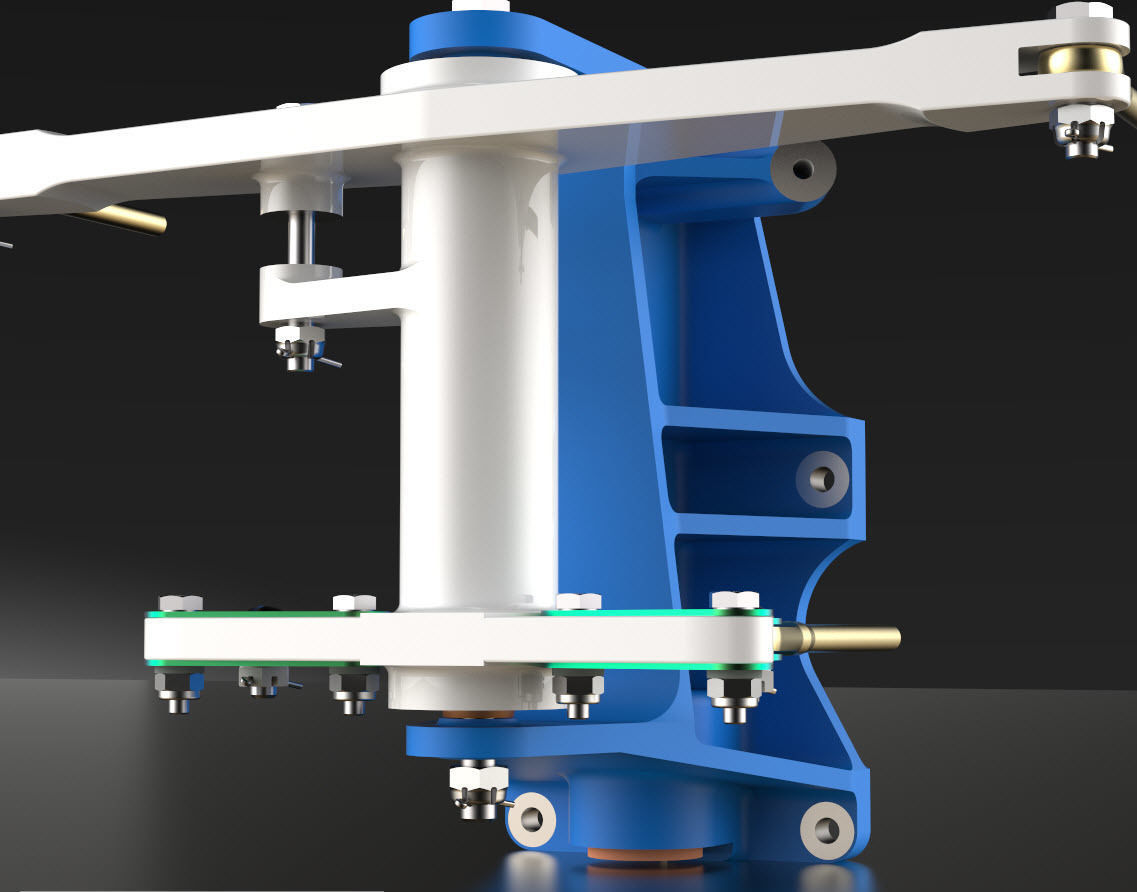

Note; the colours in the renderings are not realistic, with the sole purpose to visually clarify the assembly detail and construction.
