FluxGroove // 7 Inch Rodin Coil

Professional STL Digital Download for 3D Printing

Product Description

FluxGroove is a precision-designed collection of Rodin-style toroidal coil forms created for makers, engineers, researchers, educators, and 3D printing enthusiasts.

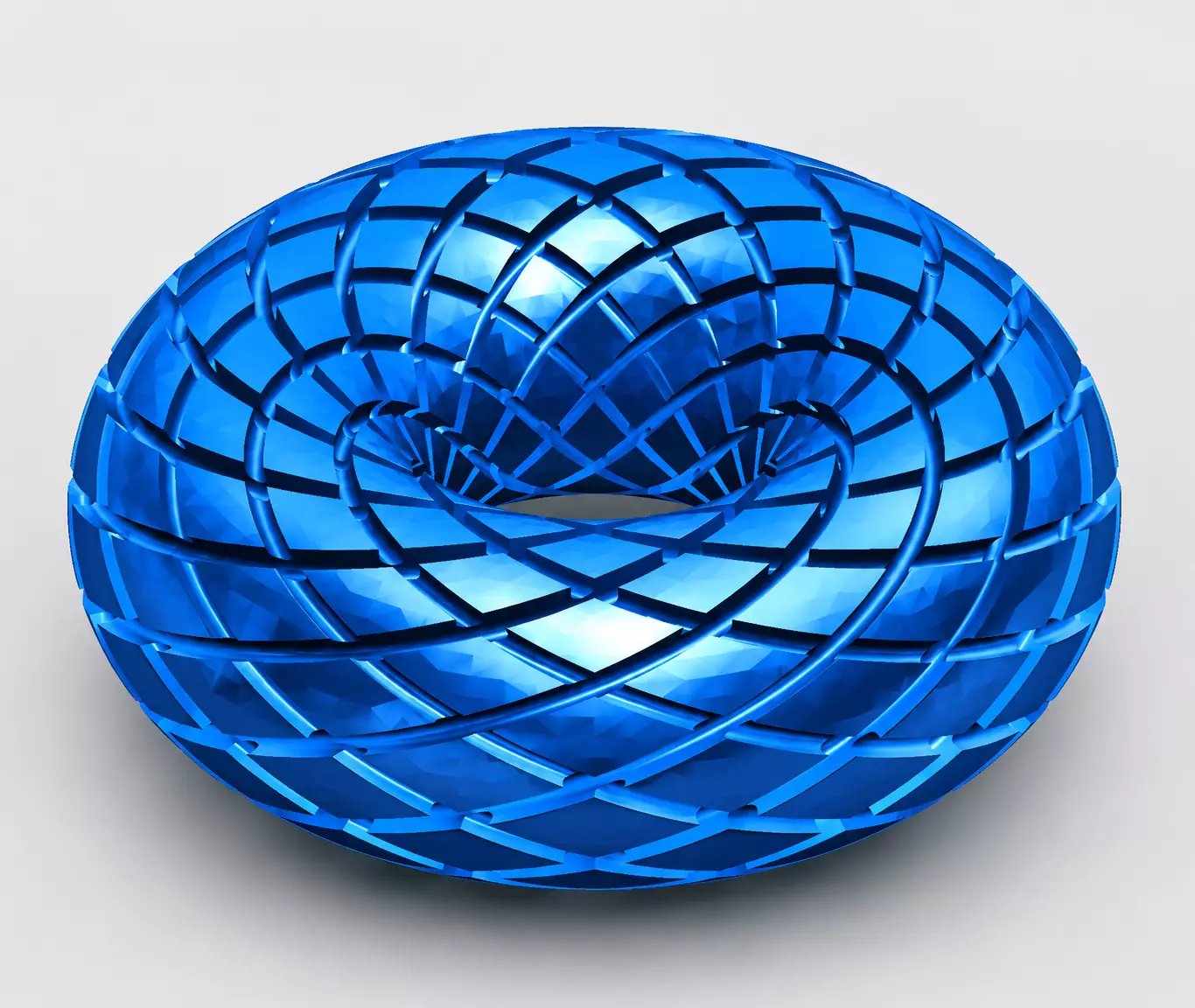

This digital STL model features a 7-inch toroidal coil form with accurately designed winding grooves. Its geometry provides clean wire placement, repeatable winding paths, balanced symmetry, and a professional finished appearance.

The model has been optimized for reliable 3D printing while maintaining accurate dimensions and clearly defined groove geometry.

Specifications

Outer Diameter: 185 mm

Inner Diameter: 65 mm

Total Grooves: 24

12 Right-Hand Grooves

12 Left-Hand Grooves

Groove Width: 4 mm

Groove Depth: 5 mm

Features

High-quality STL modelPrecision toroidal geometry24 symmetrical winding grooves12 right-hand and 12 left-hand pathsAccurate 4 mm wide and 5 mm deep channelsClean engineering designOptimized for FDM and resin printingSuitable for scaling and modificationReady for immediate downloadNo need to design the model from scratch

Included Files

STL modelReady-to-print digital file

Recommended Materials

PLAPLA+PETGABSASAResin

Recommended Print Settings

Layer Height: 0.12-0.20 mm

Infill: 15-30%

Supports: Depending on print orientation and printer configuration

A smaller nozzle and lower layer height may help preserve the groove details.

Print settings may require adjustment depending on the printer, nozzle size, material, and slicing software.

Applications

Engineering projectsExperimental constructionsToroidal geometry studiesEducational demonstrationsWire-winding projectsPrototype developmentElectronic hobby projectsDecorative modelsSacred geometry collectionsMaker and DIY projects

About FluxGroove

FluxGroove is a professional collection of toroidal coil forms featuring precisely designed right-hand and left-hand square grooves in multiple sizes and depths.

Each model is created to provide repeatable winding geometry, accurate wire placement, clean channel alignment, and an attractive finished appearance.

FluxGroove models are suitable for engineering, educational, artistic, prototyping, and hobby applications.

Important Information

This product is a digital download.

No physical product will be shipped.

After purchase, you will receive the STL file for download and 3D printing.

The file is intended for personal use only.

Redistribution, resale, copying, or sharing of the digital file is prohibited unless separate commercial rights have been granted.
