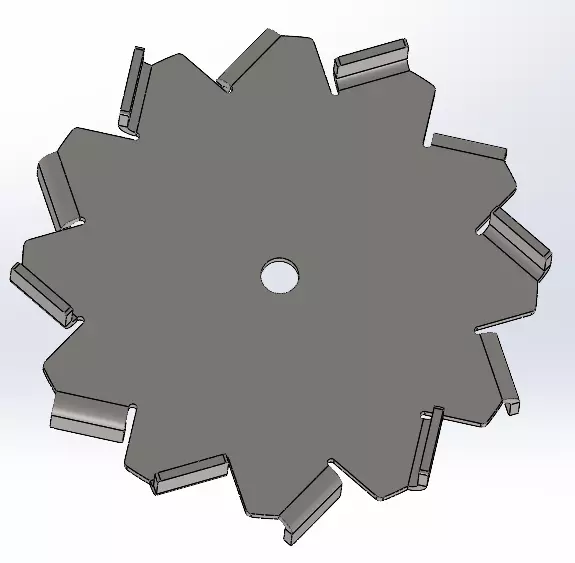

This component is a radial mixer fan/agitator blade designed for industrial mixing applications, particularly for medium-capacity systems (around 0.5 ton batches).

Geometry:

The fan has a circular base plate with a central hole for shaft mounting.

The periphery of the plate features multiple evenly spaced lobes (teeth-like extensions), each cut with a slot.

Bent vanes are positioned on these lobes at an angle, oriented radially outward.

Blades/vanes:

Each lobe has a vane bent upward at approximately 90° relative to the disc.

The vanes are short and straight, creating radial flow patterns.

Their arrangement promotes strong turbulence and axial circulation within the mixing vessel.

Function:

The fan is intended to mix bulk powders, grains, or granulated materials inside a vessel.

Its design ensures homogeneous blending by continuously lifting and redistributing the material.

The multiple slots and vanes prevent dead zones and improve mixing efficiency.

Material:

Typically fabricated from stainless steel or carbon steel with surface treatment, depending on product requirements (e.g., food, chemicals, or construction materials).

Mounting:

The central hole allows attachment to a vertical mixer shaft, usually by a bolt, pin, or weld.
