Cylindrical gear - paired - z95 m1 D97 d20

Cylindrical gear - paired - z95 m1 D97 d20 3D print model

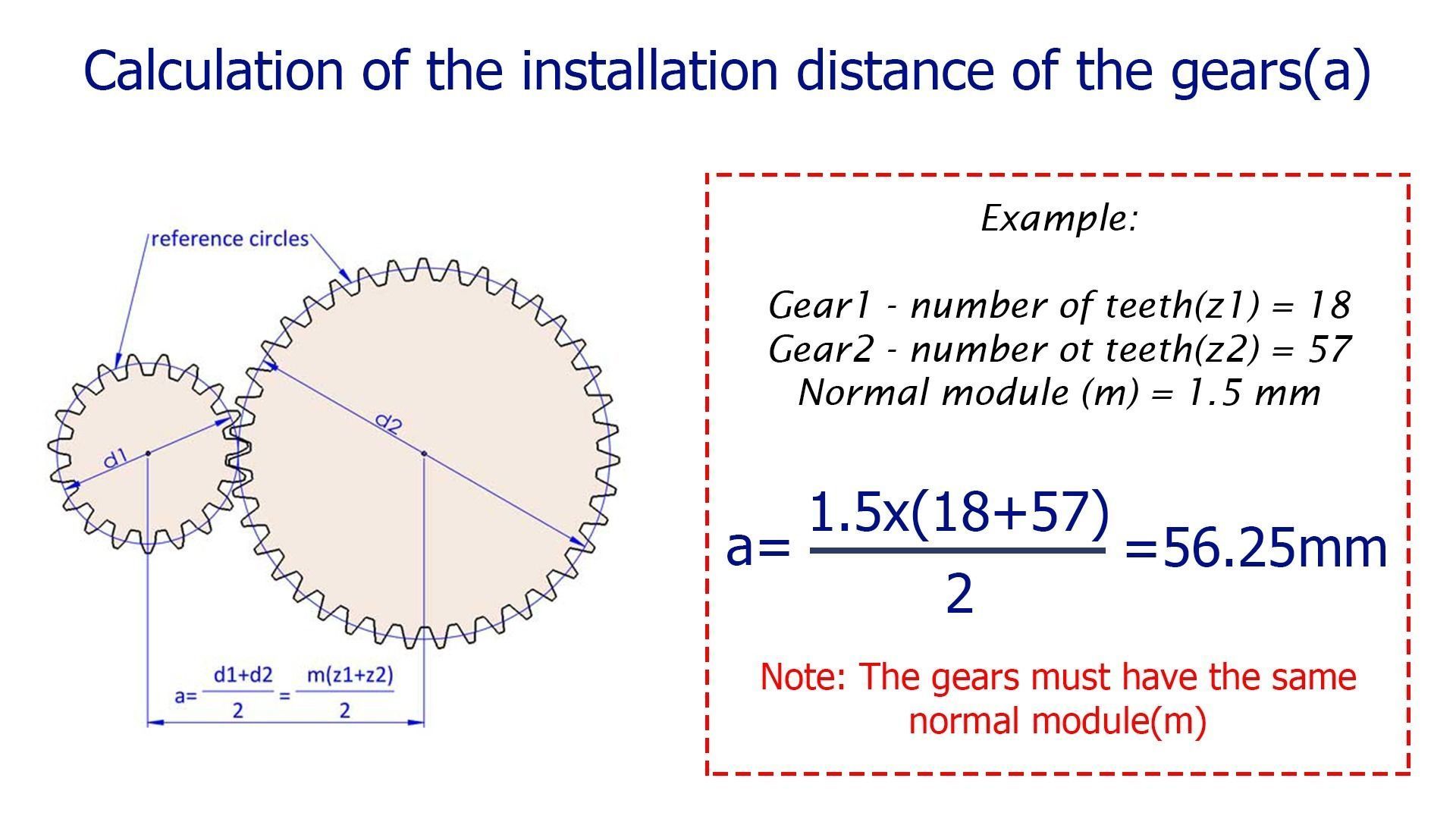

High precision gear - ready for manufacturing/printable. This gear can be paired with any of the 90 other gears that we upload on the site with the same normal module (m). We uploaded gears from 10 teeth to 100 teeth, so you can create the necessary combination.

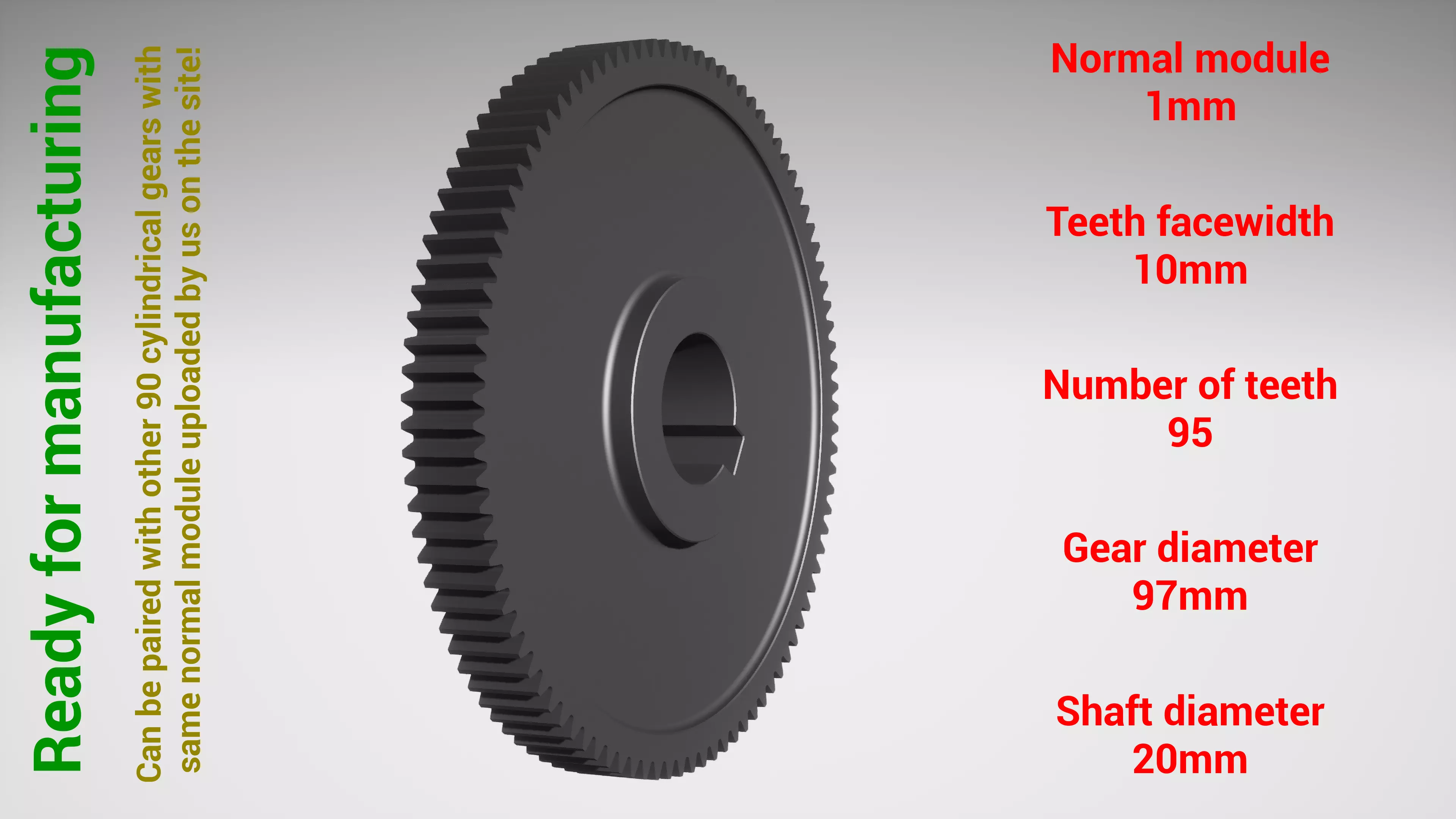

  • Number of teeth (z) = 95

  • Normal module (m) = 1mm

  • External diameter (D) = 97mm

  • Internal diameter (d) = 20mm (the same gear with other variations of the shaft uploaded: 10mm and 15mm)

All the gears that will be uploaded on the site can be found on the link below:

https://docs.google.com/document/d/14TF4ElVvJZOPYGqzJ7M7w4xhbq6pLIw6/edit?usp=sharing&ouid=102940960935982922564&rtpof=true&sd=true

Item rating
0 0
Cylindrical gear - paired - z95 m1 D97 d20
$3.00

Royalty Free License
Cylindrical gear - paired - z95 m1 D97 d20
$3.00

Royalty Free License
Response - % in - h
3D Modeling
3D Print Modeling
Rendering
Rigging
Skinning
UV mapping
Texturing
Animating
PBR modeling
Hire me

3D Model formats

Format limitations
Native
  • SolidWorks 2020 (.sldprt, .sldasm, .slddrw)947 KB
Exchange
  • Stereolithography (.stl)56.9 MB
  • Autodesk FBX (.fbx)10 MB
  • STEP (.stp)3.71 MB
  • IGES (.ige, .igs, .iges)5.18 MB

3D Model details

  • Publish date2022-06-14
  • Model ID#3815009
