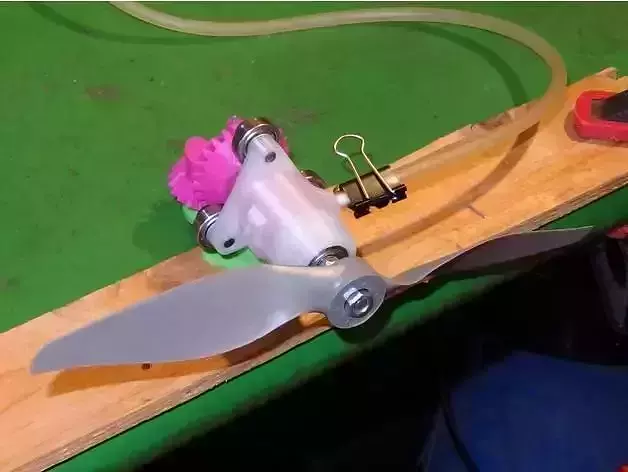

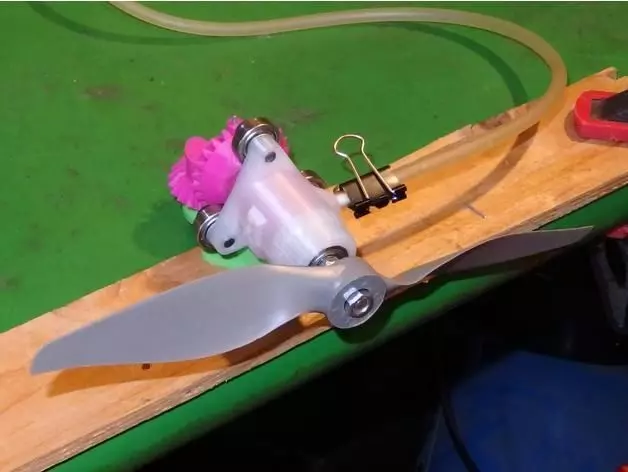

Air engine with rotating cylinder and Labello piston

Air engine with rotating cylinder and Labello piston 3D print model

Description

Ciao, ho pensato questo motore per uno scopo didattico. Utilizza un meccanismo a cilindro rotante che funge anche da valvola .. una configurazione molto particolare ed interessante .. direi unica .. buon divertimento :)

  • Nel primo video mostro e spiego il funzionamento e montaggio
  • Nel secondo video é un extra di immagini di dettaglio della costruzione

Componenti extra per la realizzazione:

  • 1 Labello .. guarda il video ;)
  • 1 Vite M5 50mm
  • 3 Viti M5 10mm
  • 1 Vite M5 15mm[
  • 2 Viti M4 10mm
  • 10 rondelle M5, spessore 1mm
  • 2 rondelle M4
  • 6 cuscinetti a sfera 16x5x5mm
  • 1 dado autobloccante M5

English: Ciao, I thought this engine for an educational purpose. It uses a rotating cylinder mechanism that also acts as a valve .. a very particular and interesting configuration .. I would say unique .. have fun :)

  • In the first video I show and explain the operation and assembly. Activate the subtitles.

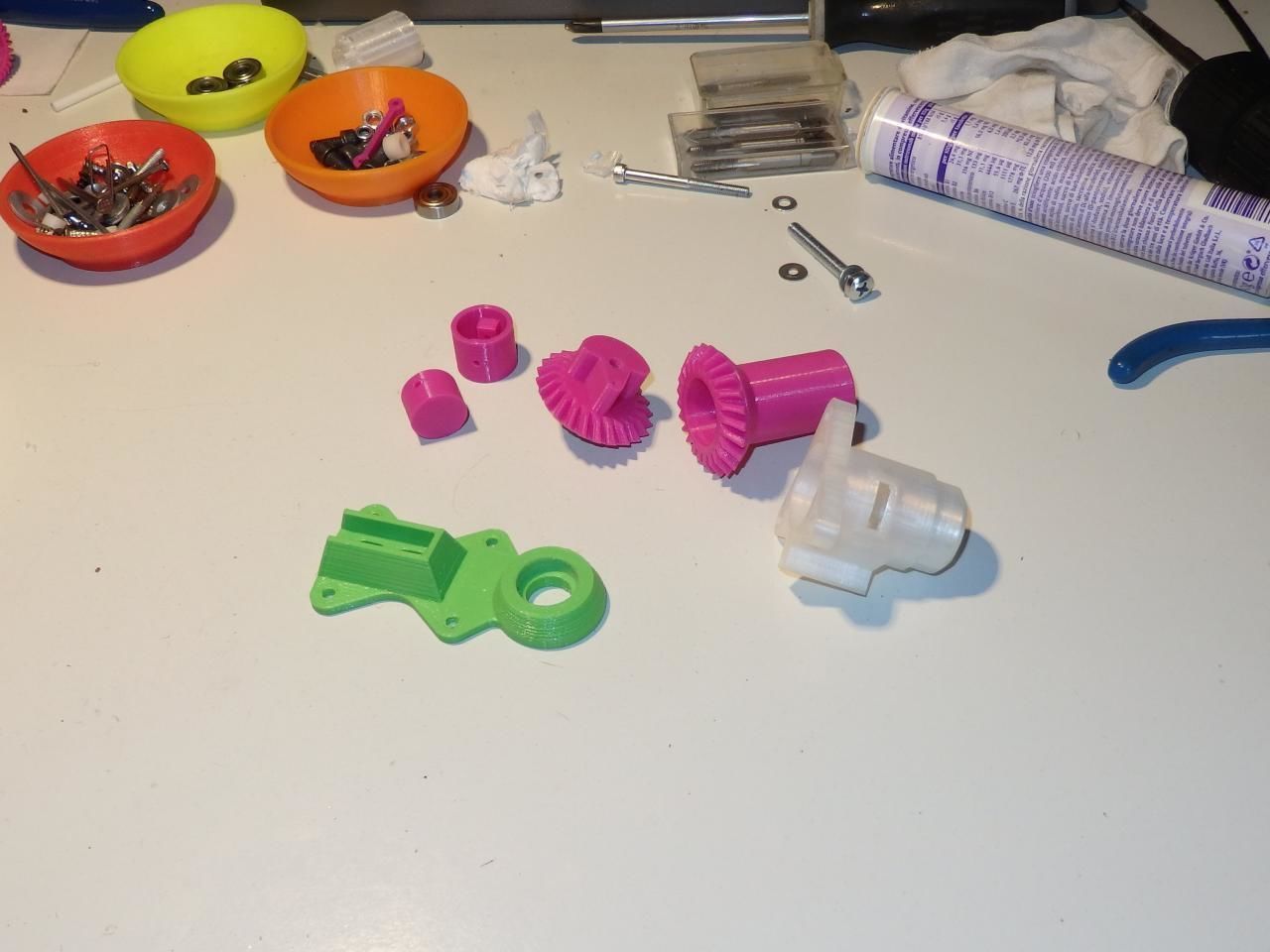

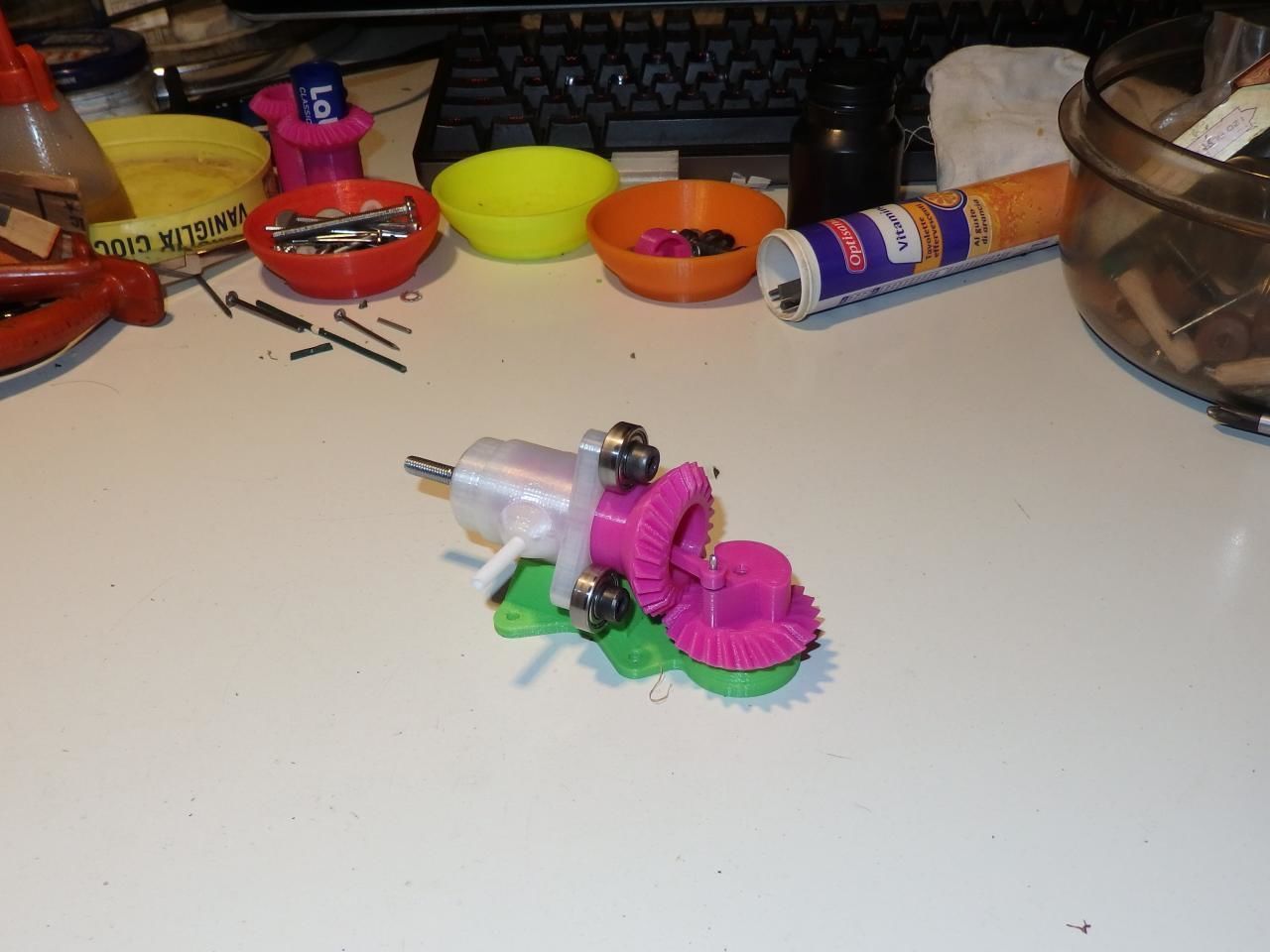

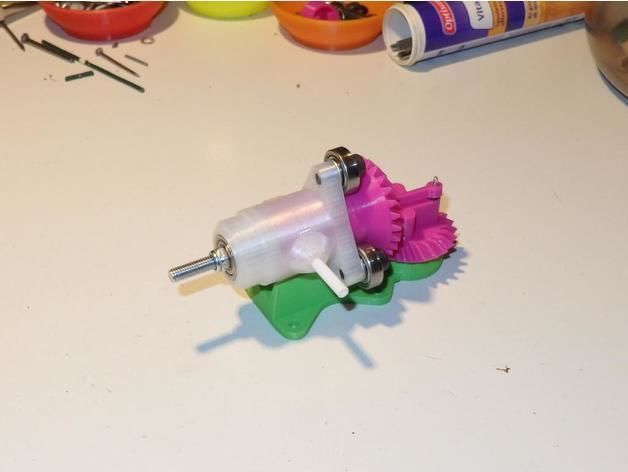

  • In the second video there is an extra detail of the construction images.

For the realization I used these other add-ons:

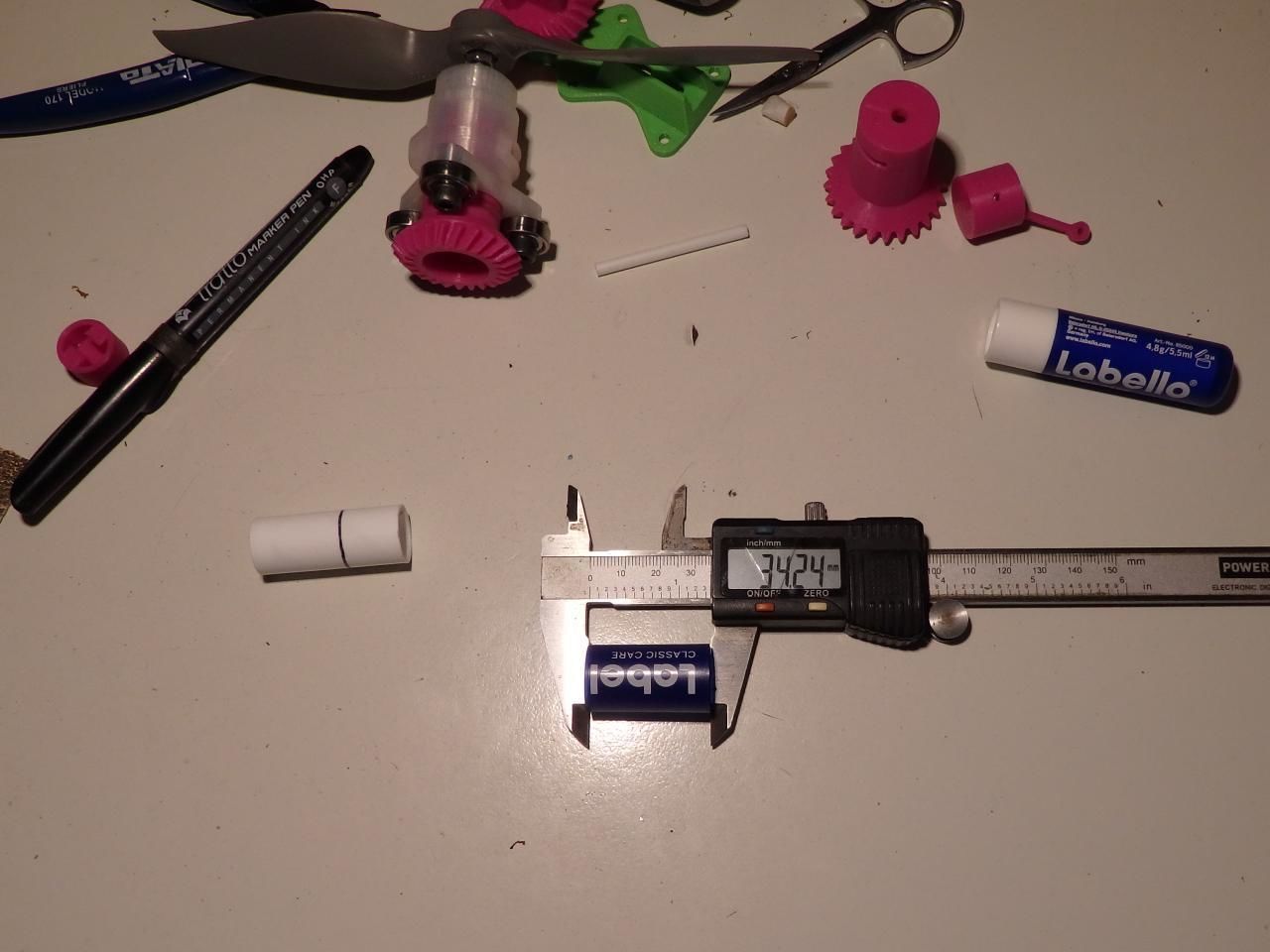

  • 1 Labello .. watch the video ;)
  • 1 M5 50mm screw
  • 3 M5 10mm screws
  • 1 M5 15mm screw [
  • 2 M4 10mm screws
  • 10 M5 washers, 1mm thick
  • 2 washers M4
  • 6 ball bearings 16x5x5mm
  • 1 M5 self-locking nut
Item rating
0 0
Air engine with rotating cylinder and Labello piston
$5.00

Royalty Free License
Air engine with rotating cylinder and Labello piston
$5.00

Royalty Free License
Response 100% in 1.3h
3D Print Modeling
Hire me

3D Model formats

Format limitations
  • Stereolithography (.stl) (7 files)7.96 MB

3D Model details

  • Publish date2020-11-12
  • Model ID#2702463
  • Ready for 3D Printing
