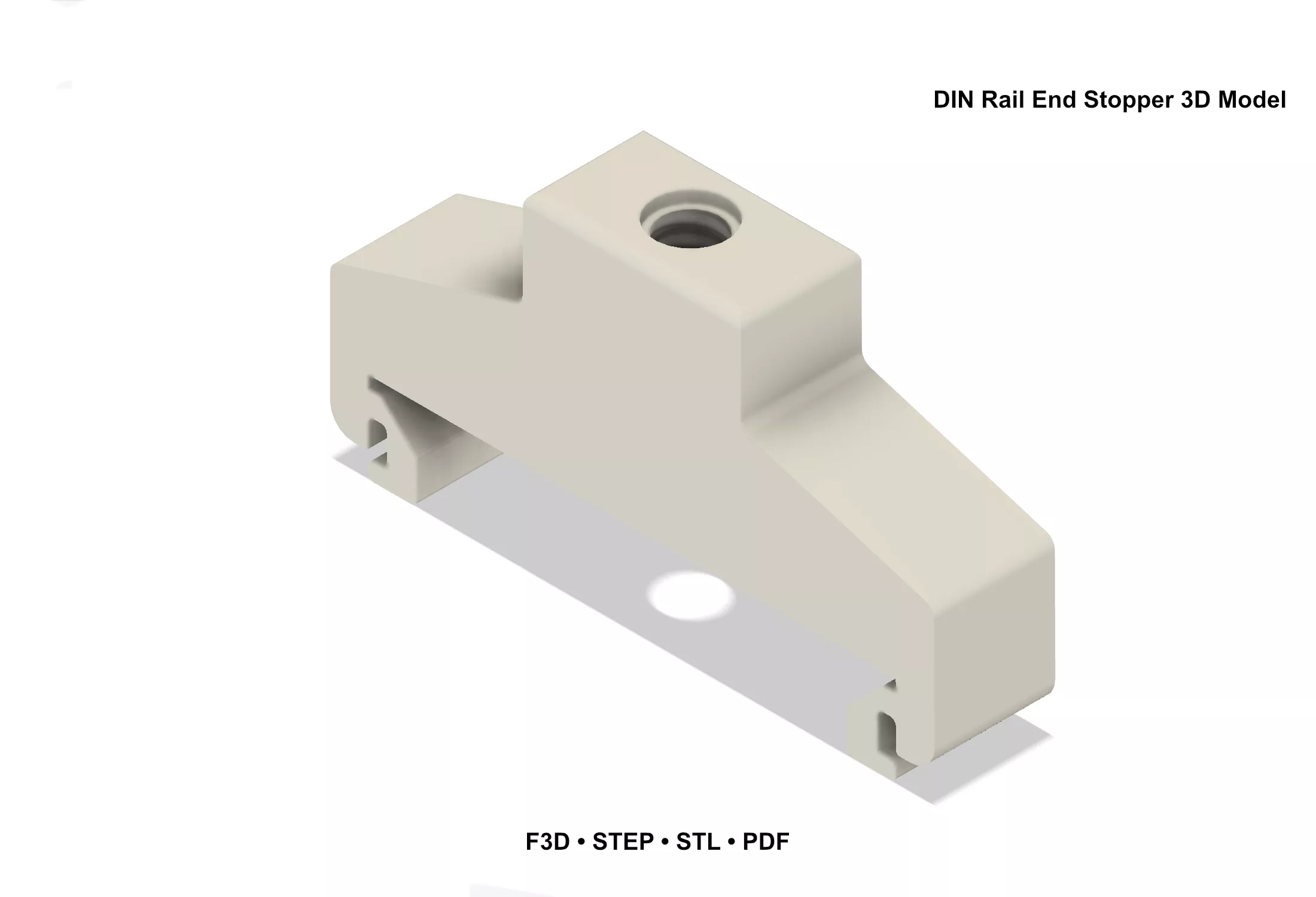

35mm DIN Rail End Stop / End Clamp designed for TS35 × 7.5 mm DIN rails.

This is an original generic CAD design suitable for electrical panels, control cabinets, terminal blocks, relay modules and DIY DIN rail projects.

The end stop uses a screw-clamping design to secure components on a 35mm DIN rail and prevent unwanted movement along the rail.

FEATURES:• Designed for 35mm TS35 × 7.5 mm DIN rail• Screw-lock clamping design• Parametric Fusion 360 model• Suitable for 3D printing and CAD modification• Simple mechanical construction• Suitable for prototyping and DIY projects

INCLUDED FILE FORMATS:• F3D – Fusion 360 parametric source file• STEP – CAD exchange format• STL – 3D printing• PDF – Technical drawing

PARAMETRIC MODEL:The included Fusion 360 F3D file is parametric. Selected dimensions can be modified using the User Parameters in Fusion 360.

The model is provided as a generic design for prototyping and personal/project use. Please verify dimensions, fit, material suitability and mechanical performance before using it in a real electrical installation.

This product is an original generic design and is not affiliated with or manufactured by any DIN rail manufacturer.
