COVID-19 PEEP one way adjustable valve 3D printable 3D print model

COVID-19 PEEP one way adjustable valve 3D printable : this one way valve hepls keep Positive end-expiratory pressure in lungs for patient under assisted breathing, in case of lack of medicaly aproved PEEP valves can easily 3D printed without support , composed of 2 mandatory parts an one optional part (stl and step files ).

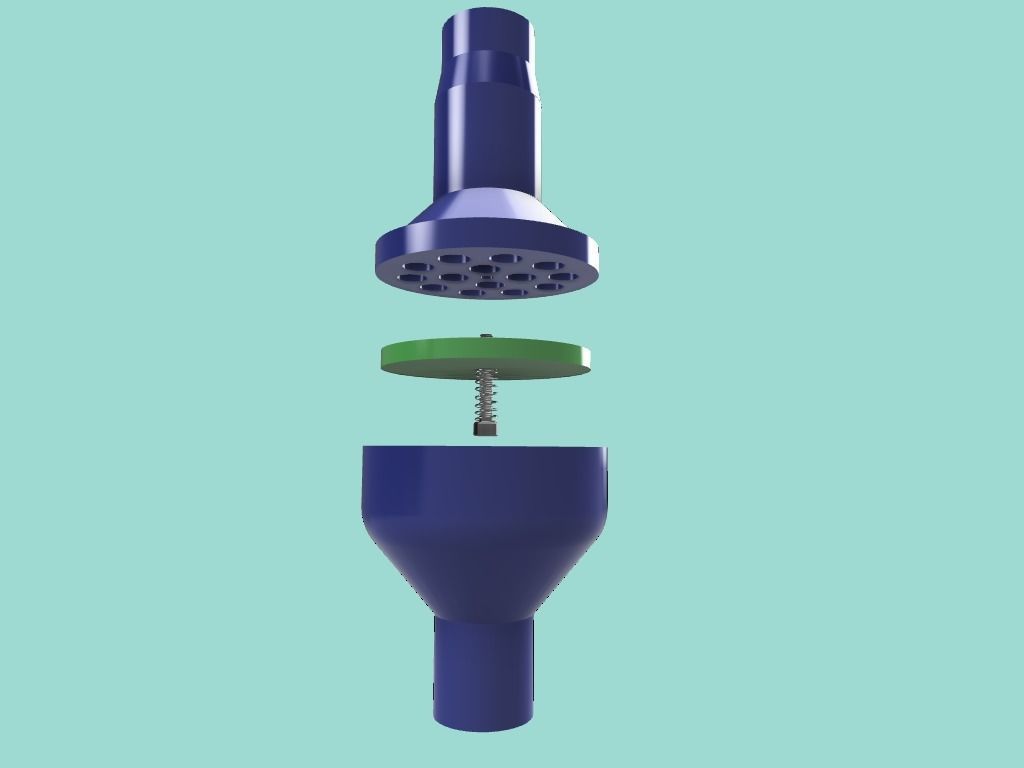

you will need a spring (i used the one under the bed of a 3d printer) and an M3 screw to adjust the presure, assembly is straight forward see images.

  • the top part to be printed with the little holes on a glass bed (needs to be extra smooth) no supports no raft no brim
  • the middle part on a glass bed (needs to be extra smooth also) no supports no raft no brim, the M3 screw needs to move freely inside the center hole
  • the buttom part is optional when assembling the top and middle parts make sure the smooth surfaces face each other to make a seal
    This product has no reviews yet
    COVID-19 PEEP one way adjustable valve 3D printable
    $5.00
    All prices are exclusive of VAT
    Save with CGTrader Credits
    Send your price offer to the author if you want to buy it at lower price.
    Royalty Free License
    Products under Royalty Free License can be used without liability to pay any license fees for<br/> multiple lifelong uses, or sales volume of final product after being paid for once. The product<br/> may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response 100% in 14.1h
    3D model formats
    • Stereolithography (.stl) (3 files)-
    3D model details
    • Publish date2020-05-02
