Large Analemma Sundial Gnomon

Large Analemma Sundial Gnomon 3D print model

Description

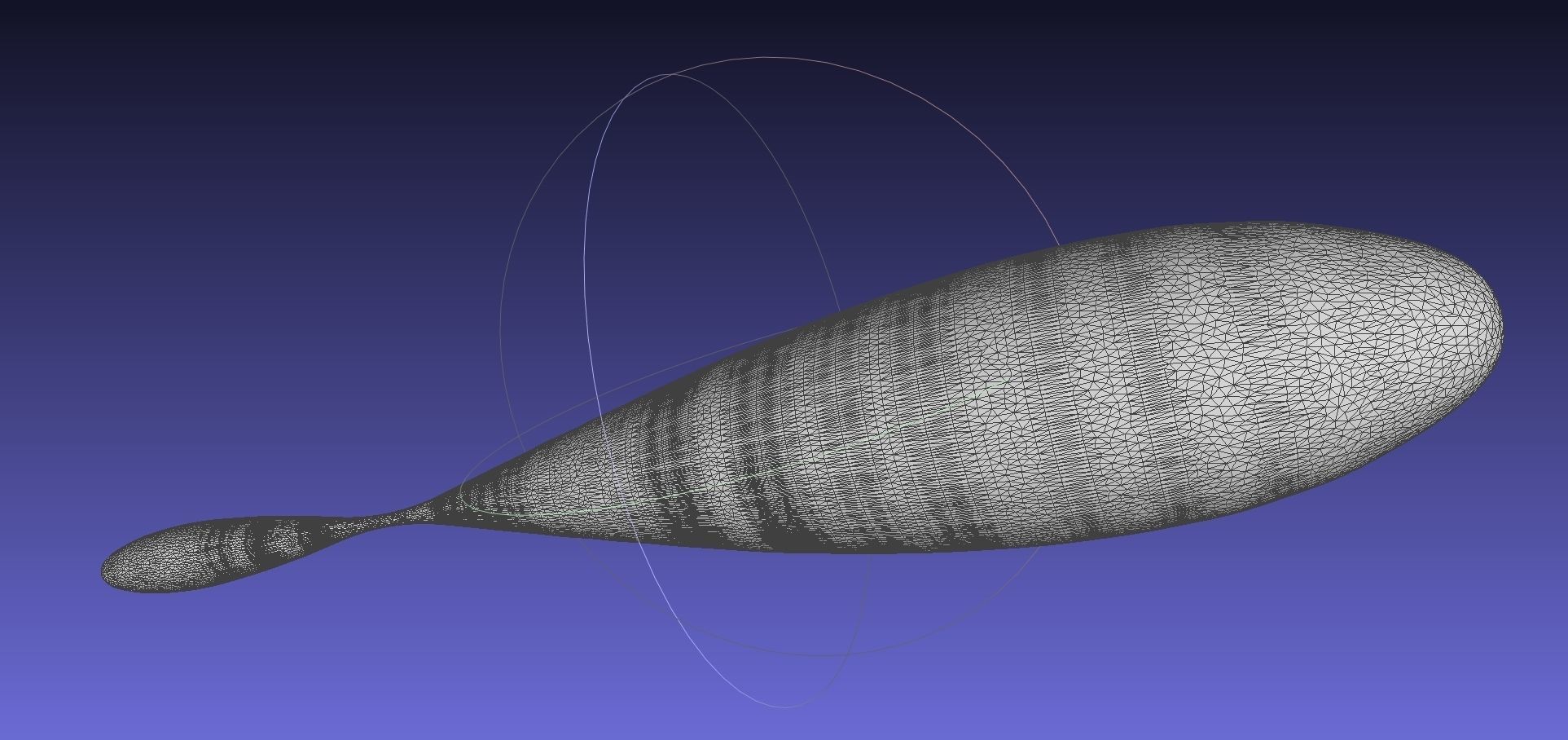

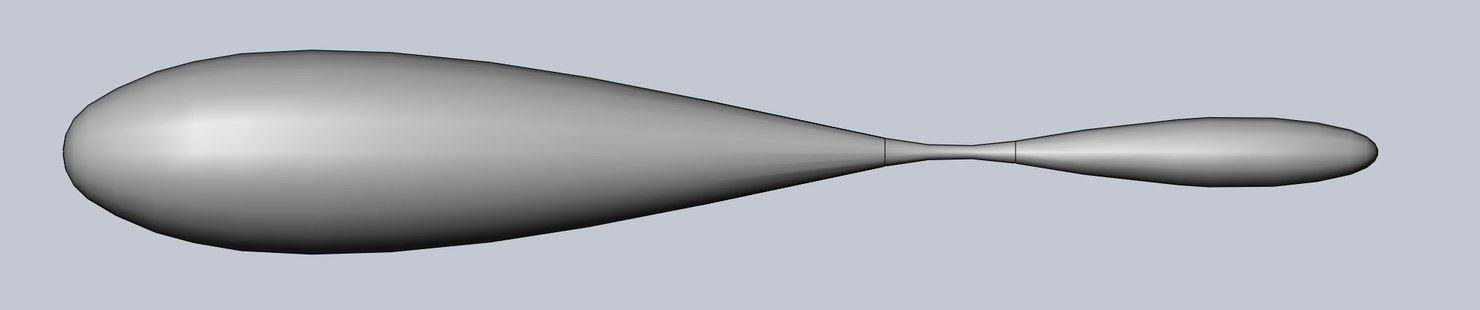

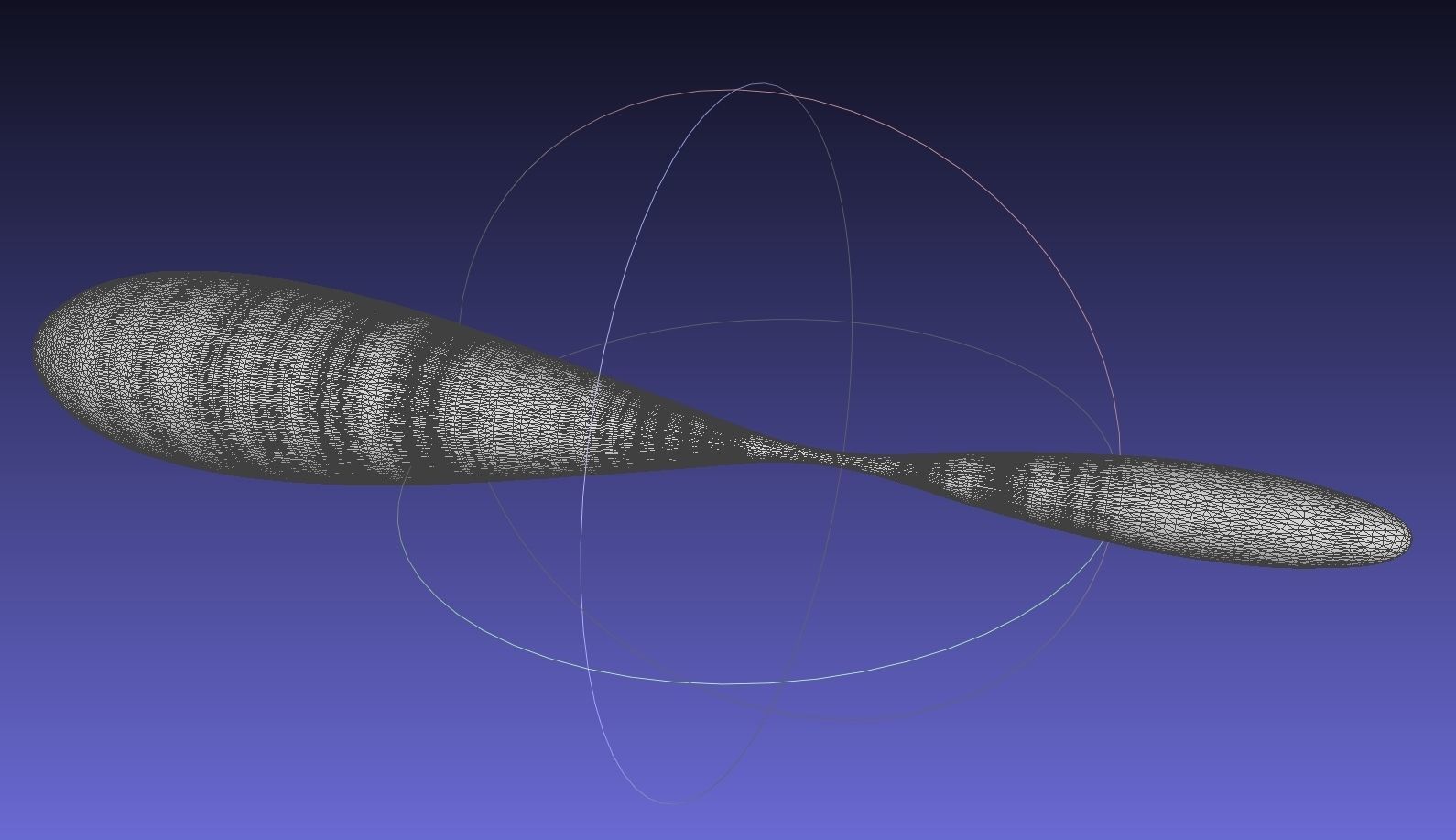

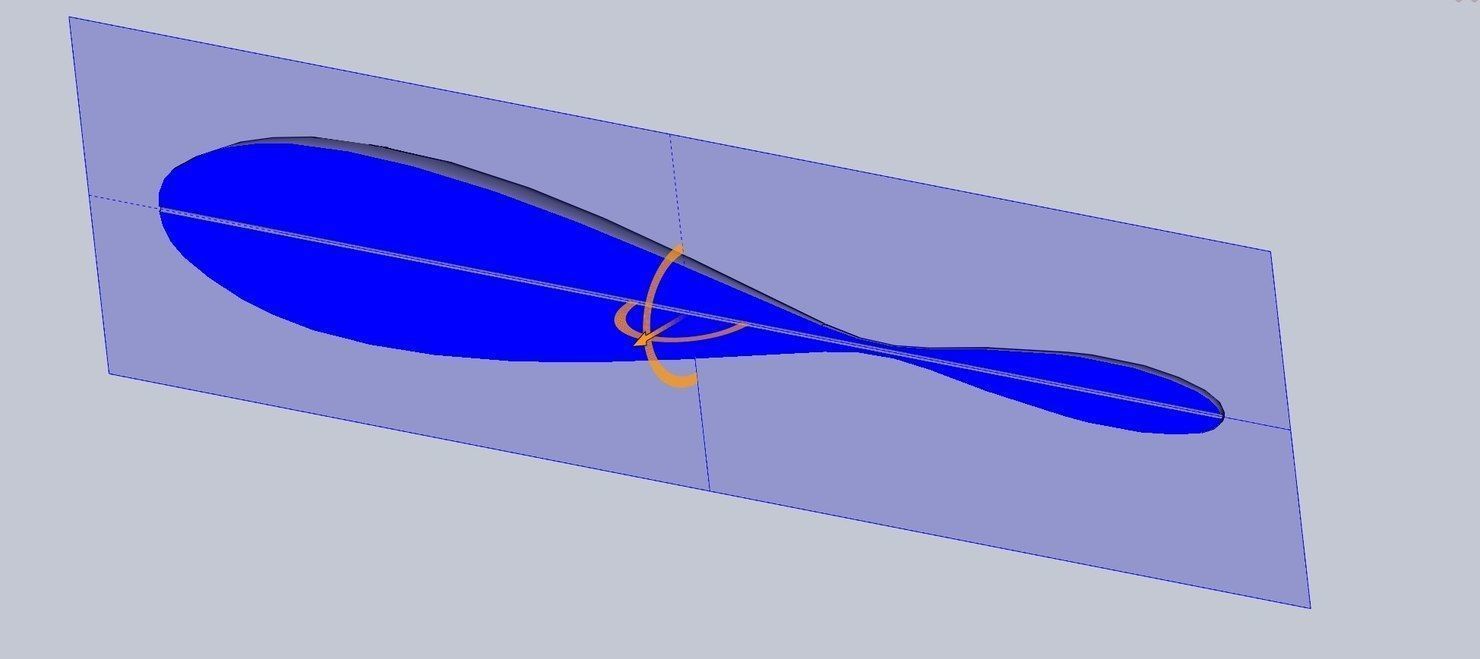

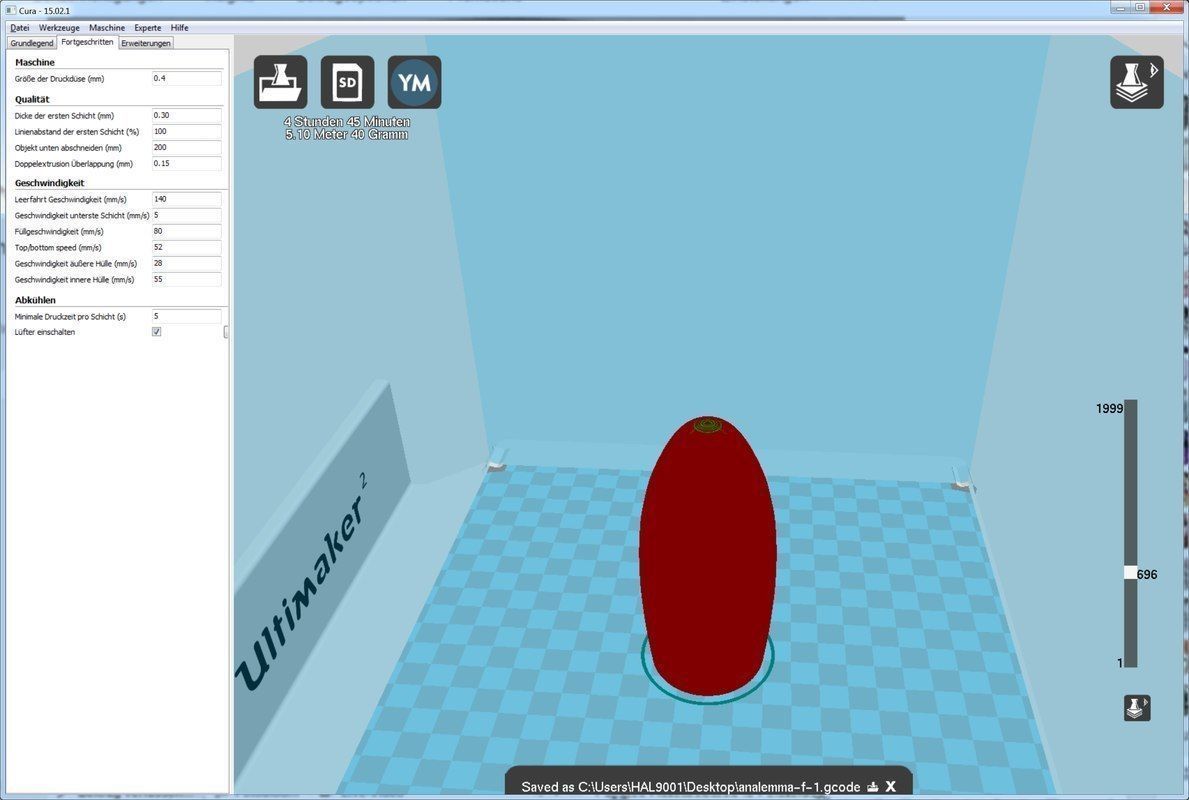

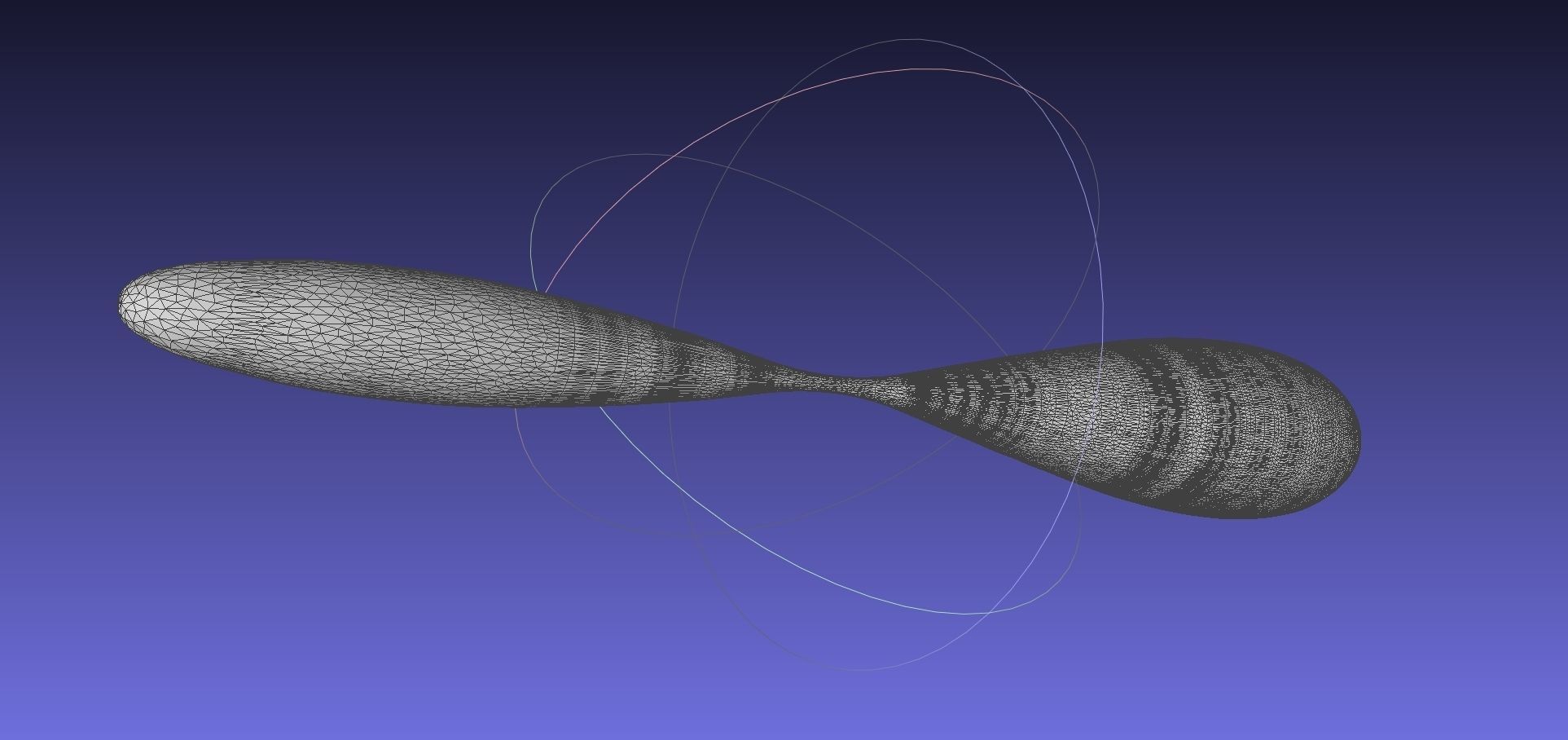

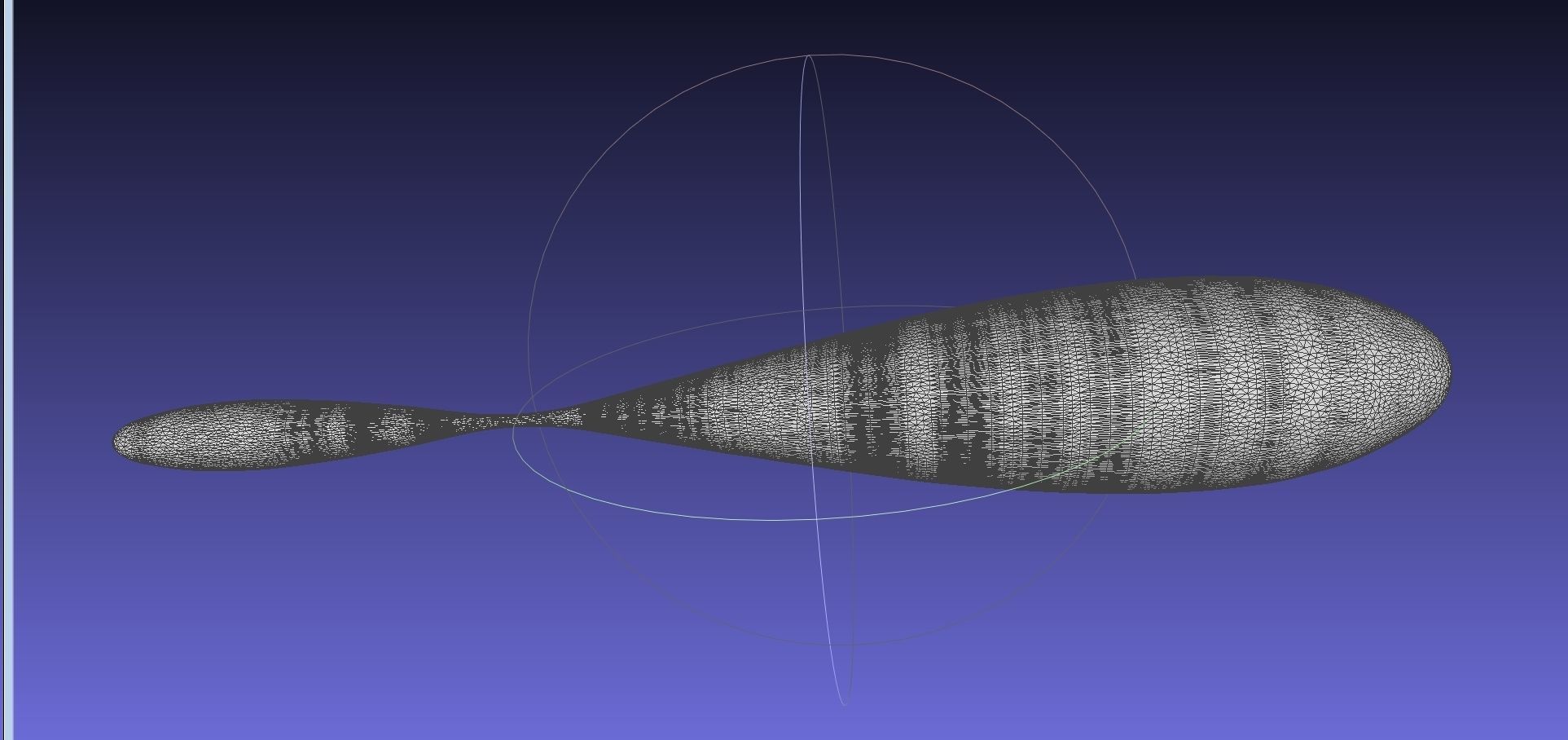

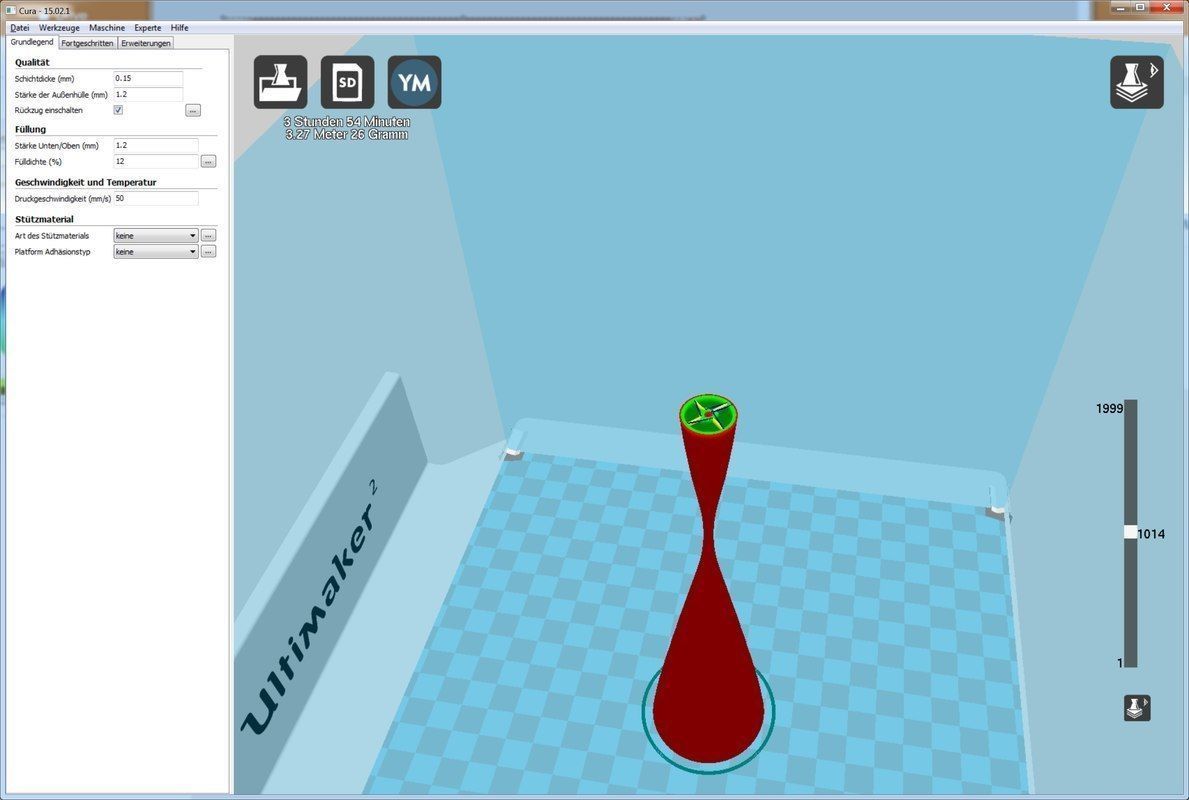

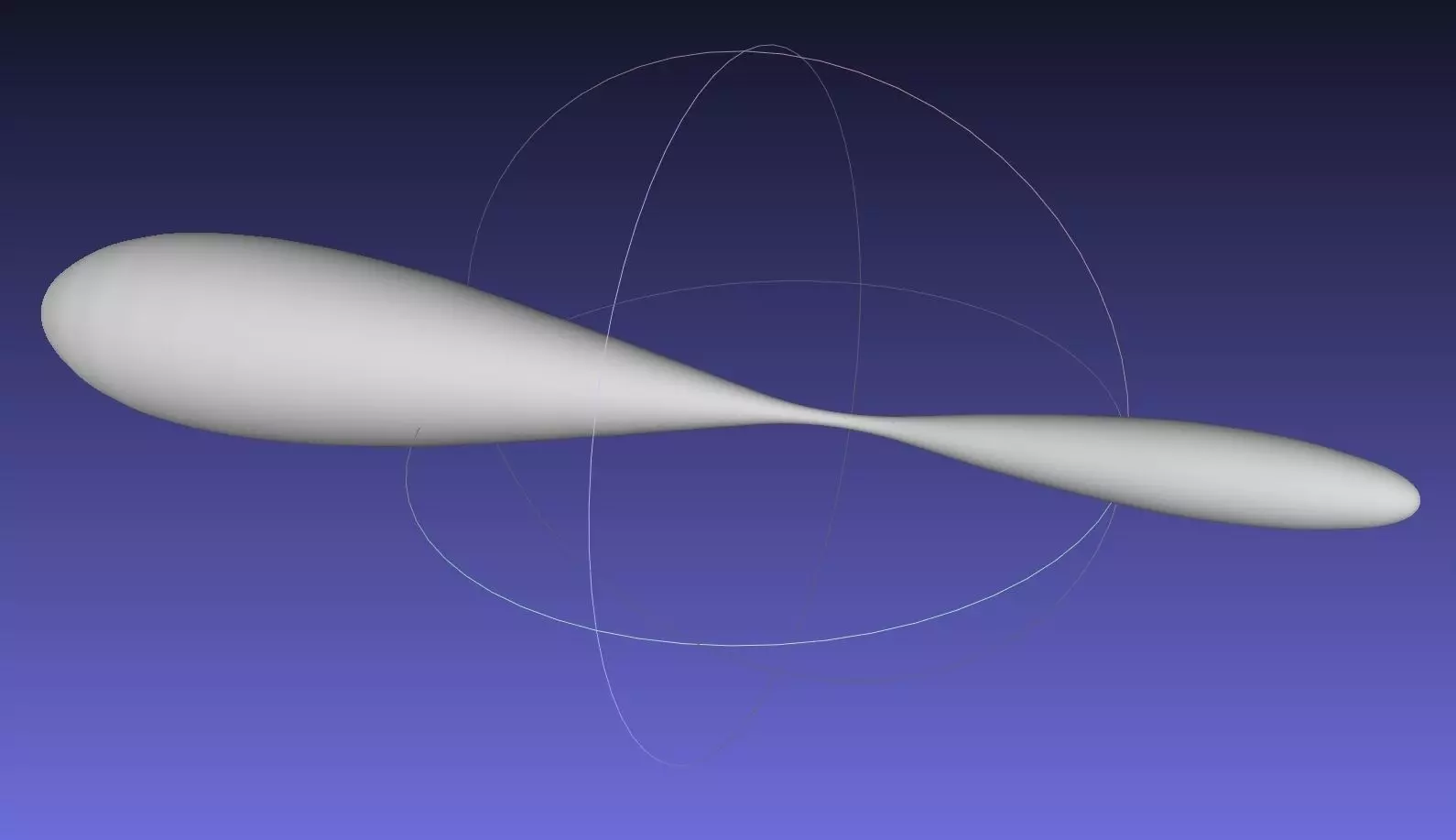

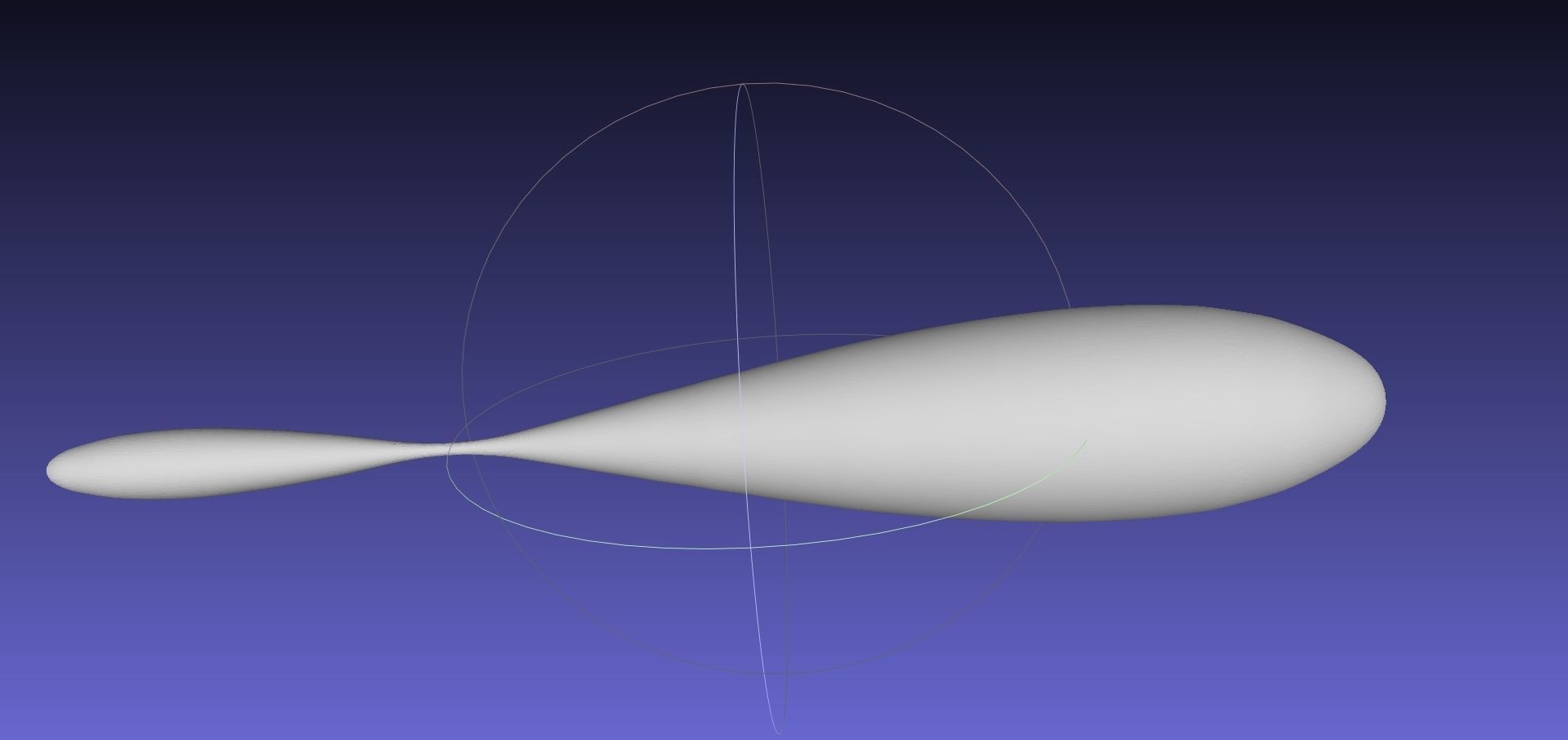

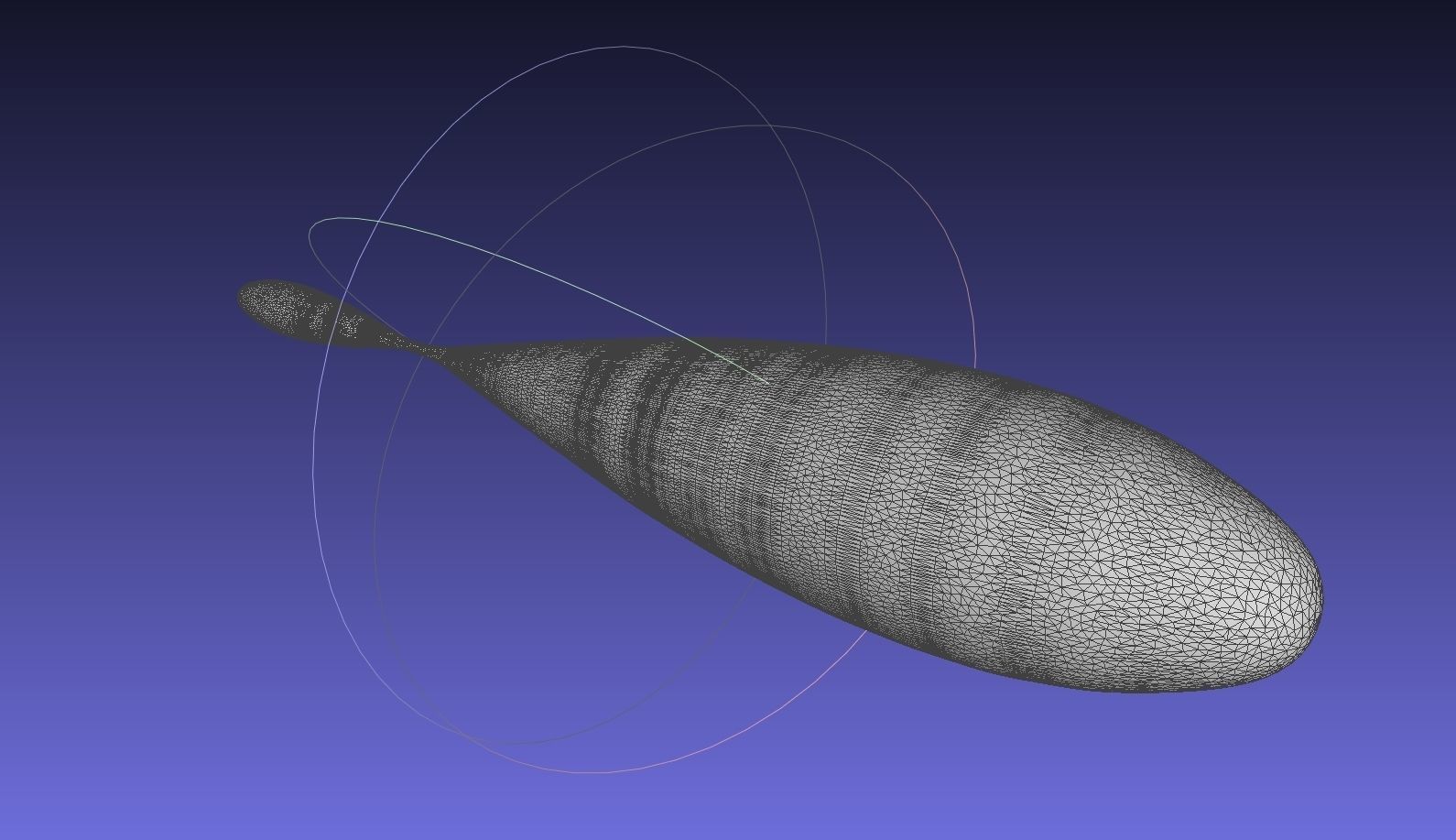

A large and precise version of the analemma shaped gnomon or pointer for a sundial that can be used for building a large DIY outsidde sundial - the pointer is shaped like the appearent path of the sun in the sky to correct for the earths orbital eccentricity and axial tilt - the shape was geometrically stretched by pushing the y-axis through a tangens function in order to turn it into a straight geometric shape that matches the analemma when projected from the timescales perspective the model was designed to be printed in two pieces and glued together while being supported by a steel wire going through the central tube - can be scaled up and down freely and with the right steel wire or rod hung added to a large sundial design https://en.wikipedia.org/wiki/Analemma

Item rating
0 0
Large Analemma Sundial Gnomon
$6.27

Royalty Free No Ai License
Large Analemma Sundial Gnomon
$6.27

Royalty Free No Ai License
Response 87% in 0.4h
3D Modeling
3D Print Modeling
Hire me

3D Model formats

Format limitations
Native
  • SolidWorks (.sldprt, .sldasm, .slddrw)89.1 KB
Exchange
  • Stereolithography (.stl) (2 files)35.1 MB
  • 3D Studio (.3ds)625 KB
  • OBJ (.obj, .mtl)990 KB
  • Other 2.21 MB

3D Model details

  • Publish date2018-09-04
  • Model ID#989600
  • Ready for 3D Printing
