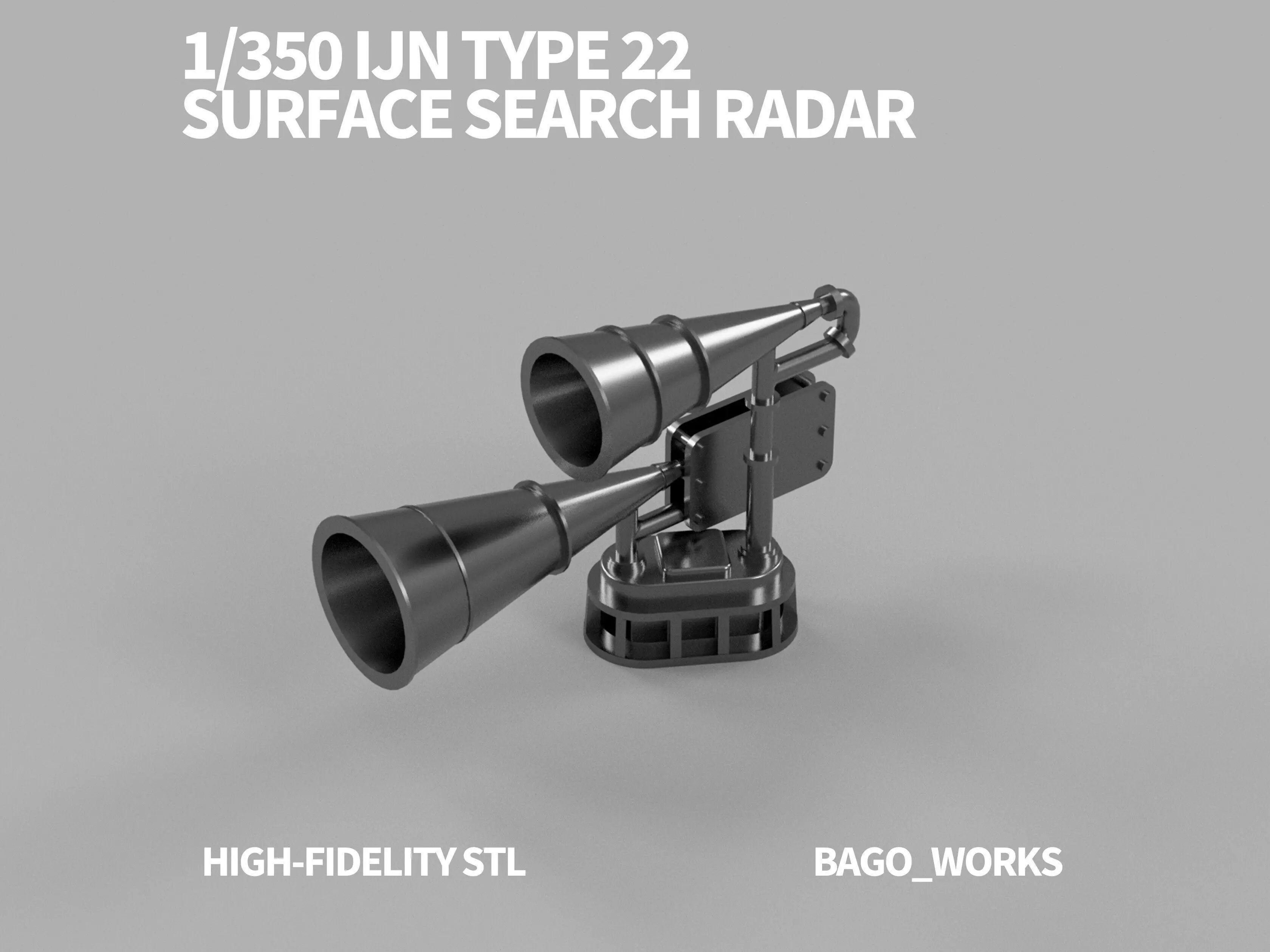

A highly detailed 3D model of the Imperial Japanese Navy Type 22 Surface Search Radar (22-Go Dentan).Commonly mounted on destroyers, cruisers, and battleships like Yamato, this radar is famous for its horn-shaped antennas.

This 3D model reproduces the delicate, hollow horn shapes that are impossible to achieve with standard plastic injection molding.

Key FeaturesTwo Historical Variations Included:Standard Type: Both the transmitter (upper) and receiver (lower) horns are the same size. Used in the early to mid-war period.Late War Modified Type: The receiver horn (lower) is enlarged for better performance. Features distinct asymmetrical designs for Port and Starboard sides.Engineering Precision: Designed by a professional mechanical engineer for high-resolution resin printing.Update History (Log)[Latest Update: Nov 08, 2025]

• Late War Type Added: Added the Large Receiver version used in the late stages of the war.

Included Files (3 Files)[Late War Type (Enlarged Receiver)]

• 22go_radar_Large_Port (Port Side / Left)
• 22go_radar_Large_Starboard (Starboard Side / Right)

[Standard Type]

• 22go_radar_standard (Standard / Early Type)

[Terms of Use & Disclaimer]Personal Use Only:Purchase of this 3D file grants a license for personal use only. Any commercial use, including selling the printed models or redistributing the digital files, is strictly prohibited.

No Sharing:Do not share, upload, or distribute the STL files on any other websites or platforms.

Printing Disclaimer:These files have been tested for printability. However, due to variations in 3D printers and resins, we cannot guarantee successful prints on every machine. The user is responsible for printer settings and support generation.

Refund Policy:Due to the nature of digital products, all sales are final. No refunds will be issued once the files have been downloaded.

Copyright BAGO_Works. All Rights Reserved.
