Soyuz MS Spacecraft

Soyuz MS Spacecraft 3D print model

Soyuz MS is the most recent version of the well-seasoned Soyuz spacecraft family. It is based on the well-stablished TMA and TMA-M variants and since 2016 has achieved 15 crewed mission to ISS. Until the debut of new crewed systems such as Dragon 2, Starliner, Orion and Dream Chaser, it will be the only craft capable of taking humans to and from space safely.

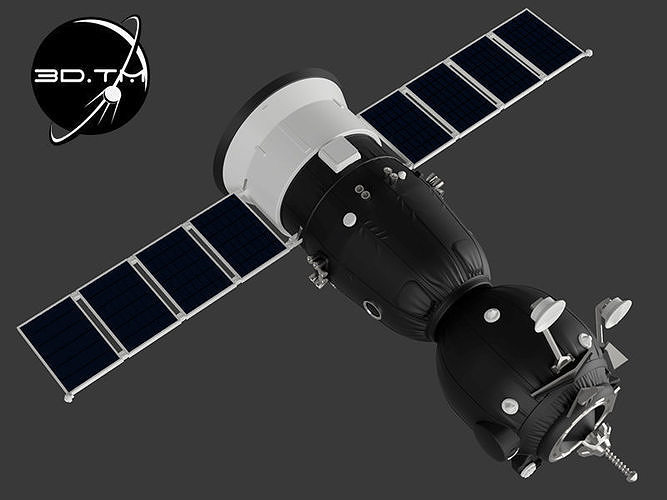

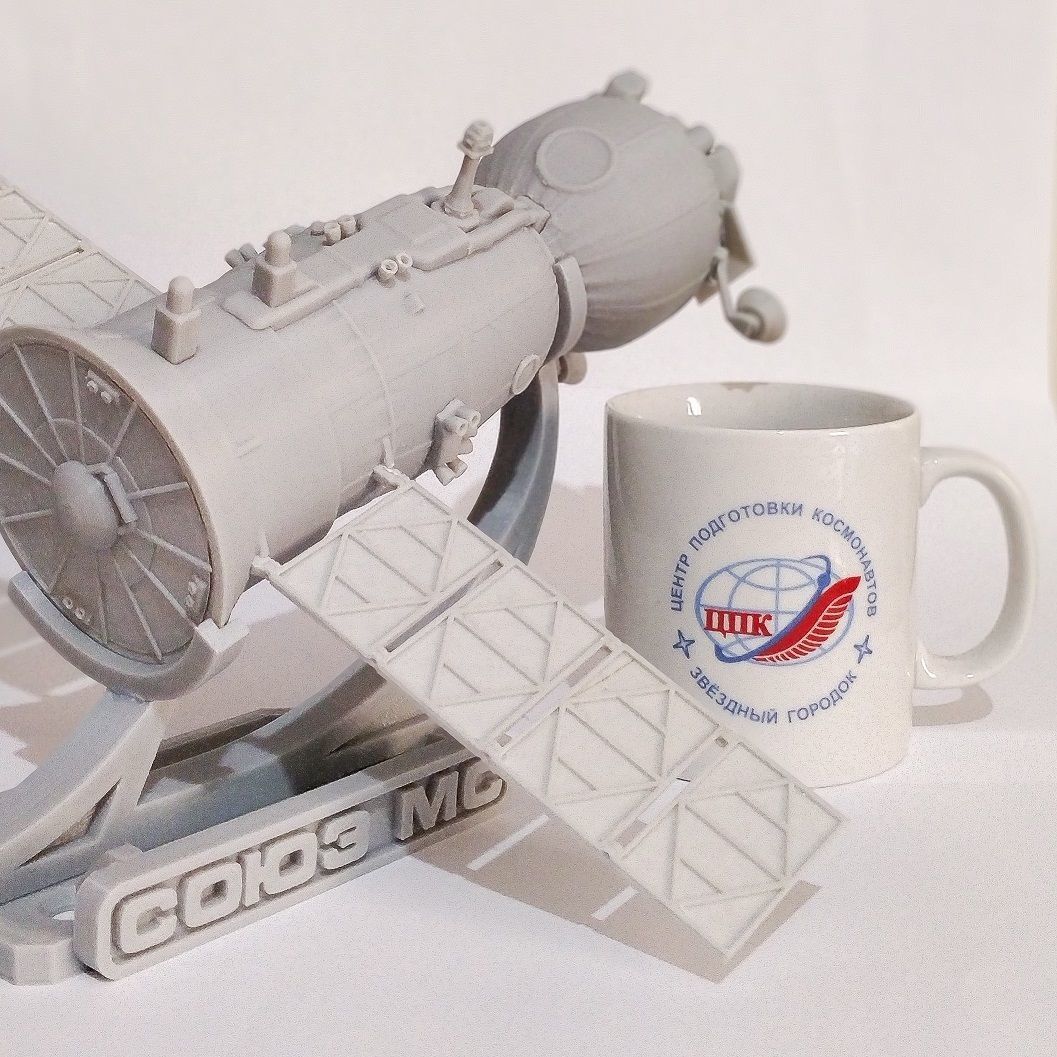

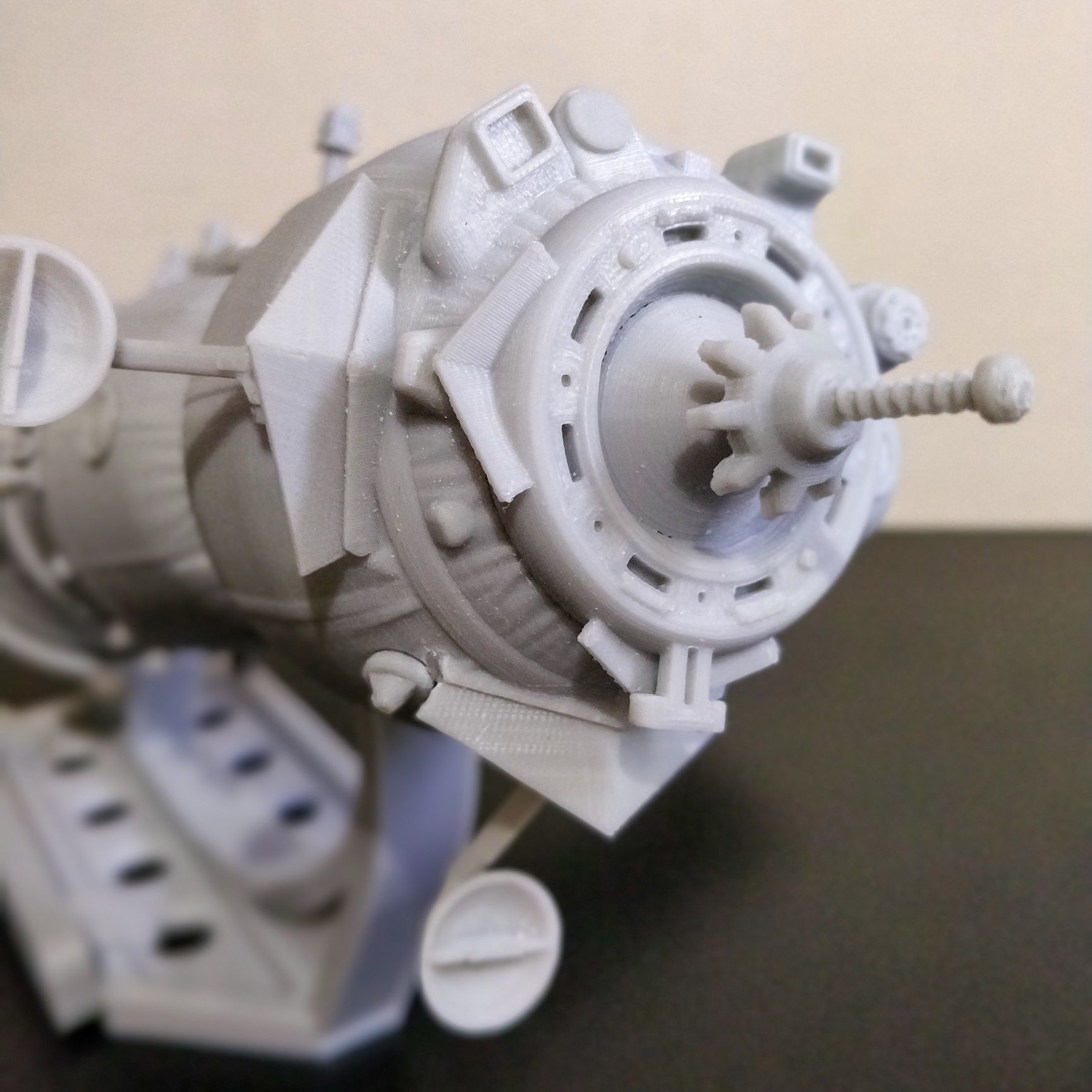

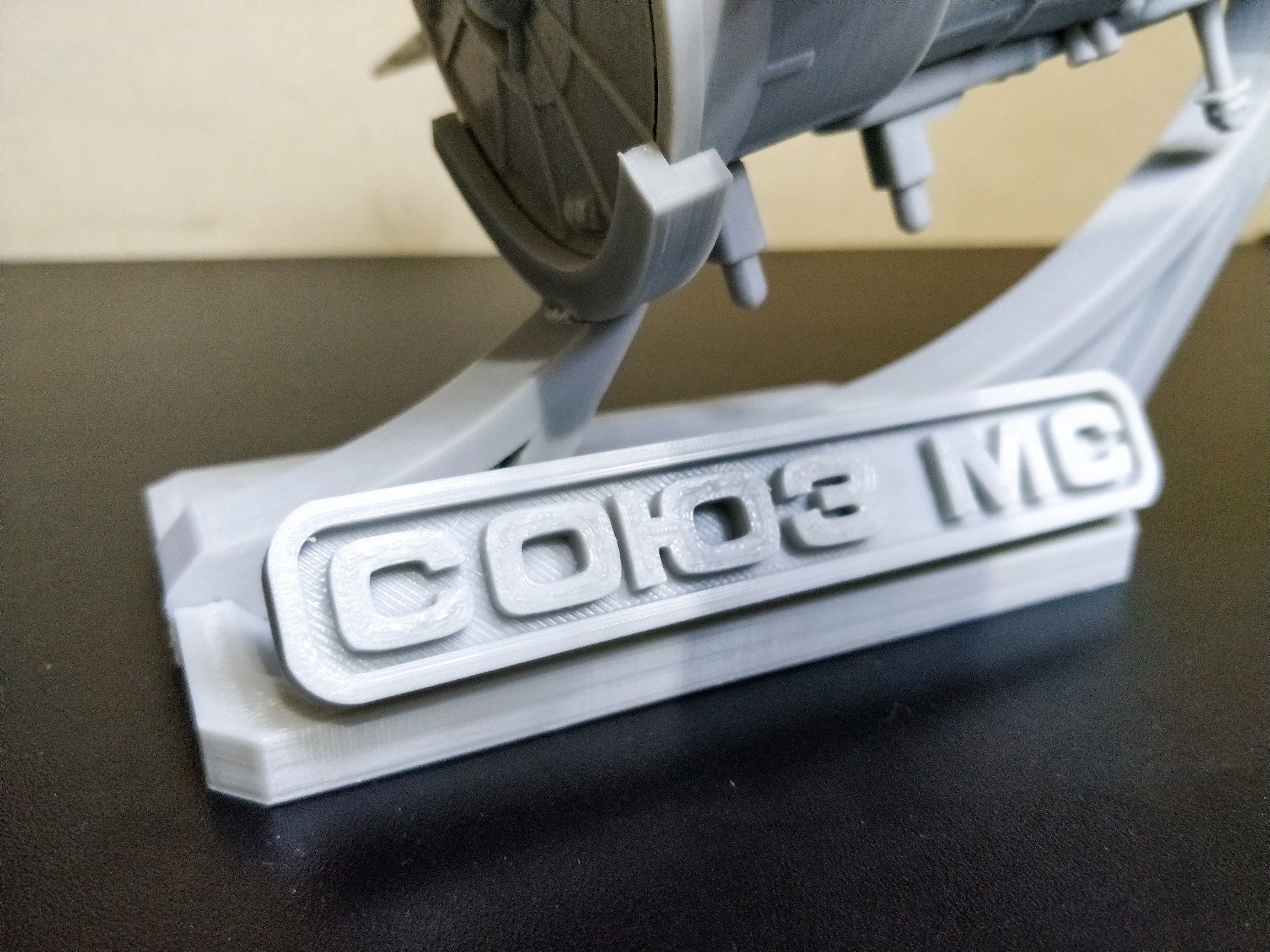

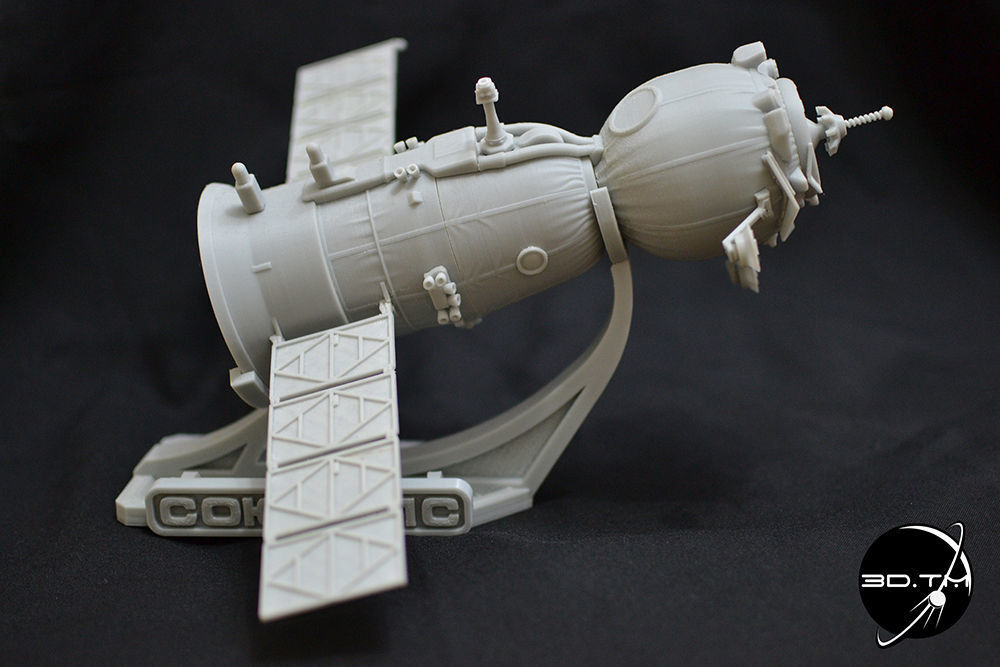

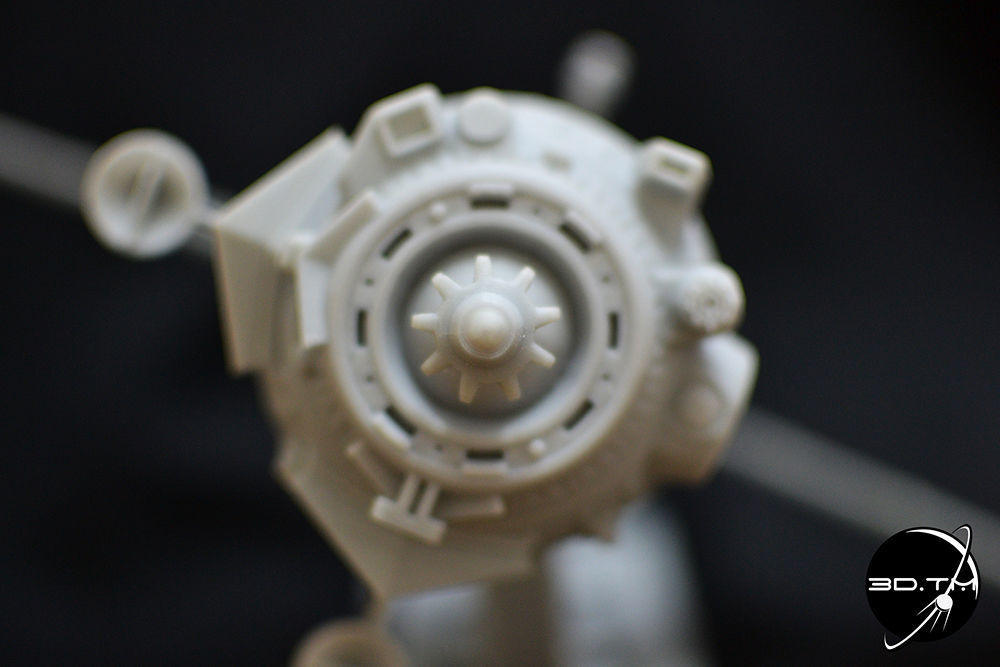

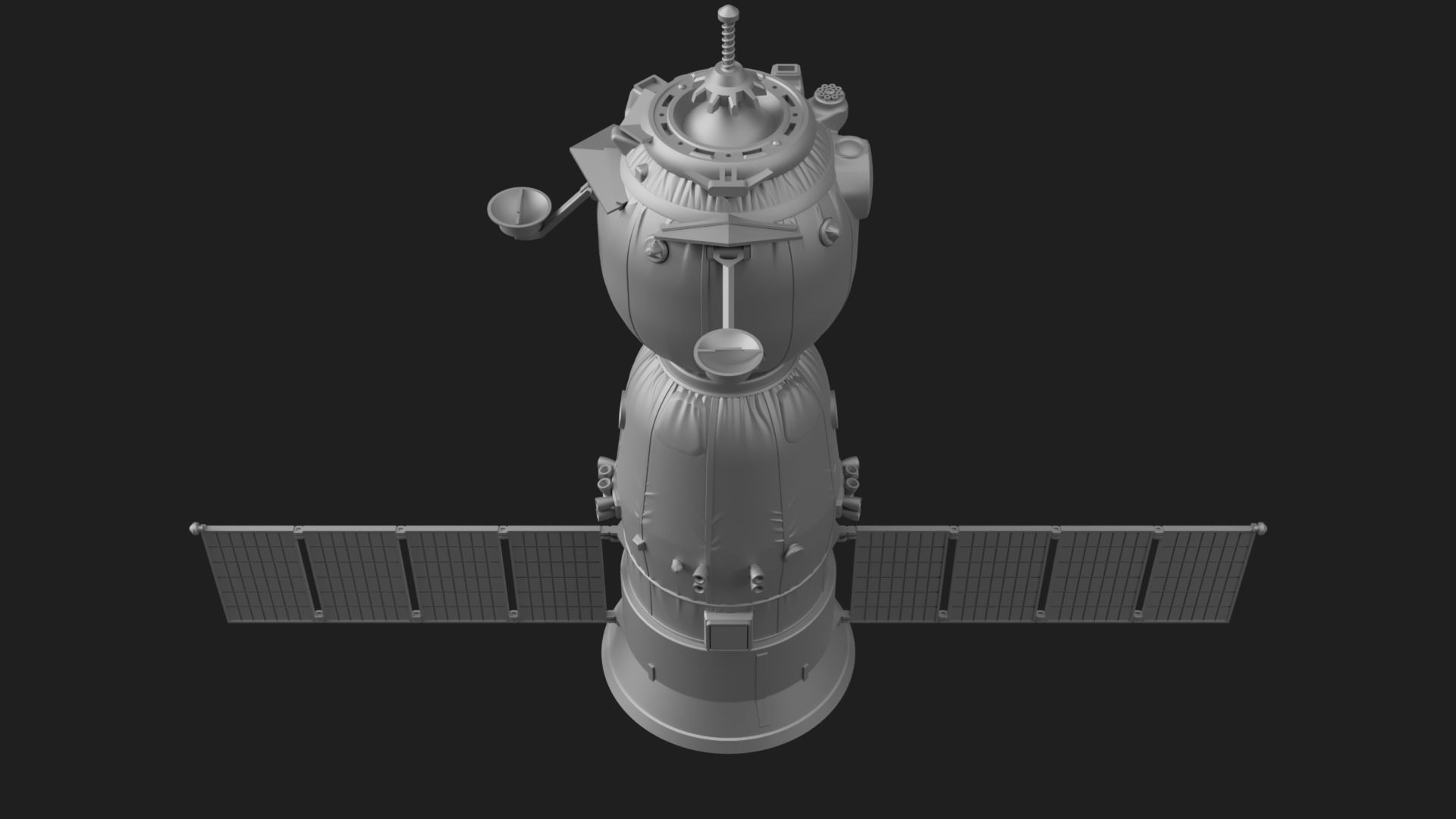

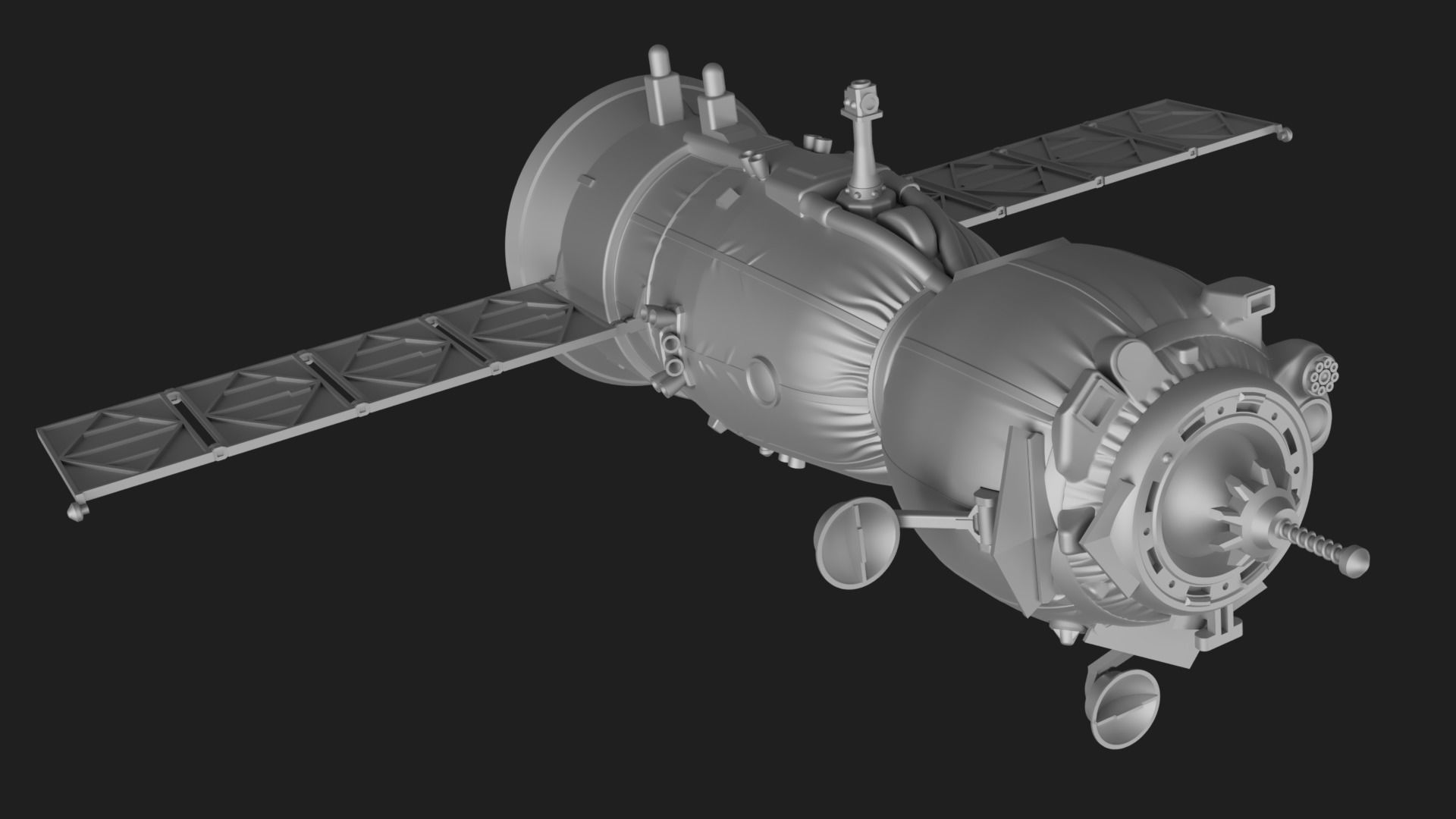

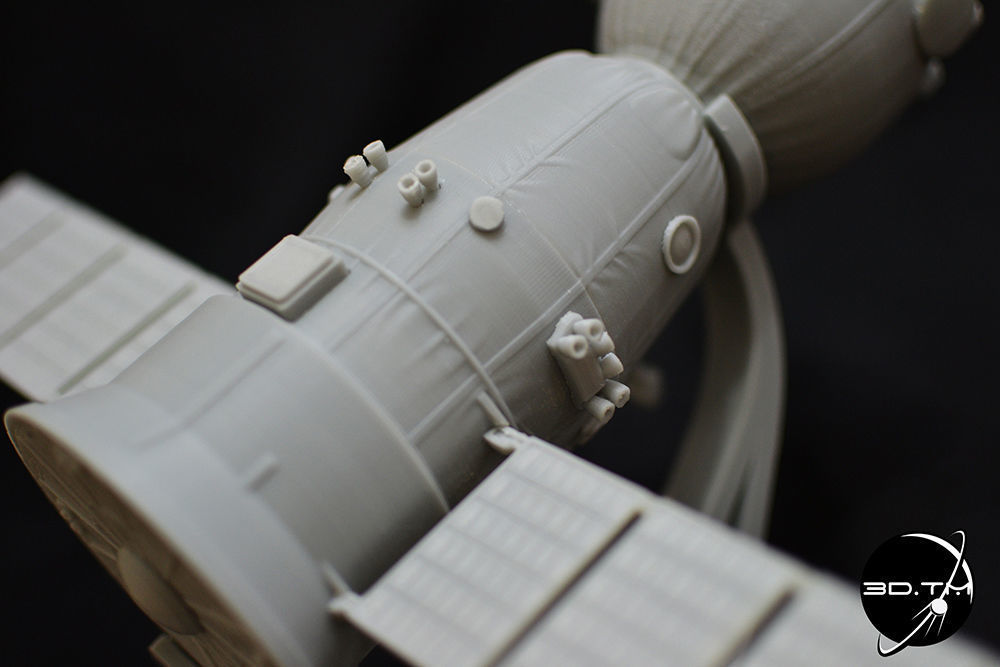

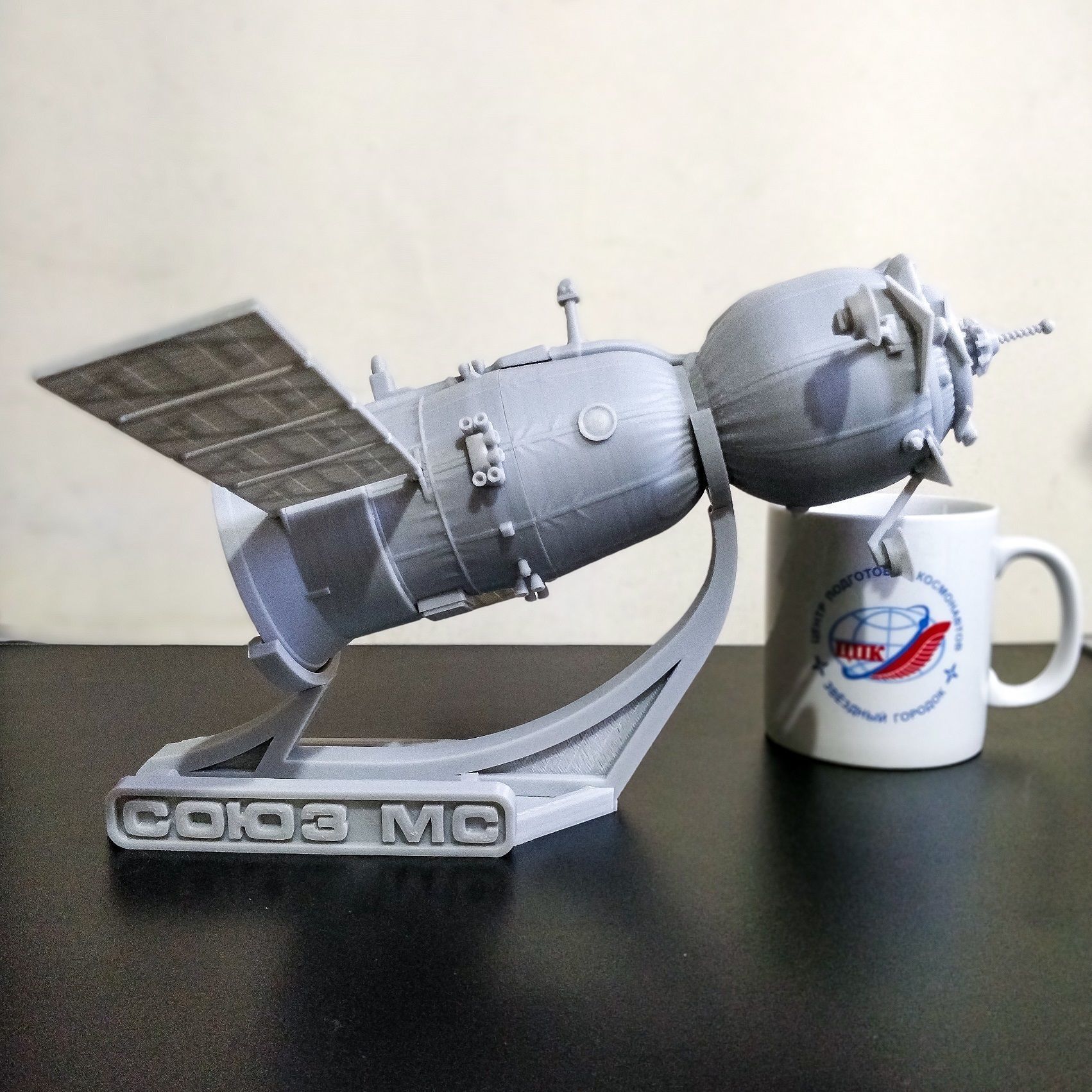

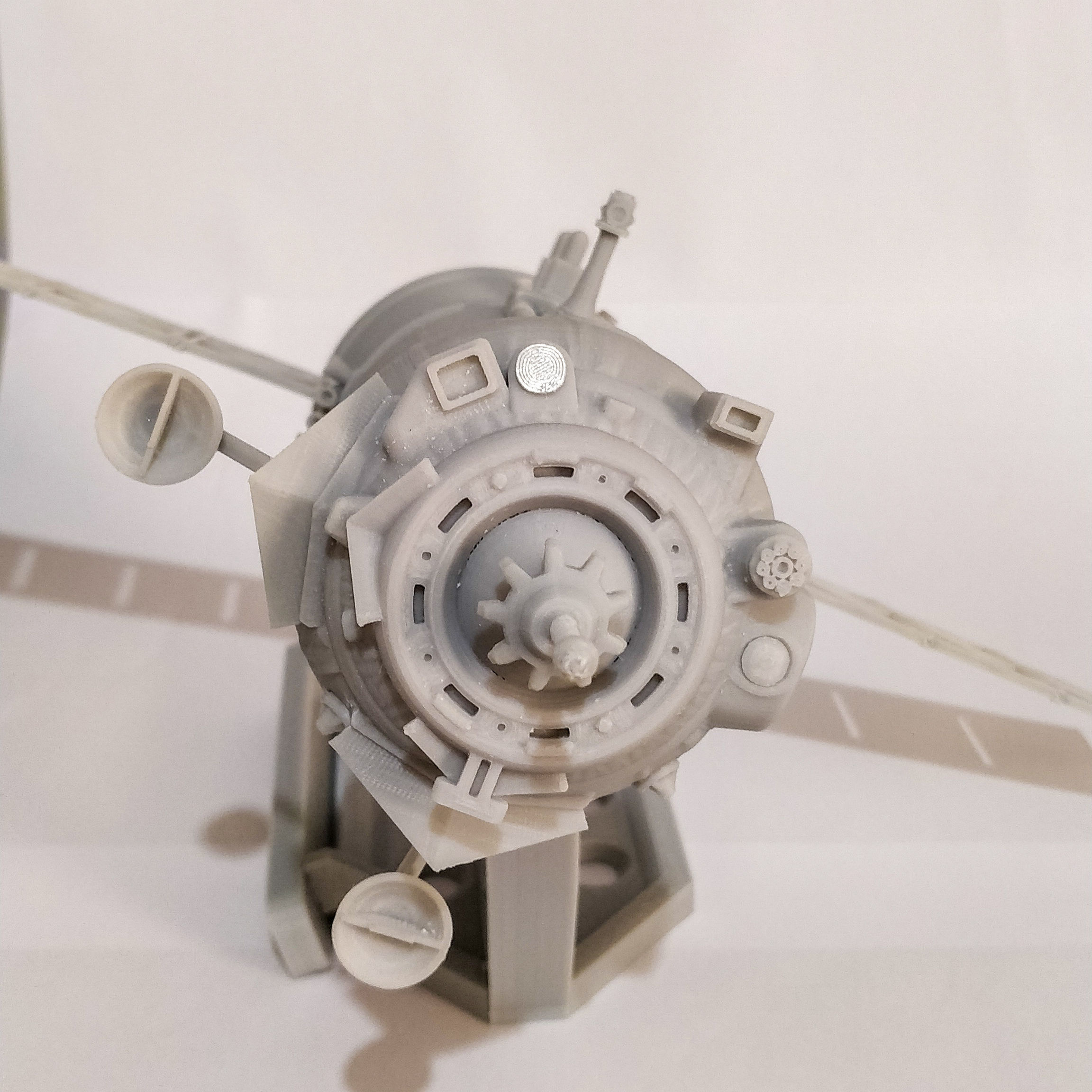

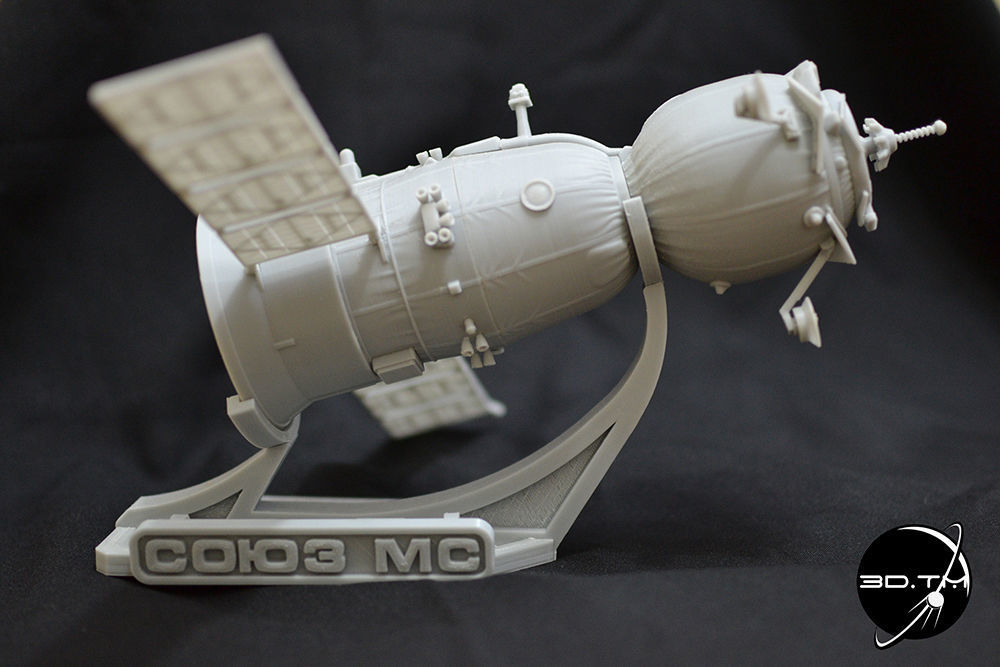

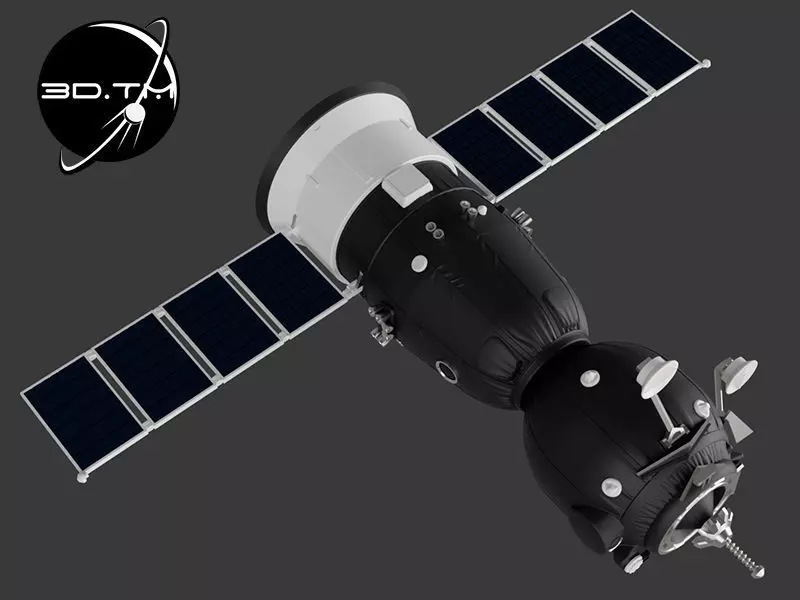

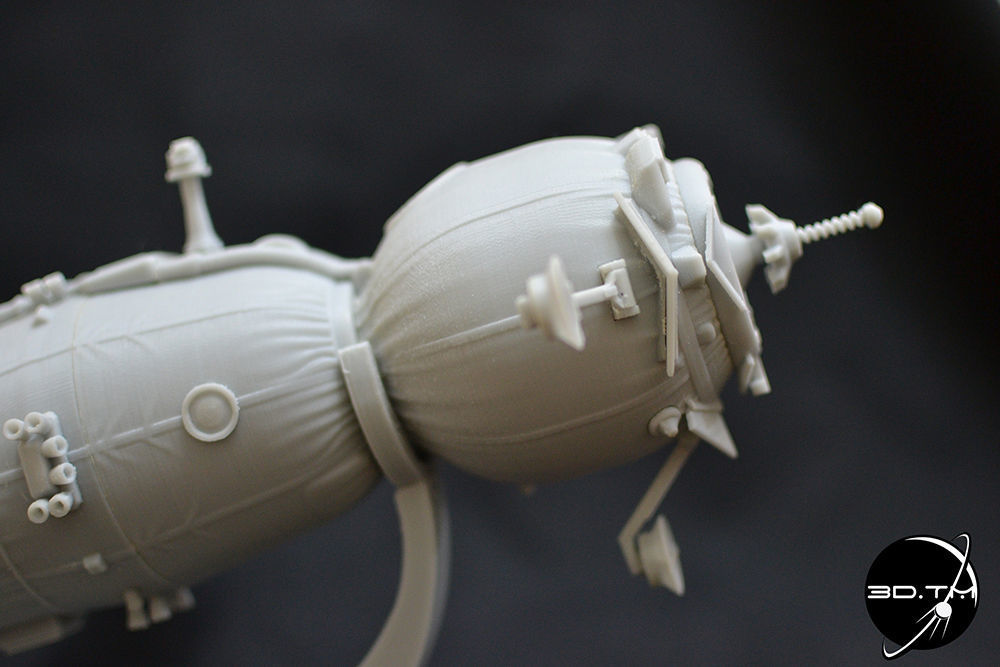

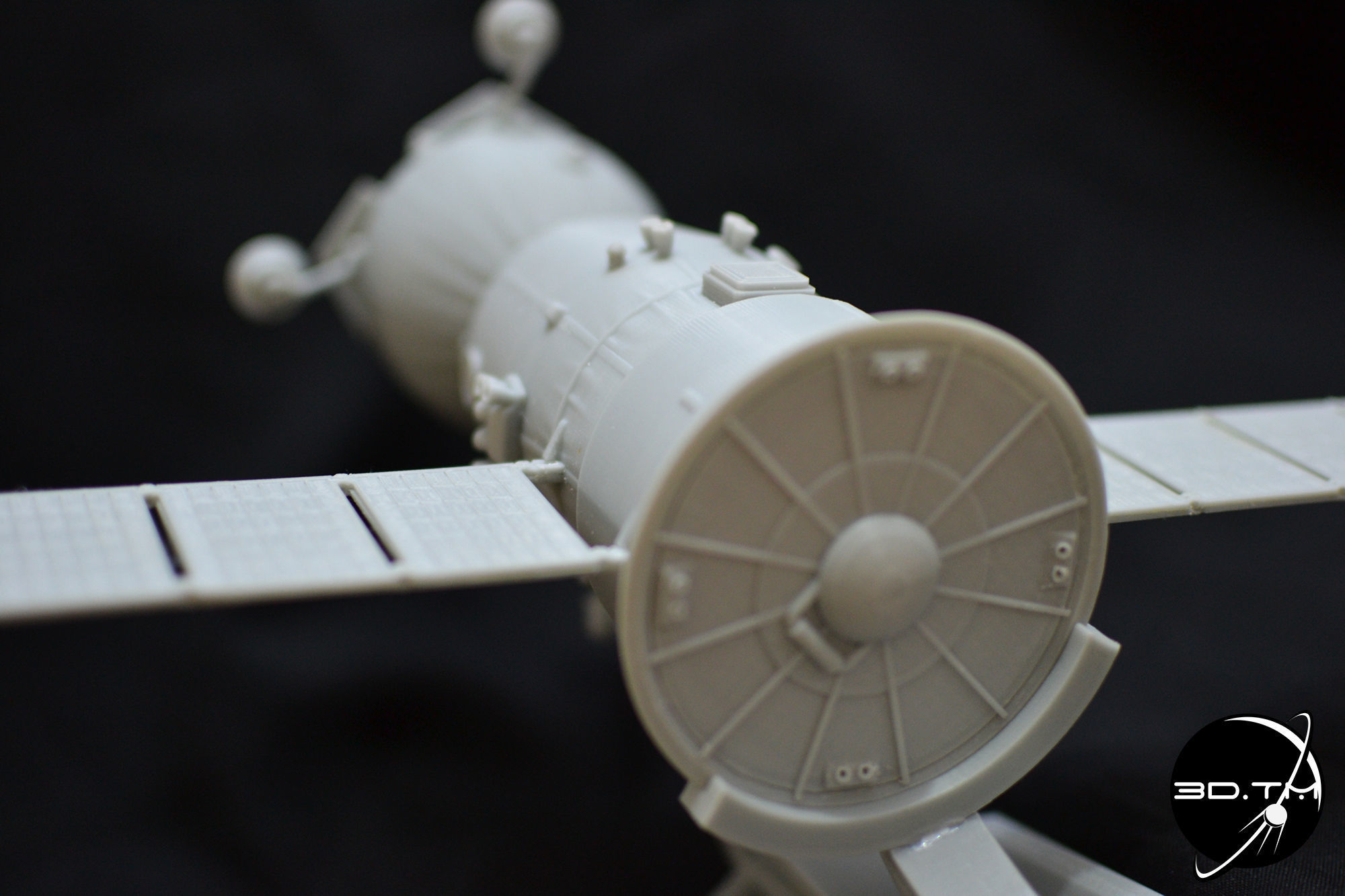

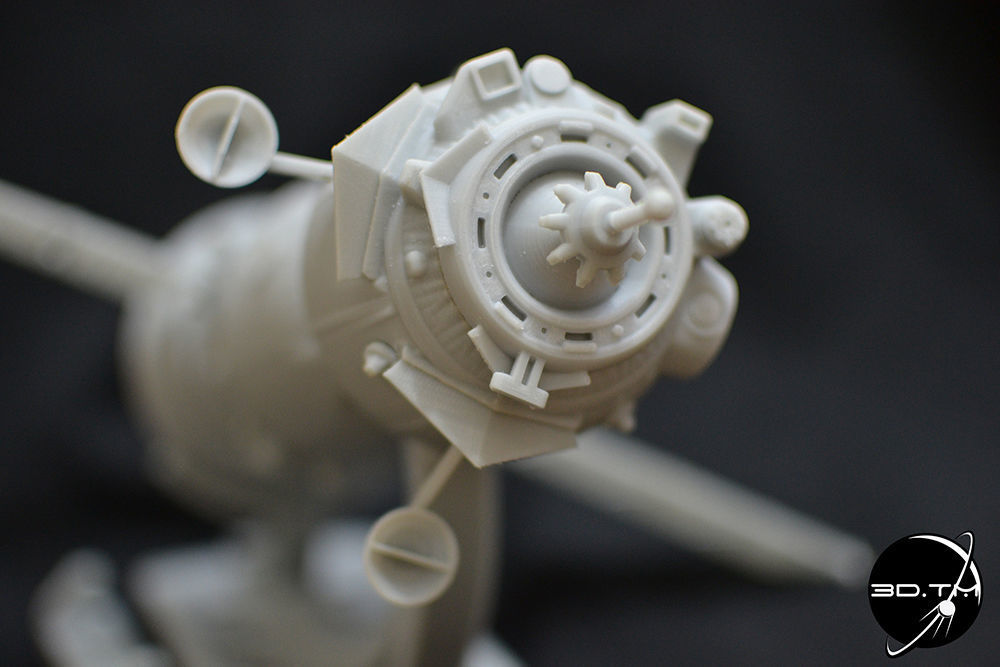

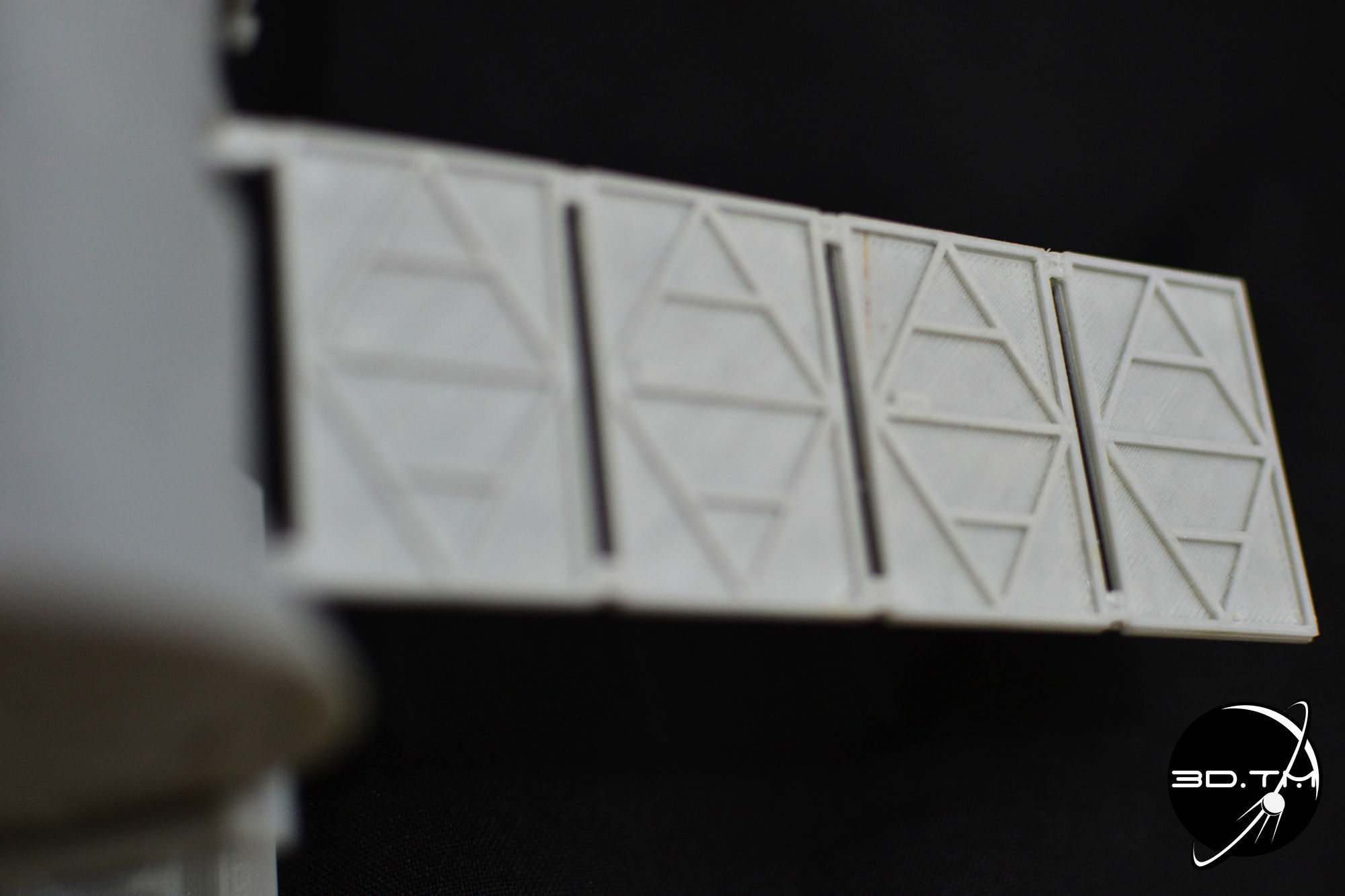

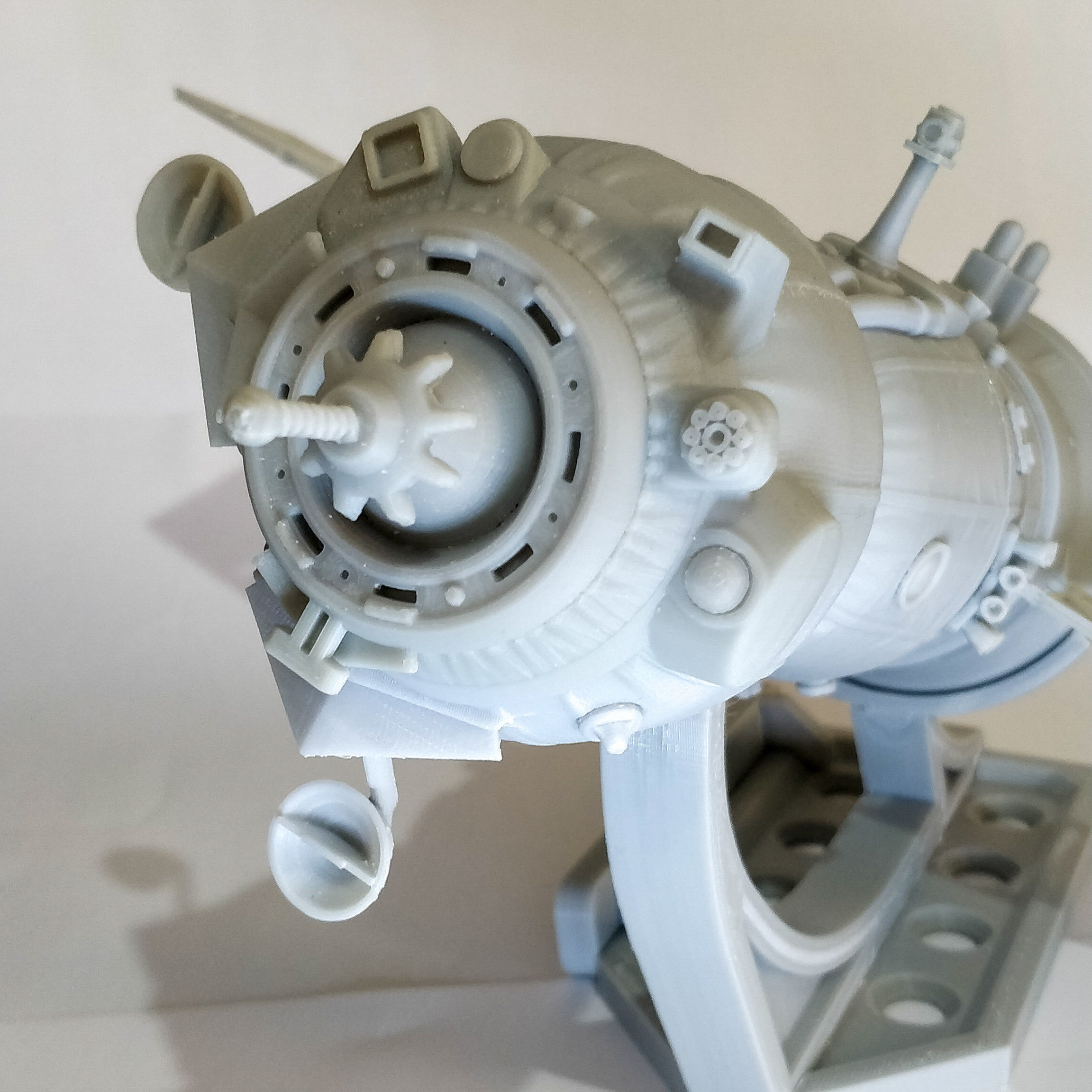

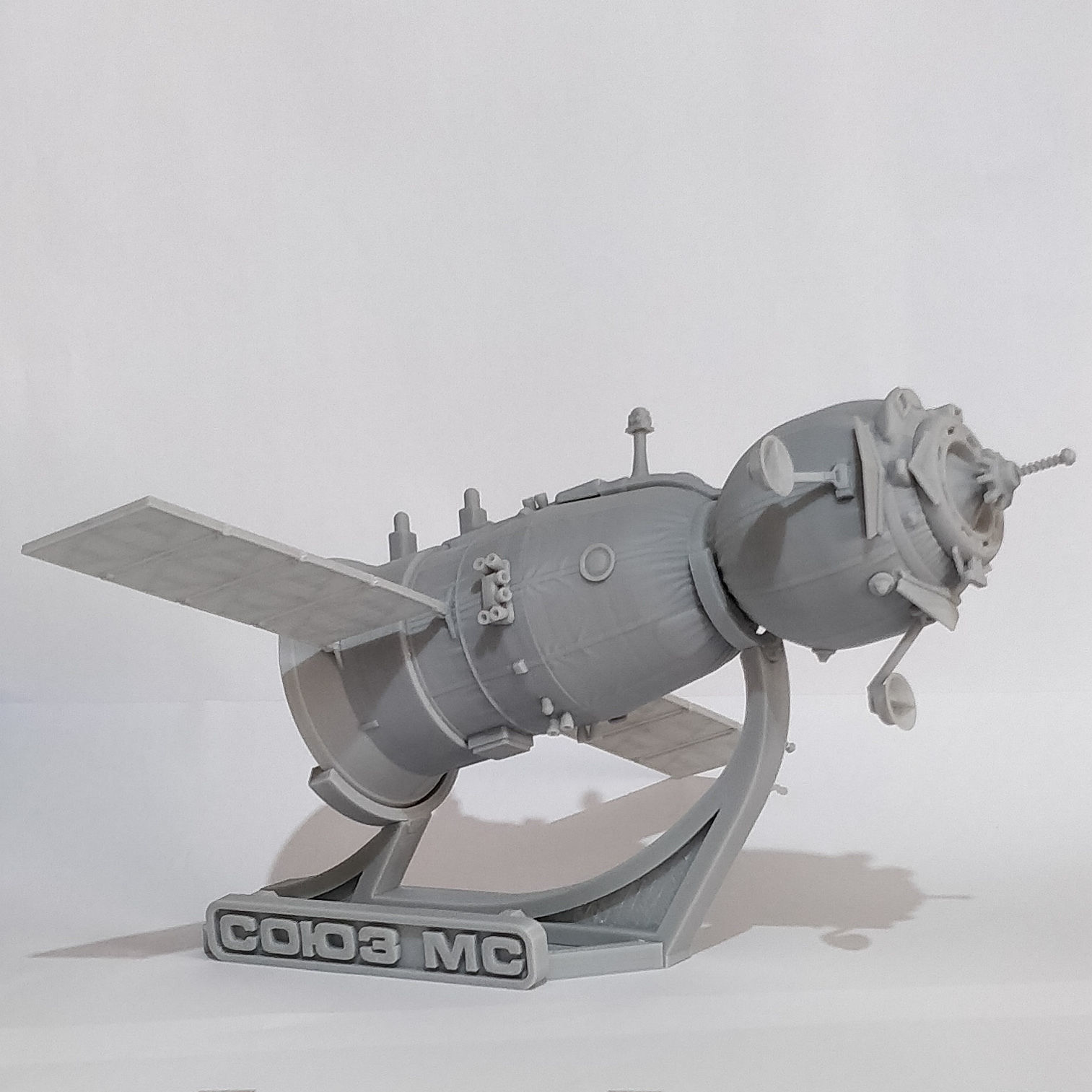

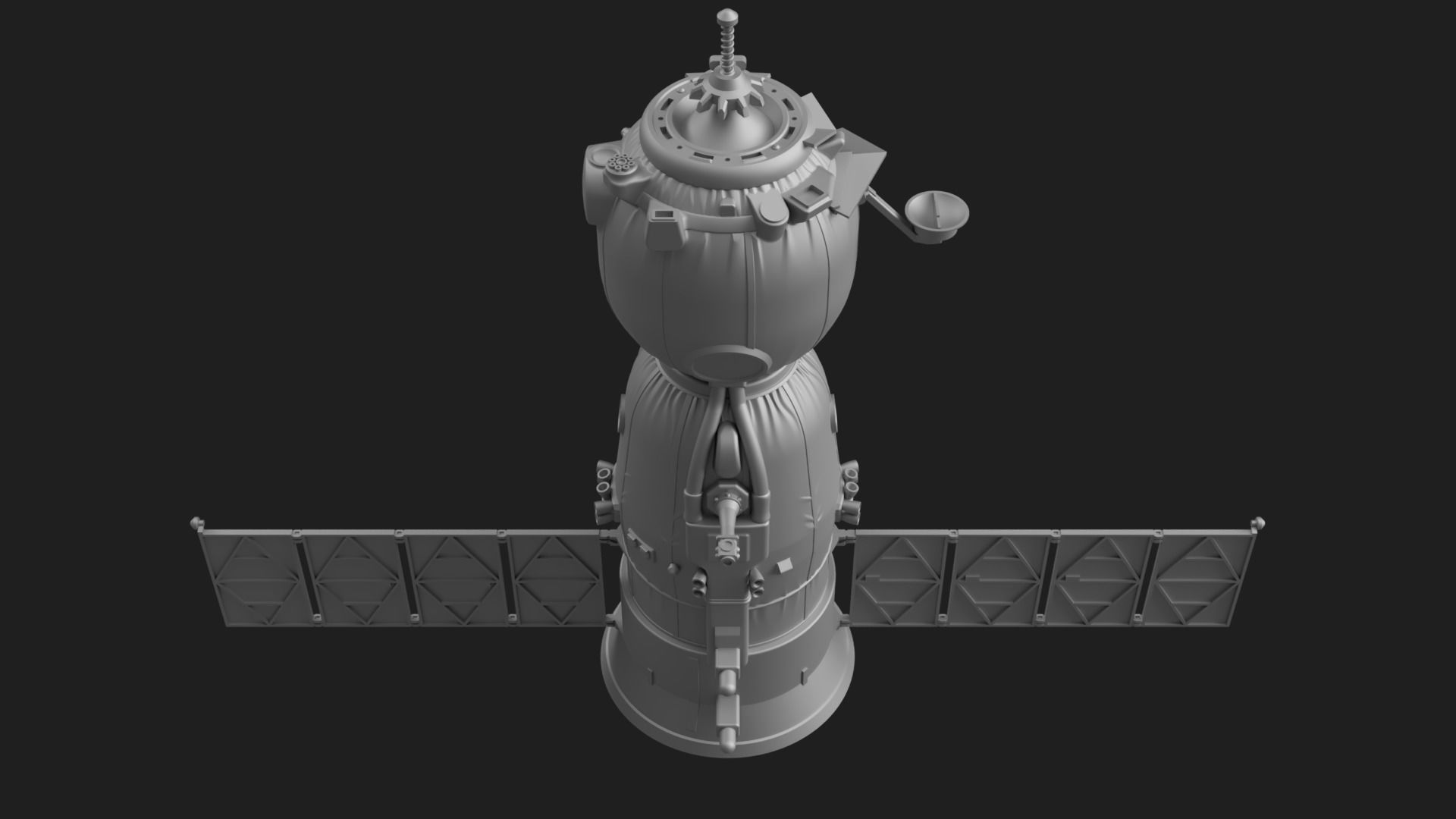

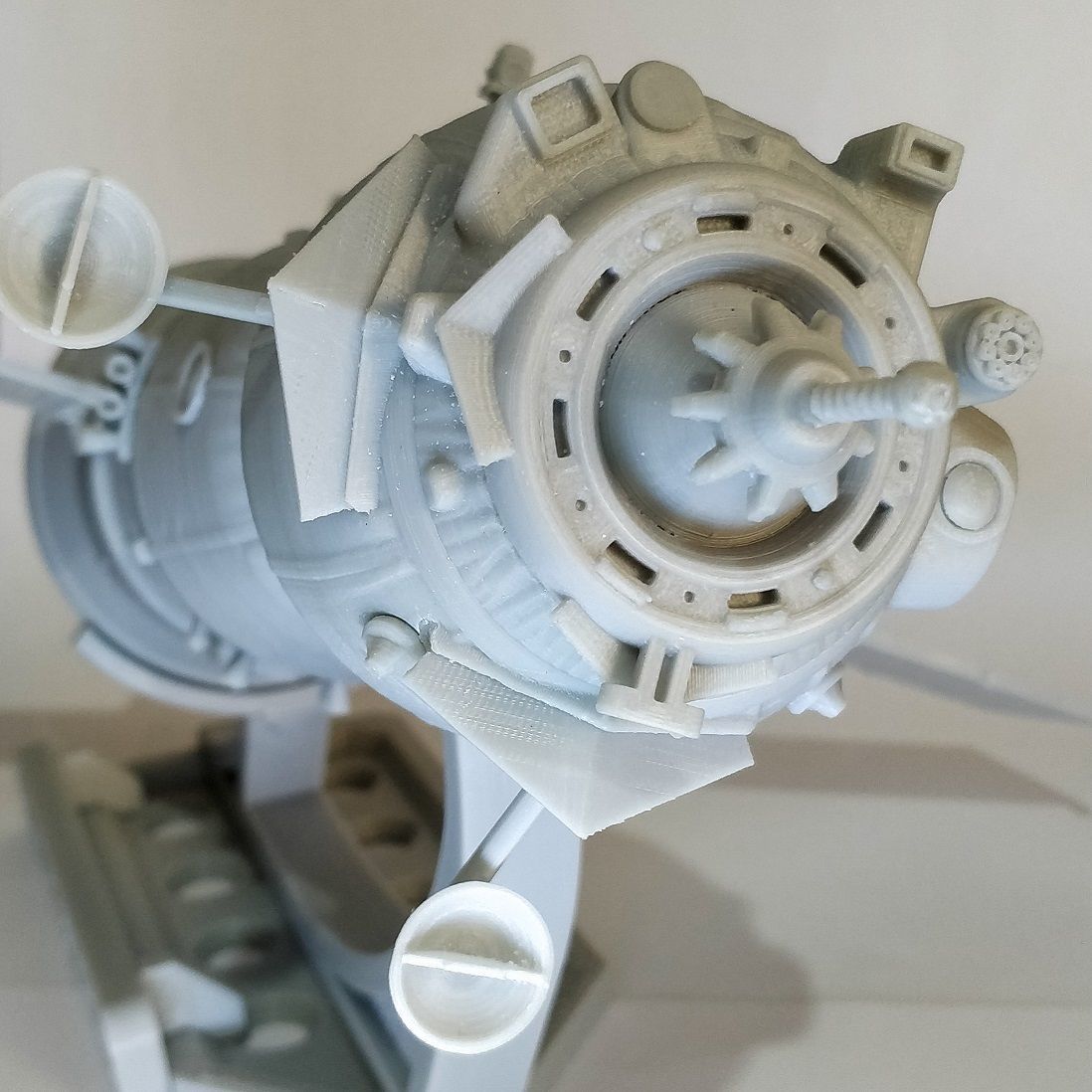

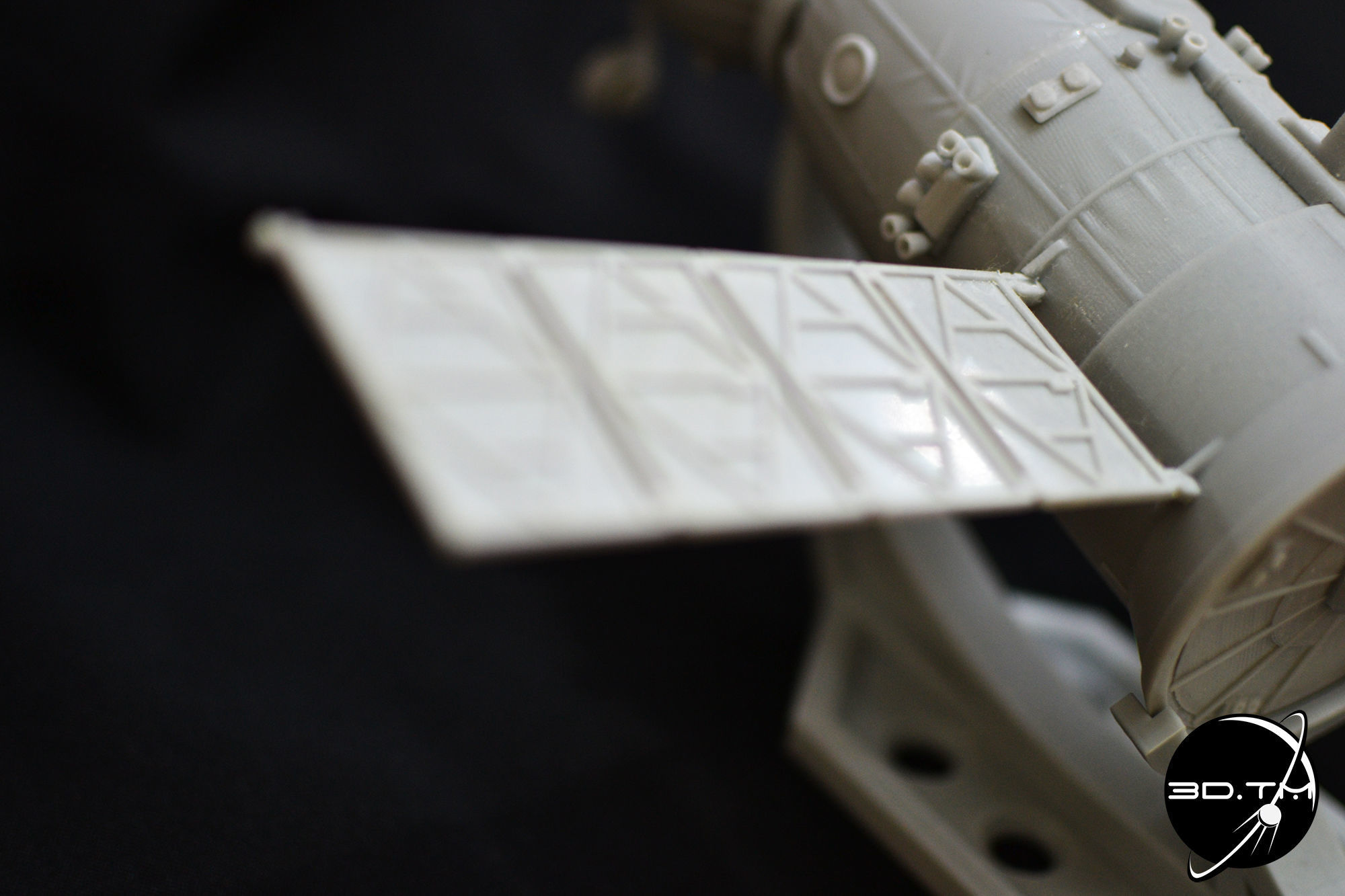

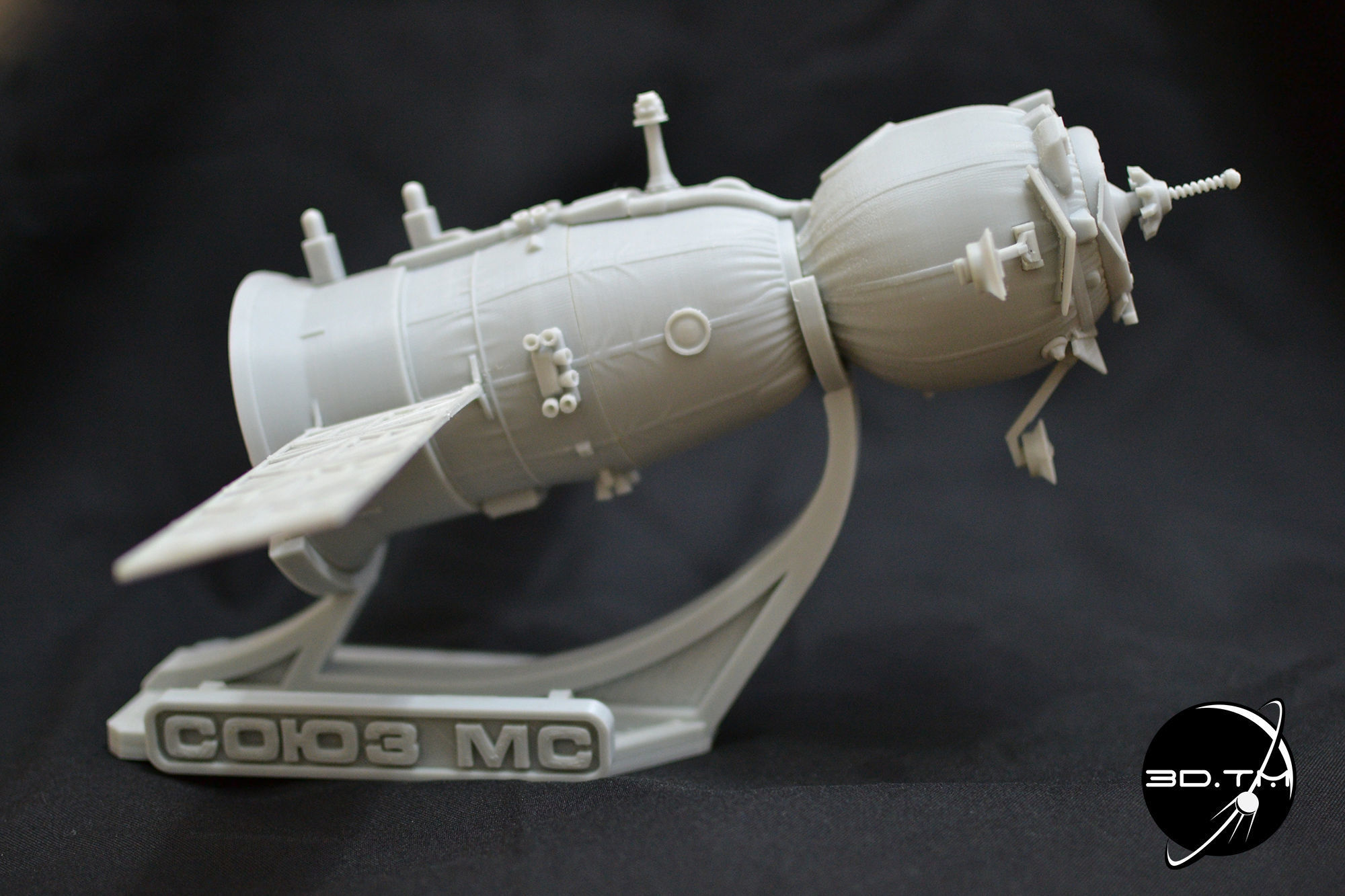

The model was designed using the main TMA, TMA-M and TMS references available in the specialised media and publications. It captures the details of the spacecraft in its flight condition, with main antennas, panels, navigation and docking systems all deployed. Visual accuracy was the main focus when designing the model, with attention to details and dimensions, while still providing something printable (in 1G :P ). As a bonus, the model comes with a display support inspired by the iconic Museum of Cosmonautics in Moscow, referring to the soviet era of spaceflight.

The scale of 1/32 is a good trade-off between printing time, size and details, requiring a regular 200X200 mm printing bed and a standard 0.4 mm nozzle. Any scale larger than 1/32 is compatible and will certainly enhance the details of the model. For smaller scales it is recommended to use smaller nozzles (0.3 mm and 0.2 mm ). The tolerances are well within 0.2 to 0.5 mm so just minor sanding and filling will be required if you have a tuned printer. This is a print-ready model so no cuts are needed as the model is separated in different parts (47 stl files identified in the instructions). The assembly process is self-intuitive and does not require any special tools other than glue, files and sandpaper for the finishing. A detailed PDF file presents the identification of parts general instructions where it is needed.

If you are a space head like I am, now you can have the workhorse of manned spaceflight right on your desk. I hope you enjoy the printing and assembly of this model as much as I did. If you have any feedback, questions or suggestions feel free to contact me. Other models such as the TMA-M and different configurations will be released soon.

Cheers!

DISCLAIMER

For the convenience of the user, all the files (47 STL files and 1 PDF file) are packed in one single RAR file. The ZIP file contains the same files and it is an option for those having issues unpacking the RAR file. These files are generally compatible and can be extracted in the commonly used operational systems. However, if you find any trouble unpacking the files, free software such as Winrar, Winzip, 7zip are suggested for this task. If you find any issue such as getting a corrupted file it is recommended to download the file once again. The model will be available in your profile in the Purchase section. If after this you are still finding any problems unpacking the files feel free to contact me via a direct message.

N
net3-8
Бомба! Незаслужанно мало просмотров и луцков ибо здесь действительно качественная модель которая не тянет только лишь за счёт текстур, автору респект
Item rating
2 0
Recommended
Had a problem with the RAR file but the designer was helpful in making an STL available. This appears to be the most accurate Soyuz model available and I have already enlarged it to 1/24 and printing the pieces thanks to the very complete manual.
Recommended
Спроектировано качественно, собирается, стыкуется. Делала в подарок, думаю, подарку будут рады. Спасибо, дизайнер.
Soyuz MS Spacecraft
$23.00

Custom License
Soyuz MS Spacecraft
$23.00

Custom License
Response 50% in 24.2h
3D Modeling
3D Print Modeling

3D Model formats

  • Stereolithography (.stl) (2 files)126 MB
  • PDF (.pdf) (2 files)126 MB

3D Model details

  • Publish date2020-05-20
  • Model ID#2377542
