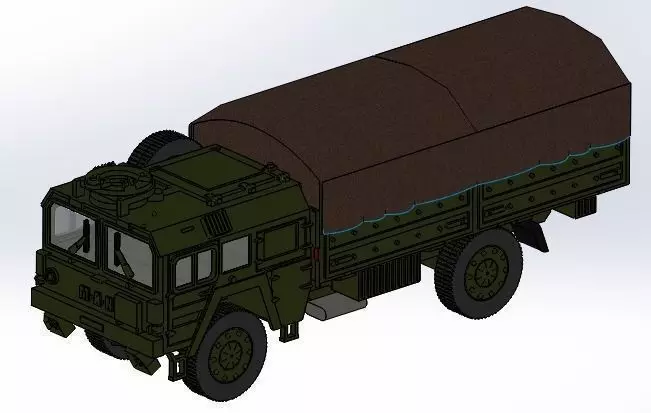

MAN KAT 1 4x4 MILITARY TRUCK - 3D PRINT Design 3D print model
MAN Truck designed from ground up for 3D Printing. Additional file formats available, just ask me :)
3D Print recommendations:
* 0.4mm maximum nozzle size to keep up with small details * 0.2mm or smaller layer height * PVA support highly recommended for easier support removal.
See full details about MAN KAT 1 on http://www.military-today.com/trucks/man_kat1_4x4.htm
The basic MAN KAT 1 trucks with 4x4 configuration has a 5 000 kg payload capacity. It comes with a general service troop/cargo body. It is used to carry troops and supply combat units with ammunition and other military supplies. The cargo area is covered with bows and canvas cover. The truck has a standard NATO towing hitch and can tow trailers and artillery pieces. It can tow loads even over rough terrain. This tactical truck can be also used for a number of other military applications, carry shelters and special equipment.
All MAN KAT 1 series trucks are fitted with the same forward control cab. It is entirely made of steel. The cab accommodates driver and 2 passengers. Separated windscreens are designed for easier replacement. Also these are installed vertically in order to minimize light reflections. A roof hatch with a machine gun mount was fitted as standard. Optional equipment includes an armored cab.
Vehicle is powered by a 12.7-liter MAN turbocharged diesel engine, developing 256 hp. Engine is mounted behind the cab. This feature allowed to reduce overall height of the vehicle. Engine is mated with a ZF manual gearbox. Vehicle has a permanent all-wheel drive. A winch was fitted as standard.
