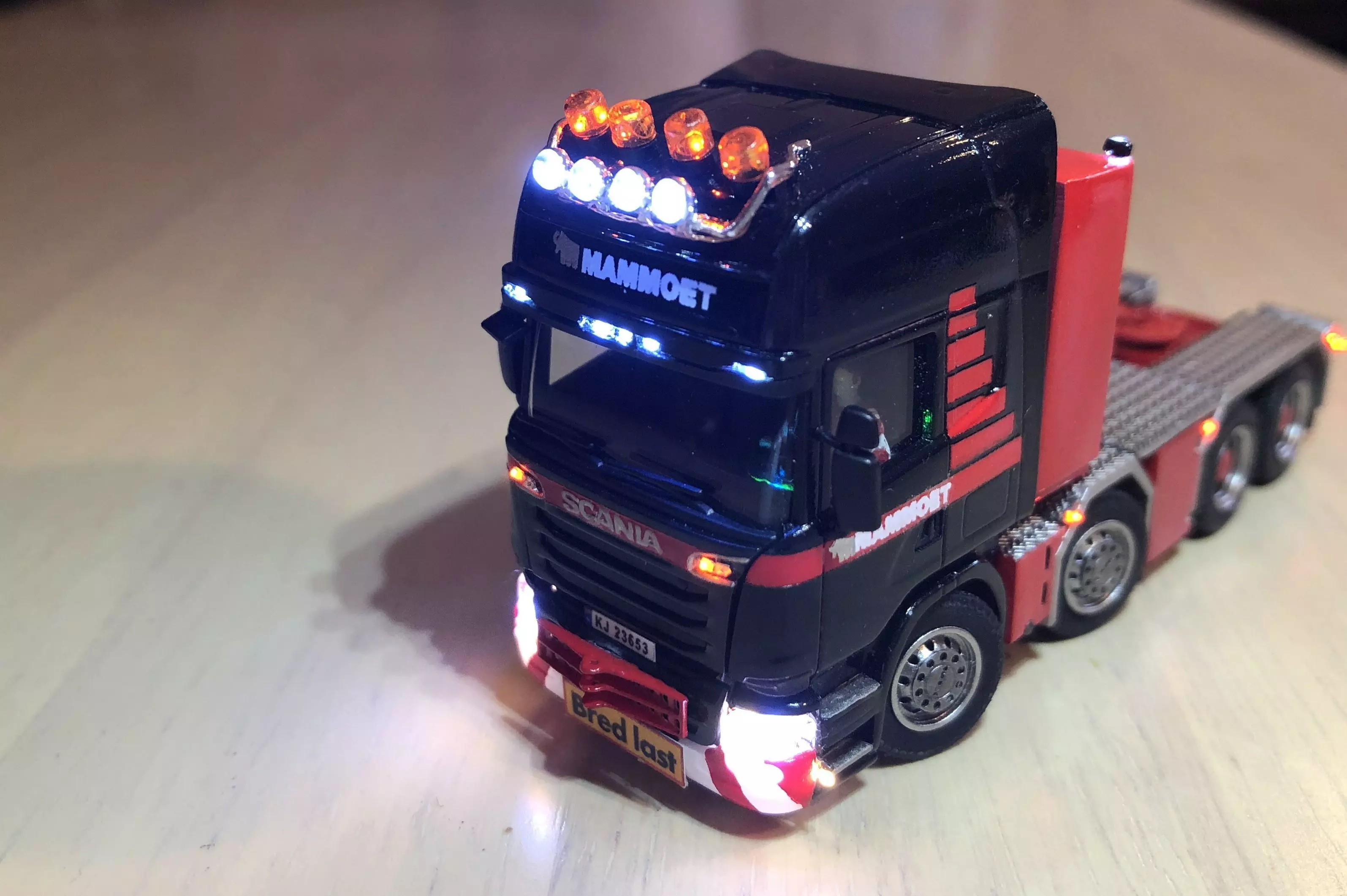

1/87 scale model RC/Static

http://www.keisukesmikromodell.shop/wp-content/uploads/2024/01/Assembly-GuideRC.pdf

------RC Model ----------------------

• ・Herpa Scania cab:  No.084079 and so on.・1x3x1 bearing    x 11pics:  https://www.sol-expert-group.de/1zu87modellbau/Lenkung-Bereifung-Kugellager/Kugellager/Kugellager-K1-4er-Set-Innen-1-mm::814.html

• ・Tires: https://www.sol-expert-group.de/1zu87modellbau/Lenkung-Bereifung-Kugellager/Bereifung/6er-Set-extra-weiche-griffige-LKW-Reifen-Reifenbreite-3-1-mm-fuer-den-Massstab-1-87::1233.html

• ・Servo: https://www.sol-expert-group.de/1zu87modellbau/Mikro-Servos/Mikro-Servo-S18JST-1-8-Gramm::851.html

• ・Brass wire Φ0.5mm , Φ1.0mm: Using few cm . You can get from your country shop.

• ・Driven Motor (120RPM~250RPM): Motor length must be less than 19mm. https://www.sol-expert-group.de/1zu87modellbau/Motor-und-Getriebe/Aufgebaute-Getriebe/Mikro-Planeten-Getriebe-G136-nur-6-mm-Durchmesser::749.html

• ・Receiver:

 https://www.sol-expert-group.de/1zu87modellbau/2-4-GHz-Empfaenger-DSM2-DSMX/Empfaenger/2-4-Ghz-Empfaenger-RX43D-1-DSMX-und-DSM2::892.html・Transmitter: Devo7e, Devo10e ,JumperPro ,and so on (DSMX format).

• ・Battely:

https://www.sol-expert-group.de/1zu87modellbau/Akkus-und-Ladetechnik/Lithium-Polymer-Akkus/Lithium-Polymer-Akku-180-mAh-10C-Entladestrom-6-5-x-22-x-27-mm::1296.html

• ・Switch,Socket:

https://www.sol-expert-group.de/1zu87modellbau/Stecker-und-Schalter:::48_85.html・Charger: https://www.sol-expert-group.de/1zu87modellbau/Akkus-und-Ladetechnik/Ladegeraet-fuer-LIPO-Akkus/LIPO-Ladeplatine-mit-100-mA-Ladestrom::1173.html

• ・LEDs:

0402 orange. 0402 white. 0402 green x 2pics. 0402 red.

• ・Resistor:

500~1kΩ for each led (for orange, 1 resistor for 8leds, for white 4leds … my recomand). ・LED controller: As you need.

------Static Model Parts list-----------・Herpa Scania cab:  No.084079 and so on.・Tires: Herpa tire with 1mm rod (Same to Normal chassis)・Brass wire Φ0.5mm , Φ1.0mm: Using few cm . You can get from your country shop.
