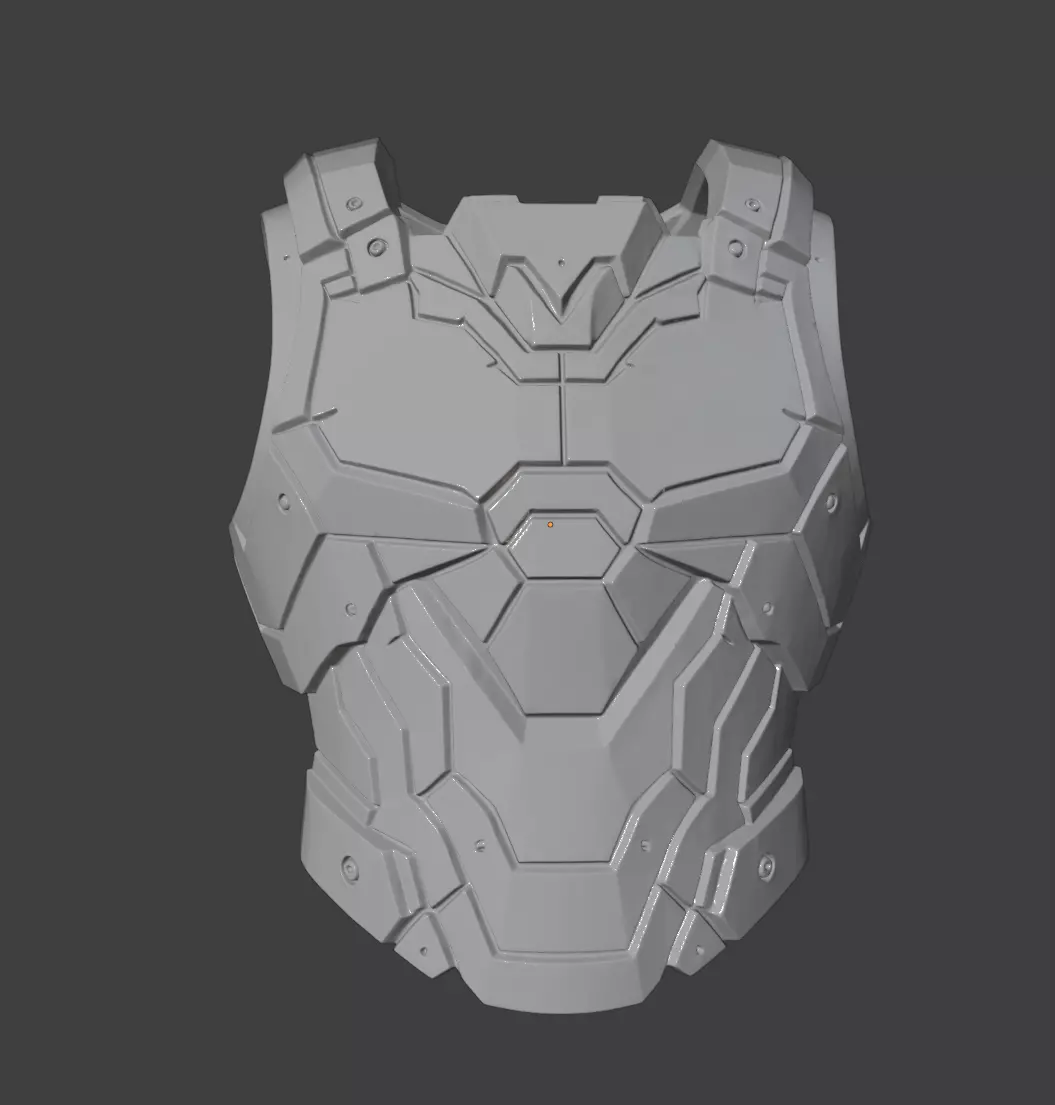

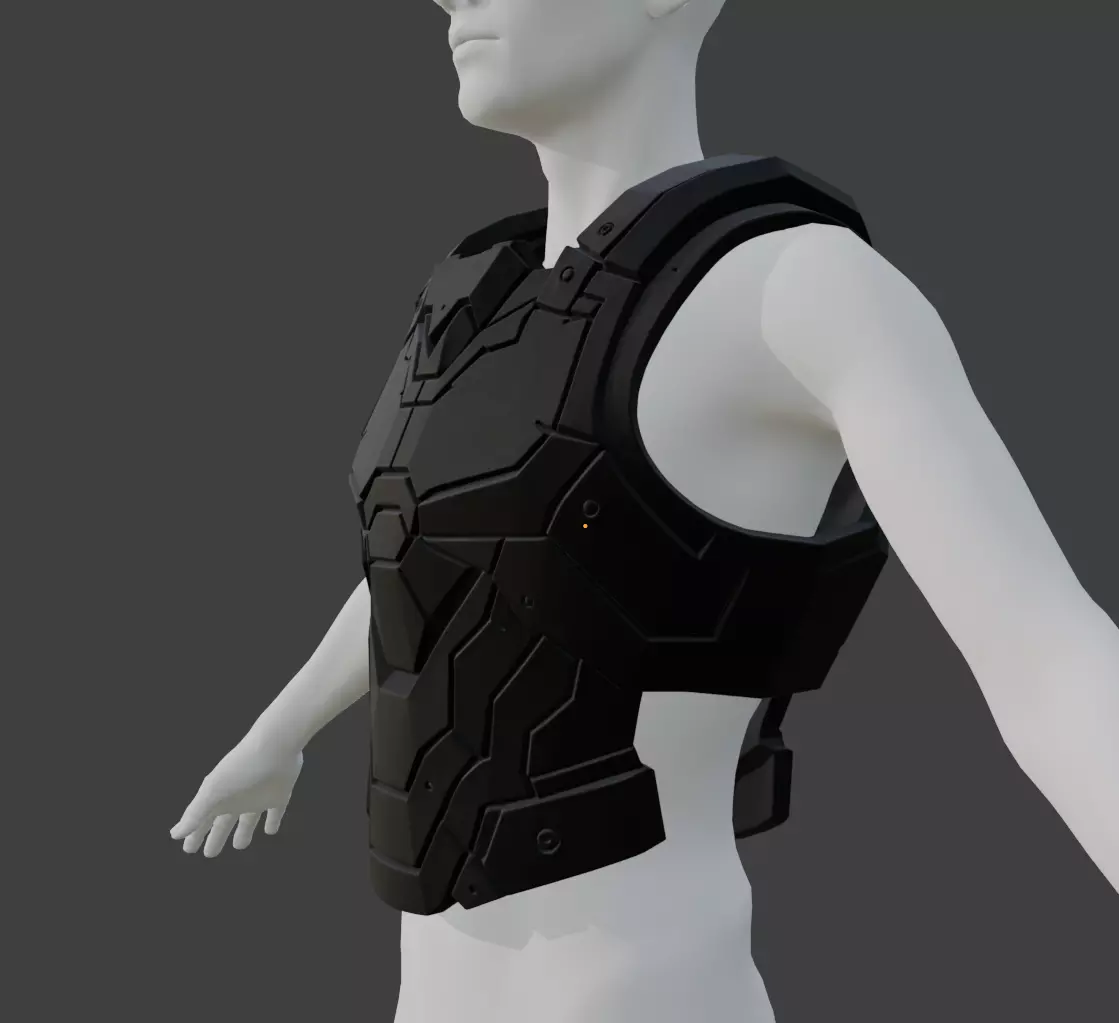

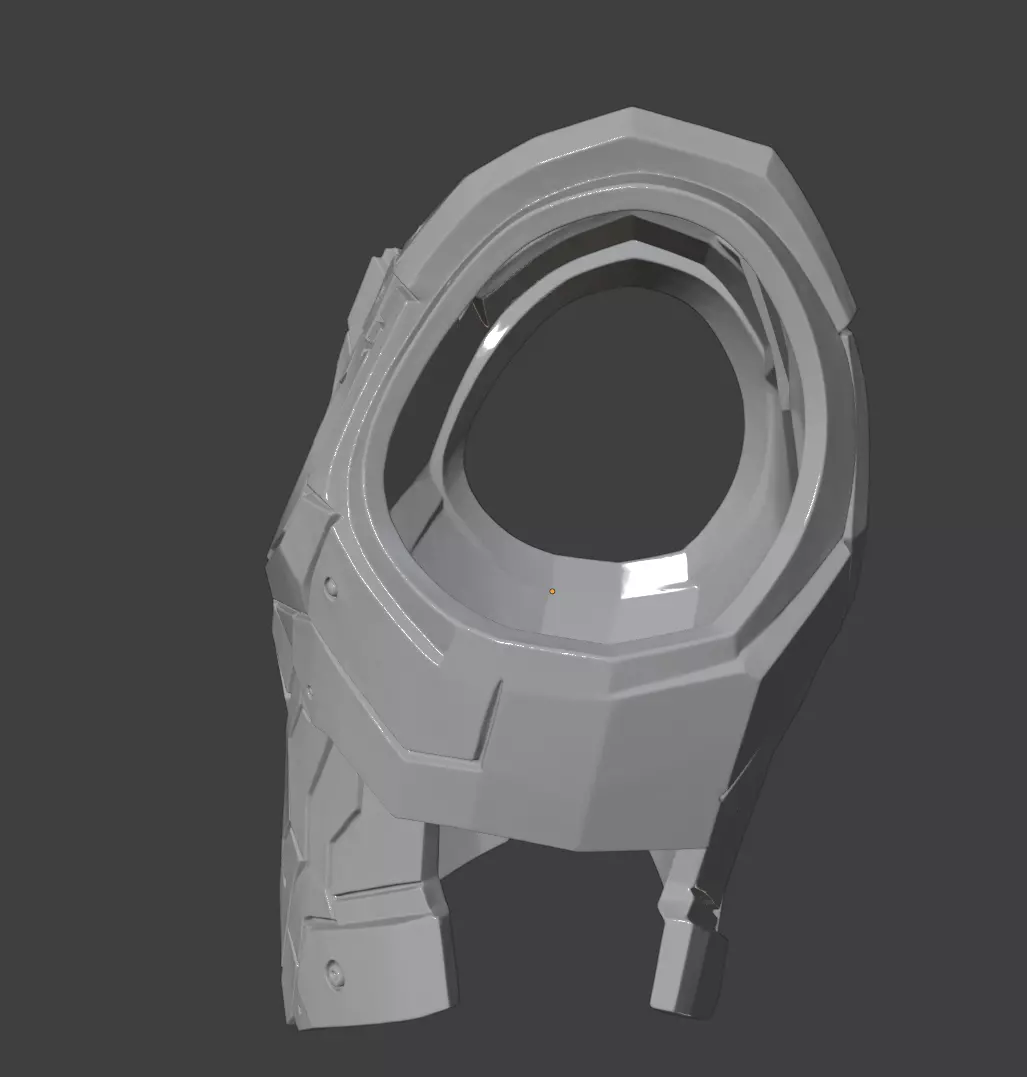

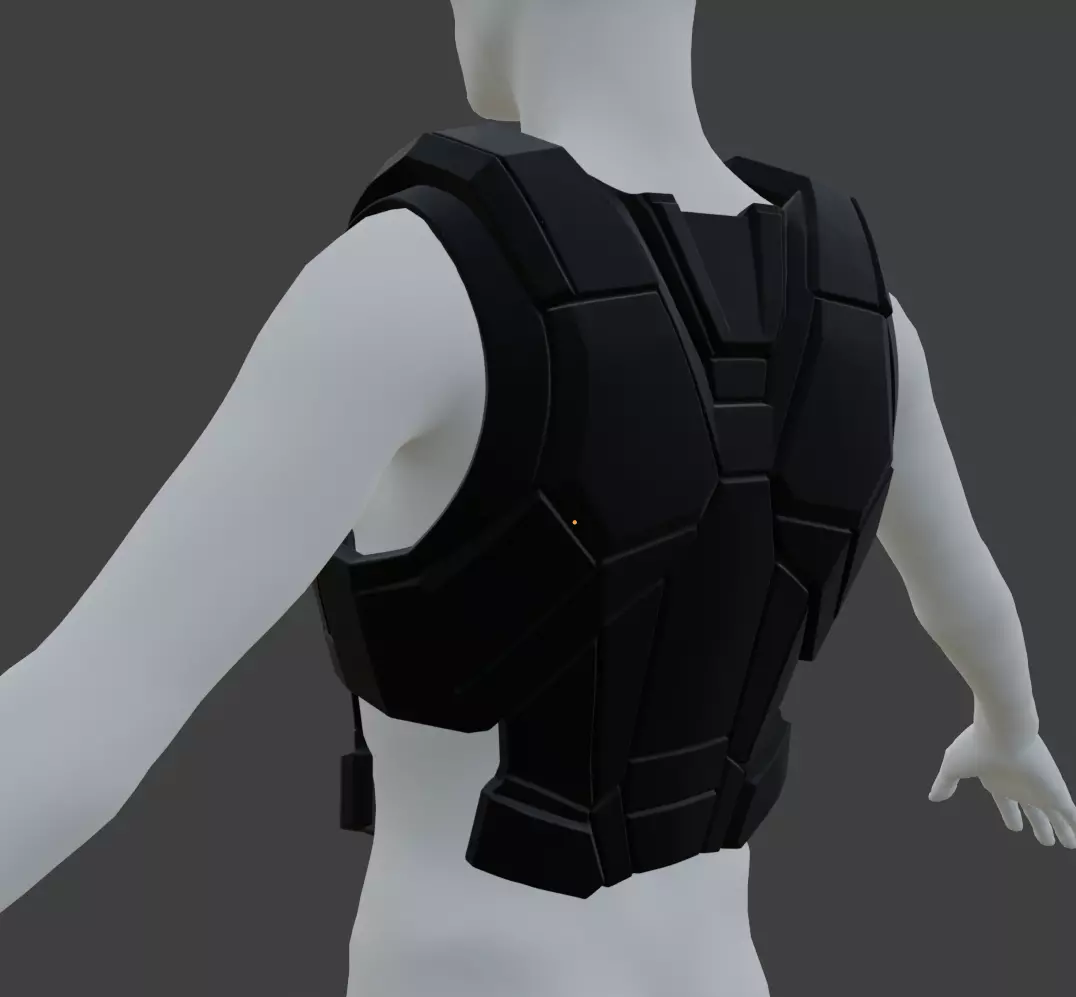

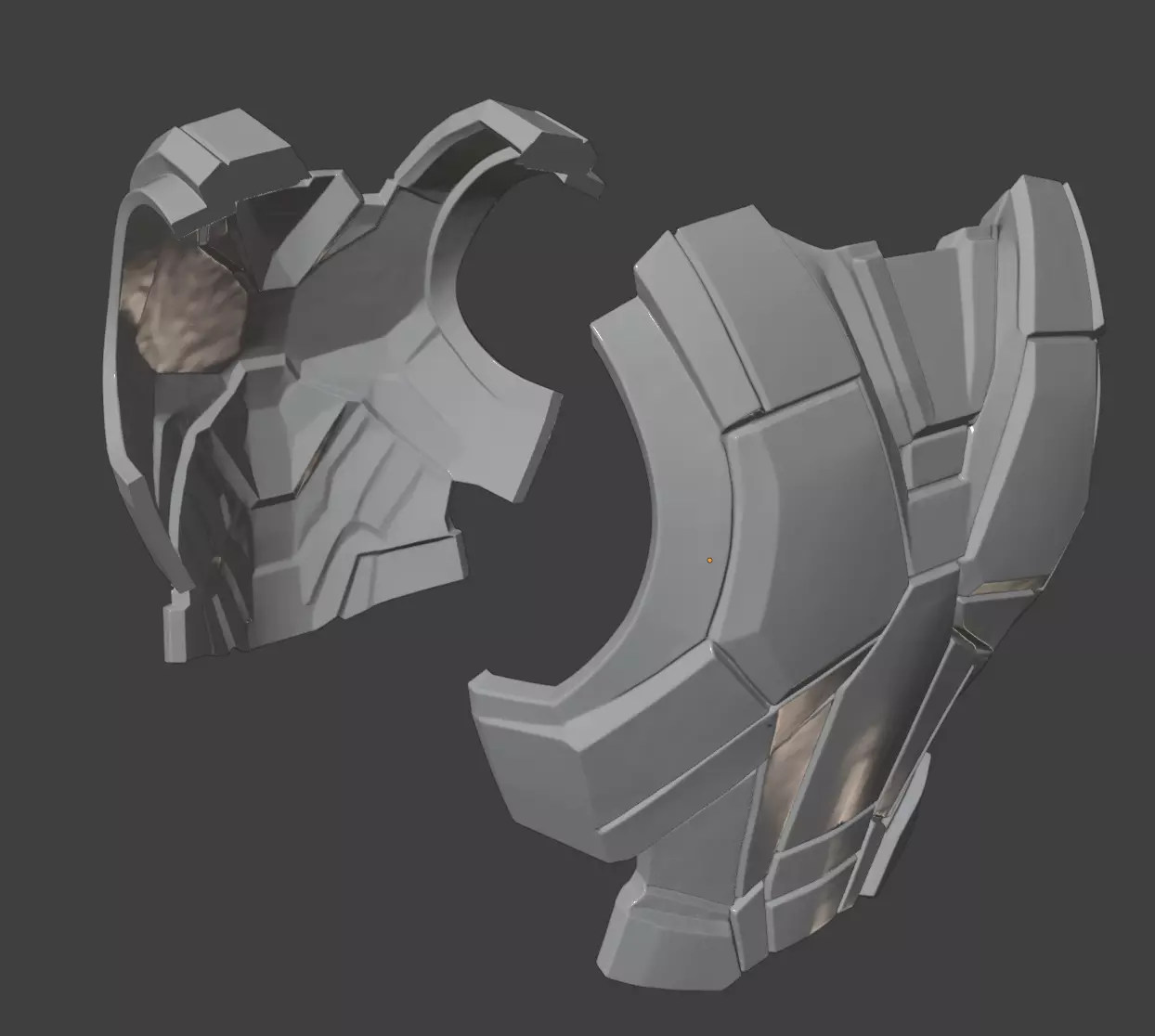

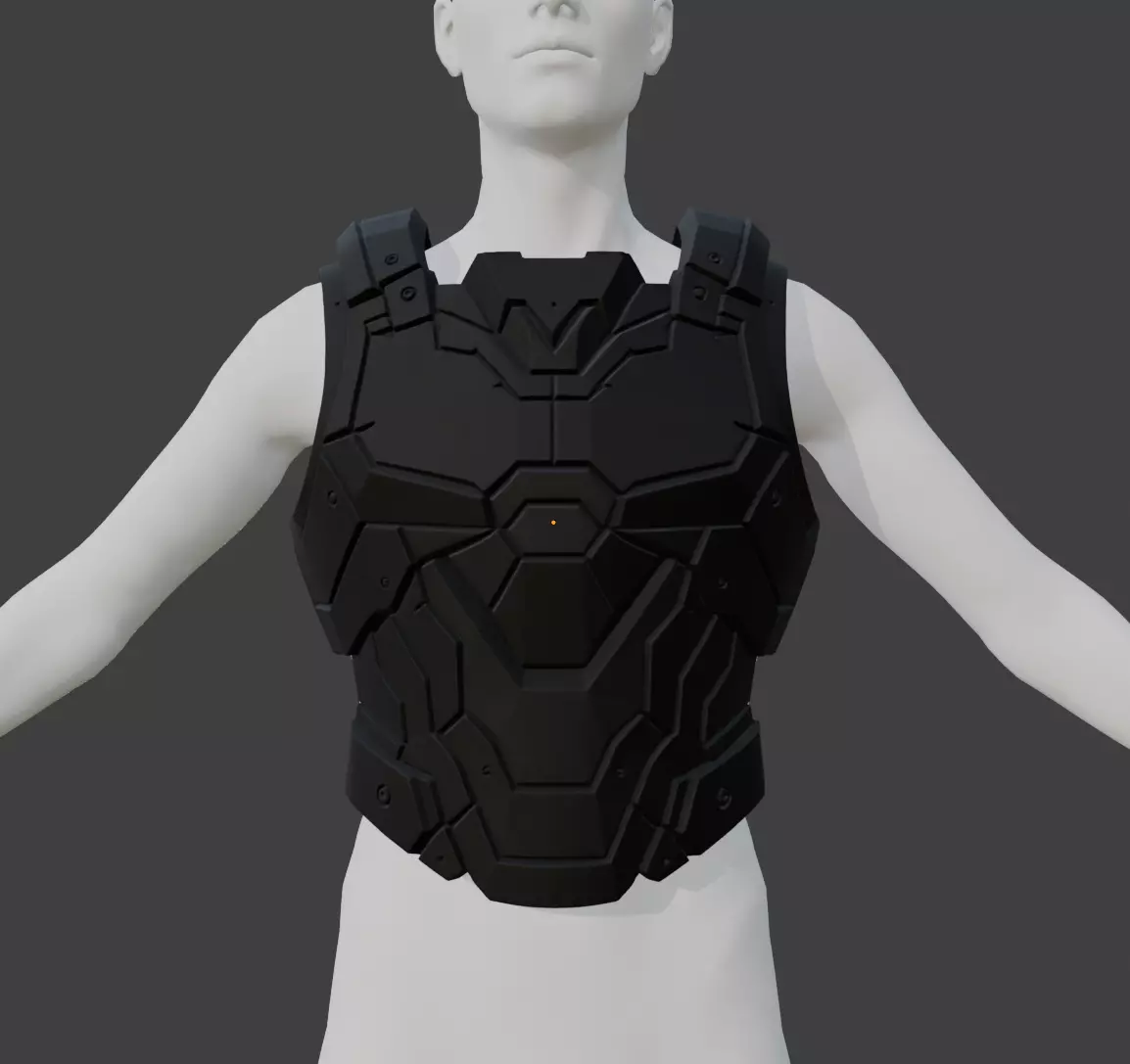

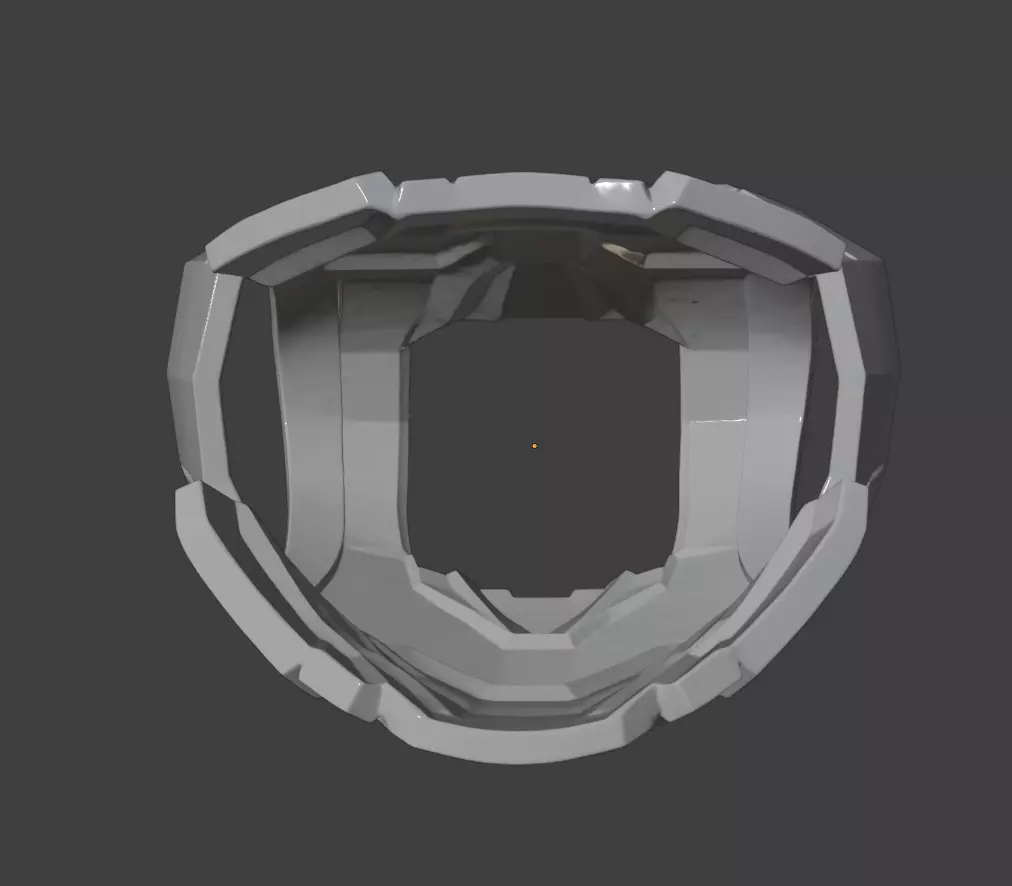

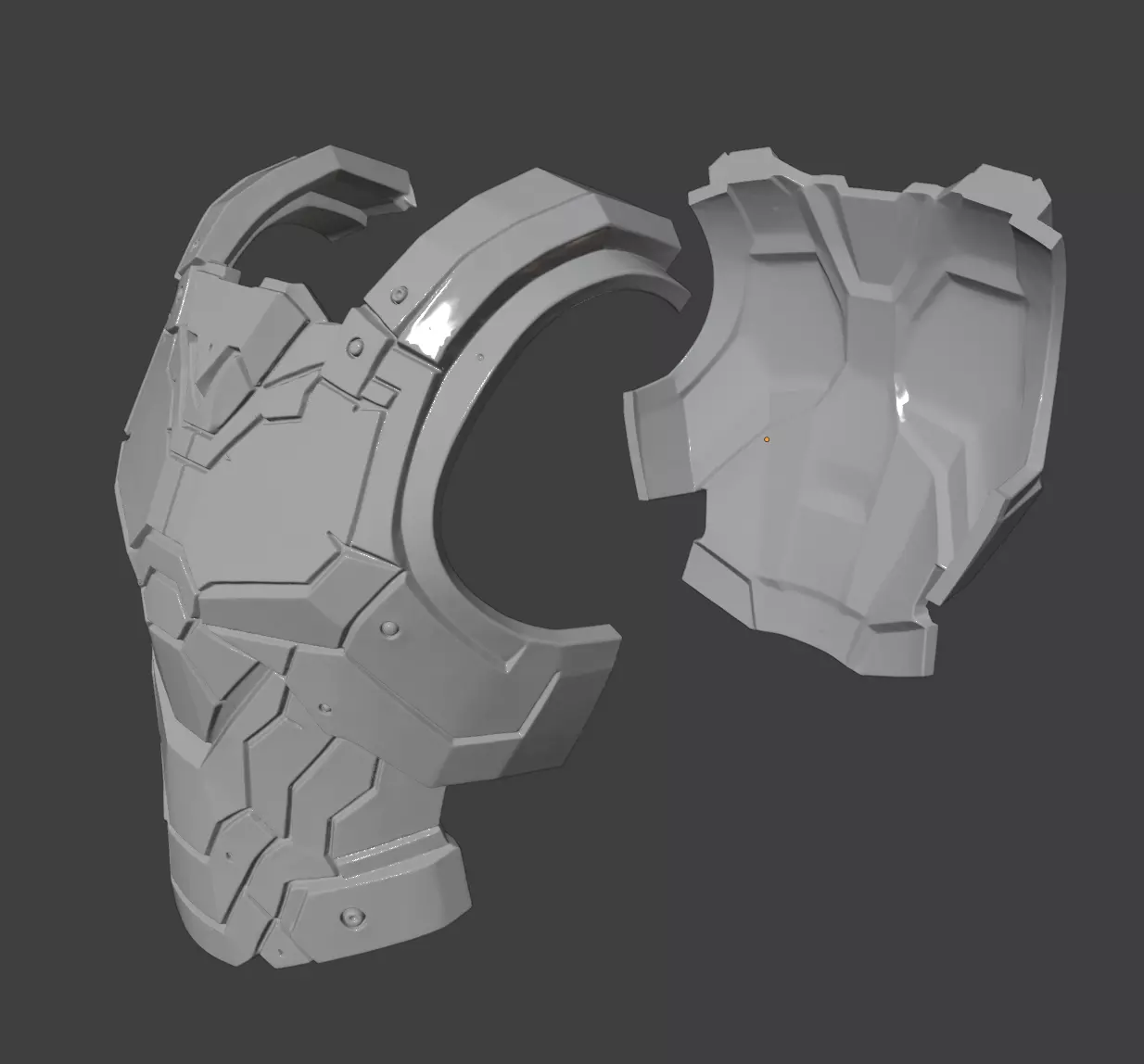

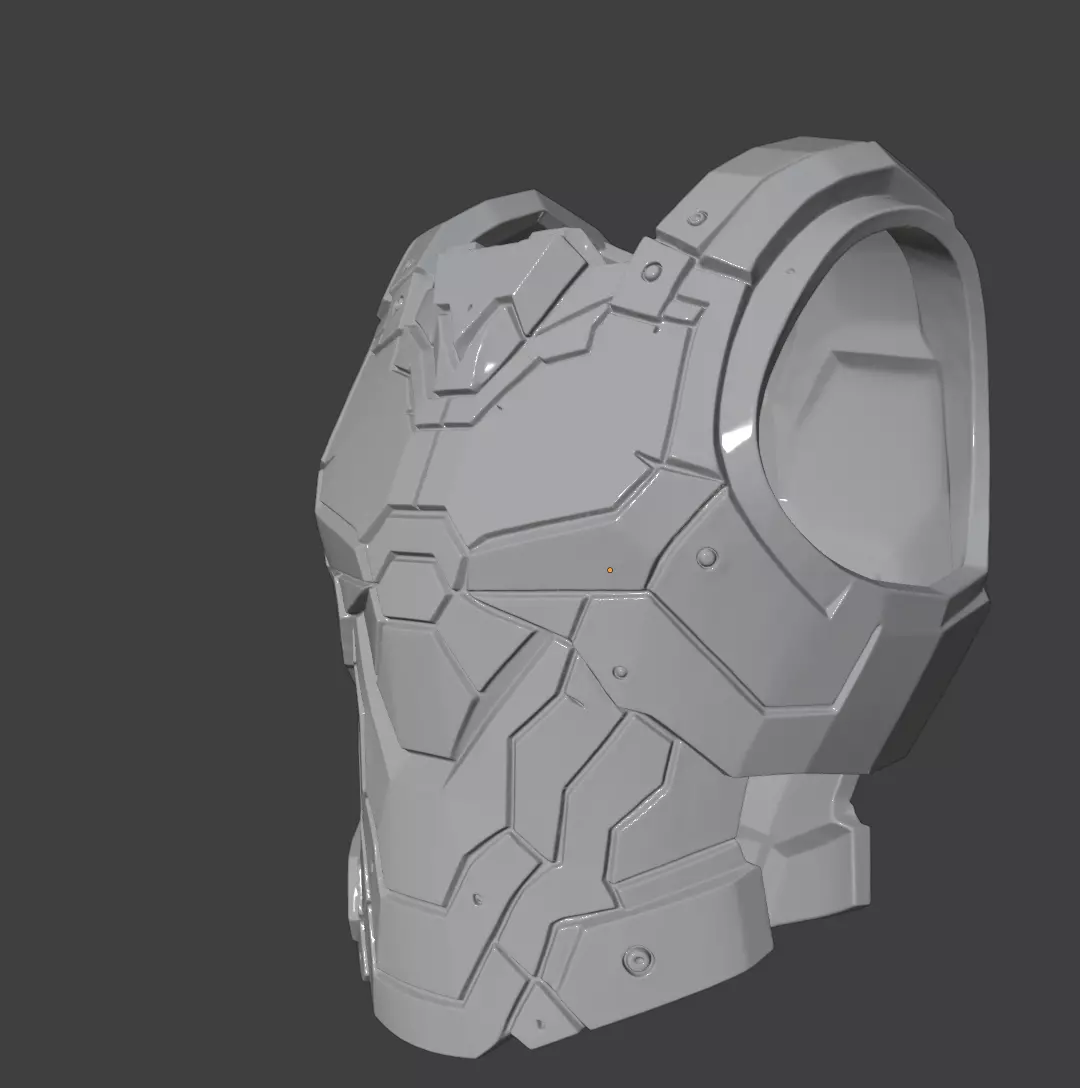

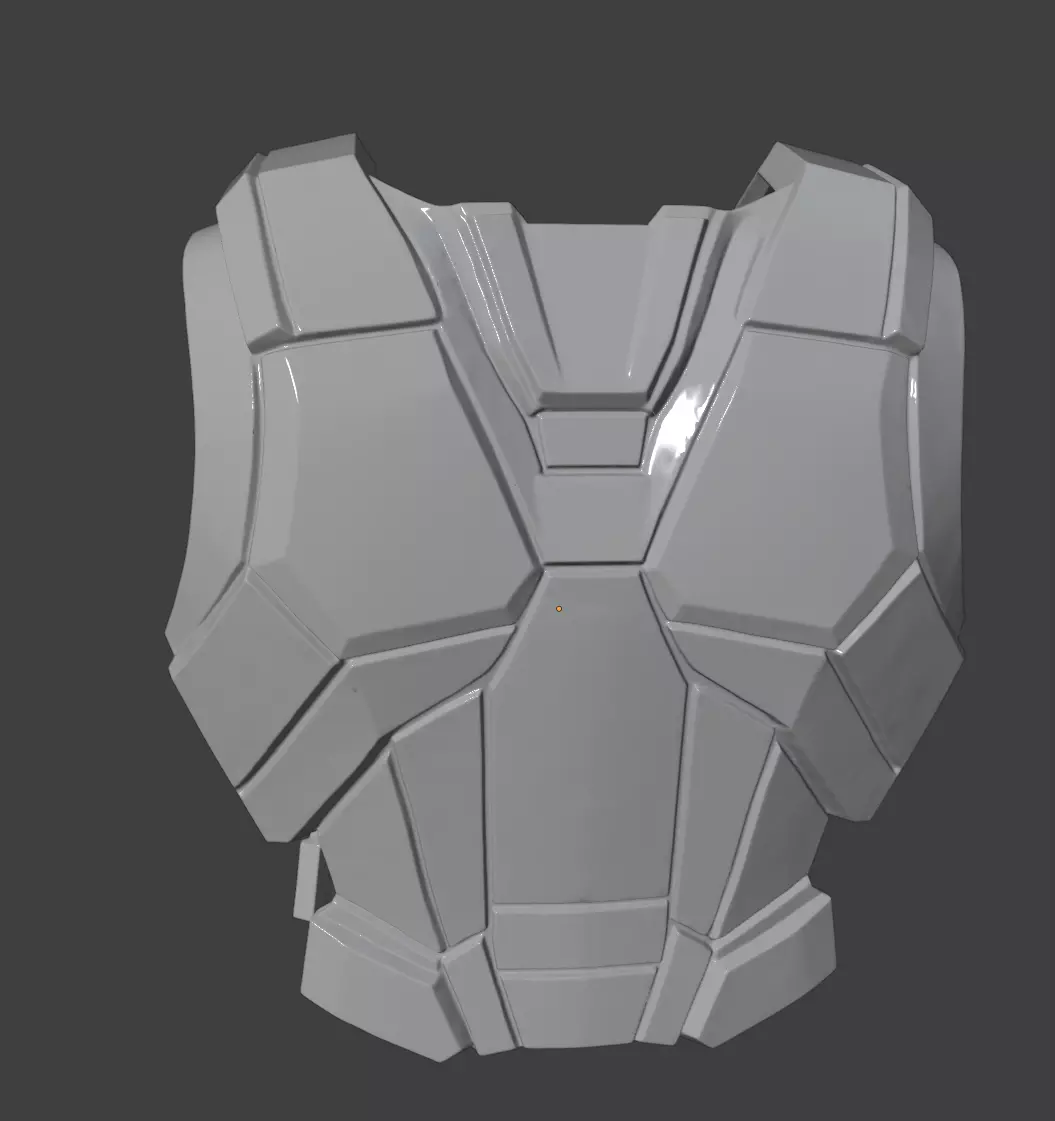

MALE KNIGHTMARE COCKPIT ARMOR 3D print model

3D Printable Mecha Pilot Chest Gear

Inspired by the iconic Knightmare Frames, this 3D printable male cockpit armor features layered mechanical plating, sharp lines, and tactical form-fitting details. Designed to resemble the armored torsos worn by elite mecha pilots, this piece is ideal for cosplay, sci-fi costumes, or futuristic armor builds.

Measurements and Fitting Instructions

How to Measure for Chest Armor:

Chest Circumference: Measure around the widest part of the chest

Waist Circumference: Measure around the natural waist for fitting the lower edge

Shoulder Width: Measure across the back from one shoulder point to the other

Torso Length: Measure vertically from the base of the neck to the waist

Fitting Tips:

Straps & Fasteners: Add Velcro or elastic straps to connect armor plates comfortably

Padding: Use foam or EVA lining for structure and comfort

Scaling: Adjust scale in slicer software based on your body dimensions

Printing Instructions

Printer Settings:

Layer Height: 0.1–0.2 mm for clean edges and mechanical details

Infill: 15–25% for a balance of durability and weight

Supports: Required for overhangs, especially around chest plate curvature and ridges

Build Plate Adhesion: Use a brim for large parts to prevent warping

Material Recommendations:

PLA: Easy to print and ideal for cosplay

PETG or ABS: Better heat resistance and impact strength for wearables

Resin: Not recommended for large parts unless scaled down

Post-Processing and Finishing

Sanding: Smooth seams and edges with fine-grit sandpaper

Assembly: If printed in sections, align pieces using pins or tabs and glue securely

Painting:

Base: Metallic silver, grey, or matte black

Accents: Use blue, red, or gold details to match pilot themes

Weathering: Dry-brush or sponge on grime and damage for realism

Sealing: Use a clear coat to protect the finish

Model Type Recommendations

Cosplay chest armor

Mecha or sci-fi pilot costume piece

Action figure / miniature armor (when scaled down)

Costume accessory for Knightmare Frame or Code Geass themes
