Diablo 2 Amazon Chibi Nendoroid style Figurine 3D Print STLs 3D print model

STL Scale is in mm.

Height is 12cm, width is 6.5cm & depth is 11cm with the base.

See the roundtable on youtube. https://youtu.be/MtvvmGYWK0k

The model is split into pieces for easy painting and printing for most resin & FDM printers.

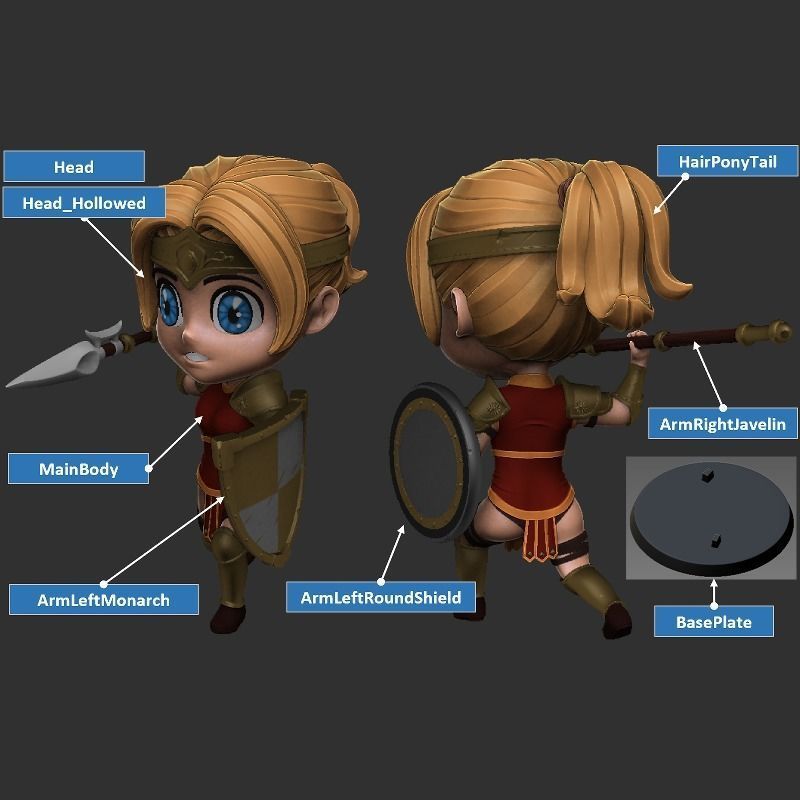

There are 2 shields options, Pick ArmLeftMonarch if you want to use the Kite (Monarch) Shield version. Pick ArmLeftRoundShield if you want to use the Round Shield version

If you use SLA (Resin printer) you can option for the Head (solid part) or the Head_Hollowed, to save weight & resin, at cost of a little hole near the back of the neck. There is a small risk of layer shift if you use the Hollowed head (Head_Hollowed), so I recommended using the solid head (Head). Head_Hollowed is NOT recommended (& unneccesary) for FDM, and may result in unwanted spaghetti

The model at default is very small, so any decent printer should be able to print without issue. the longest piece is ArmRight Javalin at 1,1cm x 2,6cm x 10,8cm

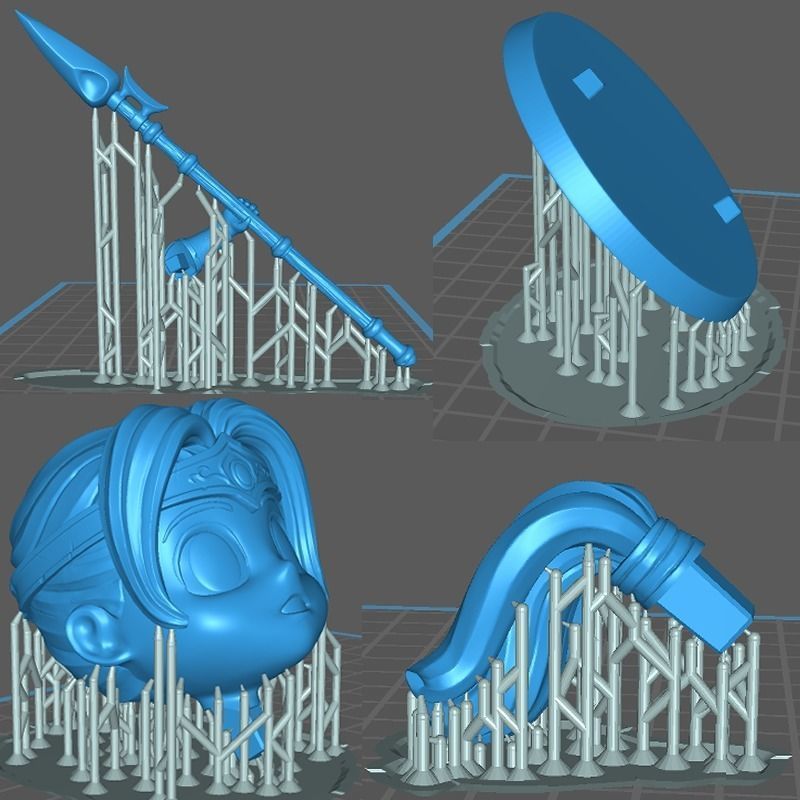

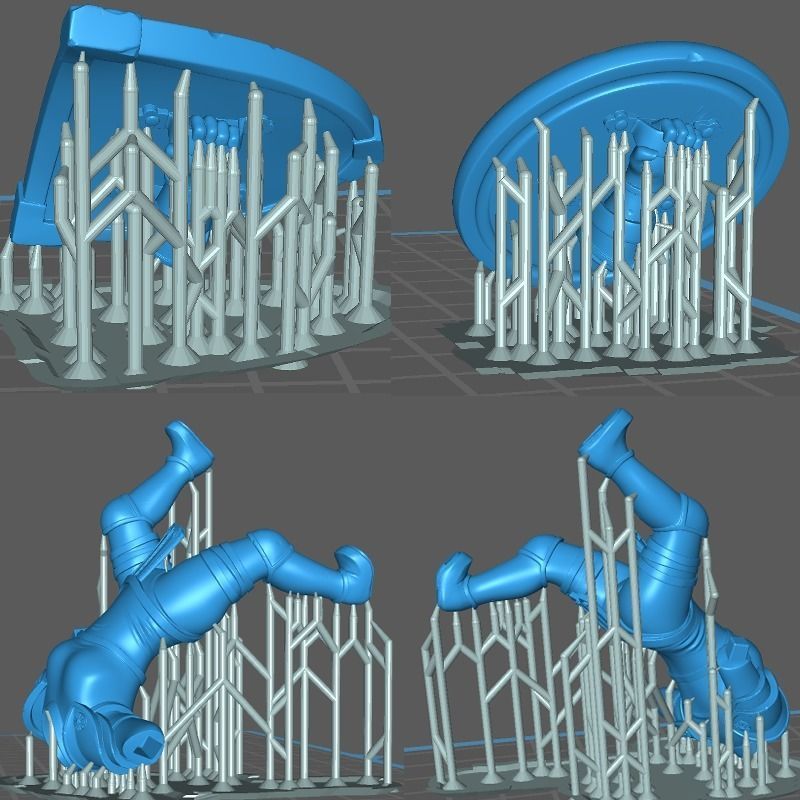

See Chitubox screenies as a guide for orientation. I suggest using default supports & raft & add additional supports as needed will do fine. The model has been separated into easily printable parts. As long as you orientated parts at about 30/45 degrees as shown in the Print reference pictures (even if you use other slicers like Lychee), you should be fine.
The orientations should work fine on FDM as well.

However, these are the only guides, which work well with my Printer. If you find better print orientations, and better support, feel free to use them.

Assembly:

File/sand off to remove material for the joint pins (if too tight) or glue/paint/putty them (if too loose) as necessary. They are designed to be slightly loose so filing/sanding should be minimal. Superglue (preferably watery type like Army Painter super glue) should work well if too loose between parts.

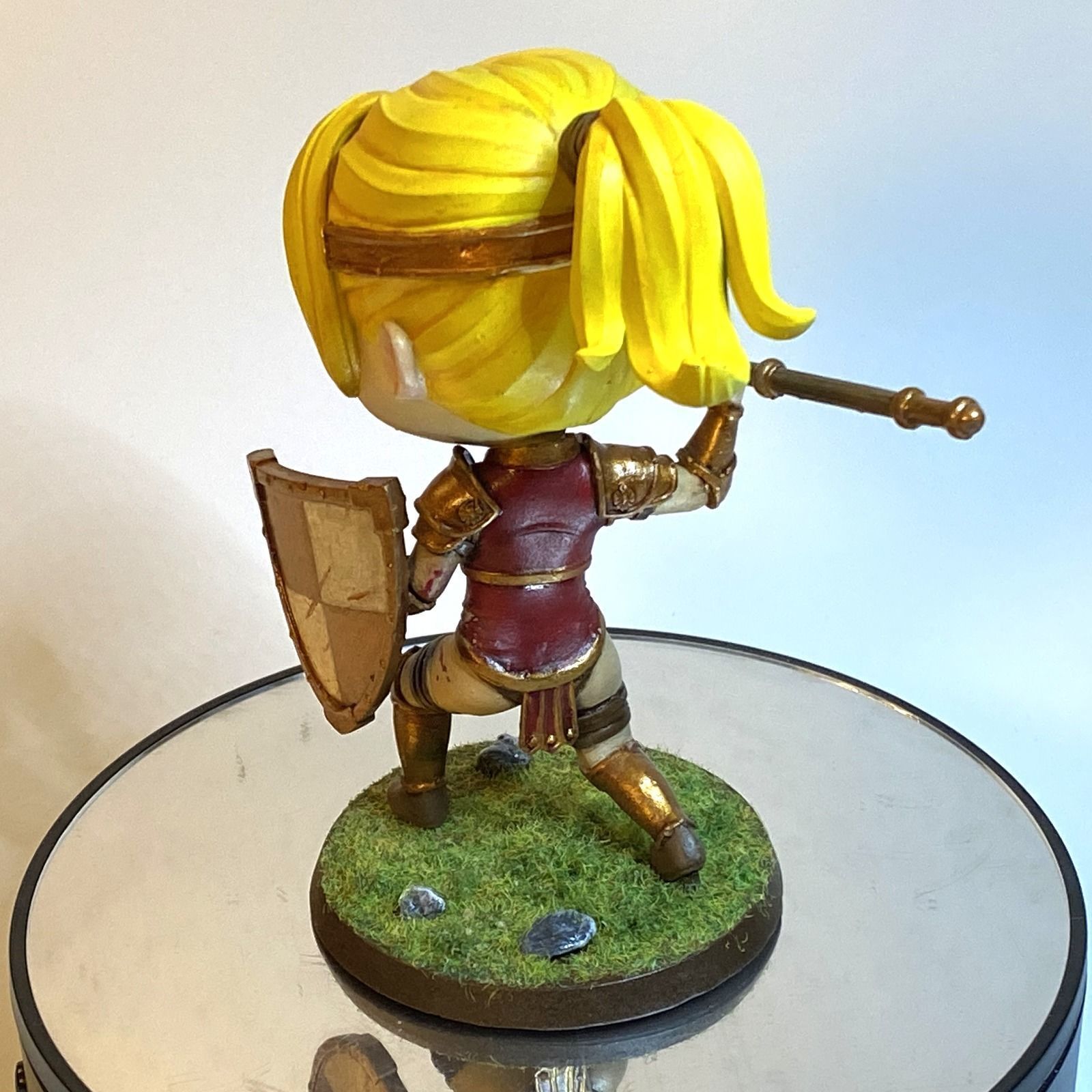

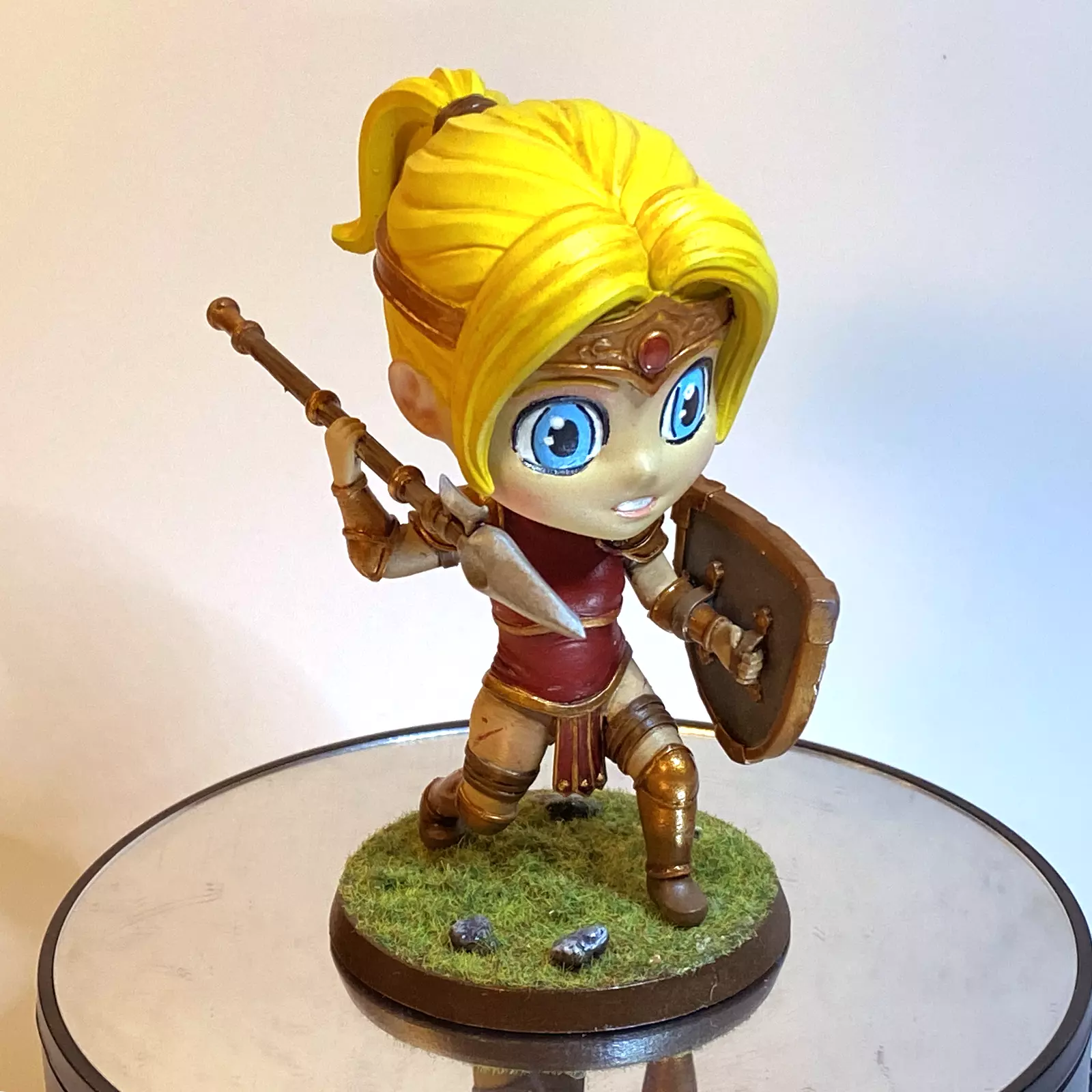

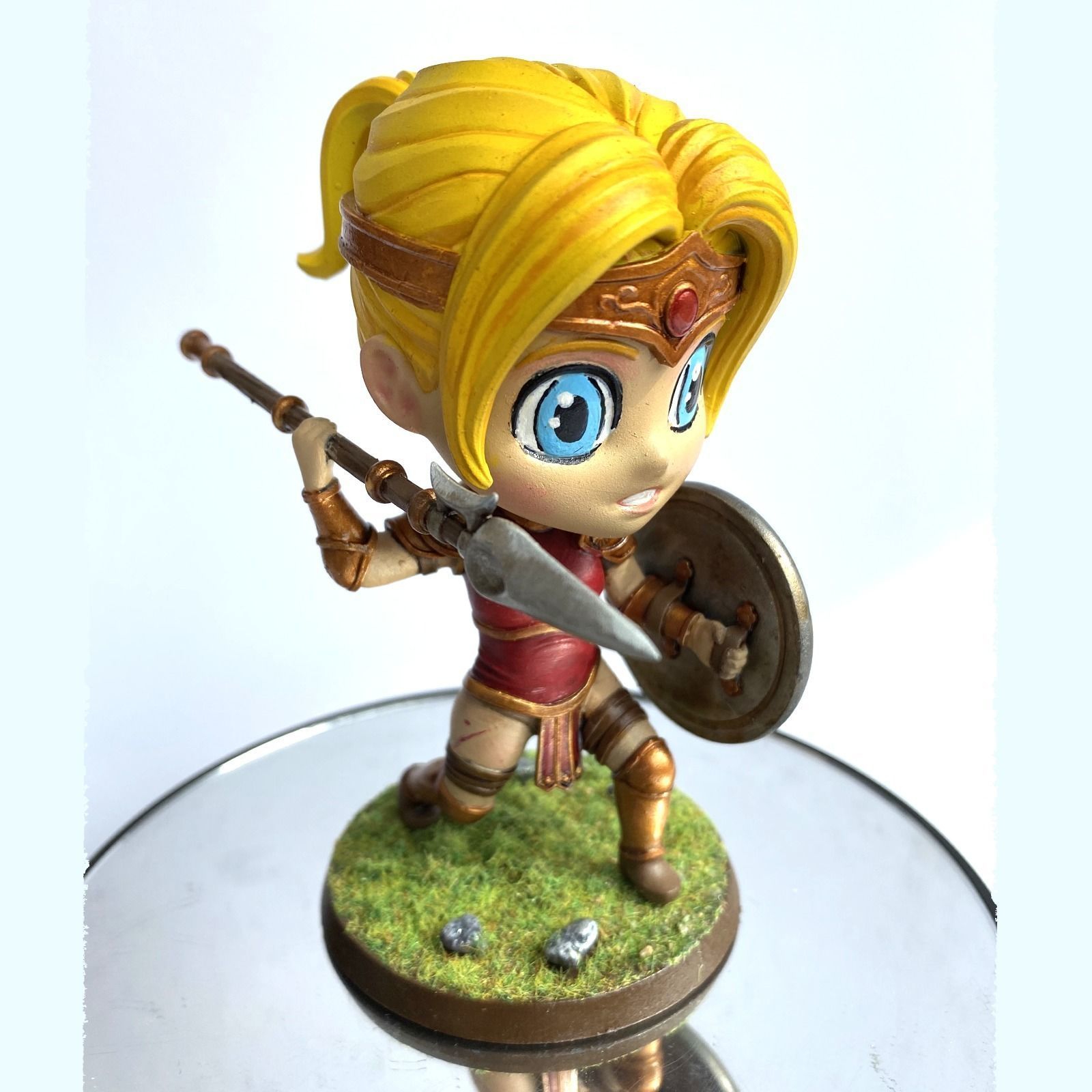

Painting: I suggest priming & paint the pieces separately before assembly. Then assembled them, then do final touch-up if needed, & end with a clear coat. Or you may prefer clearcoat before assembly... You are Picasso, paint how you wish.

That's about it, I hope you enjoy

Technical Info in Chitubox that I used: Machine: Elegoo Saturn S Resin: Anycubic Grey (Basic), 405nm Print Setting: Layer Height 0.025mm Bottom Layer count: 5 Exposure Time: 2.5s Bottom Exposure time: 40s Transitional Layer Count: 10 The rest of the setting is default Support Setting: Raft Shape; Skate Heavy support (everything else is default)
