80 Architecture Moulding Modules Collection Revit STL Print 3D print model

80 3D Models-Modules Collection. Editable, Composable Modules for 11 Main Architecture Mouldings, according to classical famous Vignola Treatise. For Ancient and Modern Contemporary Architecture. Real World Scale. STL, REVIT, SKETCHUP, VUE, C4D, OBJ, 3DS!
80 Models-Modules Collection.

Real World Scale Model [SmartCgArt Real World System]. Quads [C4D; OBJ; DXF] & Tris [VUE;3DS; STL].
STL Printable Architecture Blocks Valid Mesh Certified.
REVIT Architecture DXF blocks ready.
NURBS Splines for Cinema4D.

SmartCgArt is Member of Archaeological Institute of America [AIA].

Editable and Composable Modules for the 11 Main Architecture Mouldings, according to the classical famous Vignola Treatise: Regola delli cinque ordini d'architettura [Rules of the Five Orders of Architecture, 1562] [and full edition Rome 1770: Il Vignola Illustrato].

Vignola Treatise has been 'the most widely used architectural textbook of all up to the XIXth century'.

Architecture Use: both Ancient & Modern Contemporary.

Real Technical Architecture Block from the famous Architecture Treatise by Vignola [Chapter 2: Mouldings].

Complete Architecture Set ready for every type of use, Ancient or Modern Contemporary.

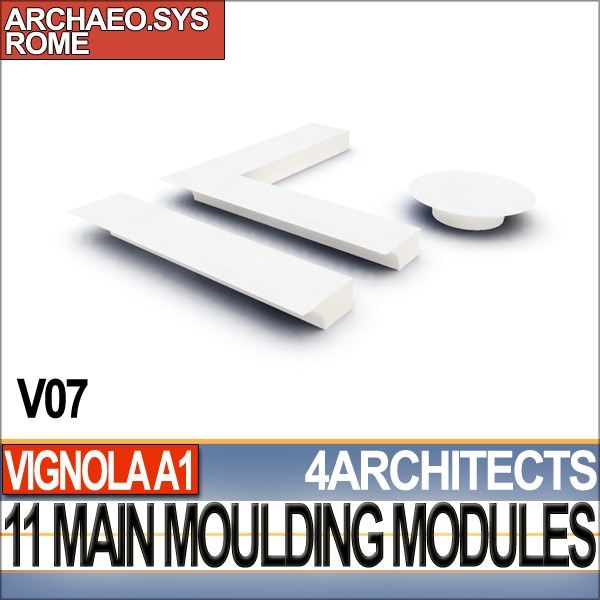

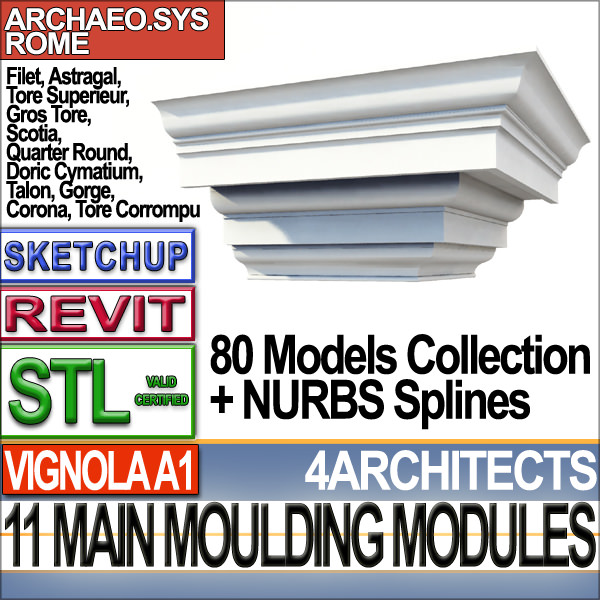

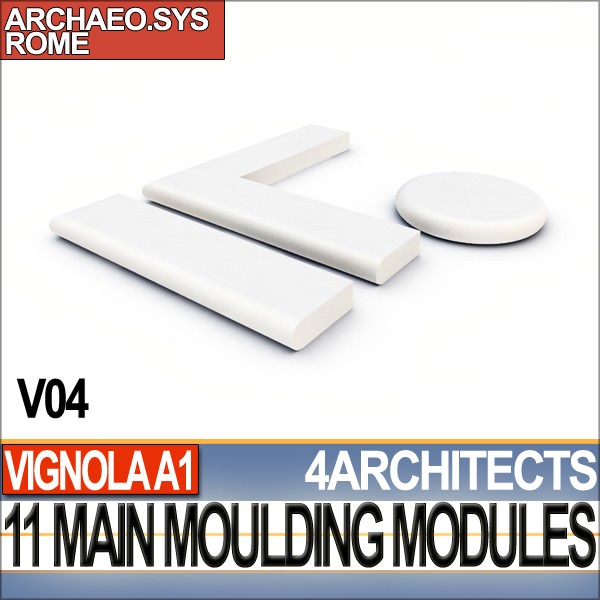

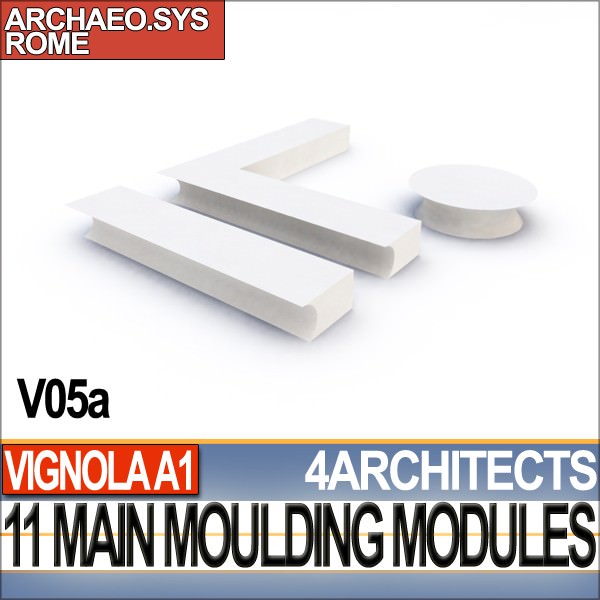

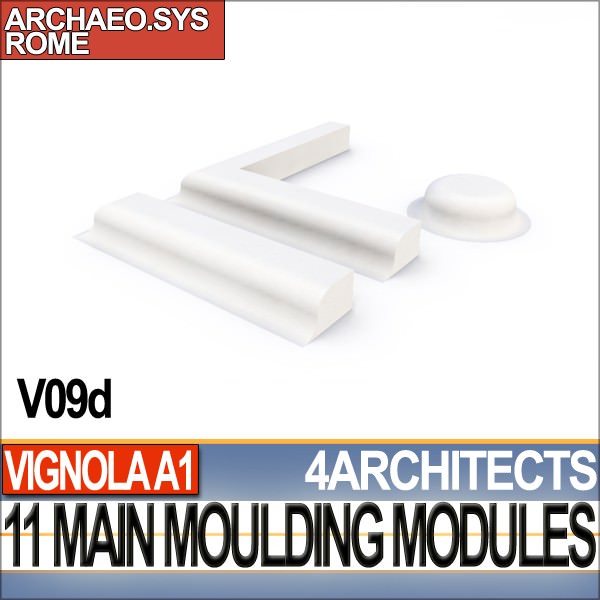

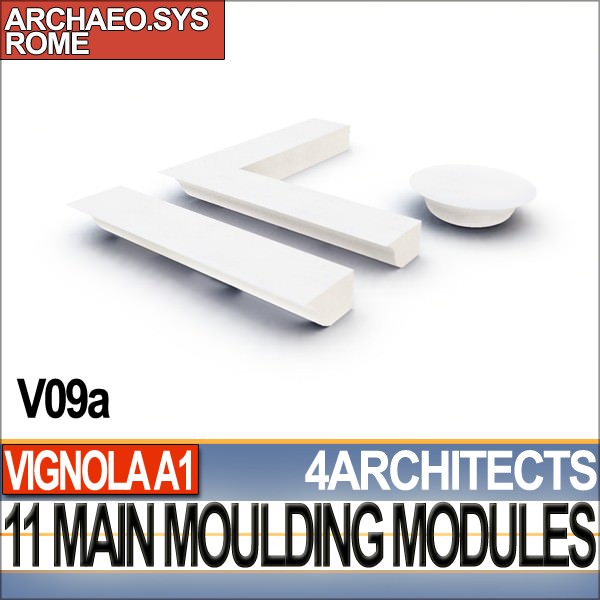

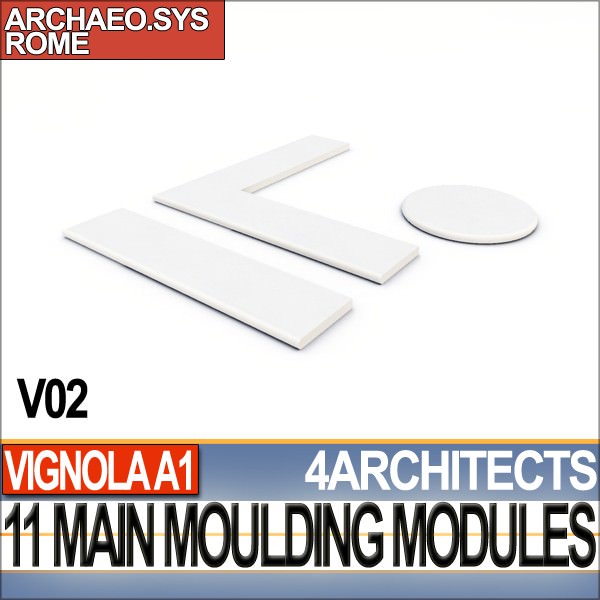

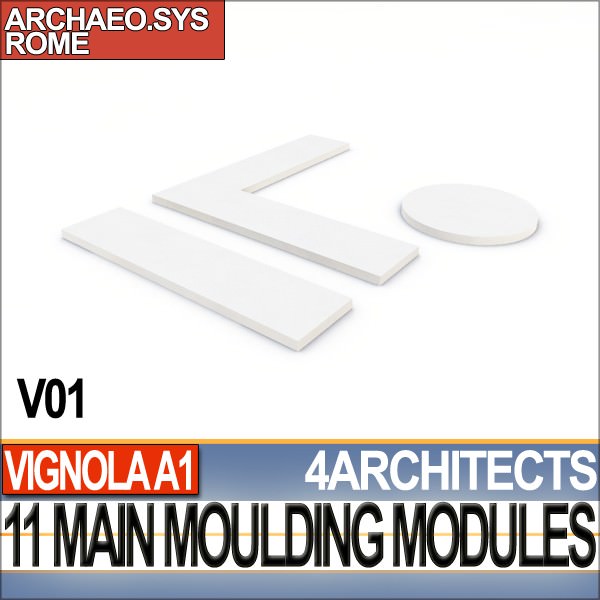

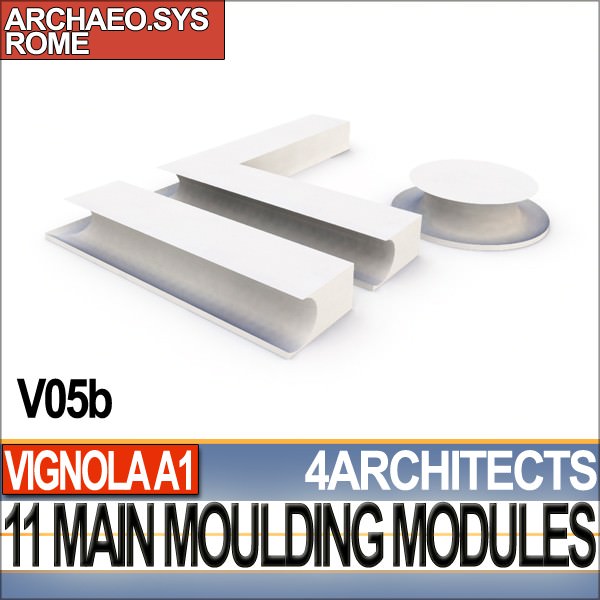

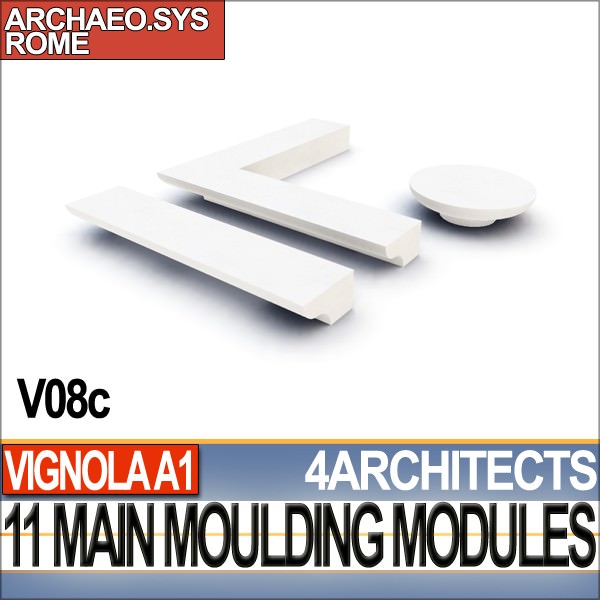

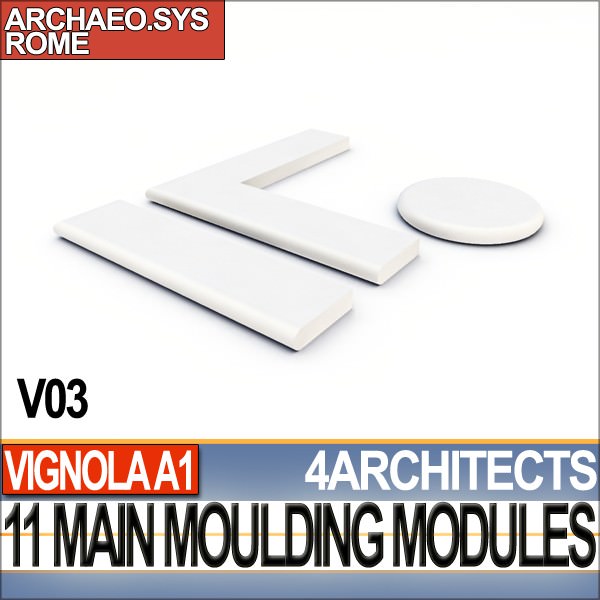

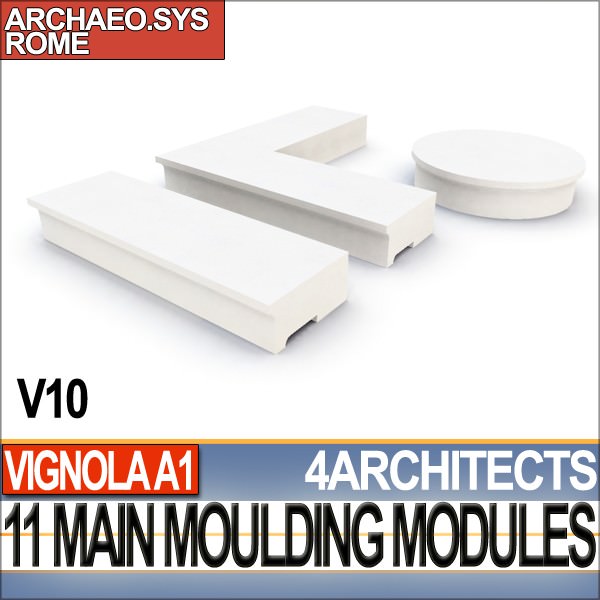

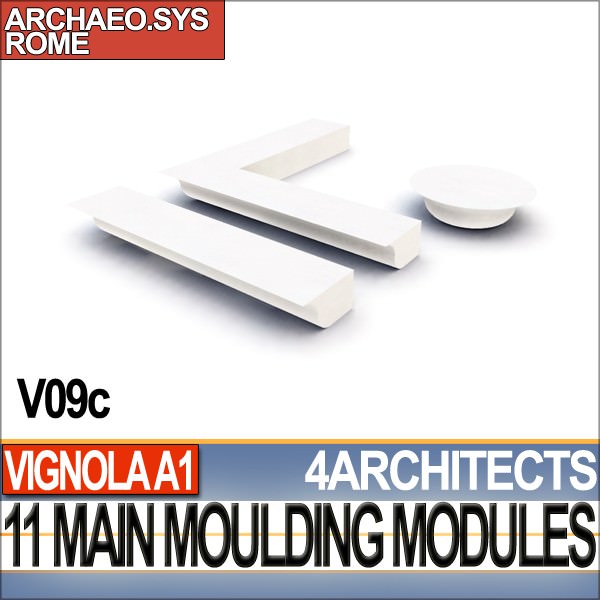

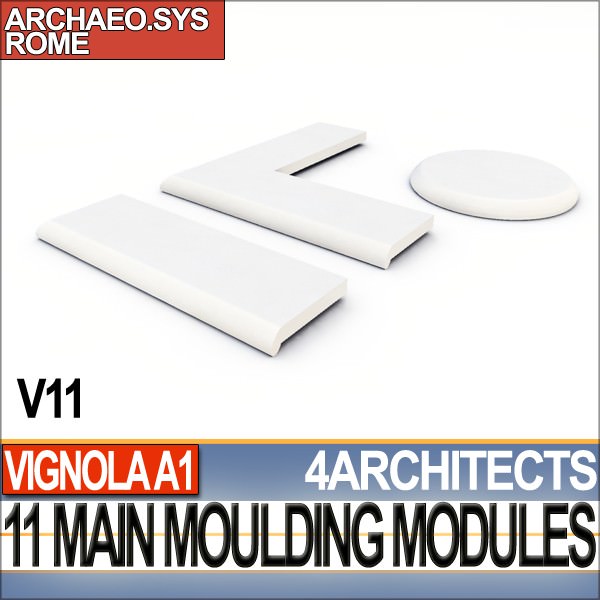

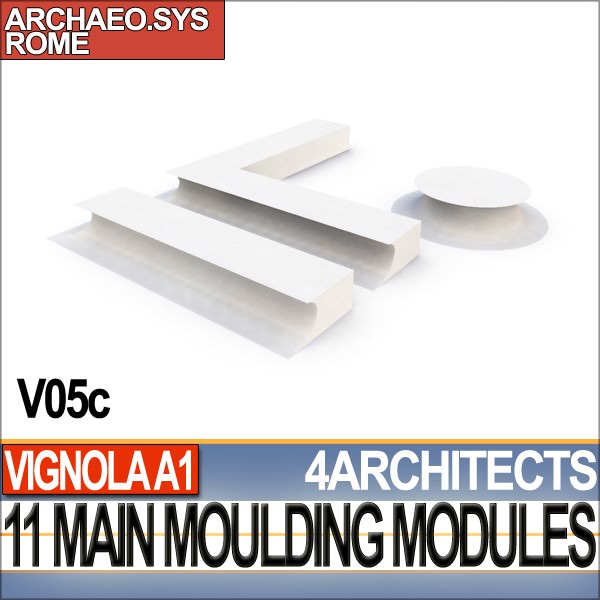

1- 11 Main Architecture Mouldings Modules with alternate versions [60 3D Models] [Vignola Chapter 2]:
A- Listello [Filet]
B- Todino [Astragal]
C- Toro Superiore [Tore Superieur]
D- Toro Inferiore [Gros Tore]
E- Scozia [Scotia]
F- Quarto di Cerchio [Quarter Round]
G- Guscio [Doric Cymatium]
H- Gola Rovescia [Talon]
I- Gola Dritta [Gorge]
J- Gocciolatoio [Corona]
K- Becco di Civetta [Tore Corrompu]

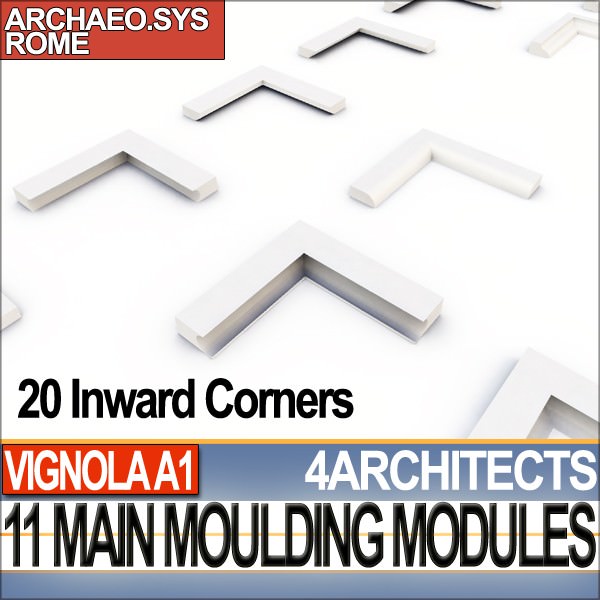

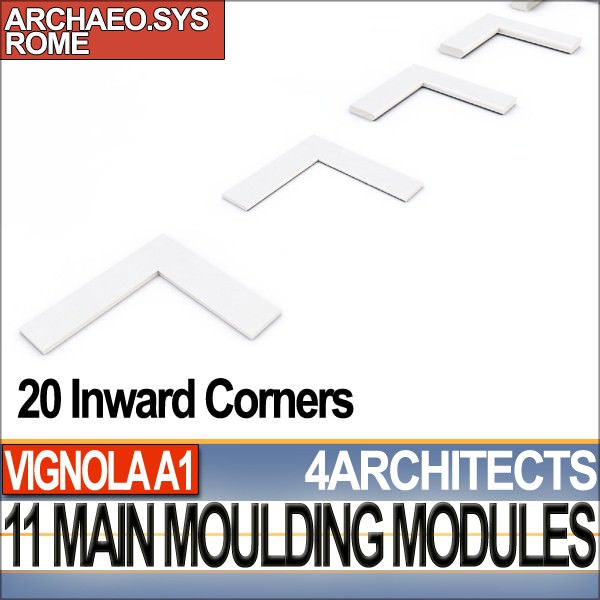

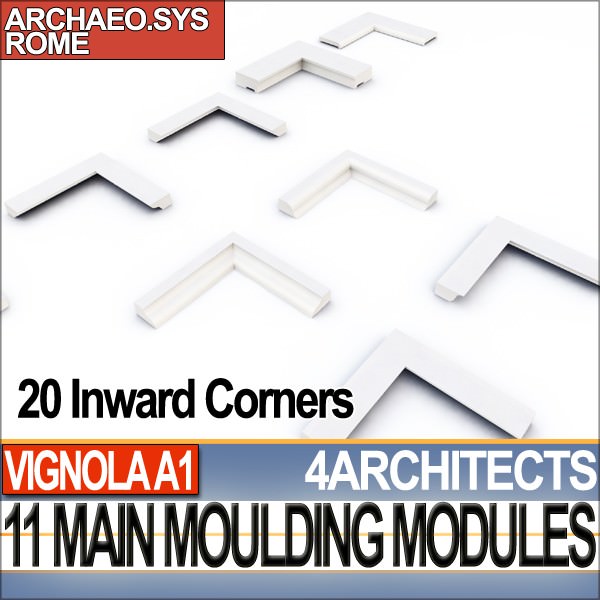

2- 20 Moulding Modules of 11 Moulding Modules for the Inward Corner [20 3D Models];
3- REVIT Dxf Block ready to be combined and used;
4- 2 High Quality textures for Pentelic Marble [2109x1184: Old marble and New Marble];
5- Stone Shader [580x580]
6- 4 special procedural materials for the rendering of marble [long shot and close-up], fiberglass and wood varnish [C4D, VUE];
7- .txt guides: complete guide to the Mouldings alternate names; procedural materials for C4D9up, loading blocks for Revit;

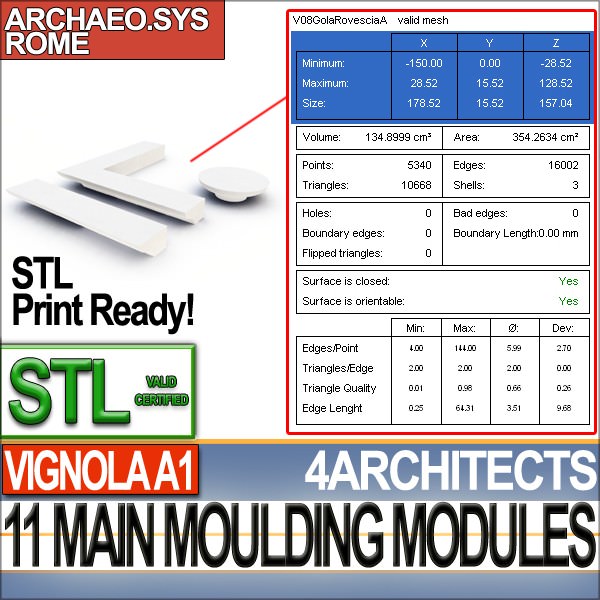

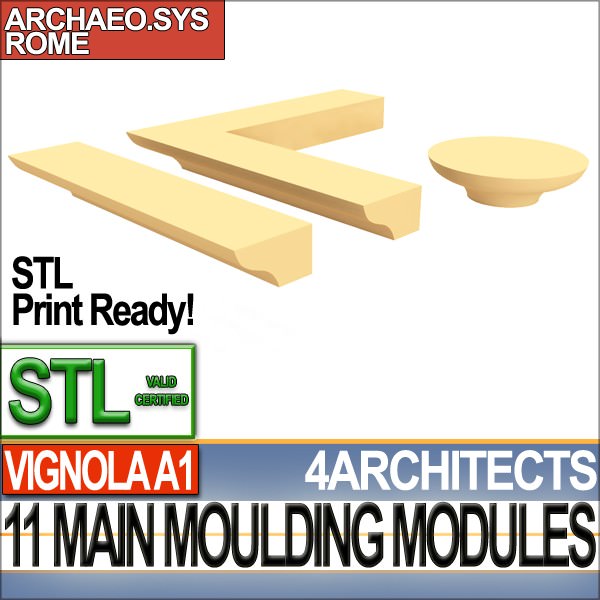

8- 80 STL 3D Ready Printable Mouldings Modules [with Valid Mesh Certificate];
9- Real World Scale SmartCgArt Man Reference System with models [C4D, VUE, 3DS, OBJ, DXF];

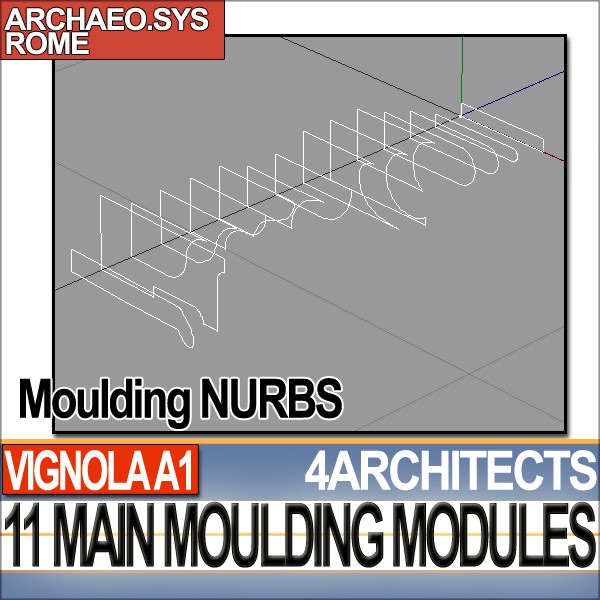

10- Mouldings Modules NURBS Splines for Cinema4D;
11- Guide to Cinema4D NURBS Splines Compositing to create Mouldings combinations.

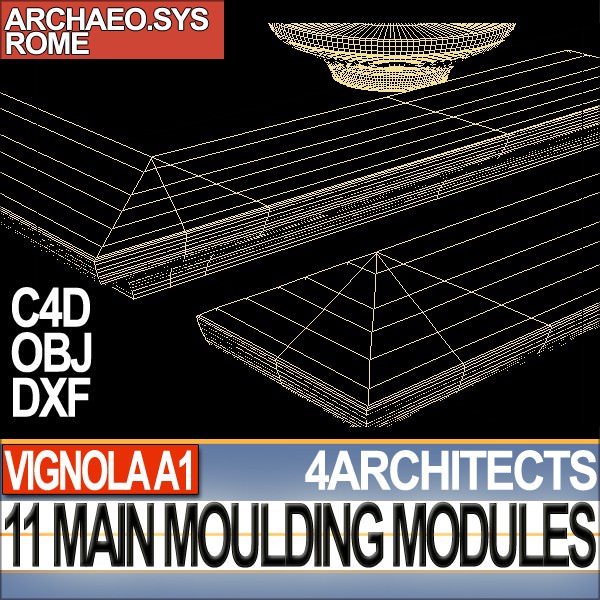

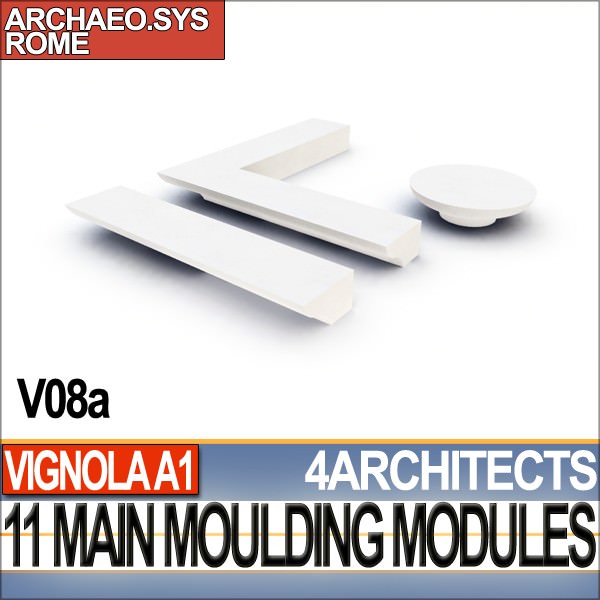

POLYGONS/VERTICES COUNT [Group VMd08a - Gola Rovescia A]
C4D-OBJ-DXF: only/mostly quads [5568; 5340]

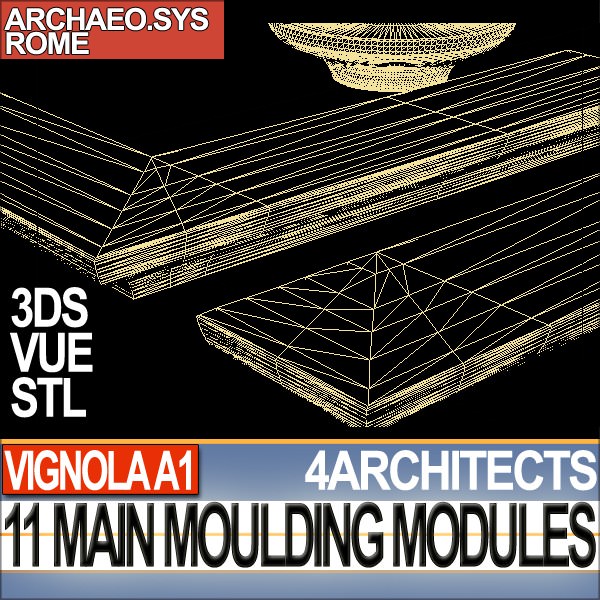

VUE-3DS-STL: triangulated [10668; 5340]

Values for all the Other Moulding Groups are Similar.

All the Models are Photoreal and Hi-DEF so they are suitable also for Hi-Def Rendering and Close-Up Shots.


The 4 ARCHITECTS series is developing high-fidelity materials, textures and architectural 3d blocks.

The ARCHAEO.SYS series is developing high-fidelity 3D reconstruction of Objects, Architecture and Scenes from Classical Greek and Roman Antiquity.

    This product has no reviews yet
    80 Architecture Moulding Modules Collection Revit STL Print
    All prices are exclusive of VAT
    Send your price offer to the author if you want to buy it at lower price.
    Royalty Free License
    Products under Royalty Free License can be used without liability to pay any license fees for<br/> multiple lifelong uses, or sales volume of final product after being paid for once. The product<br/> may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response 77% in 43.2h
    3D Modeling
    3D Print Modeling
    Low-poly Modeling
    UV mapping
    3D model formats
    • DXF (.dxf) (2 files)-Version: RevitDXF
    • 3D Studio (.3ds) (2 files)-Version: RWorldScalVersion: 3DS
    • Cinema 4D (.c4d) (3 files)-Version: SplinGuideVersion: C4D-6to13
    • OBJ (.obj, .mtl) (4 files)-Version: OBJ
    • Vue VUE-6to10 (.vue)30.5 MB
    • Stereolithography STLCertifi (.stl)11.8 MB
    • Autodesk FBX (.fbx) -
    3D model details
    • Publish date2012-03-03
    • Model ID#3014
