SQUARE HALO RING TRIO – 5.5 mm DESIGN

This collection includes three coordinated square ring variations — Plain, Halo and Pavé — developed with detailed stone-setting geometry and dedicated files for CAD, manufacturing, 3D printing and stone setting.The designs can be used for different jewelry applications, including fashion rings, accessory rings, statement rings, engagement rings and custom jewelry projects.The 5.5 mm reference refers to the design height, not the center stone size.

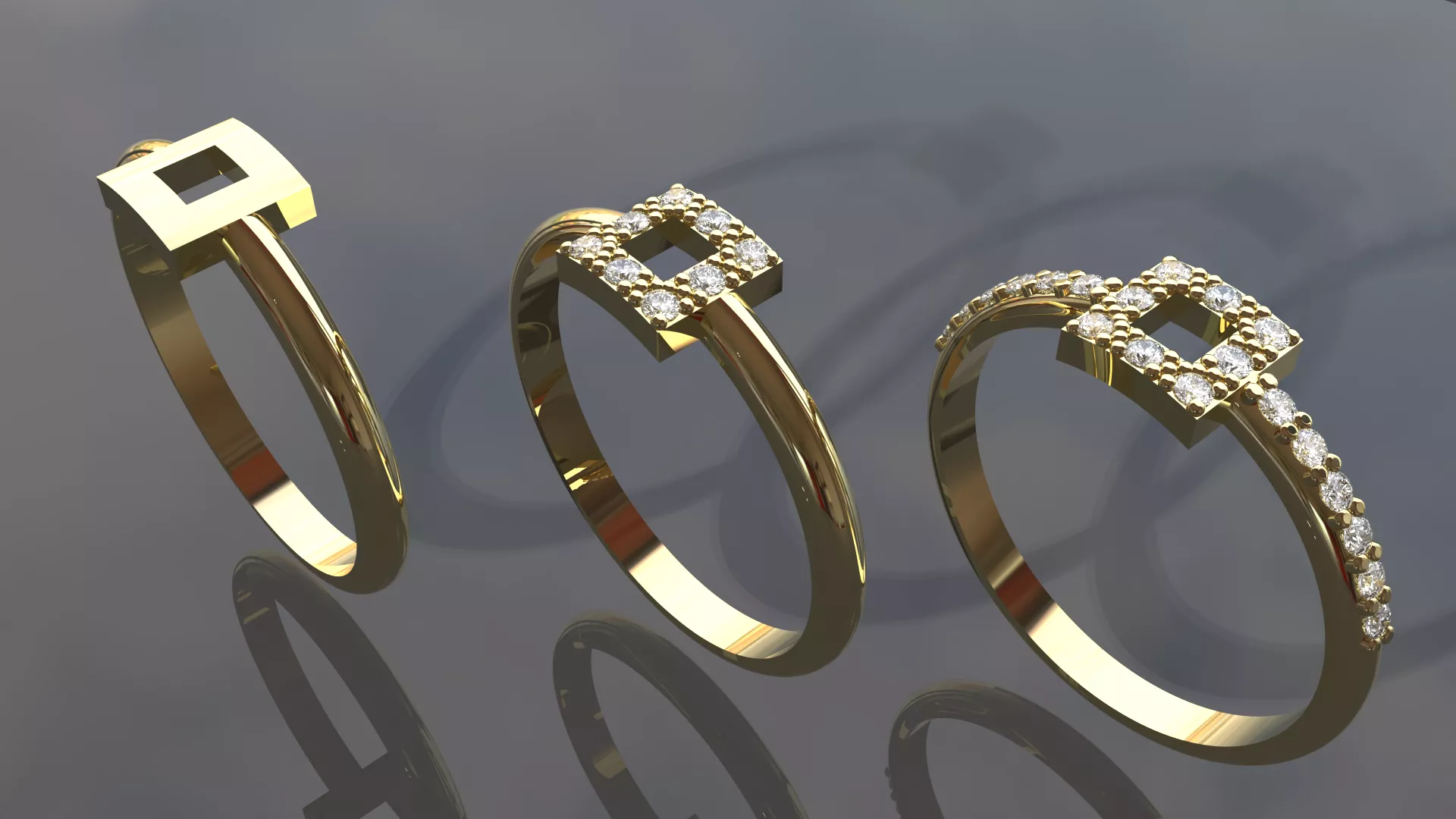

DESIGN VARIATIONS

1. PLAINClean version of the design without stones, providing a simple and versatile base for customization or further development.

2. HALOSquare central design featuring a surrounding stone setting that creates a halo effect.

3. PAVÉHalo design combined with additional pavé stones integrated into the central design and ring shank.

PACKAGE CONTENT

The package includes:

• 1 Rhino 3DM master CAD file, saved in Rhino 6 for broad compatibility.
• 1 STEP master CAD file containing the complete collection for use with compatible CAD/CAM software.
• 5 individual STL files:
  • Plain
  • Halo with Stones
  • Pavé with Stones
  • Halo SSR
  • Pavé SSR
• Stone Setting Ready (SSR) STL versions with extended prongs designed to facilitate stone setting.
• Technical layouts with dimensions for all three ring variations.
• Technical layouts with estimated metal weights and stone information for all three ring variations.
• High-resolution commercial presentation renders.
• Clearly organized folders for an efficient CAD, manufacturing and stone-setting workflow.

TECHNICAL INFORMATION

• Brand: ANTUR
• Collection: Square Geometry Series
• Design: Square Halo Ring Trio
• Design Reference: 5.5 mm
• Ring Size: US 7
• Units: Millimeters (mm)
• CAD Software: Rhinoceros / Rhino
• CAD Formats: 3DM, STEP
• 3D Printing Format: STL
• Documentation: PNG
• Important: All ring models included in this package are provided in US ring size 7. If another ring size is required, the buyer should adjust the model accordingly before manufacturing or 3D printing.The included technical layouts provide dimensions, estimated metal weights and stone information to assist with production planning and stone-setting preparation.

DESIGNED FOR JEWELRY PRODUCTION WORKFLOWSSuitable for:

• Jewelry manufacturers
• Jewelry designers
• CAD/CAM professionals
• Bench jewelers
• 3D printing services
• Jewelry casting and manufacturing workflows
• Custom jewelry productionThe models were developed with jewelry manufacturing and stone-setting considerations in mind, providing both editable CAD files and individual STL files for different production workflows.

MANUFACTURING NOTE

Please review the included technical documentation, dimensions and specifications before manufacturing.Final production parameters may need to be adjusted according to the selected metal, gemstones, casting process, printing technology and individual manufacturing requirements.

ANTUR CollectionJewelry CAD models developed with a focus on precision, production workflow and stone-setting functionality.
