Nautical Compass Star Signet Ring - 3D Jewelry Design
*** Estimated Gold WeightSilver 925 : 26g9K : 28.15g14K : 31.70g18K : 36.91g
*** All Files Types Include

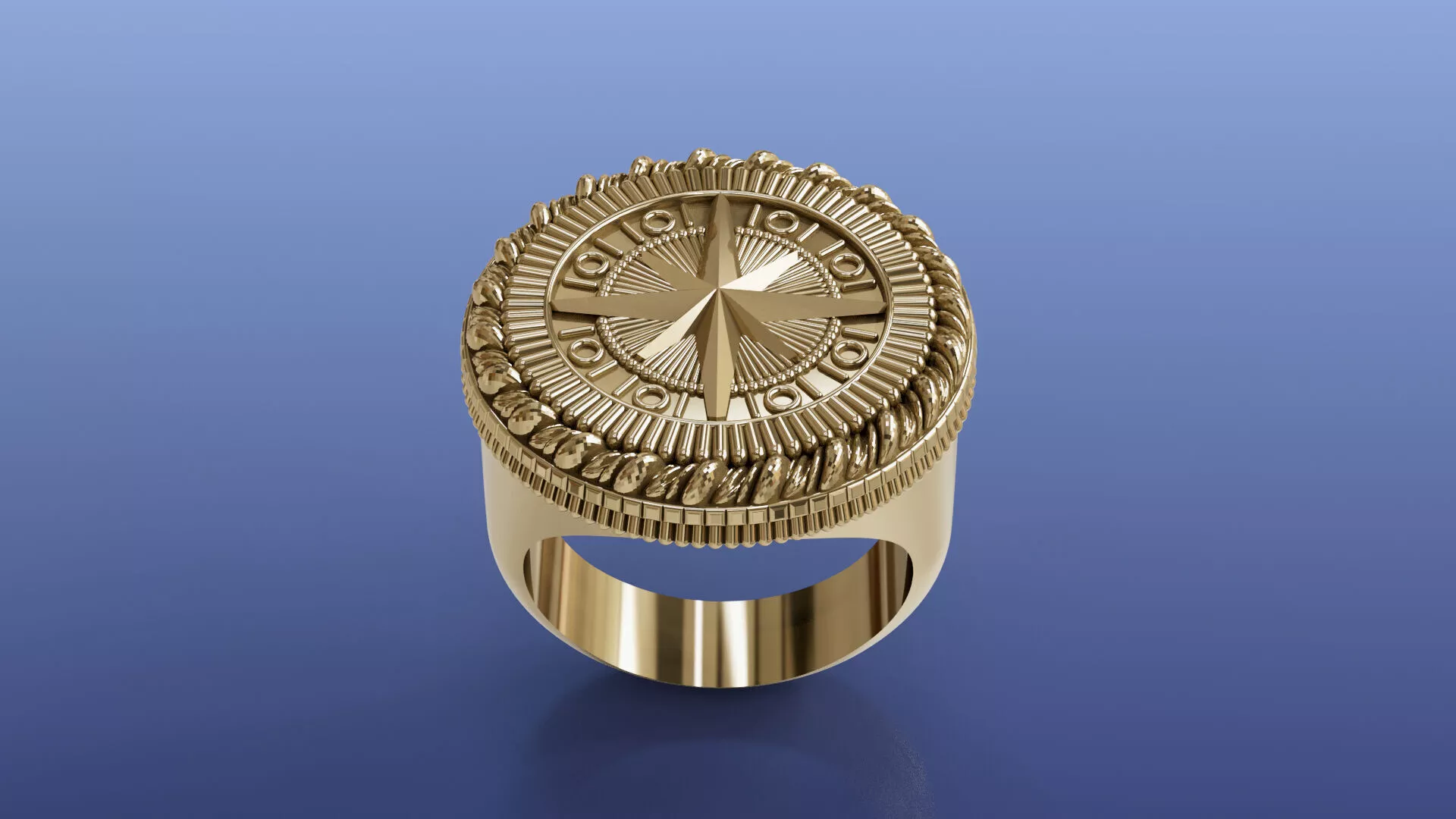

DescriptionThis premium 3D CAD model features a bold and intricate Nautical Compass Star Signet Ring, designed for those who appreciate maritime heritage and symbolic craftsmanship. The ring boasts a striking circular face centered with a high-relief four-pointed compass star, surrounded by radial sunburst engraving and a decorative rope-twist border. Its substantial shank and refined detailing make it an ideal statement piece for high-end men’s jewelry collections or bespoke artisan projects.
The DesignThe design centers on the North Star or Mariner’s Compass, a timeless symbol of guidance, protection, and adventure. The top face measures 23.50 mm in diameter, providing a grand canvas for the geometric precision of the central star. To add texture and depth, the outer rim is adorned with a meticulously sculpted rope pattern, complemented by a secondary tiered gallery of vertical knurling. The shank transitions smoothly from a wide, sturdy shoulder to a comfortable base, balancing a rugged aesthetic with classic elegance.
3D ModelingExpertly crafted using industry-standard jewelry software (MatrixGold/Rhino), this model is optimized for flawless 3D printing and production. The file is provided in high-resolution STL, OBJ, and 3DM formats, ensuring compatibility with all major CAD platforms and slicer software. The mesh is water-tight and manifold, with a design height of 5.75 mm from the top of the shank to the star’s peak. Every detail, from the radial grooves to the under-gallery, has been refined to ensure crisp resolution in both resin and wax prints.
ManufacturingThis model is engineered with the manufacturing process in mind, particularly for investment casting (lost wax process). The technical specifications provide accurate metal weight estimates to assist in production planning:
14K White Gold: Approx. 31.70 grams
18K Yellow/White Gold: Approx. 36.91 – 39.40 grams
.925 Sterling Silver: Approx. 26.08 gramsThe ring is designed to be easily polished, with enough relief in the textures to allow for antique oxidation or black rhodium plating to enhance the nautical details. It is a robust design that allows for easy resizing by a professional bench jeweler.
SalesUnlock a professional-grade asset for your jewelry brand or 3D printing service. Upon purchase, you will receive a comprehensive package containing the source 3DM file for further customization, as well as production-ready STL and OBJ files. Whether you are looking to expand your digital catalog, offer new designs to your clients, or print a one-of-a-kind gift, this Nautical Compass Signet Ring offers the perfect blend of technical precision and artistic flair. Available now for instant download.
