Modern Bypass Emerald-Cut Solitaire Ring
*** All Files Types Include

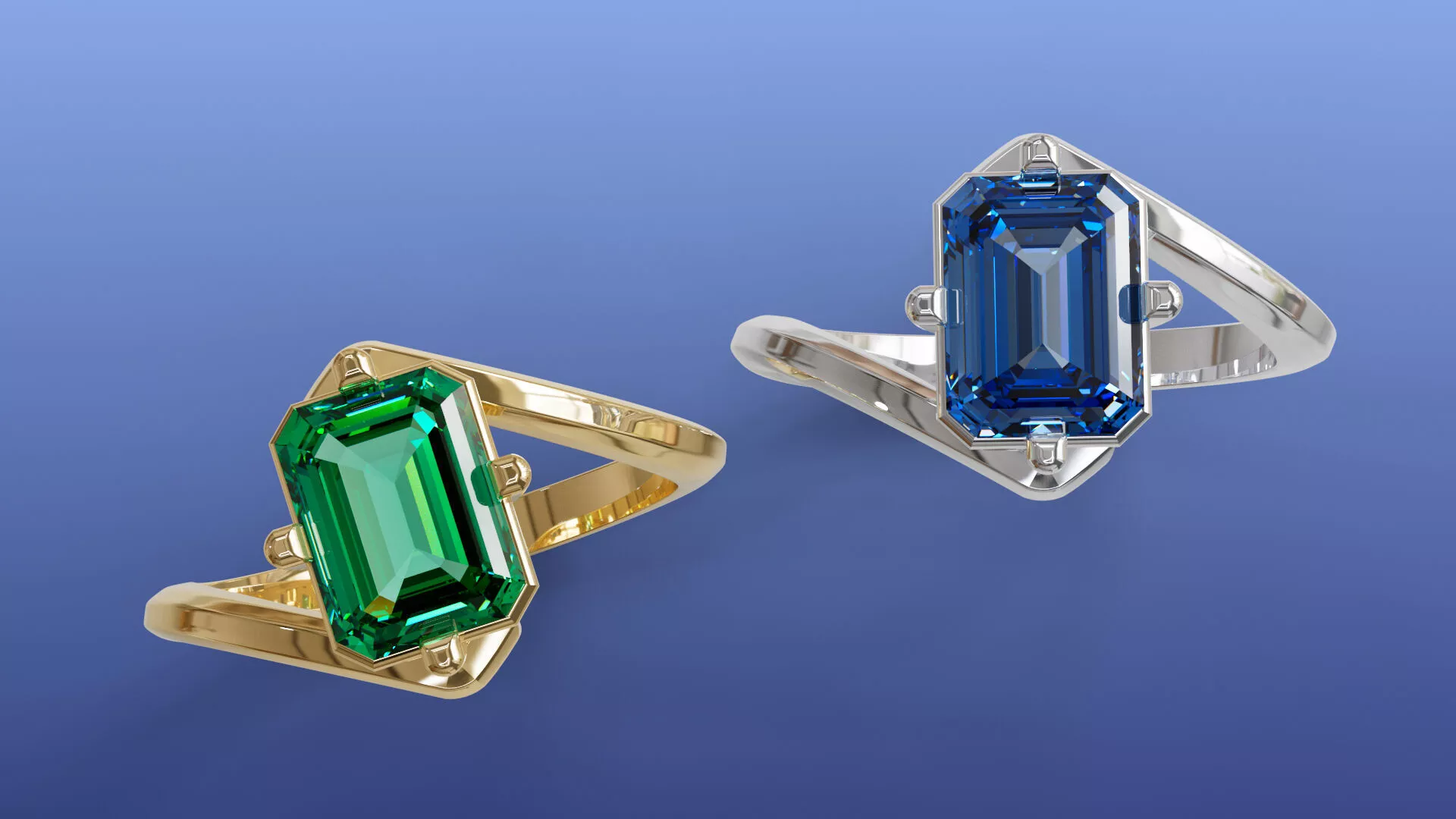

DescriptionThis high-quality 3D CAD jewelry model features a contemporary bypass solitaire ring designed for an emerald-cut center stone. The sleek, flowing lines of the shank wrap around the central setting, creating a dynamic sense of movement and elegance. Perfectly balanced for manufacturing, this design offers a sophisticated twist on the classic solitaire, making it an ideal choice for engagement rings or statement fashion pieces.
The DesignThe design centers on a stunning 8.00 mm x 6.00 mm emerald-cut gemstone, secured by a refined four-prong setting. The hallmark of this piece is its bypass shank, where the metal arms gracefully curve around the stone rather than meeting it at a traditional perpendicular angle. The under-gallery is meticulously engineered with a bridge-style support that ensures the stone sits securely at a height of 5.00 mm, allowing maximum light entry to enhance the gemstone's brilliance.
3D ModelingExpertly modeled in MatrixGold/Rhino, this CAD file is optimized for high-end jewelry production. The model maintains a clean topology and is provided in multiple formats including .3DM (source), .STL (print-ready), and .OBJ. The shank is designed with a comfortable 2.50 mm width and a base thickness of 2.00 mm, ensuring structural integrity during the modeling process. The finger size is set to a standard 16.50 mm internal diameter (approx. US Size 6), but the geometry is clean and easily resizable by any jewelry CAD technician.
ManufacturingThis file is ready for the complete manufacturing workflow, from 3D printing to casting. The prongs are designed with sufficient length for secure stone setting, and the bypass architecture is hollowed where necessary to manage metal weight without compromising strength.
Gemstone: 1 Emerald-Cut (8x6mm), approximately 1.67 ct (Diamond equivalent weight).
Estimated Metal Weights:
14K Gold: ~3.38 grams
18K Gold: ~3.94 grams
Silver 925: ~2.78 grams
SalesThis professional-grade 3D model is a versatile addition to any digital catalog or jewelry retail inventory. Your purchase includes the full license to use this design for commercial manufacturing. Whether you are a jewelry brand looking for a ready-to-cast bypass design or a custom jeweler needing a high-fidelity base model for client presentations, this file provides the precision and aesthetic appeal required for a premium finished product.
