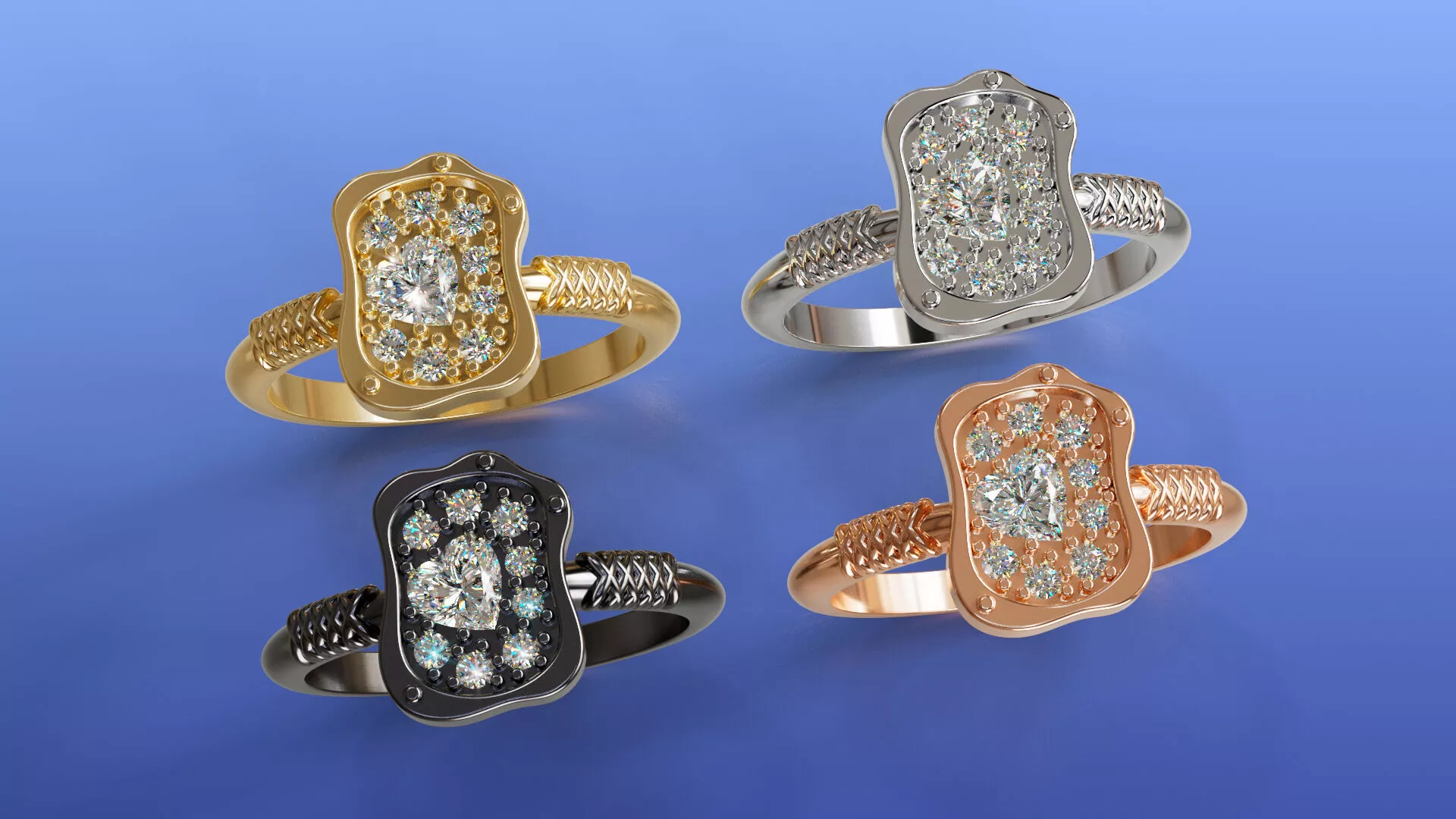

Heart Halo Cluster Engagement Ring – Woven Shank 3D CAD Model | Vintage-Inspired Diamond Cluster Design for Jewelry Manufacturing"
*** All Files Types Include
Design OverviewThis vintage-inspired engagement ring features a heart-shaped center stone surrounded by a cluster of round accent diamonds, all set within a scalloped, organically-contoured plaque head that gives the illusion of a larger single stone. The undulating wave-edge border adds a soft, romantic silhouette, while the split shoulders transition into a distinctive woven, cross-hatch textured shank reminiscent of braided rope or basket-weave patterns. This decorative shank detail elevates the piece beyond a simple solitaire mount, offering wearers a statement ring with intricate handcrafted-looking texture. The design totals 9 gemstones (1 heart-cut center plus 8 round accents) at approximately 0.32 total carat weight, and is versatile enough to suit bridal, anniversary, or fashion jewelry lines.
3D Modeling DetailsThe file was modeled in professional jewelry CAD software with full parametric precision, including accurate prong and bead-setting geometry, gem cavity seats, and structurally sound metal thickness throughout the shank and gallery. Technical documentation included with the file shows exact measurements (11.00mm x 8.50mm head, 2.00mm shank width), a complete Gem Reporter breakdown listing stone shapes, sizes, and carat weights, and a Metal Weights chart calculating gram, DWT, and specific gravity values across multiple alloys including white gold, yellow gold, rose gold, and sterling silver. The model is production-ready and delivered in industry-standard formats such as 3DM, STL, OBJ, and other compatible file types for seamless integration into any CAD workflow.
Manufacturing SuitabilityThis design is optimized for both traditional lost-wax casting and modern 3D wax/resin printing, making it suitable for a wide range of production methods. The even wall thickness, secure prong construction, and clean bezel channels ensure the piece will cast cleanly with minimal porosity risk and hold gemstones securely after stone-setting. The file is compatible with 9K, 10K, 14K, and 18K gold in white, yellow, and rose finishes, as well as platinum and sterling silver, giving manufacturers flexibility to produce this design across multiple price points and markets.
Sales & LicensingIdeal for jewelry designers, manufacturers, 3D printing services, and online jewelry retailers seeking ready-to-produce bridal and fashion ring content, this CAD file offers immediate production value without the time and cost of modeling from scratch. It suits digital marketplaces, custom jewelry studios, and print-on-demand jewelry businesses looking to expand their catalog with a distinctive, textured statement ring. Buyers receive multi-format files compatible with major jewelry design and 3D printing software, enabling quick adaptation for various gemstone sizes, metal types, and ring sizing before production.
