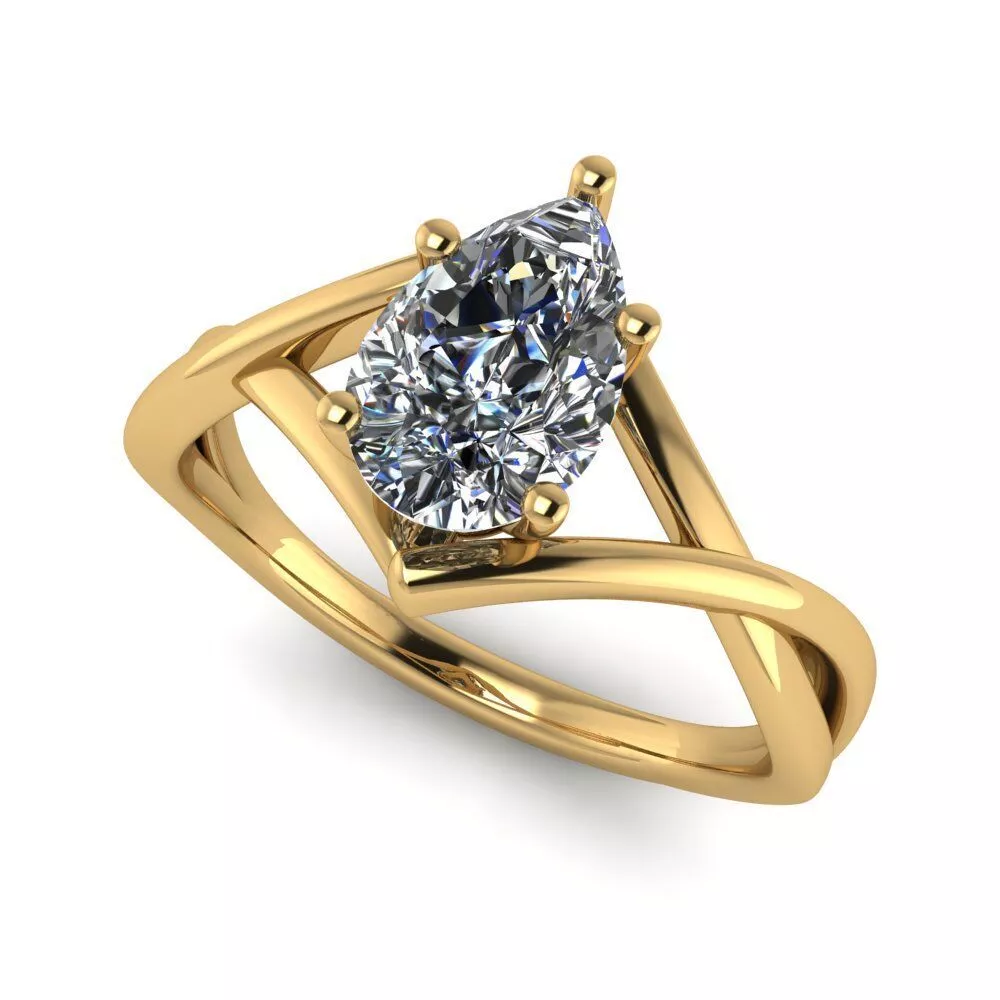

Product DescriptionThis professional three-dimensional digital asset features a refined solitaire ring concept characterized by a flowing, bypassing ribbon shank that gracefully embraces the central setting. Engineered from the ground up with precise focus on production constraints, the elegant crossover lines provide a fluid, seamless aesthetic while ensuring structural stability and balanced weight distribution for bench jewelers and manufacturers.

The central setting utilizes a secure five-prong configuration designed specifically to protect the delicate tip of a teardrop or pear-shaped geometric stone layout while maintaining maximum light entrance to optimize brilliance. This model is engineered to serve multiple professional pipelines, making it ideal for direct investment casting, high-fidelity photorealistic rendering, commercial visualization portfolios, and master pattern prototyping.

Technical Details and DimensionsThe geometry has been thoroughly inspected to guarantee flawless manufacturing workflows and structural durability.

Ring Size: US 6.5 (Internal ring diameter optimized for standard sizing adjustments)

Center Setting: Configured for one teardrop-shaped gemstone measuring approximately 8.50 mm x 5.50 mm

Setting Mechanics: 5-Prong wire setting layout incorporating a protective V-prong at the vertex

Setting Elevation: 4.50 mm clearance measured from the internal finger profile to the setting base

Band Thickness: 1.60 mm uniform depth at the base profile

Band Width: 2.00 mm width at the base, tapering elegantly to 1.70 mm at the twisting shoulder profiles

Estimated Material WeightsThe 3D volume is completely solid, closed, and calibrated to provide precise weight estimations across standard jewelry casting alloys:

9K Gold: 2.51 grams

14K Gold: 2.92 grams

18K Gold: 3.49 grams

14K White Alloy: 2.85 grams

18K White Alloy: 3.32 grams

925 Silver: 2.35 grams

Platinum Alloy: 4.68 grams

Included File FormatsThe download delivery contains clean, industry-standard data formats structured for immediate production and rendering deployment:

3DM: Native CAD source format with clean surface data and wireframe curves preserved for easy editing.

STL: High-density, error-free polygon mesh completely closed, verified, and ready for SLA/DLP 3D printing.

OBJ / FBX: Clean topology polygon meshes optimized for immediate import into studio rendering environments.

Manufacturing and Production ReadinessThis model is fully production-ready. The digital geometry is entirely watertight, non-manifold free, with correct normal orientations and verified surface continuity. All technical tolerances have been calculated to accommodate runner positioning, casting shrinkage compensation, clean metal fill, and professional stone setting prep.

For custom adjustments to the internal ring sizing, variations in setting dimensions, or to discuss collaborative bespoke CAD design services, please send a direct inquiry through the platform marketplace messaging panel.
