Emerald Cut Hidden Gallery Solitaire Ring | Jewelry CAD Model | STL & 3DM

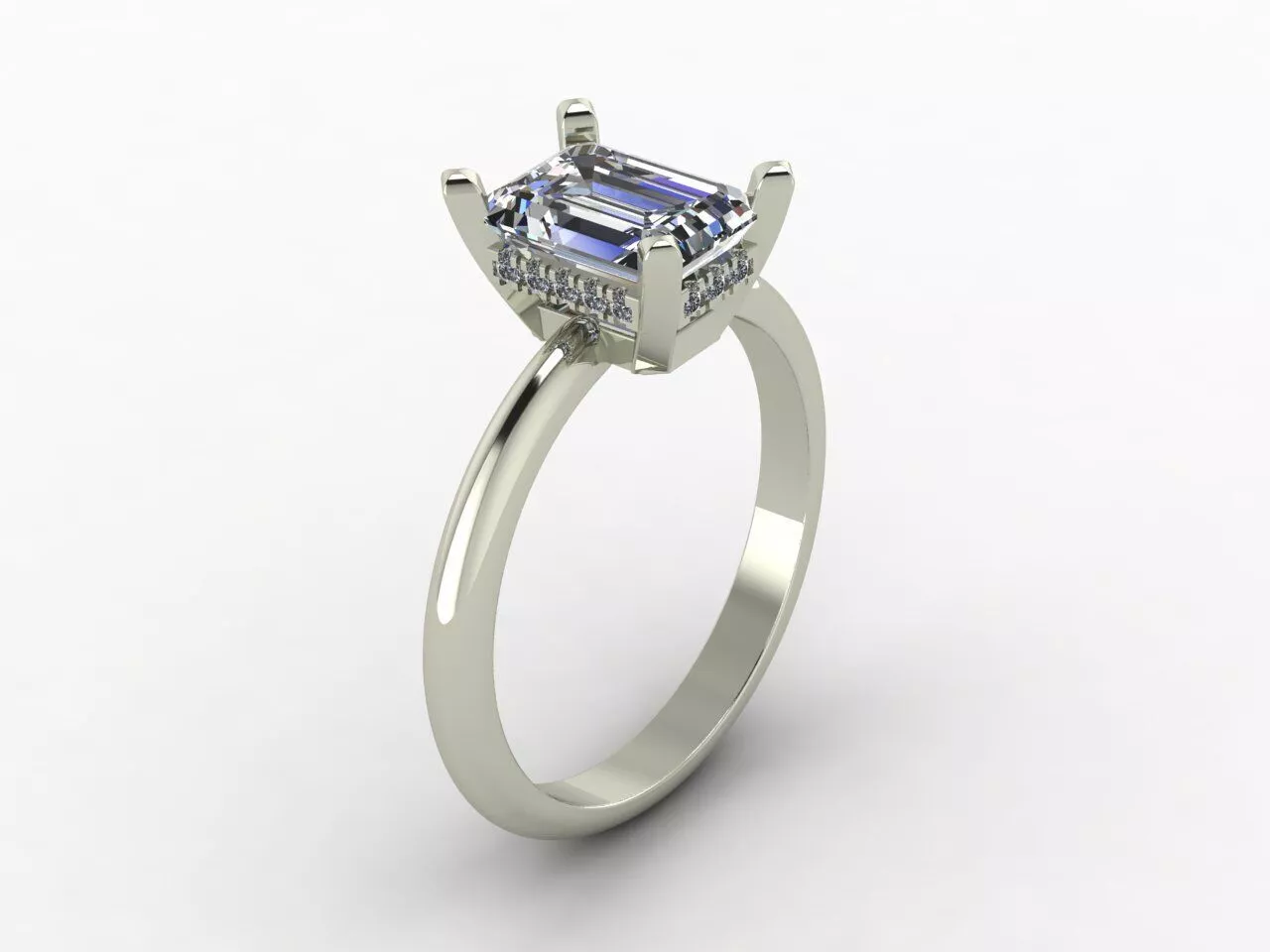

This professional jewelry CAD model features an elegant solitaire engagement ring with an 8 × 6 mm emerald cut center stone. The center stone is secured by four prongs and supported by two gallery rails, creating a strong and refined structure.

The hidden gallery is accented with 1.0 mm round stones set using a micro prong setting, adding brilliance from the side while maintaining a clean, classic appearance.

This model has been designed with jewelry manufacturing in mind and is suitable for professional casting and stone setting.

Specifications

Ring Size: US 7Center Stone: 8 × 6 mm Emerald CutAccent Stones: 1.0 mm RoundSetting Style: Micro Prong SettingCenter Setting: 4 ProngsGallery Rail Height: 1.30 mmGallery Rail Width: 1.00 mmProng Thickness: 1.20 mmShank Thickness:Bottom: 1.50 mmShoulders: 2.00 mmTop: 1.50 mm

Approximate Metal Weights

14K Yellow Gold: 3.32 g14K White Gold: 3.24 g925 Sterling Silver: 2.67 g

Important Information

Stone cutters for the accent stones are intentionally not included, allowing the setter to create the final seats according to the exact stone dimensions and preferred setting technique.If you would like the model with pre-cut stone seats, please contact me before purchase.

Included Files

STL3DM

This CAD model is intended for professional jewelry production, casting, and stone setting
