The Sun Ring — Men's Solitaire Signet Ring with Radiant Sunburst Halo | 3D CAD Model for Jewelry Manufacturing
*** All Files Types Include
The Design

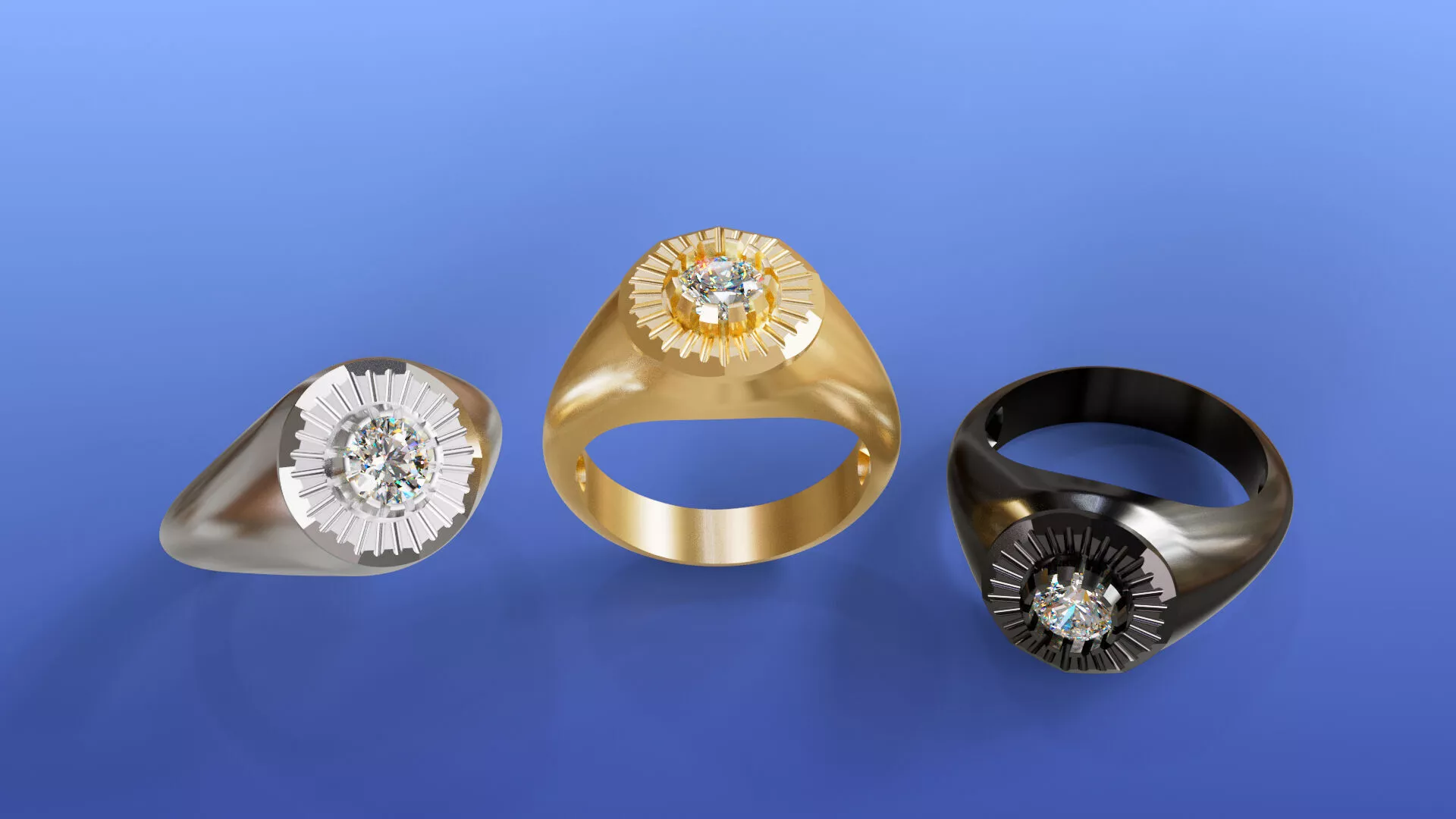

The Sun Ring is a bold, sculptural men's signet ring built around a central round brilliant stone, held in a raised claw setting and encircled by a striking sunburst halo of vertical fluted rays. The radiating rib pattern gives the piece its name, evoking the visual energy of sun rays bursting outward from the gem, while the smooth, high-domed shoulders and tapered oval shank keep the overall silhouette clean, weighty, and masculine. The face measures 12.00 mm by 12.00 mm (12.50 mm across the outer bezel), sized to comfortably anchor a 5.00 mm round center stone (approximately 0.47 total carat weight as modeled), and the shank tapers from a substantial 5.50 mm through-finger profile down to a refined 4.50 mm base for balanced comfort and presence on the hand. The design has been rendered and tested across multiple finishes — polished yellow gold, white gold, rose gold, and a dark oxidized/black finish — demonstrating how the sunburst detailing catches light differently across metals while maintaining a strong, symmetrical silhouette from every angle.
The 3D Modeling
This file was constructed in professional jewelry CAD software with full parametric control, gem library integration, and metal-weight reporting tools, ensuring the geometry is manufacturing-accurate rather than a purely visual render. The model is fully solid, watertight, and manifold, built with clean N-gon and quad topology suitable for both direct 3D printing and further CAD editing. All critical dimensions — outer diameter, ring face height, band width, shank taper, and gem seat — are captured and verifiable, and a gem report and metal-weight table (covering 9K, 10K, 14K, and 18K white gold, sterling and continuum silver, and rose gold options) are included to give buyers immediate insight into finished piece weight and cost estimation. The package includes the native file plus universal exports — 3DM, OBJ, STL, and other common formats — so the model can be opened, scaled, or resized in Rhino, Matrix, 3DS Max, ZBrush, or any standard modeling or slicing software without conversion issues.
Manufacturing
The Sun Ring is production-ready for both traditional lost-wax casting and modern additive manufacturing. The STL and OBJ exports are pre-checked for wall thickness, undercuts, and prong integrity, making the file suitable for wax or resin 3D printing on DLP/SLA jewelry printers as a direct step toward casting in gold, silver, platinum, or brass. The design also holds up well to CNC milling and hand-finishing workflows for jewelers who prefer subtractive or hybrid production methods. Because the file is fully scalable, manufacturers can adjust the ring size, gem diameter, or overall proportions to accommodate different stone sizes (melee to larger center stones), alternate gem cuts, or custom finger sizing without compromising the integrity of the sunburst pattern or the setting's structural strength — making it a practical, low-risk addition to a production catalog.
Sales & Licensing
This CAD file is ideal for jewelry manufacturers, custom jewelry studios, 3D printing services, online jewelry retailers, and independent designers looking to add a distinctive, ready-to-produce men's ring to their lineup without incurring design or prototyping costs. It suits stock marketplaces for 3D printable jewelry files, direct-to-consumer customization platforms (where buyers select metal and stone options before casting), and B2B catalogs for casting houses and wholesalers. Delivered with multiple format exports, gem and metal specification sheets, and dimensioned technical views, the file is positioned as a complete, sale-ready asset — minimizing revision requests and giving buyers everything needed to move straight from purchase to production.
