Fleur de Lis Diamond Pendant – 3D CAD Model for Jewelry ManufacturingProduct DescriptionFleur de Lis Diamond Pendant – Solitaire Necklace 3D Model (CAD File for Jewelry Manufacturing)
*** All Files Types Include

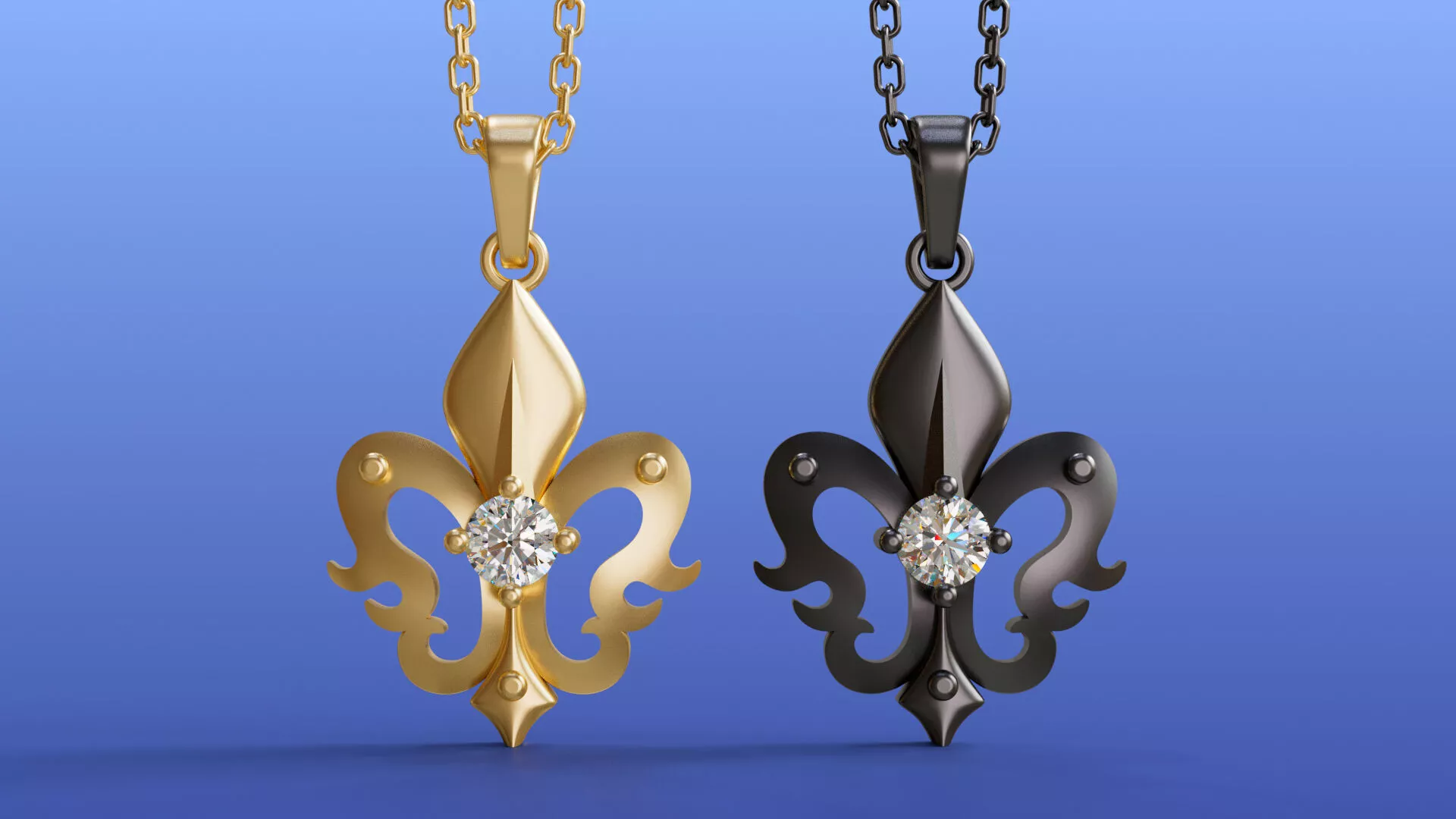

The DesignThis pendant reinterprets the classic fleur-de-lis emblem as a refined piece of fine jewelry. The silhouette combines a tall, faceted central spear with two gracefully curling side scrolls, finished with decorative bead accents at each junction point. A single round brilliant-cut diamond, prong-set at the heart of the motif, adds a bright focal point against the sculpted metal framework. The design carries a classic, symmetrical elegance that references heraldic and Gothic-revival styling while remaining wearable as an everyday statement piece. It is fitted with a trombone-style bail and a fixed jump ring, ready to be strung on a cable chain, and is well suited to yellow gold, white gold, rose gold, platinum, or silver finishes, as shown in the rendered previews.
The 3D ModelingThe pendant was modeled with precision jewelry CAD software using solid, manufacture-ready geometry. Total pendant dimensions measure approximately 12.00mm wide by 14.75mm tall, with a bail length of 5.00mm and a profile depth of 3.00–4.00mm, as documented in the included technical drawings. The center stone is set to a 3.00 x 3.00mm round gemstone position (approximately 0.10 carat total weight), with prong seats sized for a standard round brilliant cut stone. The file includes clean, watertight, non-manifold-free mesh geometry suitable for direct casting or 3D printing, along with a native Rhino/3D model featuring accurate wall thicknesses, undercuts checked for castability, and a hollow bail structure for reduced metal weight. Reference metal-weight calculations are included for a range of alloys, including 9K, 10K, 14K, and 18K white gold, rose gold, sterling silver, and silver continuum, giving buyers immediate insight into approximate finished piece weight before production.
ManufacturingThis CAD file is fully prepared for real-world jewelry production. It can be used for direct metal casting via lost-wax casting, resin 3D printing for investment casting patterns, or direct metal 3D printing (DMLS/SLM) in gold, silver, platinum, or brass. The design is scalable without loss of detail and can be resized to fit pendant, charm, or small pin applications. Wall thickness and prong geometry have been designed with manufacturability in mind, reducing the risk of casting porosity or prong fragility. The file set is compatible with standard jewelry production workflows, including gem-fitting verification tools, and is delivered in multiple formats (including STL, OBJ, and native 3D CAD formats such as 3DM) to support a wide range of software and manufacturing pipelines.
SalesThis listing is ideal for jewelry designers, manufacturers, 3D printing services, and online jewelry retailers seeking a ready-to-produce pendant design. It suits buyers building out a fine jewelry catalog, private label jewelry brands, custom jewelry studios, and hobbyist makers with access to casting or printing equipment. The included high-resolution rendered images, technical dimension sheets, and material weight charts make this file easy to list, market, and quote for customers immediately upon purchase. Because the design is a solitaire-style pendant with broad gender-neutral and symbolic appeal (a widely recognized decorative and heraldic emblem), it holds strong potential for repeat sales across bridal, gifting, and everyday luxury jewelry categories.
