Compass Rose Medallion Pendant – Nautical Star Jewelry CAD Design
*** All Files Types Include
Design Inspiration and AestheticsThis 3D jewelry model features a meticulously detailed Compass Rose (Nautical Star) set within a robust, circular medallion. The central motif is characterized by sharp, high-relief points that catch the light from every angle, surrounded by a sophisticated radial texture and a classic rope-border frame. The bail is designed with a sleek, tapered chevron pattern, ensuring the pendant carries a cohesive, adventurous, and premium aesthetic. It is a timeless piece perfect for those who value direction, travel, and maritime heritage.
3D Modeling and Technical SpecificationsThe model has been engineered using industry-standard jewelry CAD software to ensure manifold geometry and flawless execution. The design includes precise technical dimensions, featuring a total height of 39.25mm and a medallion diameter of 23.50mm. The file is optimized with high-poly counts for smooth surfaces and crisp details, even at high magnification. The assets are provided in multiple formats, including 3DM (native Rhino), STL (ready for 3D printing), and OBJ (for rendering and cross-platform compatibility).
Manufacturing and Production ReadinessThis CAD file is fully print-ready and optimized for the lost-wax casting process. The wall thicknesses and prong-like details are balanced to ensure durability during the casting of various precious metals. Based on the calculated metal weights, the pendant is estimated at approximately 21.8 grams in 14K Gold and 18.0 grams in .925 Sterling Silver. The flat back design ensures comfort for the wearer while providing a substantial feel to the finished jewelry piece.

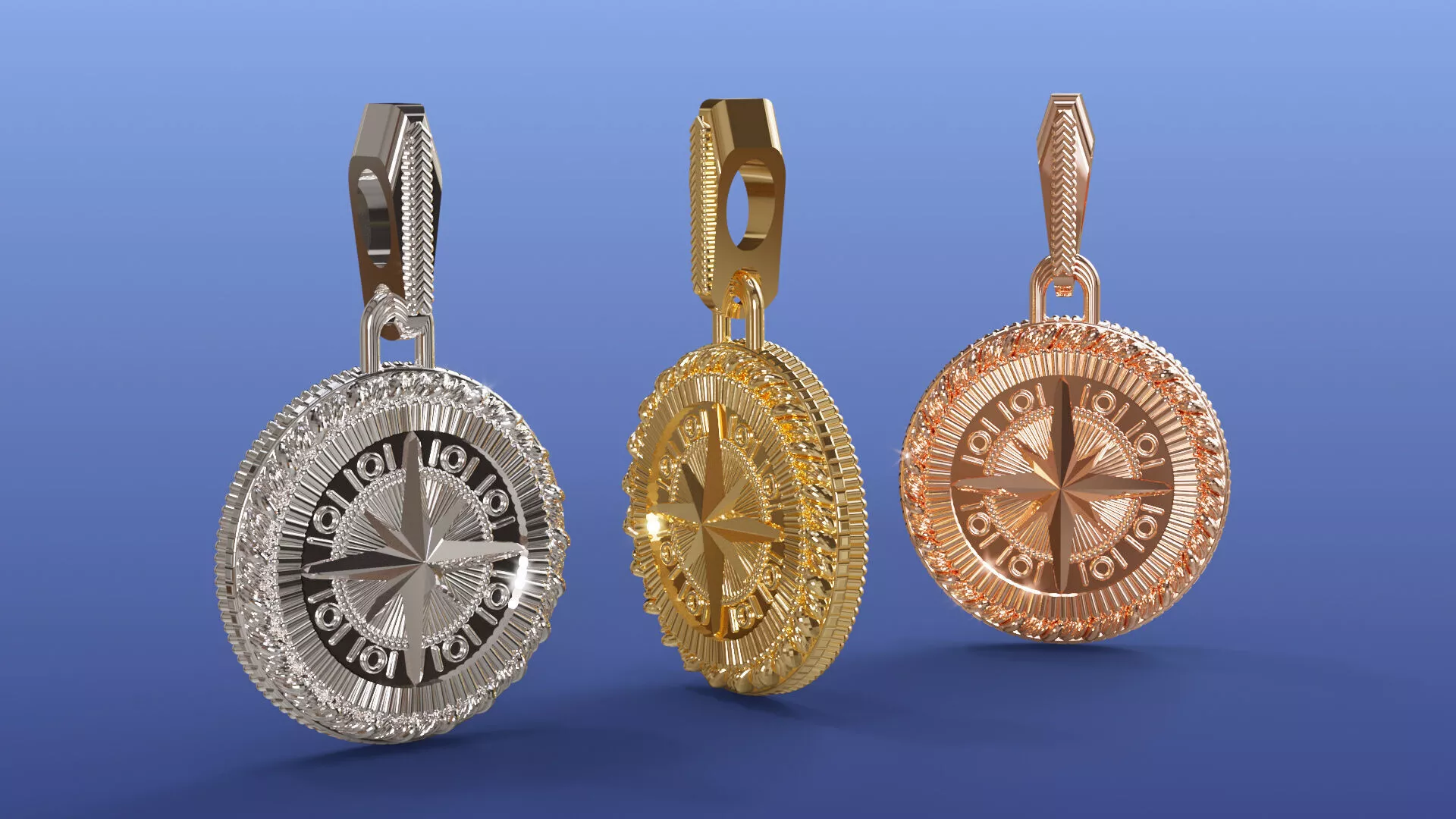

Sales and Licensing InformationBy purchasing this 3D asset, you receive a professional-grade jewelry file suitable for commercial production, bespoke client requests, or inclusion in a digital jewelry catalog. This is an ideal investment for independent jewelers, manufacturing houses, and 3D printing enthusiasts. The package includes the high-resolution renders shown, allowing you to market the product immediately to your customers in Yellow, White, and Rose gold finishes.
