Star Celestial Studs — Gothic Compass Diamond Earrings 3D CAD Model (Pair)
Celestial Star Stud Earrings 3D Print File | Gothic Cross Compass Diamond Studs — Digital Jewelry Design)
*** All Files Types Include

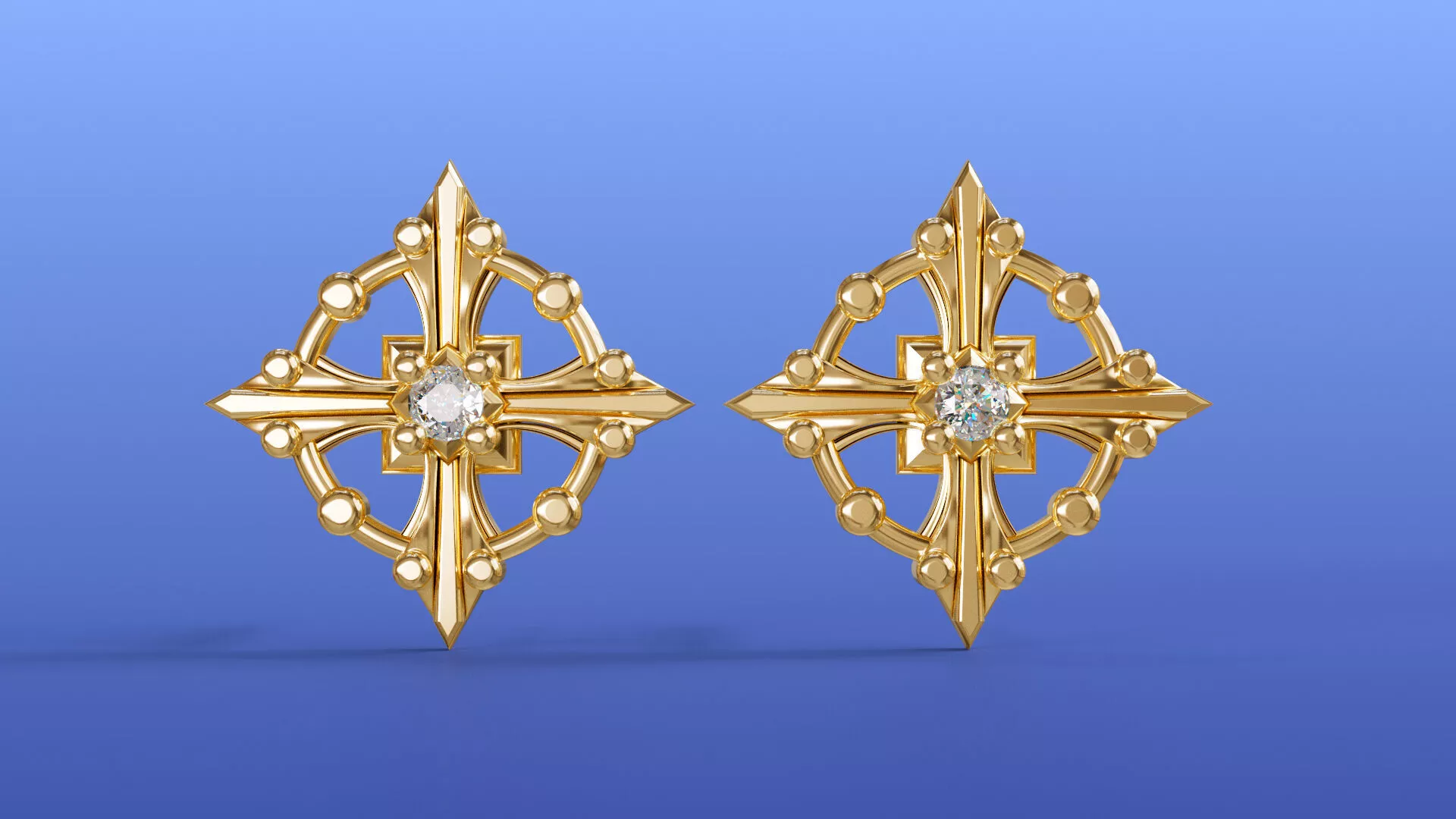

DesignThe Star Celestial Studs are a bold, architecturally-inspired pair of earrings that fuse Gothic cathedral tracery with a compass-star silhouette. Each earring is built around a four-point dagger cross, its arms terminating in sharp, faceted spires, while sweeping arcs bridge the points and are studded with a rhythmic row of small polished beads — a detail reminiscent of rose-window tracery and celestial star charts. At the heart of the design sits a single round brilliant-cut diamond, bezel-set within a raised, stepped platform that anchors the negative space of the open lattice. The result is a striking, symmetrical statement stud that reads as delicate lacework from a distance yet reveals intricate structural detail up close — equally suited to gothic-inspired fine jewelry lines, celestial-themed collections, or as a distinctive statement stud for everyday wear. The design has been rendered and previewed in yellow gold, white gold, and black rhodium/dark metal finishes to demonstrate its versatility across metal palettes.
3D ModelingThis is a professional, manufacture-ready jewelry CAD file, modeled with precise, symmetrical geometry and clean, watertight solids suitable for direct production. The file includes fully articulated prong/bezel seats sized for a 1.60 x 1.60mm round stone, correctly proportioned post-and-friction-back findings, and consistent wall thicknesses engineered to survive casting without warping or breakage. Gem and metal reports generated during modeling confirm technical accuracy: total gem weight of approximately 0.023 ct (2 stones per pair, 1.60mm round), and metal weight benchmarks across common alloys — including 9K, 10K, 14K, and 18K white gold, sterling silver, and 10K rose gold — ranging from roughly 1.3g to 2.0g per pair depending on material selection. Overall earring dimensions measure 10.50mm x 10.50mm with a face depth of approximately 2.50mm and a standard 1.50mm post diameter, keeping the piece lightweight and comfortable for daily wear. The model is delivered as a clean, quad/tri-optimized mesh and NURBS-compatible solid, checked for manifold geometry, correct normals, and print-ready wall thickness — no repair work required before sending to production.
ManufacturingThis file is fully compatible with modern jewelry manufacturing workflows, including wax 3D printing (DLP/SLA resin printers), direct metal 3D printing, and traditional lost-wax casting. It is equally suited to CNC milling workflows for master pattern production. The design has been engineering-checked for minimum wall thickness, undercuts, and prong strength so it casts cleanly in 9K, 10K, 14K, and 18K gold (yellow, white, or rose), platinum, and sterling silver, and finishes well with high or satin polish, rhodium plating, or black rhodium for a dark contemporary look, as demonstrated in the renders. The stone seat is sized to standard round brilliant melee (1.60mm) but can be easily rescaled by any jeweler or CAD technician to accommodate larger center stones, alternate gem shapes, or birthstone customization. Files are provided in industry-standard formats — 3DM, STL, OBJ, and other formats available on request — ready for import into Rhino, Matrix, 3Design, ZBrush, or any standard jewelry CAD/CAM and slicing software.
SalesThis listing includes the complete digital file package for both earrings in the pair, ready for immediate commercial use by jewelry manufacturers, designers, 3D printing services, and independent goldsmiths. Buyers receive full production rights to reproduce, cast, print, and sell physical pieces made from this design; the digital files themselves (source CAD, mesh, and derivative digital assets) remain the intellectual property of the designer and may not be resold, redistributed, or relisted on other stock/marketplace platforms. The model is ideal for jewelry brands building celestial, gothic, or architectural-inspired collections, for custom jewelers seeking a distinctive statement stud to offer clients, or for 3D printing bureaus looking to expand their ready-to-produce catalog. Volume licensing and file customization (stone size, metal specification, or post/backing style) are available on request — please message for details before purchase.
