Hexagonal Halo Round Diamond Stud Earrings – 3D CAD Model (Star-Set Solitaire, 5mm Round Center)
*** All Files Types Include

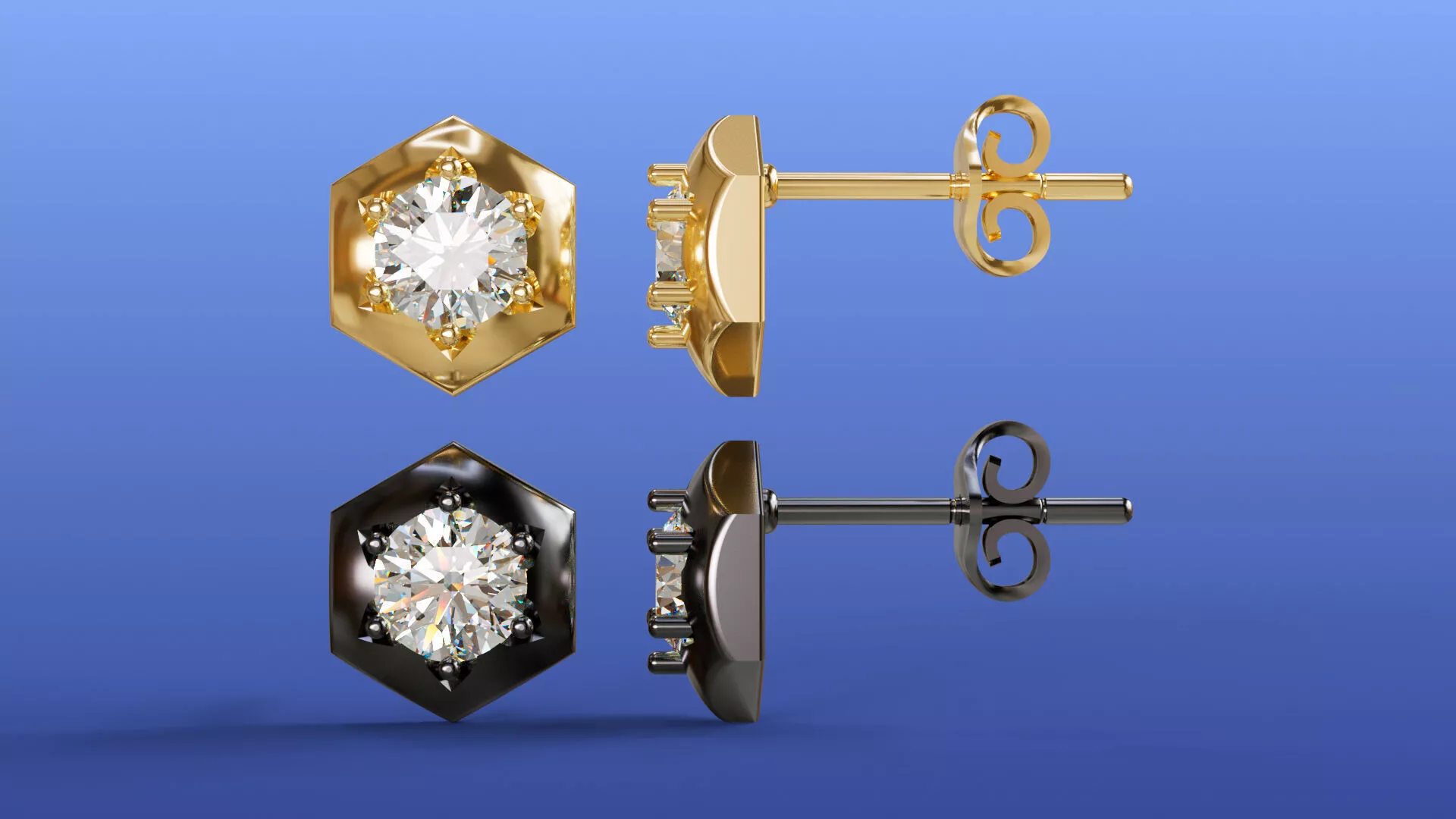

Design OverviewThis design presents a modern take on the classic solitaire stud earring, featuring a round brilliant center stone framed within a bold hexagonal outline. Six prong tips form a star-like pattern that grips the stone securely while echoing the geometry of the outer silhouette, creating a striking interplay between the soft curve of the round diamond and the crisp, faceted edges of the hexagon. A folding scroll-style butterfly back completes each earring, ensuring a secure, comfortable fit for everyday wear or special occasions. The piece is presented in multiple metal finishes, including yellow gold, rose gold, and white gold, and pairs well with both diamond and colored gemstone centers, as demonstrated with a ruby variation, making it a versatile template for a range of finished products.
3D Modeling DetailsThe model was built with precision jewelry CAD software and includes clean, manufacture-ready geometry with accurate prong placement, symmetrical hex faceting, and a properly proportioned post-and-scroll backing. Technical renders confirm exact measurements, including an 8mm hexagonal outline width, a 9mm total earring height, a 3.50mm depth profile, and a 5.00mm x 5.00mm round stone seat. Gemstone and metal reports are included, listing a total gem weight of 0.94tw across 2 round stones, along with a full metal weight breakdown across white gold, rose gold, silver, and other alloys for accurate cost estimation. Files are supplied in industry-standard formats compatible with major CAD, rendering, and slicing software.
Manufacturing NotesThis file is optimized for both traditional lost-wax casting and modern 3D printing production workflows, including resin and wax 3D printers commonly used in jewelry manufacturing. The prong structure and hexagonal bezel wall are modeled with appropriate thickness for durability during casting, polishing, and stone-setting, minimizing the risk of breakage or metal fatigue. The design is scalable, allowing manufacturers to adjust stone size, metal karat, and finish without compromising structural integrity, and is suitable for production in gold, silver, platinum, and other standard jewelry alloys.
Sales & LicensingThis CAD file is ideal for jewelry designers, manufacturers, 3D printing services, and online stone-and-setting retailers looking to expand their solitaire stud offerings with a distinctive geometric silhouette. It is well suited for stock file marketplaces, custom jewelry businesses, and print-on-demand fine jewelry platforms. Buyers receive ready-to-use files for rendering, prototyping, and production, reducing design turnaround time and enabling quick customization for various gemstone types, metal colors, and carat weights.
