Geometric Fluted Halo Diamond Stud Earrings – 3D Jewelry CAD Model
*** All Files Types Include
DescriptionAbout the DesignThis contemporary jewelry piece redefines the classic stud earring by introducing a striking architectural flair. As showcased in the realistic renders of 193 B.jpg, 193 E.jpg, and 193 F.jpg, the design features a central round brilliant-cut gemstone secured elegantly within a robust 6-prong basket setting. Suspended seamlessly within an outer concentric circle, the gemstone is framed by a distinctively textured, fluted halo that captures and reflects light from every angle. This minimalist yet highly sophisticated aesthetic creates a captivating visual depth, making these earrings a versatile accessory suitable for both high-end fashion and everyday elegance.
About the 3D ModelingEngineered with precision for professional jewelry production, this 3D CAD model features pristine technical design and flawless geometry. According to the technical viewport in 193 - (1).jpg, the earring boasts an outer halo diameter of 9.00 mm, a central stone setting of 5.00 mm, and a setting depth of 4.00 mm. The Gem Reporter tool in 193 - (6).jpg confirms that the design accommodates two round diamonds measuring 5.00 mm x 5.00 mm, totaling an approximate gem weight of 0.94 carats for the pair. To optimize the production workflow, the model is constructed with distinct components; the exploded view in 193 - (9).jpg illustrates how the main earring body and the earring posts are modeled as separate intersecting components to simplify the cleaning, polishing, and assembly processes.
About ManufacturingThis CAD file is fully optimized for 3D printing (SLA/DLP/Wax) and lost-wax investment casting. The model’s volume has been carefully calculated to ensure optimal material thickness and metal flow during casting. As detailed in the Metal Weights analysis from 193 - (12).jpg, the estimated raw metal weights for a pair of earrings include:
14K White Gold: ~1.82 grams
18K White Gold: ~2.11 grams
925 Sterling Silver: ~1.49 grams
The download package includes standard industry-compliant formats such as 3DM (Rhino Native), STL (high-resolution mesh for direct 3D printing), and OBJ, ensuring complete compatibility with all major jewelry modeling and manufacturing software.

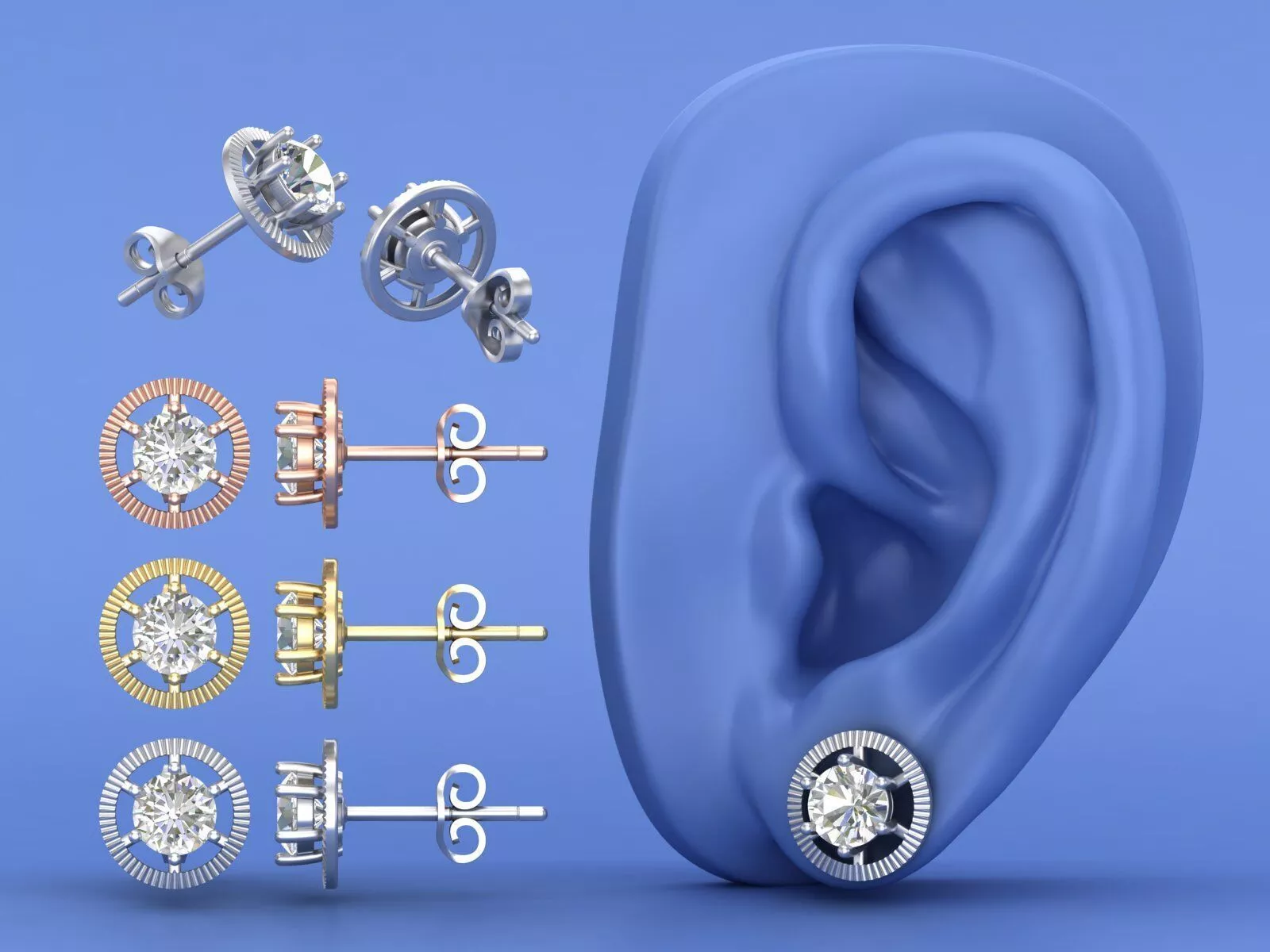

About SalesThis premium 3D asset is an exceptional addition to any digital catalog, making it ideal for 3D stock websites, independent jewelry designers, and manufacturing houses looking to expand their product lines. To support your e-commerce and marketing efforts, the design includes professional-grade presentation assets. The renders provide multi-angle lifestyle and presentation perspectives: 193 B.jpg displays the front and side profiles in yellow and white gold, 193 E.jpg features a digital ear-model mockup to demonstrate realistic scale and wearability on a vibrant blue background, and 193 F.jpg delivers a clean, high-contrast studio lineup on a neutral gray background highlighting rose, yellow, and white gold variations. These ready-to-use visuals are perfect for virtual try-ons, social media marketing, and pre-selling before committing to physical inventory.
