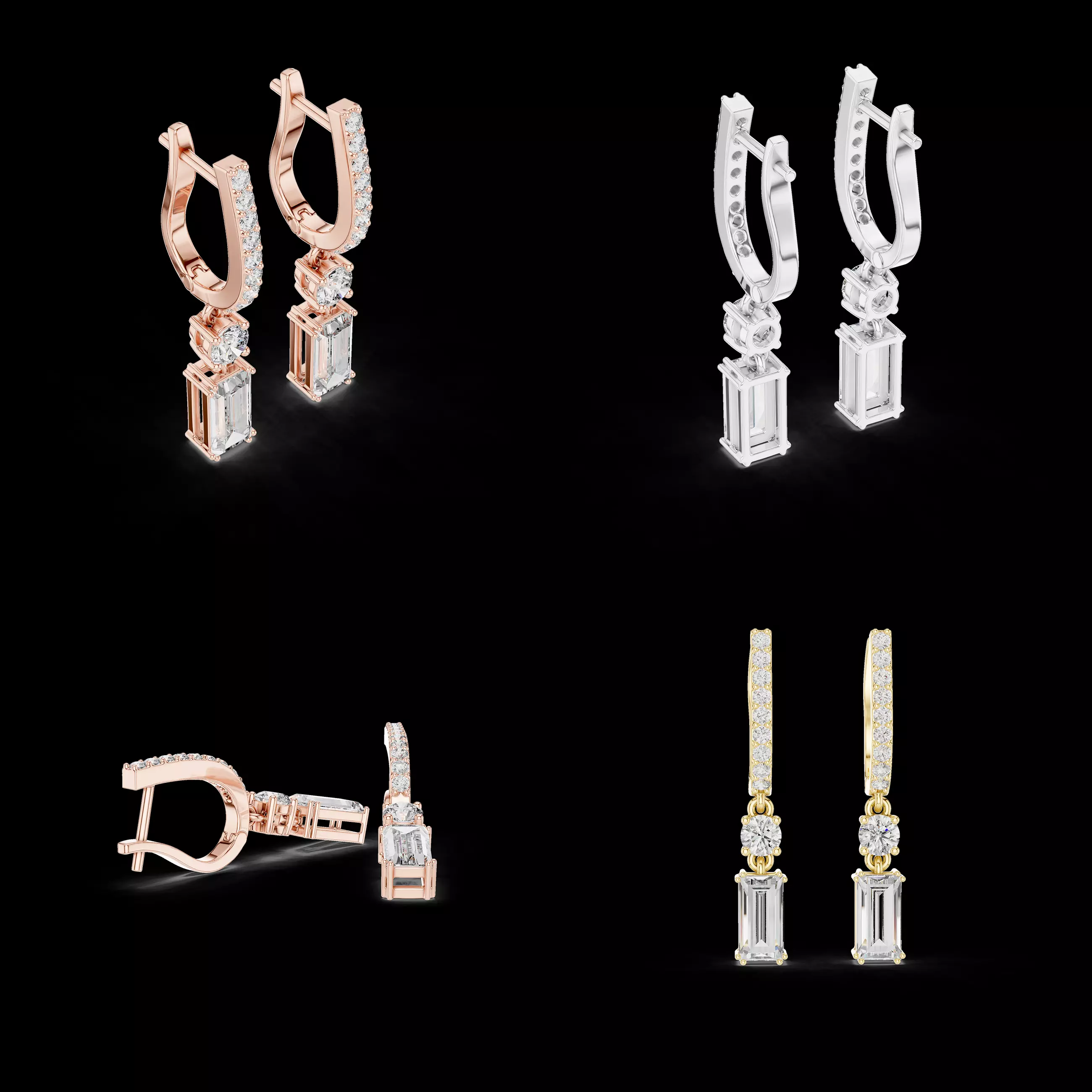

This emerald-cut diamond drop earrings CAD design is crafted with a refined balance of modern structure and timeless elegance, developed specifically for professional jewellery manufacturing. The design features a diamond-set hoop top connected to a vertically aligned emerald-cut drop stone, creating a clean architectural profile with graceful movement.

The hoop element is engineered with precise curvature and uniform stone placement to ensure visual consistency and long-term durability. Accent stones set along the hoop add brilliance while maintaining a sleek, lightweight appearance. The hinge and closure system are designed for secure locking, smooth operation, and comfortable daily wear.

The emerald-cut drop stone is mounted in a structured setting that highlights the stone’s step-cut geometry and sharp lines. Proportions are carefully balanced to ensure the drop hangs straight without twisting, providing controlled movement and excellent wearing comfort. The connector joint between the hoop and the drop is reinforced to withstand repeated motion without stress on the post or hinge.

The backside and internal geometry incorporate optimized cut-outs to reduce metal weight while maintaining strength and rigidity. Uniform wall thickness throughout the design supports reliable casting, precise stone setting, and efficient polishing. All edges, corners, and transitions are refined to achieve a high-quality finish with minimal post-production effort.

This CAD model is suitable for manufacturing in yellow gold, white gold, rose gold, or platinum. It integrates seamlessly into professional jewellery production workflows and is ideal for luxury, bridal, and statement jewellery collections, as well as custom design projects and batch manufacturing.

Usage

Diamond drop hoop earrings manufacturingLuxury and bridal jewellery collectionsStatement and occasion jewellery designsCustom jewellery development projectsCasting, stone setting, polishing, and finishing

Included Files

3DM file compatible with Rhinoceros CAD softwareSTL file suitable for high-resolution casting and manufacturing

Important Points

Manufacturing-ready CAD geometryAccurate emerald-cut and round stone proportionsSecure hoop closure with reinforced hinge systemBalanced drop structure for straight hanging alignmentOptimized metal thickness for reliable castingLightweight internal construction with strong supportSmooth geometry for premium polishing qualityPerfect left and right symmetry maintained

Customer Support

Complete after-sales support is provided with this CAD design.Assistance is available for file verification, minor size adjustments, and manufacturing-related queries.Support is focused on ensuring smooth production, accurate results, and customer satisfaction.
