Product OverviewThis is a highly specialized, master-crafted single-asset premium 3DM source file featuring a luxury, high-jewelry Winged Lion (Griffin/Sphinx style) heritage statement pendant design. The piece showcases a beautifully sculpted, majestic lion with grand, upright feathered wings standing triumphantly atop an opulent, halo-bordered rectangular gemstone chassis. Intricate floral and vine motifs flow from beneath the lion's paws to wrap elegantly around the lower frame.

This file is delivered exclusively as a native CAD model, preserving all primary curves, surface history, stone mappings, and prong layouts for seamless industrial customization.

Design Architecture & DetailingThe Majestic Winged Guardian: An anatomically detailed lion sculpture featuring a flowing mane and high-standing layered wings built for multi-colored stone gradient micro-pavé layouts.

The Luxury Statement Chassis: A heavy, prominent rectangular bezel house optimized to secure a substantial center emerald-cut gemstone.

Pre-Set Production Prongs: Hundreds of precisely mapped micro-beads and prongs are integrated directly onto the wings and frame wireframe, drastically reducing hand-setting times on the manufacturing bench.

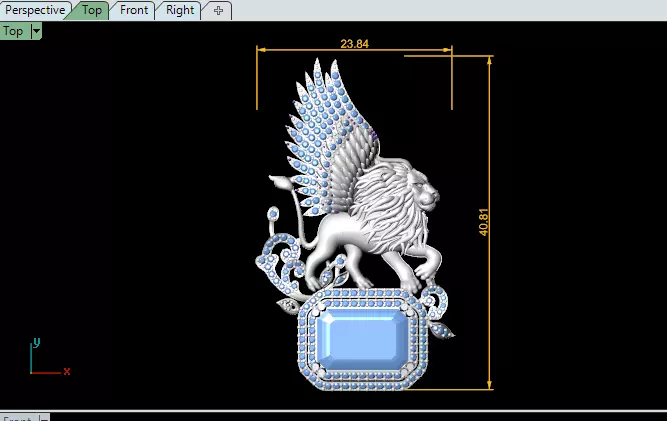

Technical Specifications & CAD AnalyticsSourced straight from professional workbench viewports, the file contains embedded engineering data ready for precise casting and stone estimation:

Physical Dimensions:

Width (X-Axis): 23.84 mm

Height (Y-Axis): 40.81 mm

Thickness/Profile (Z-Axis): 7.75 mm

CAD Mesh Volume: 709 mm³

Embedded Gemstone Data (190 Total Pieces):

11.19 mm × 7.50 mm (Emerald Cut Center): 1 piece (Approx. 1.87 tw)

0.90 mm × 0.90 mm (Round): 136 pieces (Approx. 0.37 tw)

0.80 mm × 0.80 mm (Round): 53 pieces (Approx. 0.10 tw)

Total Gem Weight: 2.34 tw

Technical Infrastructure & FormatFormat Architecture: 3DM Only (Fully compatible with Rhino 5, Rhino 6, Rhino 7, Rhino 8, MatrixGold, and Panther CAD systems).

Zero Production Constraints: Delivering the native 3DM wireframe ensures that surface geometry, stone pavé layouts, and individual prongs remain completely parametric. Master CAD engineers can adjust stone tolerances, modify the main basket depth, or alter the top bail connection non-destructively.

Commercial License & Usage TermsDigital Copyright Policy: Purchase grants an individual bench license for physical manufacturing only. Redistribution, reselling, or sharing of this 3DM digital asset across any online forum or marketplace is strictly prohibited.

Commercial Freedom: You have full authority to print, cast, set stones, mass-produce, and market unlimited physical finished pendants created from this file.

Refund Policy: Due to the digital nature of immediate CAD file deployment, all transactions are final and non-refundable.

Technical Desk & Instant DownloadTo acquire the download link for this master 709 volume 3DM file or to submit custom design requests, contact our engineering desk at: +91 8177877695.
