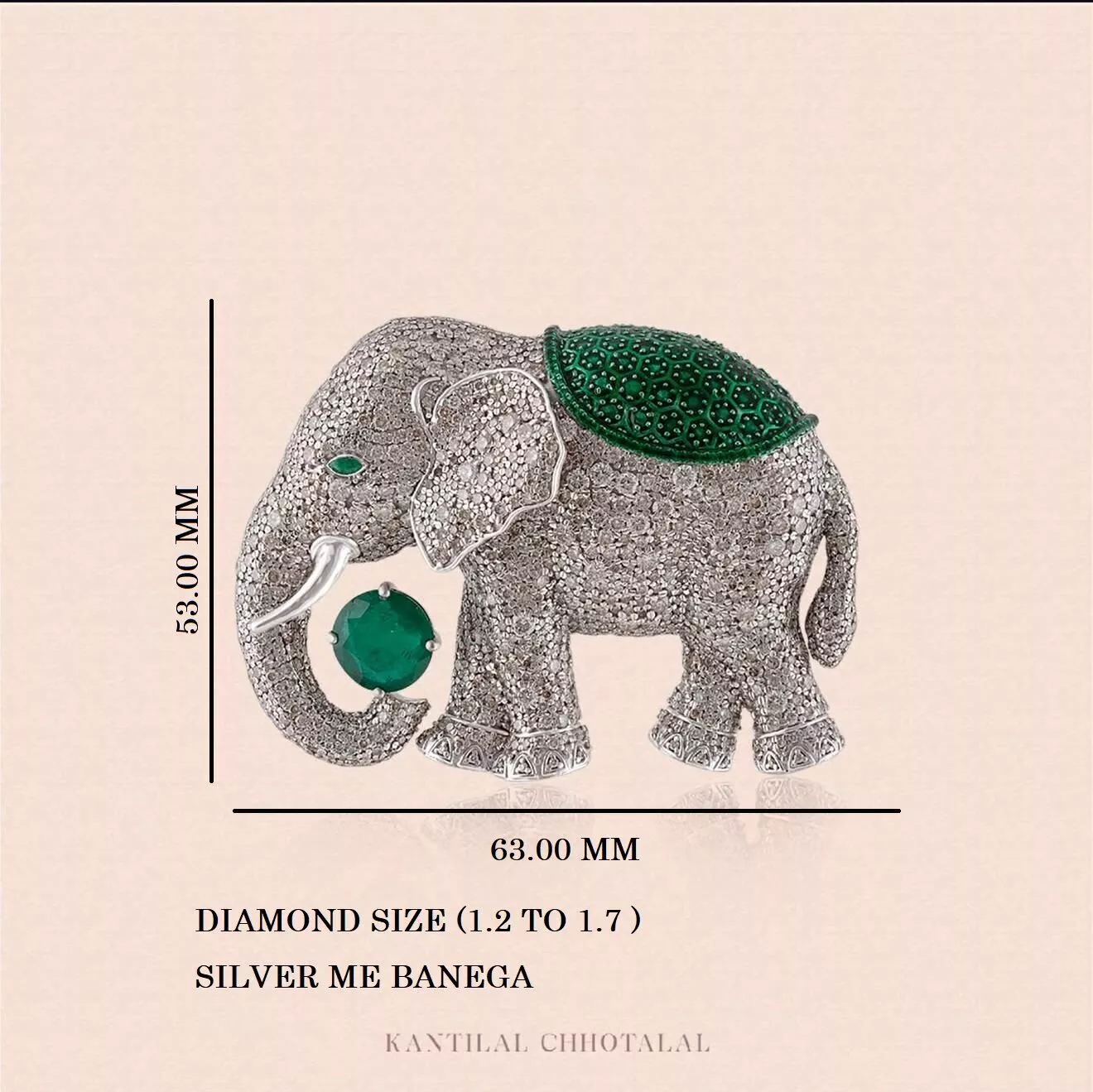

Product OverviewThis is a highly specialized, master-crafted single-asset premium 3DM source file featuring an exquisite Royal Maharaja Elephant architectural statement brooch. The design presents a full-bodied, majestic elephant styled in traditional ceremonial finery, showcasing an embellished saddle blanket (howdah cloth), detailed trunk contours, and decorative anklets around the feet.

The entire surface of the body is masterfully engineered with a dense, multi-size pavé layout to hold hundreds of brilliant-cut gemstones. As shown in image_4bff25.png, this file is delivered exclusively as a native CAD model, preserving all primary curves, surface history, and prong layouts for seamless industrial customization.

Design Architecture & DetailingThe Ceremonial Adornments: The raised saddle blanket and foot bands are modeled as separate design layers, allowing for beautiful multi-toned gold combinations or contrasting enamel work.

The High-Jewelry Undergallery: As detailed in the perspective viewport of image_4bff25.png, the reverse side features an advanced, honeycombed internal lattice structure. This grid optimizes precious metal weight distribution, provides a clean finish, and ensures the brooch sits perfectly weight-balanced when pinned to fine fabrics.

Pre-Set Production Prongs: Hundreds of precisely mapped micro-beads and prongs are integrated directly onto the wireframe surface mesh, saving dozens of hours on the stone-setting bench.

Technical Specifications & CAD AnalyticsSourced straight from professional workbench viewports in image_4bff25.png, the file contains embedded engineering data ready for precise casting and stone estimation:

Physical Dimensions:

Length (X-Axis): 57.93 mm

Height (Y-Axis): 42.33 mm

Thickness/Profile (Z-Axis): 11.63 mm

CAD Mesh Volume: 3200 mm³

Embedded Gemstone Data (761 Total Pieces):

1.20 mm × 1.20 mm (Round): 185 pieces (Approx. 1.20 tw)

1.50 mm × 1.50 mm (Round): 134 pieces (Approx. 1.69 tw)

1.60 mm × 1.60 mm (Round): 78 pieces (Approx. 1.20 tw)

1.70 mm × 1.70 mm (Round): 68 pieces (Approx. 1.25 tw)

1.30 mm × 1.30 mm (Round): 49 pieces (Approx. 0.40 tw)

1.80 mm × 1.80 mm (Round): 46 pieces (Approx. 1.01 tw)

1.10 mm × 1.10 mm (Round): 44 pieces (Approx. 0.22 tw)

1.40 mm × 1.40 mm (Round): 41 pieces (Approx. 0.42 tw)

1.90 mm × 1.90 mm (Round): 36 pieces (Approx. 0.92 tw)

1.00 mm × 1.00 mm (Round): 24 pieces (Approx. 0.09 tw)

2.00 mm × 2.00 mm (Round): 23 pieces (Approx. 0.69 tw)

2.10 mm × 2.10 mm (Round): 14 pieces (Approx. 0.49 tw)

Additional micro-assorted round accent settings map out the remainder of this massive 761-stone layout.

Total Gem Weight: 10.27 tw

Technical Infrastructure & FormatFormat Architecture: 3DM Only (Fully compatible with Rhino 5, Rhino 6, Rhino 7, Rhino 8, MatrixGold, and Panther CAD systems).

Zero Production Constraints: Delivering the native 3DM wireframe ensures that surface geometry, stone pavé layouts, and individual prongs remain completely parametric. Master CAD engineers can alter stone tolerances, change the body contours, or easily integrate a dual-pin clasp mechanism onto the structural grid non-destructively.

Commercial License & Usage TermsDigital Copyright Policy: Purchase grants an individual bench license for physical manufacturing only. Redistribution, reselling, or sharing of this 3DM digital asset across any online forum or marketplace is strictly prohibited.

Commercial Freedom: You have full authority to print, cast, set stones, mass-produce, and market unlimited physical finished brooches created from this file.

Refund Policy: Due to the digital nature of immediate CAD file deployment, all transactions are final and non-refundable.

Technical Desk & Instant DownloadTo acquire the download link for this master 3200 volume 3DM file or to submit custom design requests, contact our engineering desk at: +91 8177877695.
