Product OverviewThis is a highly specialized, master-crafted single-asset premium 3DM source file featuring an exquisite Heritage Maharaja Elephant high-jewelry statement brooch. The design captures a majestic ceremonial elephant walking along an ornate decorative base, adorned with an elaborate royal saddle blanket (howdah cloth), detailed head armor, and alternating rows of precious gemstones. Sprouting from the base is a series of polished spherical drop accents alongside a large hanging pear-shaped tassel element.

As shown in image_3fb8a4.png, this file is delivered exclusively as a native CAD model, preserving all primary curves, surface history, stone mappings, and prong layouts for seamless industrial customization.

Design Architecture & DetailingThe Royal Elephant Silhouette: An iconographically rich layout showcasing a polished metal body contrasted by a dense micro-pavé trunk, forehead piece, and decorative leg bands.

Intricate Saddle & Trim Accents: The back carpet combines oval-cut stone settings with a central channel bordered by precision straight baguettes, adding a distinct architectural contrast.

Pre-Set Production Prongs & Spheres: The lower foundational bar holds multiple pre-set peg mounts for spherical pearls or beads, flanked by an articulating heart-topped bottom drop. Hundreds of precisely mapped micro-beads are integrated directly onto the wireframe to streamline setting.

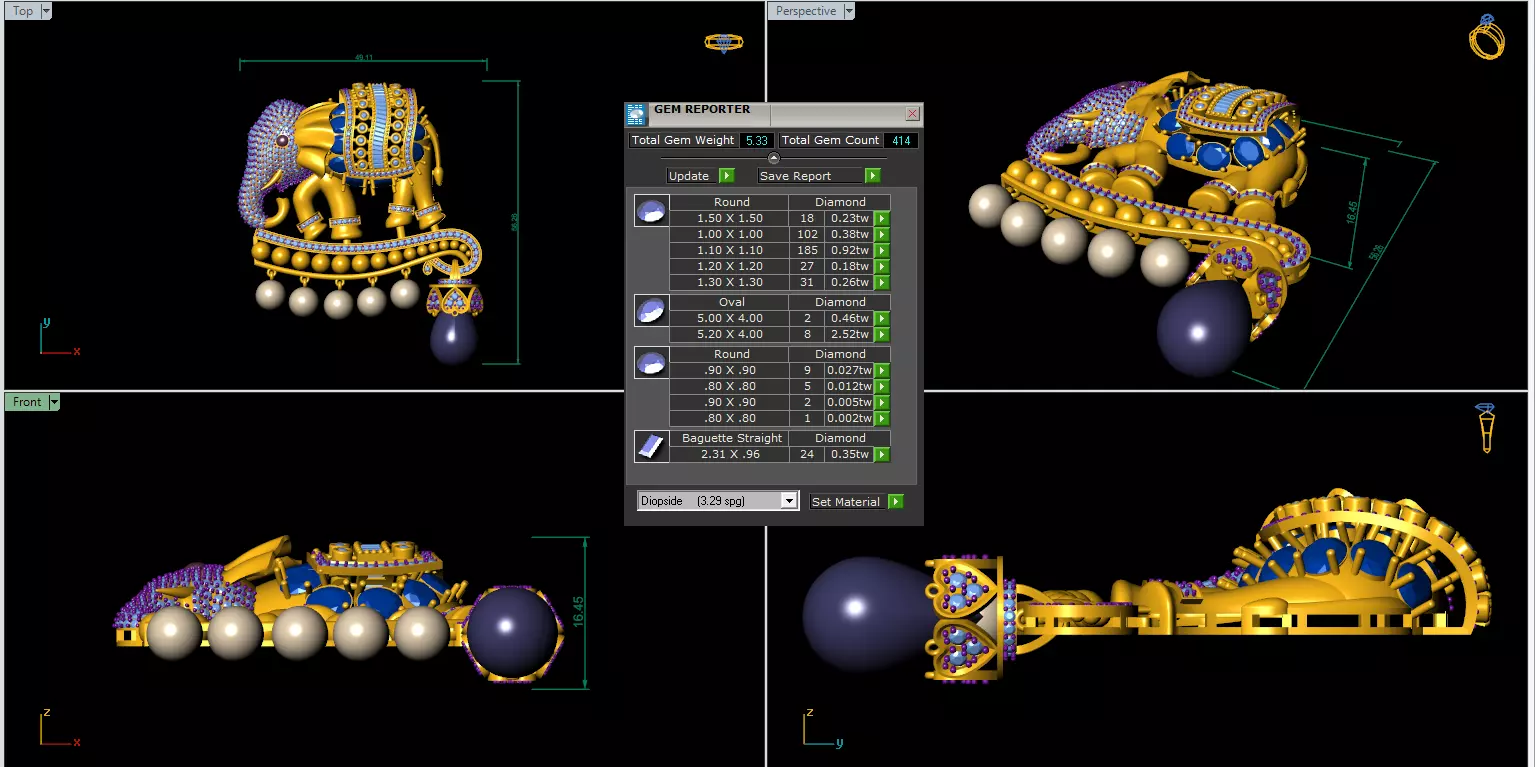

Technical Specifications & CAD AnalyticsSourced straight from professional workbench viewports in image_3fb8a4.png, the file contains embedded engineering data ready for high-end casting and stone allocation:

Physical Dimensions:

Length (X-Axis): 49.11 mm

Height (Y-Axis): 56.26 mm

Thickness/Profile (Z-Axis): 16.45 mm

CAD Mesh Volume: 2900 mm³

Embedded Gemstone Data (414 Total Pieces):

1.10 mm × 1.10 mm (Round): 185 pieces (Approx. 0.92 tw)

1.00 mm × 1.00 mm (Round): 102 pieces (Approx. 0.38 tw)

1.30 mm × 1.30 mm (Round): 31 pieces (Approx. 0.26 tw)

1.20 mm × 1.20 mm (Round): 27 pieces (Approx. 0.18 tw)

2.31 mm × 0.96 mm (Baguette Straight): 24 pieces (Approx. 0.35 tw)

1.50 mm × 1.50 mm (Round): 18 pieces (Approx. 0.23 tw)

5.20 mm × 4.00 mm (Oval): 8 pieces (Approx. 2.52 tw)

5.00 mm × 4.00 mm (Oval): 2 pieces (Approx. 0.46 tw)

Additional micro-assorted accent rounds (.90mm to .80mm) map out the remaining stone counts.

Total Gem Weight: 5.33 tw

Technical Infrastructure & FormatFormat Architecture: 3DM Only (Fully compatible with Rhino 5, Rhino 6, Rhino 7, Rhino 8, MatrixGold, and Panther CAD systems).

Zero Production Constraints: Delivering the native 3DM wireframe ensures that surface geometry, stone pavé layouts, and individual prongs remain completely parametric. Master CAD engineers can adjust stone tolerances, modify bezel depths, or seamlessly integrate a dual-pin or revolver brooch clasp mechanism onto the reverse chassis non-destructively.

Commercial License & Usage TermsDigital Copyright Policy: Purchase grants an individual bench license for physical manufacturing only. Redistribution, reselling, or sharing of this 3DM digital asset across any online forum or marketplace is strictly prohibited.

Commercial Freedom: You have full authority to print, cast, set stones, mass-produce, and market unlimited physical finished brooches created from this file.

Refund Policy: Due to the digital nature of immediate CAD file deployment, all transactions are final and non-refundable.

Technical Desk & Instant DownloadTo acquire the download link for this master 2900 volume 3DM file or to submit custom design requests, contact our engineering desk at: +91 8177877695.
