Product OverviewThis is a highly specialized, master-crafted single-asset premium 3DM source file featuring a luxury, high-jewelry Lord Ganesha devotional heritage statement brooch. The design presents a beautifully stylized representation of the deity, blending intricate micro-pavé metalwork with grand cabochon gemstone elements. Ganesha's crown (mukut), ears, and sweeping trunk are meticulously detailed, while a small, stylized mouse (mushak) sits faithfully near the base.

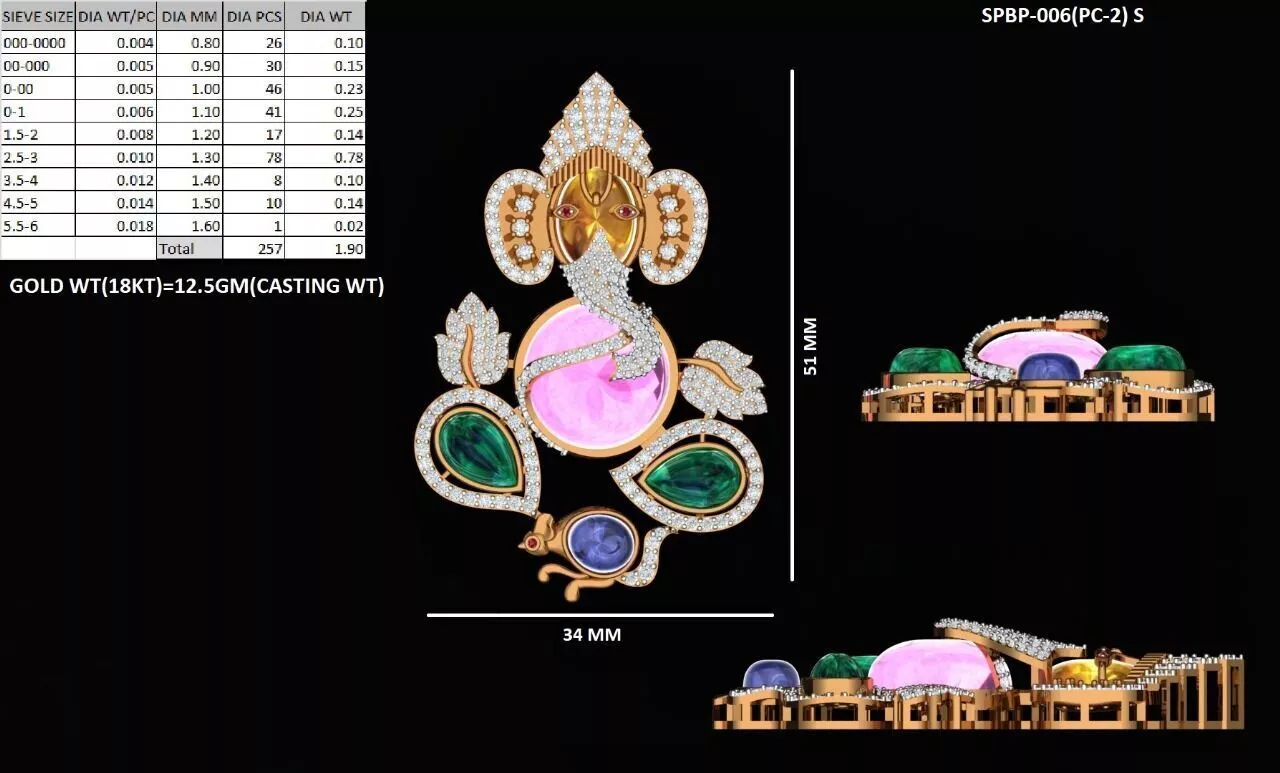

As shown in image_3fc898.png, this file is delivered exclusively as a native CAD model, preserving all primary curves, nested stone settings, and prong layouts for seamless industrial customization.

Design Architecture & DetailingThe Devotional Silhouette: An iconographically rich layout combining micro-pavé bordered frames with massive, smooth cabochon center stones to represent the deity’s form.

The High-Jewelry Architecture: As detailed in the perspective viewport of image_3fc898.png, the reverse side features a robust, stepped structural gallery frame. This engineering layout provides deep, secure back-walls for large-stone bezels while remaining open enough to optimize metal weight and facilitate stone cleaning.

Pre-Set Production Prongs: Hundreds of precisely mapped micro-beads and shared prongs are built directly onto the wireframe model, significantly streamlining the secondary hand-setting assembly process on the manufacturing bench.

Technical Specifications & CAD AnalyticsSourced straight from professional workbench viewports in image_3fc898.png, the file contains embedded engineering data ready for high-end casting and stone allocation:

Physical Dimensions:

Width (X-Axis): 33.60 mm

Height (Y-Axis): 52.03 mm

Thickness/Profile (Z-Axis): 11.86 mm

CAD Mesh Volume: 760 mm³

Embedded Gemstone Data (263 Total Pieces):

1.30 mm × 1.30 mm (Round): 78 pieces (Approx. 0.64 tw)

1.00 mm × 1.00 mm (Round): 46 pieces (Approx. 0.17 tw)

1.10 mm × 1.10 mm (Round): 41 pieces (Approx. 0.20 tw)

0.90 mm × 0.90 mm (Round): 30 pieces (Approx. 0.08 tw)

0.80 mm × 0.80 mm (Round): 26 pieces (Approx. 0.05 tw)

1.20 mm × 1.20 mm (Round): 17 pieces (Approx. 0.11 tw)

1.50 mm × 1.50 mm (Round): 10 pieces (Approx. 0.13 tw)

1.40 mm × 1.40 mm (Round): 8 pieces (Approx. 0.08 tw)

9.02 mm × 5.64 mm (Cabochon Pear): 2 pieces (Approx. 3.31 tw)

10.68 mm × 7.77 mm (Cabochon Oval): 1 piece (Approx. 2.97 tw)

Additional assorted micro-settings map out the remainder of this multi-stone 263-piece layout.

Total Gem Weight: 22.20 tw

Technical Infrastructure & FormatFormat Architecture: 3DM Only (Fully compatible with Rhino 5, Rhino 6, Rhino 7, Rhino 8, MatrixGold, and Panther CAD systems).

Zero Production Constraints: Delivering the native 3DM source data ensures that all surface geometry, pave patterns, and individual settings remain completely parametric. Master CAD engineers can scale the dimensions, alter stone tolerances, or seamlessly integrate a dual-pin or revolver brooch clasp mechanism onto the structural grid non-destructively.

Commercial License & Usage TermsDigital Copyright Policy: Purchase grants an individual bench license for physical manufacturing only. Redistribution, reselling, or sharing of this 3DM digital asset across any online forum or marketplace is strictly prohibited.

Commercial Freedom: You have full authority to print, cast, set stones, mass-produce, and market unlimited physical finished brooches created from this file.

Refund Policy: Due to the digital nature of immediate CAD file deployment, all transactions are final and non-refundable.

Technical Desk & Instant DownloadTo acquire the download link for this master 760 volume 3DM file or to submit custom design requests, contact our engineering desk at: +91 8177877695.
