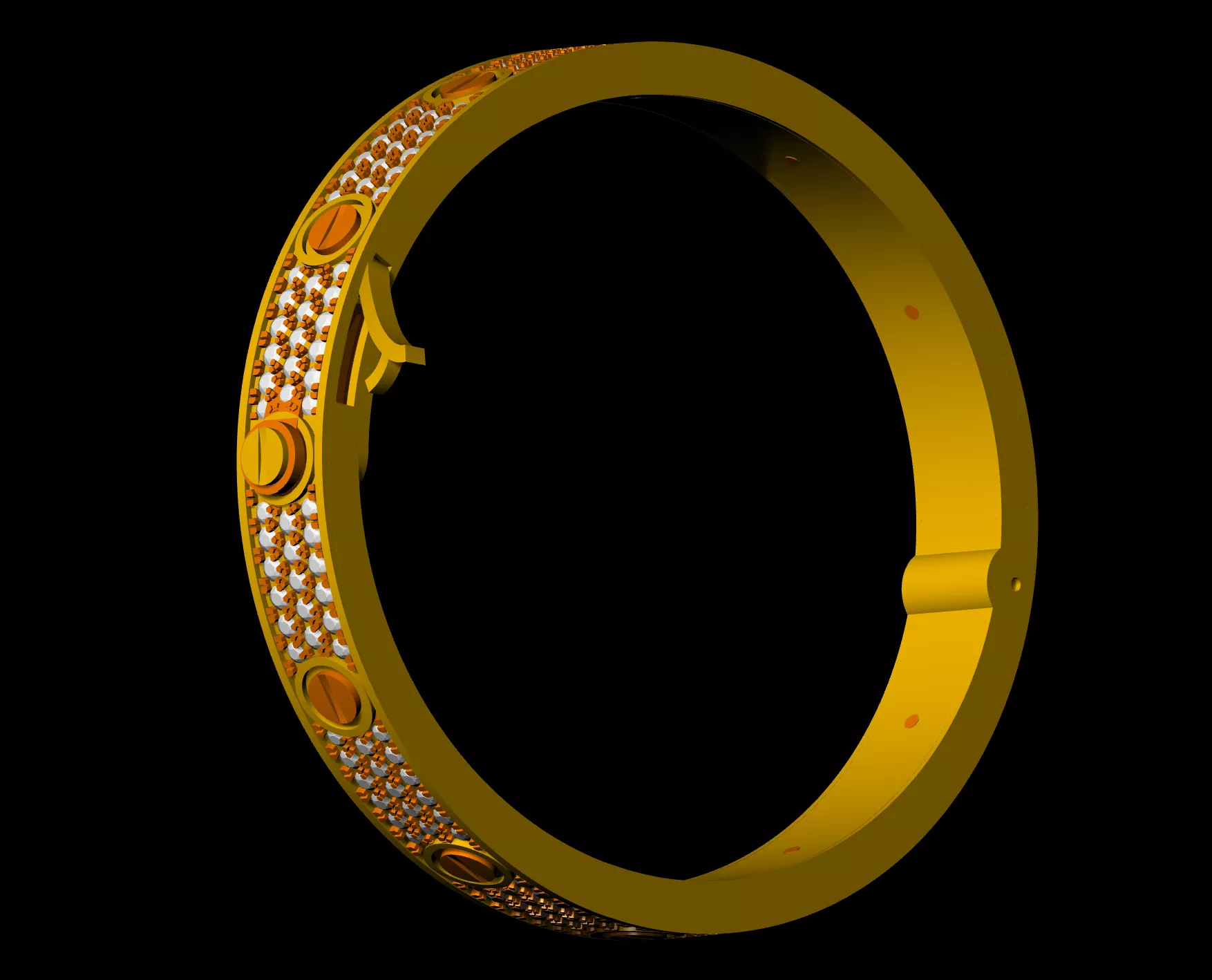

Product Description – Diamond Bangle CAD Design with Lock Mechanism

Premium diamond bangle/bracelet CAD design featuring a slim profile, multiple round decorative stations, pavé stone setting, and a secure opening/closing lock mechanism. The design is prepared as a detailed jewellery CAD model suitable for manufacturing, casting, stone setting, and further customization.

CAD Specifications:

Overall size: 64 × 55 mmInner size: 57 × 48 mmBracelet width: 7.20 mmApprox. thickness: 3.26 mmGem shape: Round1.40 mm: 48 stones — approx. 0.491 ct DIA1.60 mm: 156 stones — approx. 2.391 ct DIATotal stones: 204 pcsApprox. total diamond weight: 2.882 ctApprox. CZ equivalent: 4.554 ctFunctional hinge and lock/opening mechanismMulti-part construction designed for assembly

Digital CAD File Only – No Physical Jewellery. Suitable for jewellers, manufacturers, CAD designers, and production houses. CAD dimensions and metal/stone weights should be verified before final manufacturing.

CAD file available — DM JewelryCrafto for purchase and file details.
