Description

Modular water pipe.

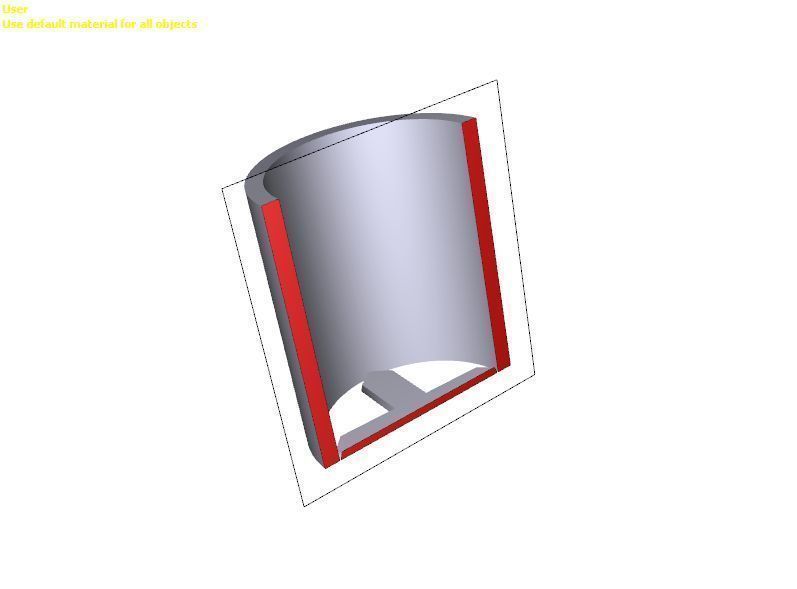

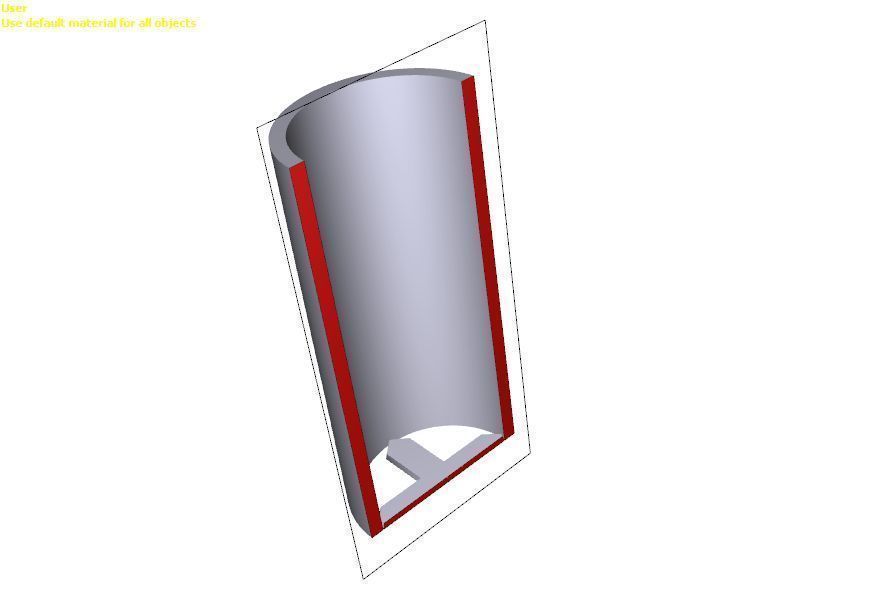

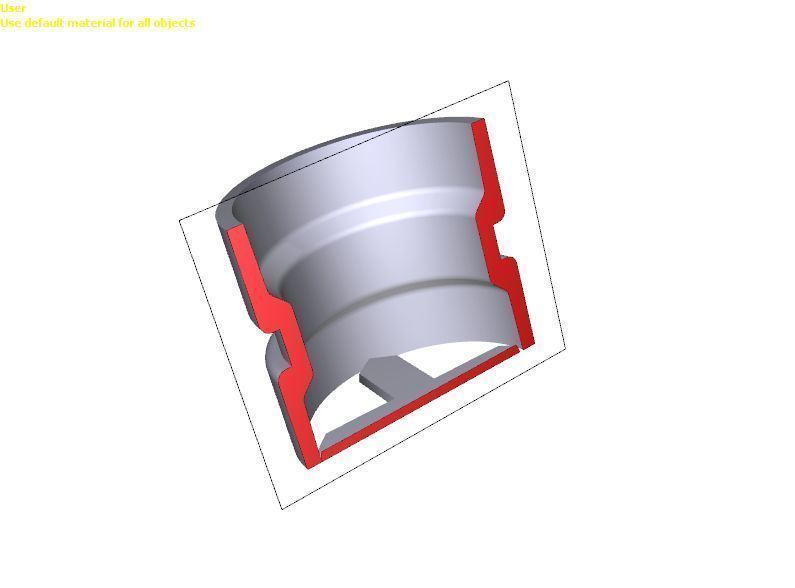

There are multiple pieces to this unit. Giving you the ability to customize your pipe to your desires. Each of the tube pieces, have built in "support" structures, to assist with your printing. Sometimes, they tend to come loose, due to the bottom surface area, so I added some pieces that are removable by hand once printed. The parts all pressure fit together, giving you a near air tight fit. The stem on the base, accommodates a 1/2" stemmed glass bowl which you will have to purchase separately.

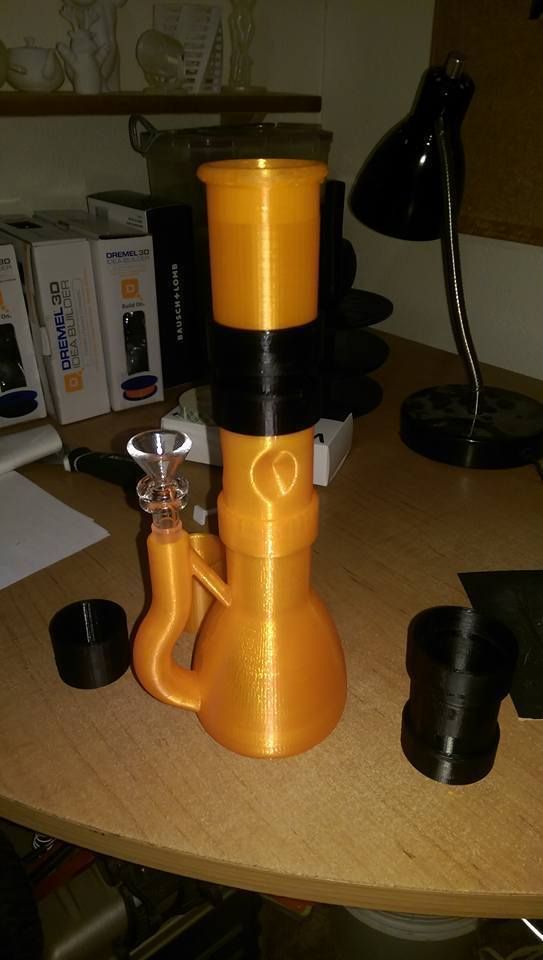

My parts were printed using a Dremel Idea Printer (First Gen) using a print speed of 150 and a fill of 25%. I printed the base with a 100% fill, to eliminate any possibility of leaking.

Contents of package listed below:

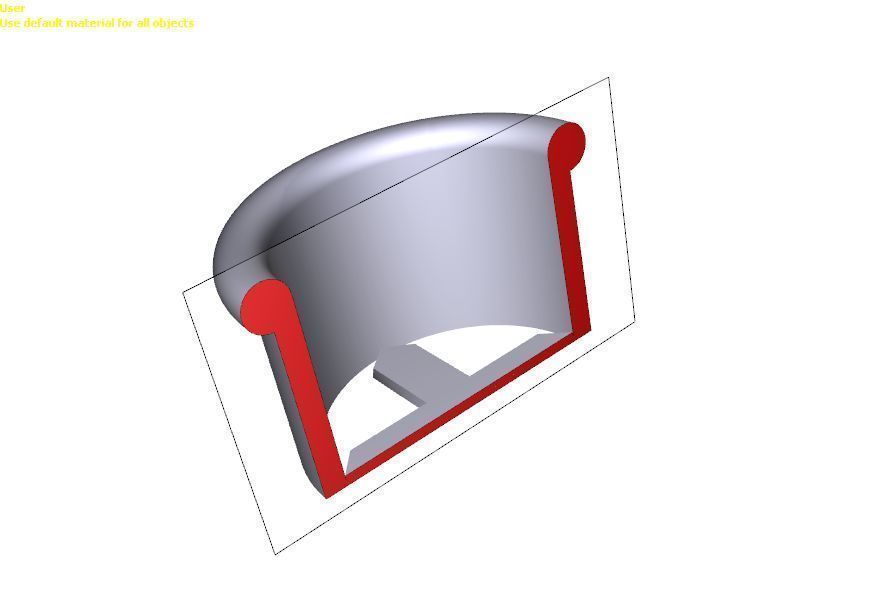

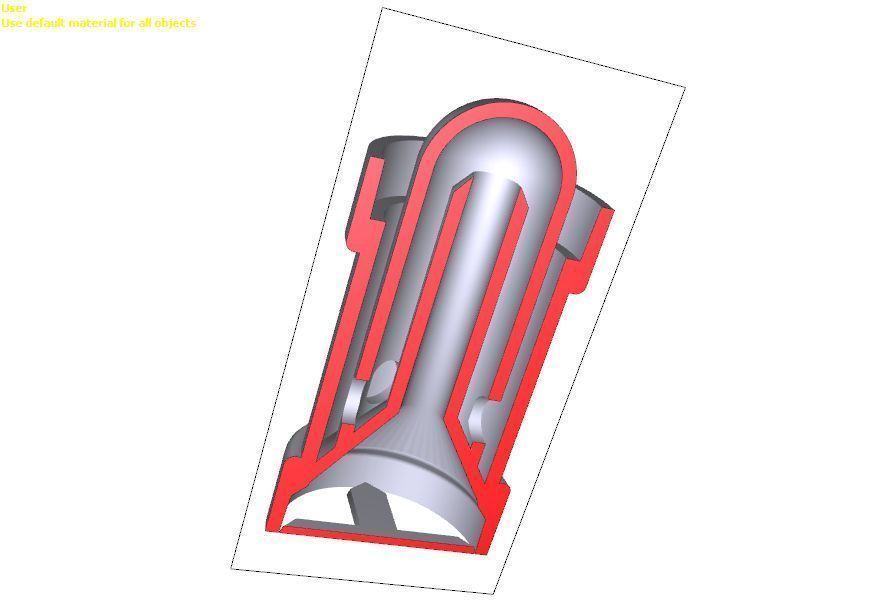

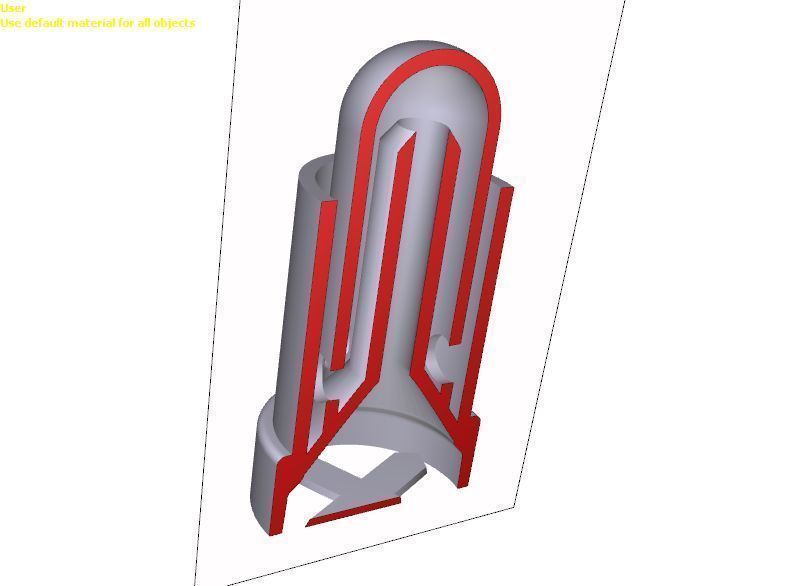

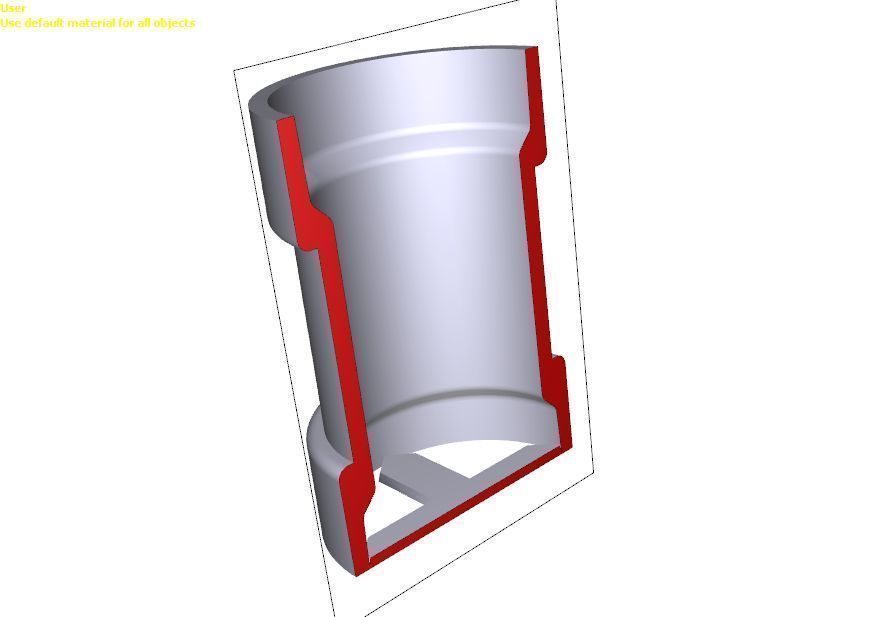

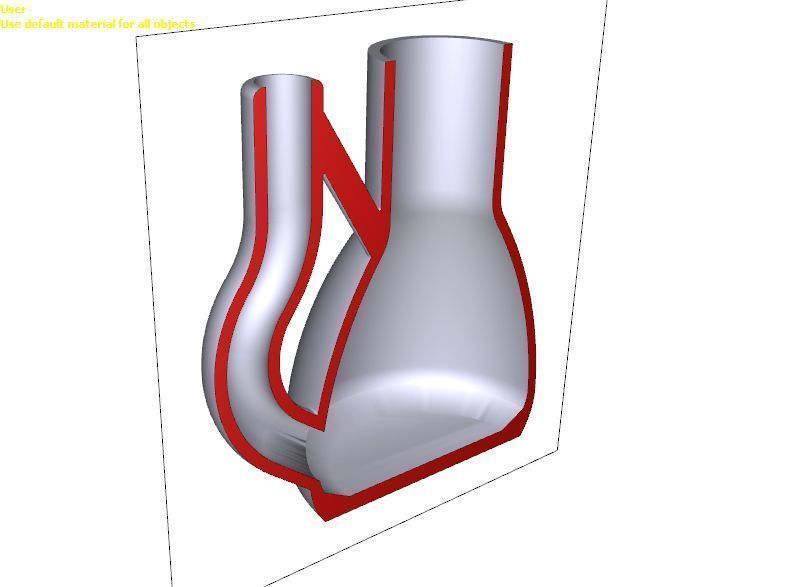

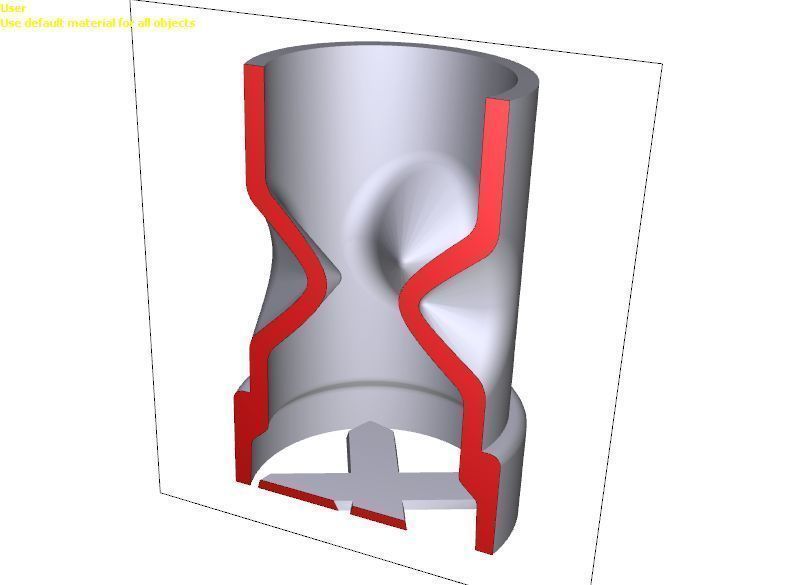

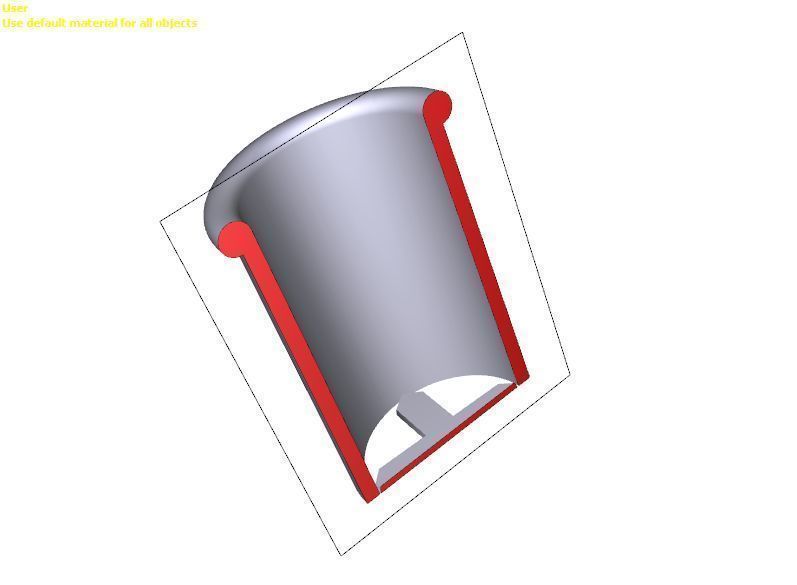

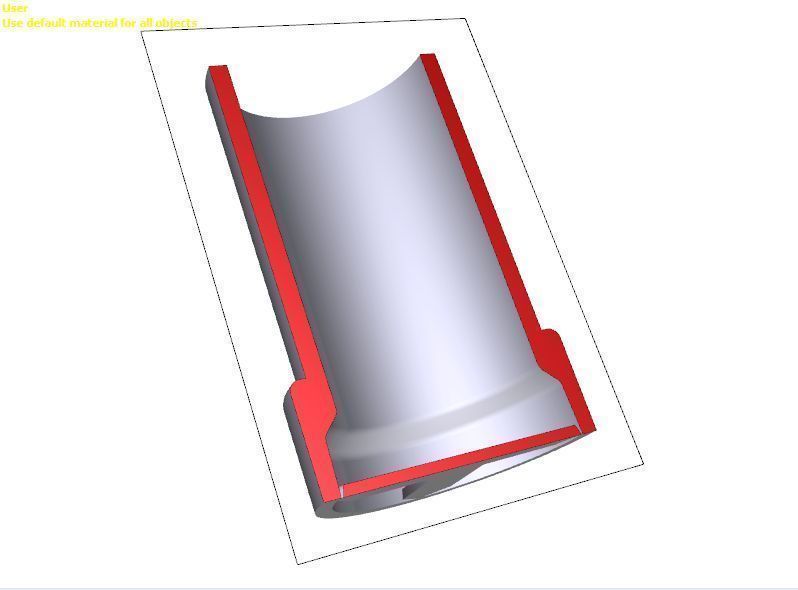

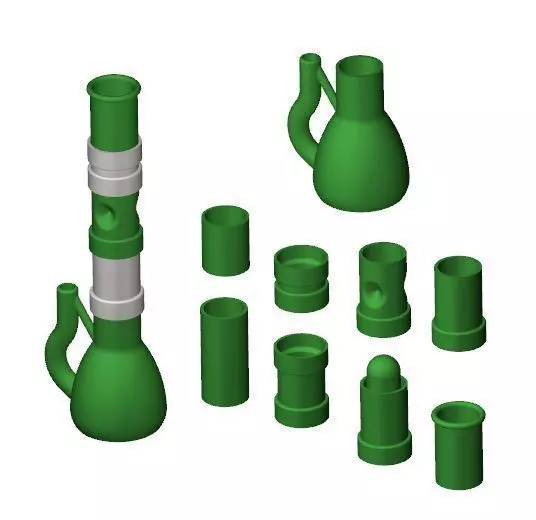

base.stl - The base to the water pipe extension_large.stl - Double Male to Male extension (long) extension_small.stl - Double Male to Male extension (short) ice_catcher_mf.stl - Reversible Male to Female ice catcher (long) joint_extender.stl - Reversible Male to Female extension (long) joint_large.stl - Double Female to Male joint (long) joint_small.stl - Double Female to Male joint (short) mouth_large.stl - Mouth piece (large) mouth_small.stl - Mouth piece (small) percolator_ff.stl - Double Female to Male mushroom type percolator (long) percolator_mf.stl - Female to Male mushroom type percolator (long)

J
justjerms1971 2016-04-30 16:23:10 UTC

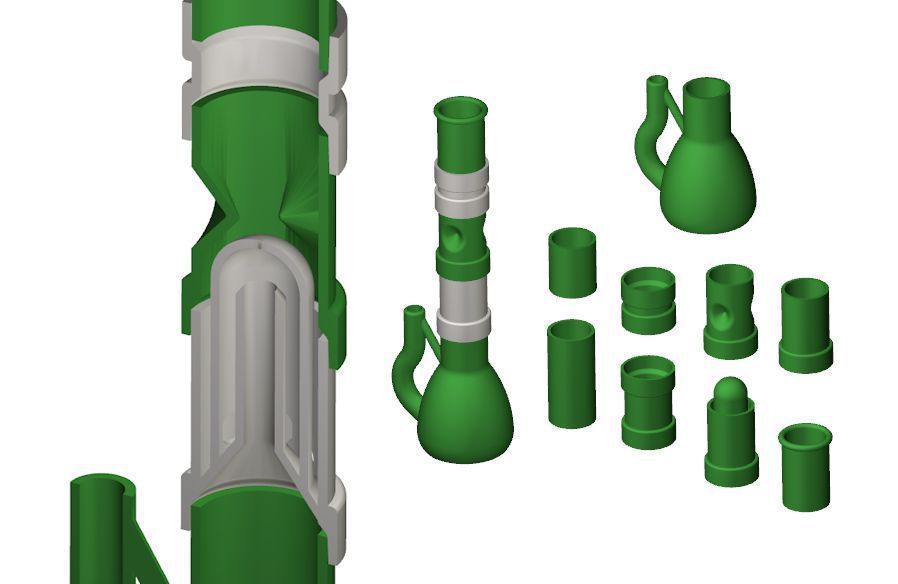

I will be adding more parts to this item as time goes forward. The initial preview image does not contain all of the parts, but I will be sure to update the "sliced" views of the 3D models to show you what the new parts look like. If you have any questions, or even suggestions for new parts, please do not hesitate to let me know. I built this for myself, and am getting a lot of interest outside of the 3D market. The more I tinker, the better this product will get. Thank you!
Item rating
2 0
G
goffinaz 2020-12-11 00:25:27 UTC
Recommended
Great model. Printed very nicely!
