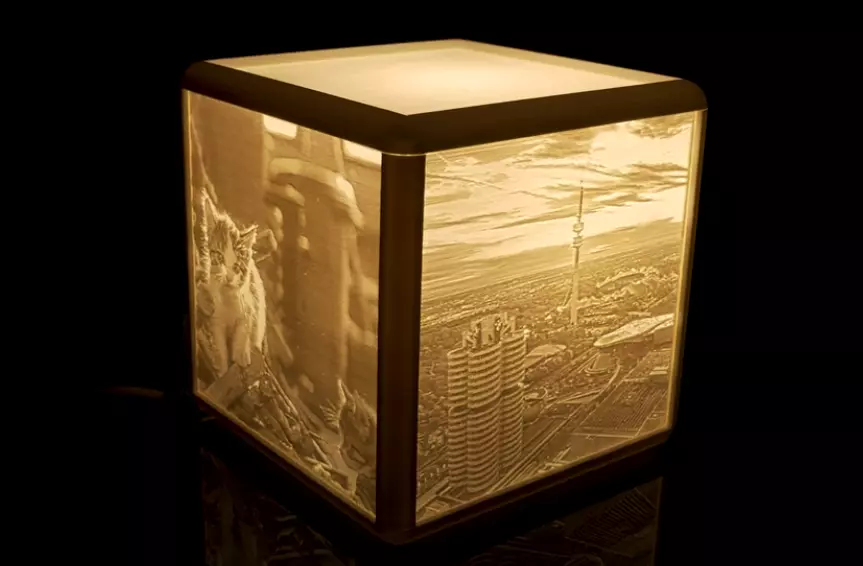

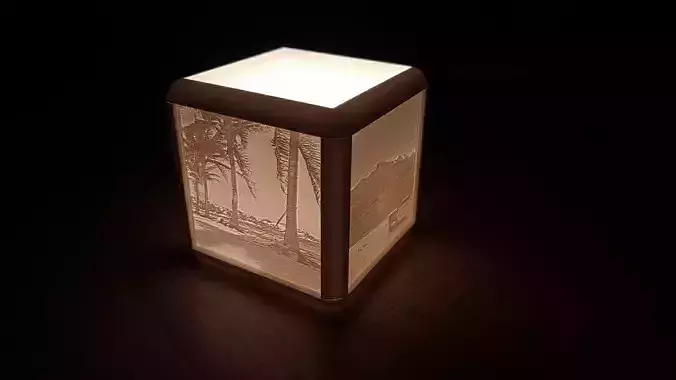

Lithophane lamp with own photo 3D print model

Print a lithophane lamp with your own photos!

Great as present or for your own use.

The data contains the frame (last photo). You also need a lamp holder and your fotos as 3d printable objects. Take care that your photos are in 1:1 format. The parts are available as stl and obj.

The lamp holder you can buy for example here: https://bit.ly/3e8C4GP It's a standard E14 lamp holder.

You can convert your photos into lithophanes for example here: (there are also lots of other converters in the internet) https://tool.itslitho.com/CreateModel

Model Settings: Shape: Plane Width: 120mm Height: 120mm Min Thick: 0,8mm Max Thick: 2,4 mm Frame: Frame Thickness (Frame): 3mm Depth (Frame): 2mm Angle: 0 Deg mm per pixel: layer height you use

Printing Settings layer height: maximum 0.15 nozzle diameter: 0,4 mm printing speed: 40 mm/s material: PLA filament color: white
