Wall bracket - 3D print model

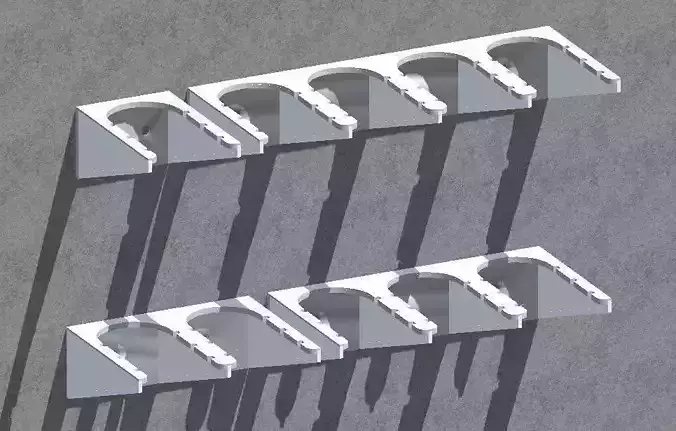

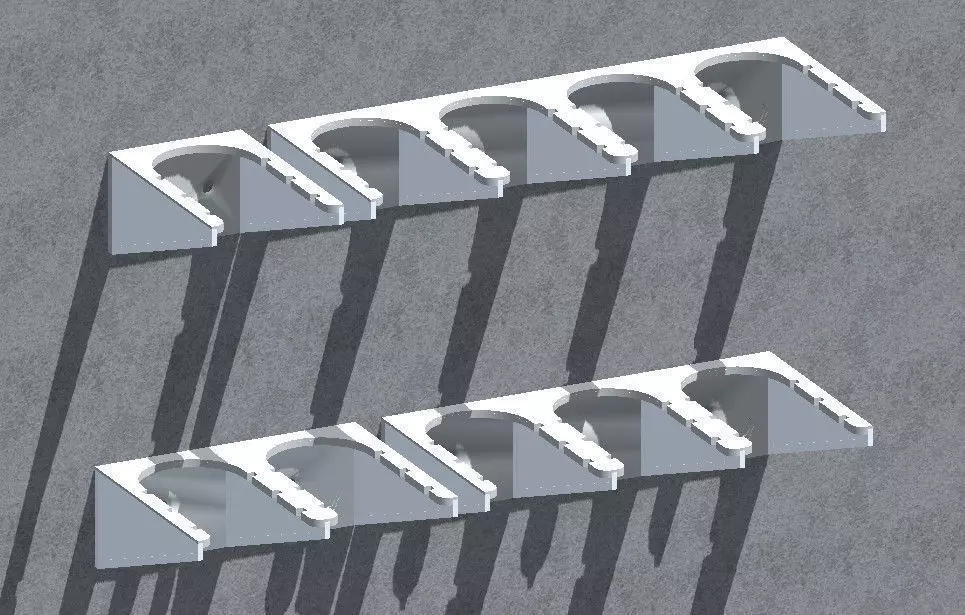

This wall brackets are suitable to boxes (semicircle at the ends) with w/l ca. 4,0 x 10,0 cm,
fits eg:

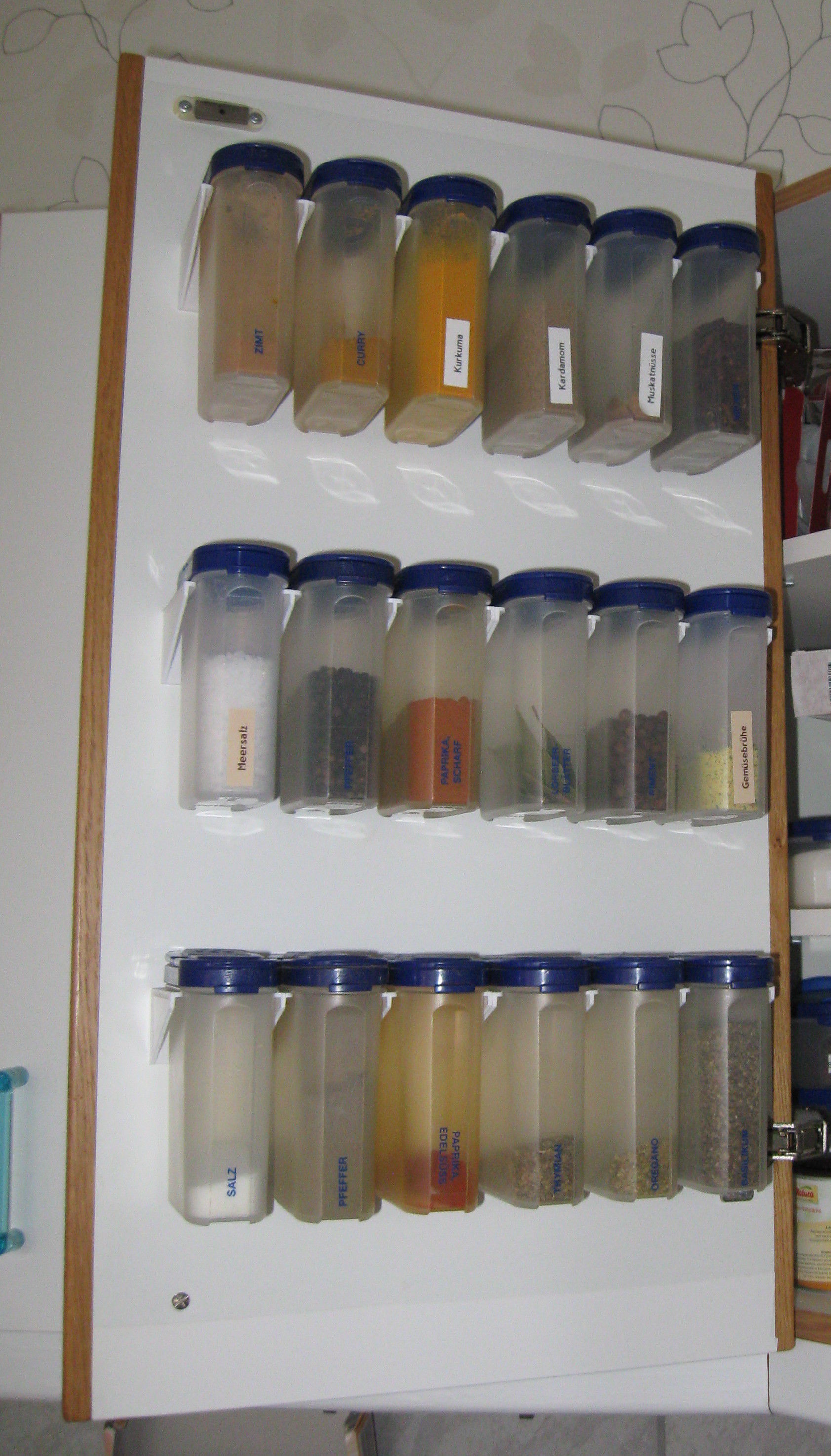

- "Giant Spice Shaker" from Tupperware and
- a box from Leorzx.

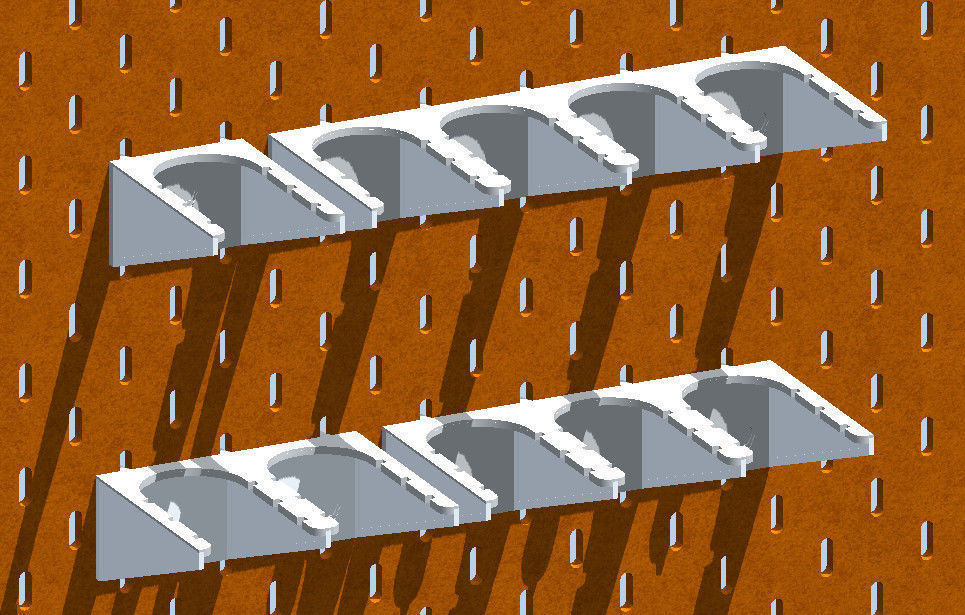

Contains a version with screw mounting and one compatible to the Ikea pegboard "Skadis"
for 1er, 2er, 3er and 4er wall brackets.

The 3d-model is drawn in cm, but perhaps you have to import the stl-file in mm in your programm.

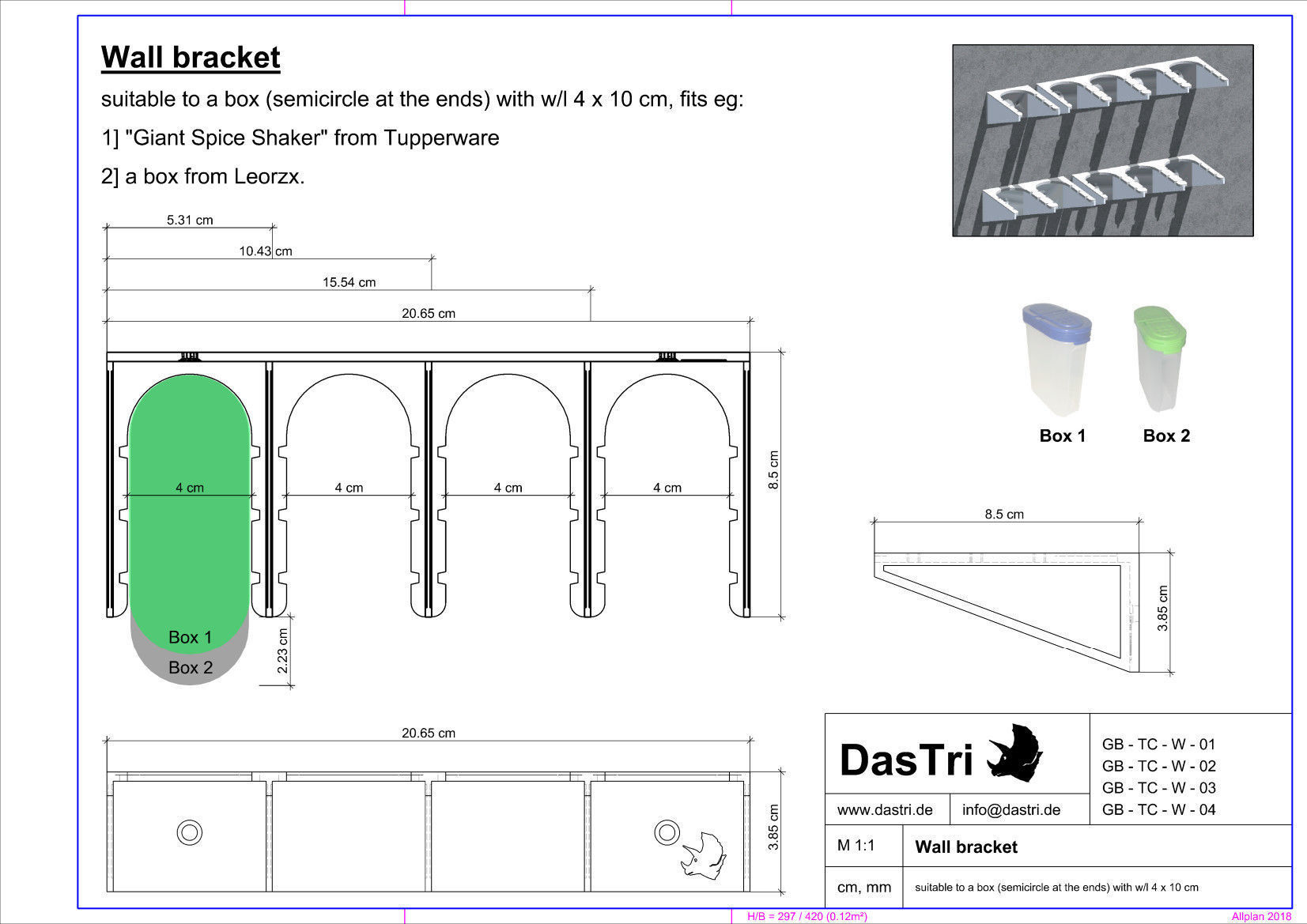

Printing Information Wall bracket (screw mounting)
GB - TC - W - 0:
Infill 33%, Build time 1h07, Filament length 5307.0 mm, Plastic weight 15.96g (0.04 lb)
GB - TC - W - 02:
Infill 33%, Build time 1h53, Filament length 9498.6 mm, Plastic weight 28.56g (0.06 lb)
GB - TC - W - 03:
Infill 33%, Build time 2h40, Filament length 13675.3 mm, Plastic weight 41.12g (0.09 lb)
GB - TC - W - 04:
Infill 33%, Build time 3h28, Filament length 17857.5 mm, Plastic weight 53.69g (0.12 lb)

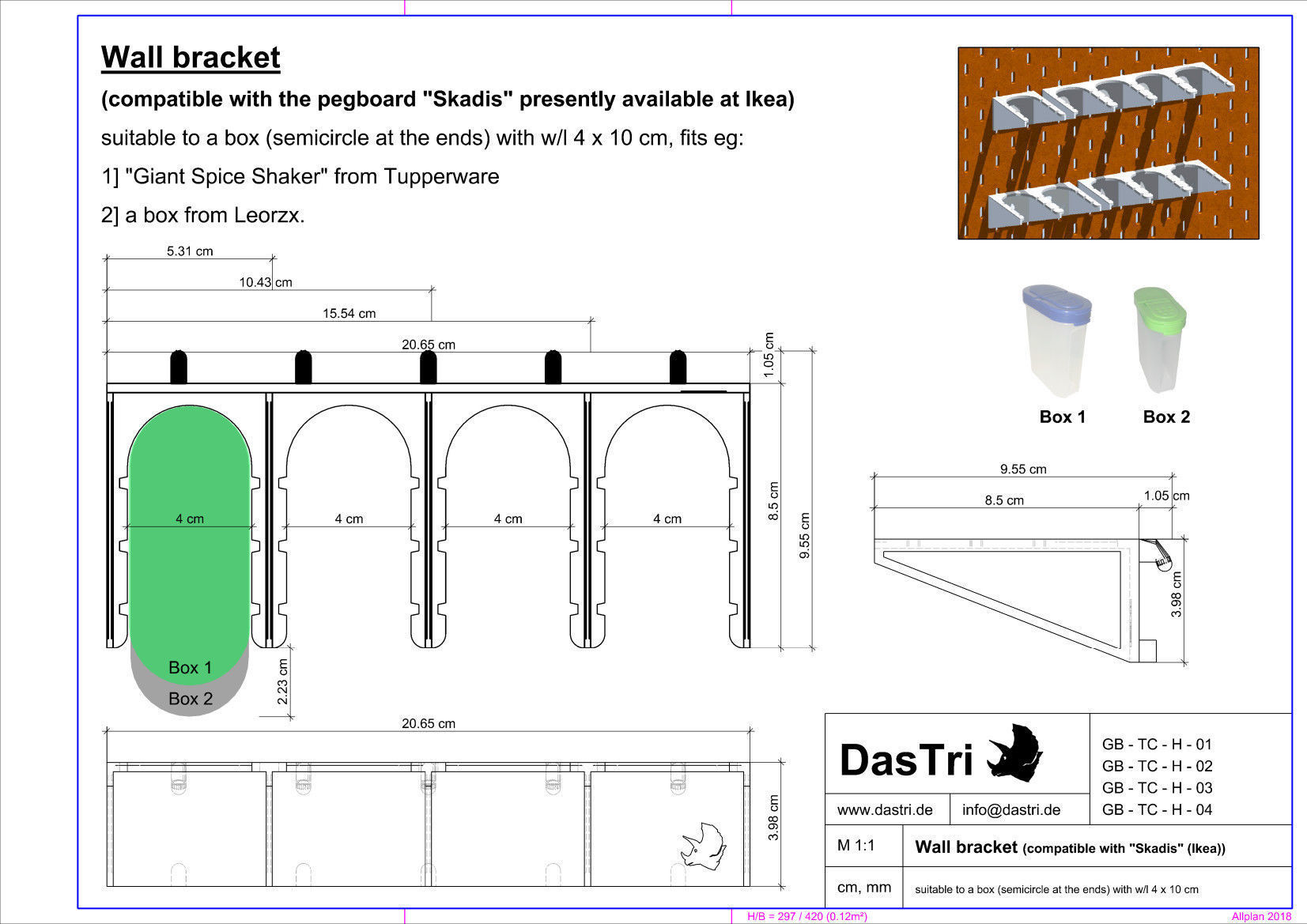

Printing Information Wall bracket (compatible to "Skadis" (Ikea))
The area of fixing should be print with 90% infill (results of my tests with PLA),
because otherwise it could break.
GB - TC - H - 01:
Infill 33%, Build time 1h11, Filament length 5761.7 mm, Plastik weight 17.32g (0.04 lb)
GB - TC - H - 02:
Infill 33%, Build time 2h00, Filament length 10142.7 mm, Plastik weight 30.49g (0.07 lb)
GB - TC - H - 03:
Infill 33%, Build time 2h50, Filament length 14503.1 mm, Plastik weight 43.61g (0.10 lb)
GB - TC - H - 04:
Infill 33%, Build time 3h40, Filament length 18782.4 mm, Plastik weight 56.47g (0.12 lb)
