Description

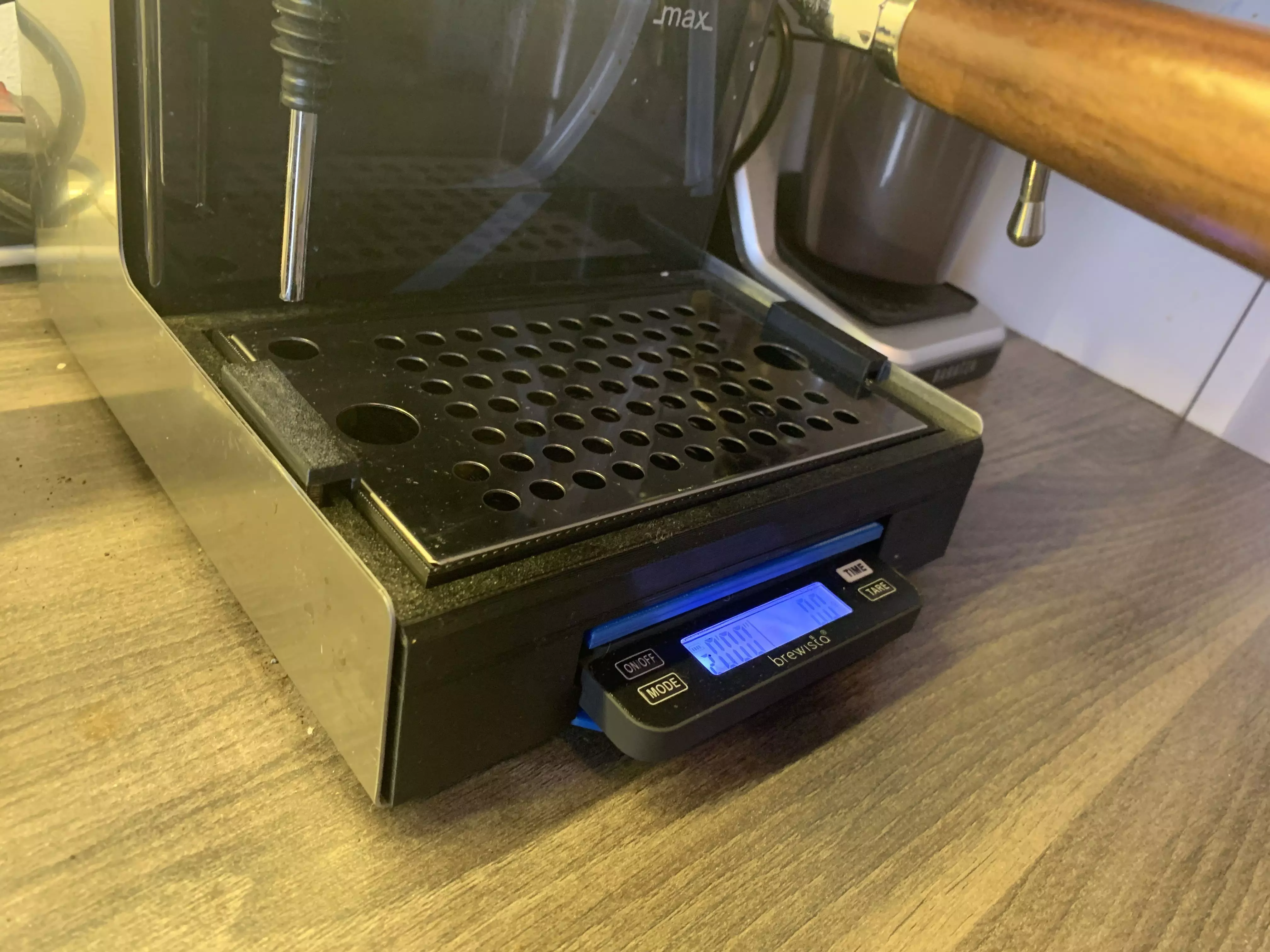

This drip tray is 8mm shorter then the stock one. It's also fits Brewista Smart Scale II making the Gaggia Classic Pro much easier and nicer to use. The drip tray is constructed in such a way that only the weight of the coffee cup is transfered to the scale, making the measurements more precise.

Parts needed: 8x nuts and bolts size: m3, lenght: 6mm - 10mm type: hex socket like these: https://www.amazon.com/Socket-Screws-Available-Stainless-Machine/dp/B08P6DYH7V

Print tips: Most important tip: If printing in ABS - scale parts to 101% - 102%

Main Body.3mf - Use ABS or ASA for high temperature resistance (PET-G should be fine too) Layer height : 0.2mm Perimeters: 3 (drop to 2 if having problems with warping) Solid Layers top and bottom: 6 - 8 Infil: 15% Brim: Yes Supports: Build plate only Support pattern: Rectilinear grid - very important for ABS printing in enclosure: recommended

Top plate.3mf - Use ABS, ASA for high temperature resistance, ABS recommended but PET-G is acceptible Infil: 40% Brim: Yes Supports: Build plate only Support pattern: Rectilinear grid - very important for ABS printing in enclosure: recommended for ABS

Bottom.3mf and Scale top.3mf - Any material will be ok, recommended PLA for stiffenes.

Item rating
0 0
Gaggia Classic Pro slim drip tray with integrated scale
$10.00

Royalty Free License
Gaggia Classic Pro slim drip tray with integrated scale
$10.00

Royalty Free License
Response 100% in 29.2h

3D Model formats

Format limitations
  • 3D Manufacturing File (.3mf) (4 files)146 KBVersion: 31Version: 31Version: 31Version: 31

3D Model details

  • Publish date2021-10-27
  • Model ID#3349974
  • Ready for 3D Printing
