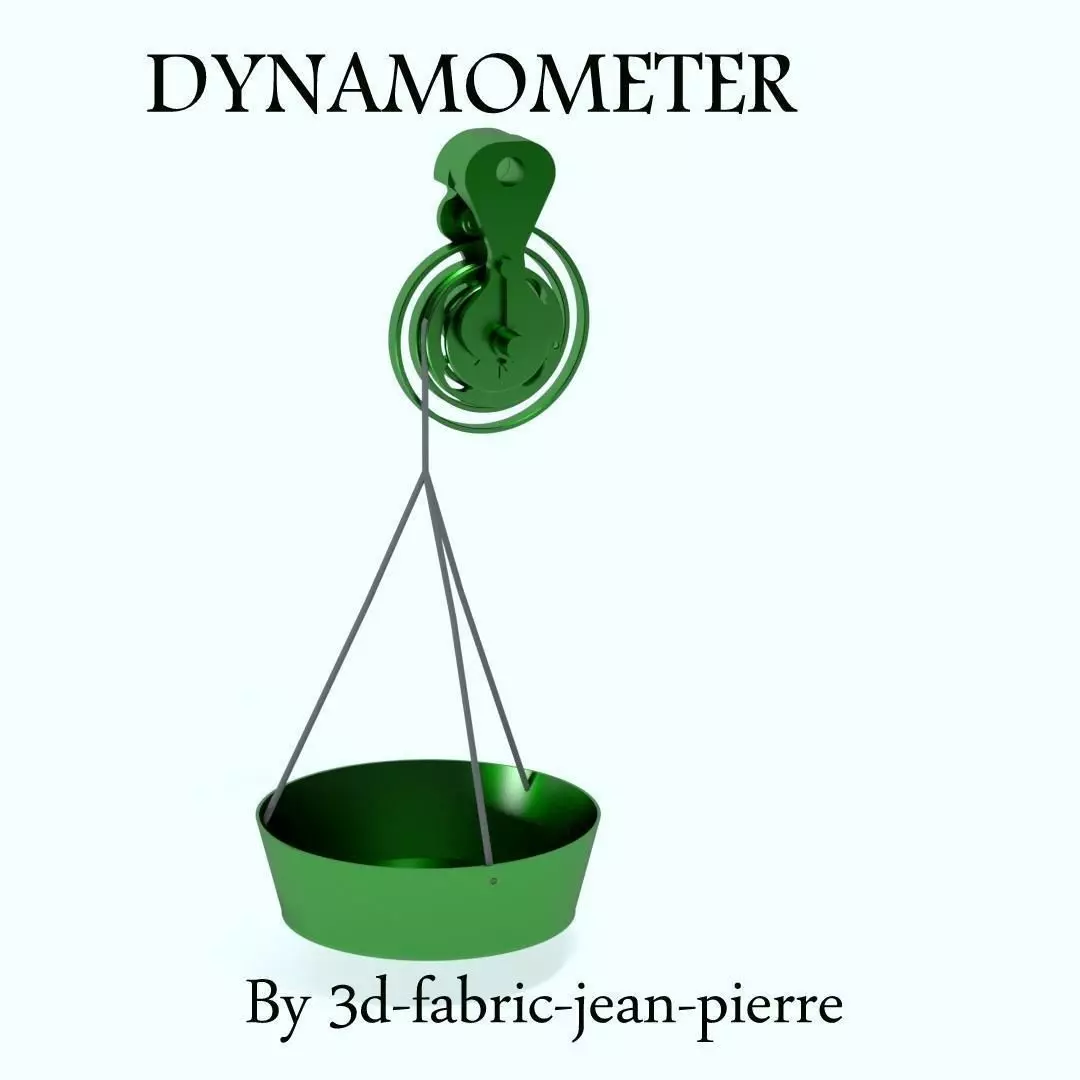

Dynamometer clock 3D print model

The dynamometer makes it possible to measure a weight, it is a kind of weighing machine. Very useful in the kitchen or in the workshop, it may become an indispensable tool. Just hang it up and wrap a wire around the pulley to make several turns (anticlockwise, arrow towards oneself) Designed for a maximum force of 1 DaN (1 Kilogram), the eight graduations of the tray allow to get an idea of the suspended weight.

It is made entirely of PLA (ASTM D882 test: 3310 MPa (MD), 3860 MPa (TD)).

The exploded view will guide you in assembling this set.

Most elements must be printed 3d flat except the axis that must be printed vertically (with a large brim to anchor it).

Extruder: 200 ° C and bed: 55 ° C Layer height: 0.3 mm Vertical shells, perimeter: 3 Horizontal shells, solid layer top: 3 and bottom: 3 Fill density: 20% No support material Speed perimeters: 45 mm / s
