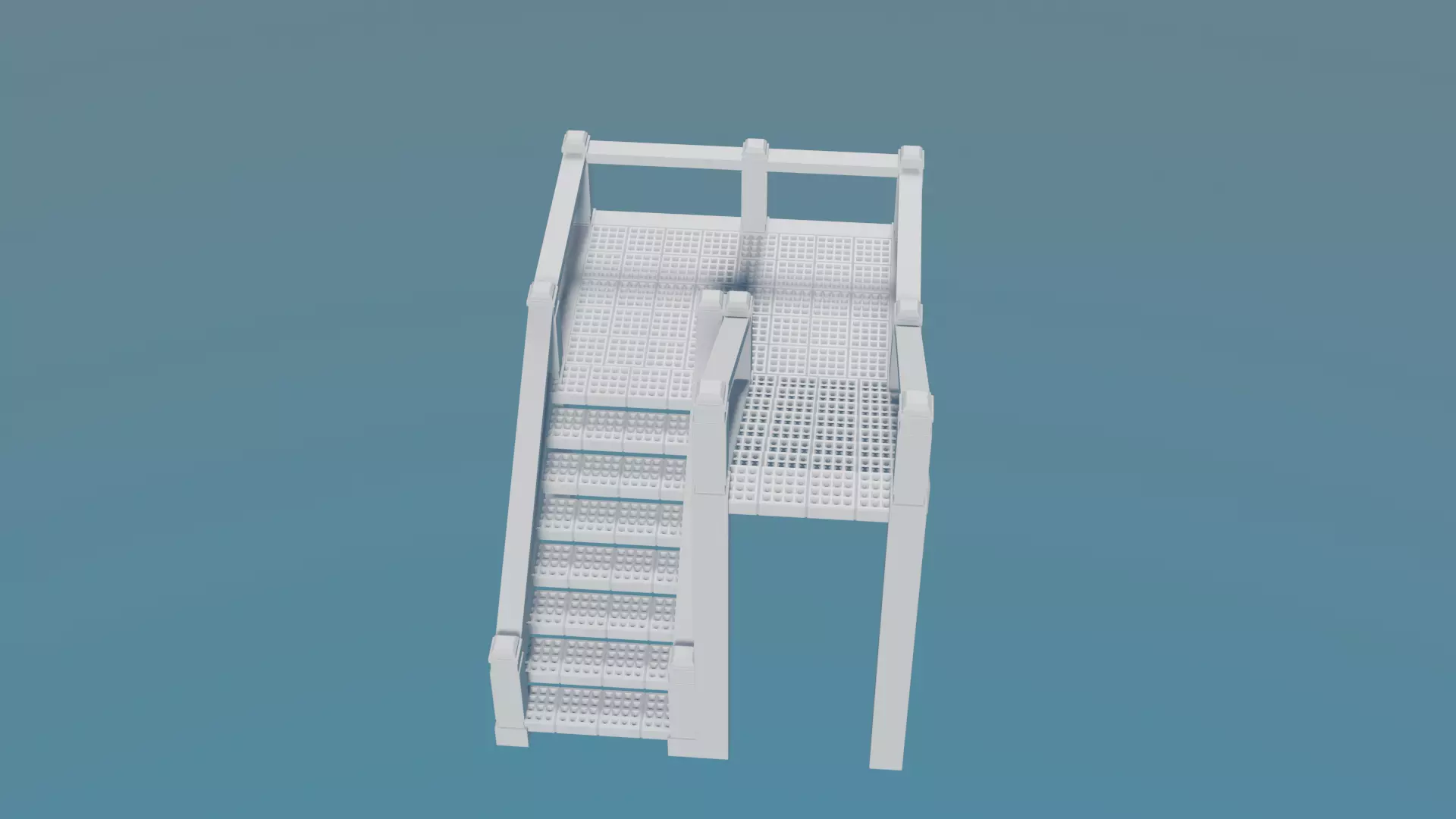

Bring futuristic architecture to your next 3D printing project with this unique Sci-Fi Staircase.

Designed for dioramas, tabletop games, miniature displays, science fiction scenes, and creative decoration, this model features a clean futuristic design with detailed steps and modern architectural elements.

The staircase is easy to print and can be scaled to fit different miniature sizes. It is perfect for science fiction environments, space stations, futuristic buildings, cyberpunk scenes, or display collections.

FeaturesOriginal futuristic staircase designOptimized for FDM and Resin printingEasy to printClean geometryDecorative and collectible modelGreat for dioramas and tabletop gamingThis model is intended for decorative use and miniature environments.

Enjoy printing!

3D printing settingsSettings and Manufacturing Instructions3D Resin Printing

Recommended printer: MSLA / LCD / DLP resin 3D printer

Recommended resin: Standard, ABS-like or tough resin

Recommended settingsLayer Height: 0.05 mmBottom Layer Count: 5–6 layersBottom Exposure: 25–35 secondsNormal Exposure: 1.8–2.5 secondsLift Distance: 5–7 mmPrint Speed: 40–60 mm/minInfill: 100%Anti-Aliasing: 2–4Supports: Recommended for areas with overhangs and suspended detailsOrientation: Rotate the model approximately 20–45° when necessary to reduce large cross-sections and improve support placement.Resin printing recommendations

For the best results, use a 0.05 mm layer height for the small mechanical and sci-fi details.

After printing:

Remove the model carefully from the build plate.Wash the print according to the resin manufacturer's instructions.Remove supports carefully.Allow the model to dry completely.Cure according to the resin manufacturer's recommended curing time.Sand or clean support marks if necessary.

Important: Exposure times vary depending on the printer, resin, screen type and resin temperature. Perform an exposure calibration test before printing a large batch.

FDM / Filament 3D Printing

Recommended printer: FDM / FFF 3D printer

Recommended filament: PLA, PLA+, PETG or ABS

Recommended settingsNozzle: 0.4 mmLayer Height: 0.12–0.20 mmFirst Layer Height: 0.20 mmWall Count: 3–4 wallsTop Layers: 4–6Bottom Layers: 4–6Infill: 10–20%Printing Speed: 40–60 mm/sNozzle Temperature: Follow the filament manufacturer's recommendationBed Temperature: Follow the filament manufacturer's recommendationSupports: Enable where required by the slicerSupport Overhang Angle: Approximately 45°Build Plate Adhesion: Brim recommended when additional adhesion is necessaryFDM quality recommendation

For better reproduction of the staircase's small details, use:

0.12 mm layer height + 0.4 mm nozzle + 3–4 walls

For an even more detailed result, a 0.25–0.3 mm nozzle can be used, although printing will take longer.

Scaling

The STL can be scaled in the slicer according to the desired final size.

Original approximate dimensions:

X: 20.1 mmY: 30.6 mmZ: 24.0 mm

When increasing the model size, the small details become easier to print, especially with FDM.

For FDM printing at the original size, some details may be too small depending on the printer's nozzle diameter and extrusion settings.

Recommended Manufacturing Method

Best detail: Resin printingBest for larger models: FDM printingBest material for easy printing: PLABest material for durable FDM parts: PETG / ABSBest material for miniature/detail: Standard or ABS-like resin
