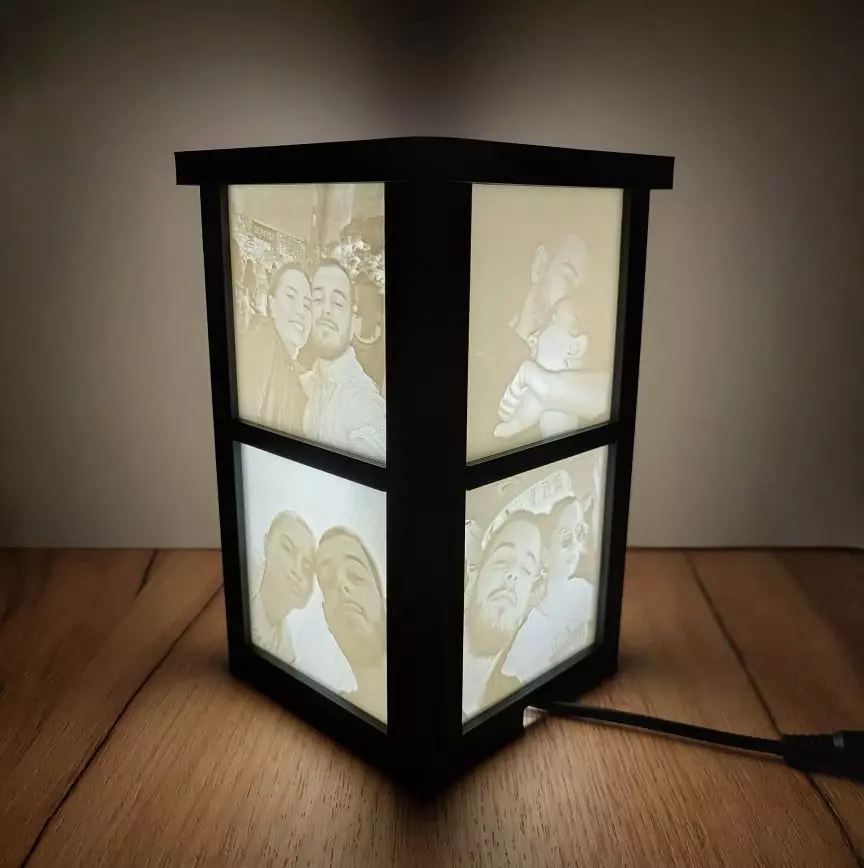

Lithophane box 3D print model

Lithophane box holding 8 lithophanes. This design uses 70-80cm of a LED strip, which is revolved around a cylinder on the lithophane base. No glue or screws is needed to secure the components. Everything fits together like a jigsaw.

The dimensions of the lithophane lamp are 100x100x170mm The lithophanes need to be 76x76x3mm dimensions. It is recommended that you use a 2mm frame for the lithophanes so it is a perfect fit. The lithophane base is printed with 0.2mm layer height for good surface quality and printing time.
