COMMERCIAL LICENSE NOTE
This is a commercial model with an included STEP file for further customization. The license allows you to print and sell physical 3D-printed versions of this model, but does not permit reselling or redistributing the digital 3D file itself.

INCLUDED FILE FORMATS

• STEP (.step / .stp) - Fully editable CAD file for modifications and custom printer tolerance tuning.
• STL (.stl) - Standard ready-to-print 3D model file.
• 3MF (.3mf) - Pre-configured slicer project file.

DESCRIPTION

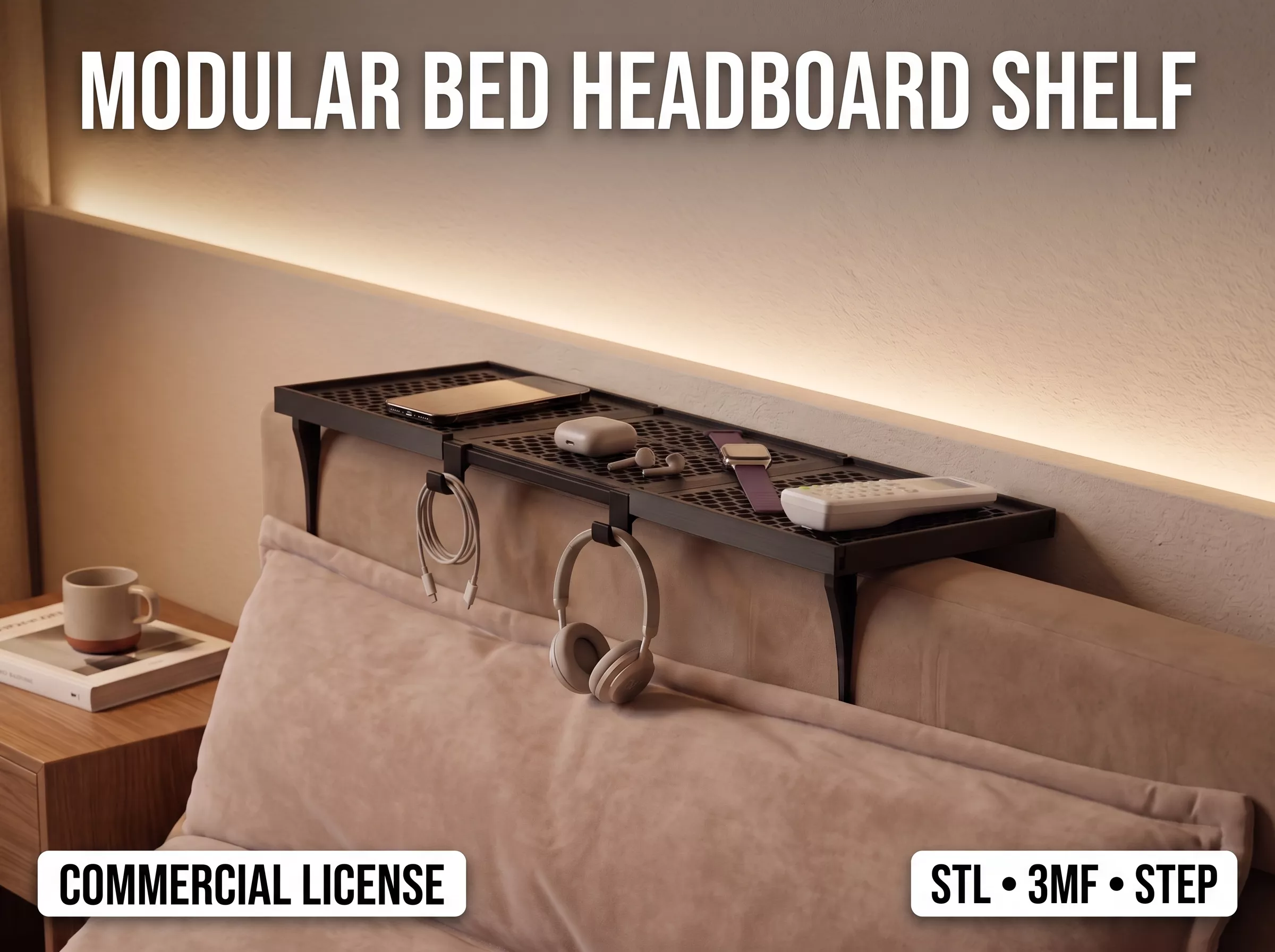

Keep your bedside essentials - phone, watch, books, or glasses - always within reach with this fully modular headboard shelf system. Designed for maximum versatility, it securely clamps onto bed headboards of various thicknesses without requiring screws or glue.

FEATURES
Designed for maximum practical organization and convenience, this model includes:

• Toolless Heavy-Duty Clamping: Clamps onto headboards securely using sliding legs and a ratchet lock mechanism without screws or glue.
• Modular Dovetail Expansion: Features a center locking key system allowing multiple 20 cm main platforms to connect seamlessly.
• Customizable Side Edges: Side caps can be used with raised borders to prevent sliding or flipped upside down for a completely flush surface.
• Snap-On Hanging Hooks: Optional accessories attach along dovetail slots for hanging charging cables, headphones, or items.
• Secure Ratchet Lock: Flexible tabs snap into built-in tooth slots along the bottom track to prevent slipping or wobbling.

TECHNICAL SPECIFICATIONS
Key dimensional, functional, and structural parameters for this model are listed below:

Included Components
This 3D printable model package includes the following items:

• Main Shelf Platform: 20 cm x 20 cm modular shelf base with dovetail slots.
• Sliding Clamp Legs: 10 cm adjustable legs with flexible ratchet locking tabs.
• Side Border Caps: Reversible side caps for raised or flush shelf configurations.
• Connecting Keys: Dovetail locking pins to join multiple shelf platforms.
• Snap-On Hooks: Removable utility hooks for hanging accessories.

Dimensions & Compatibility

• Single Shelf Module Dimensions: ~200 x 200 mm.
• Clamp Leg Length: 100 mm.
• Headboard Compatibility: Fits most standard bed headboards up to ~200 mm thickness.
• Mechanical Features: Tight-tolerance dovetail tracks and integrated tooth slots for ratchet positioning.

HOW TO ASSEMBLE
Follow these simple step-by-step instructions to assemble and mount the shelf:

1. Platform Connection: Join multiple 20 cm main platforms together using the center dovetail locking keys if extending shelf length.
2. Side Cap Installation: Insert side caps into the outer edges (oriented upwards for a border rim or inverted for a flush top surface).
3. Clamp Attachment: Slide the 10 cm clamp legs into the bottom dovetail tracks.
4. Mounting: Place the shelf over the bed headboard and push the clamp legs until the ratchet tabs lock firmly in place.
5. Accessories: Snap optional hanging hooks onto the side dovetail slots as needed.

RECOMMENDED PRINT SETTINGS
For optimal print quality, structural durability, and functional performance, use the following slicer settings:

• Material: PETG recommended for optimal clamp leg flexibility and strength (PLA suitable for light use).
• Layer Height: 0.2 mm (recommended for precise dovetail fit and ratchet tooth engagement).
• Infill: 20% for main shelf platforms; 30%+ for clamp legs and connecting keys.
• Wall Loops: 5-6 wall loops (increased perimeters ensure maximum durability and clamping tension strength).
• Supports: Required ONLY for the main shelf platforms near the dovetail slots/joints (all other components print without supports).

USAGE & TIPS
Here are key instructions and operational tips for optimal performance:

• PETG is strongly recommended for clamp legs to ensure long-term spring elasticity in the ratchet tabs.
• Apply support structures strictly to the dovetail joint areas of the main platforms for clean overhang generation.
• Due to print bridge and support behavior, initial assembly fit may feel snug. Assemble carefully on the first try.
